| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZBRA |

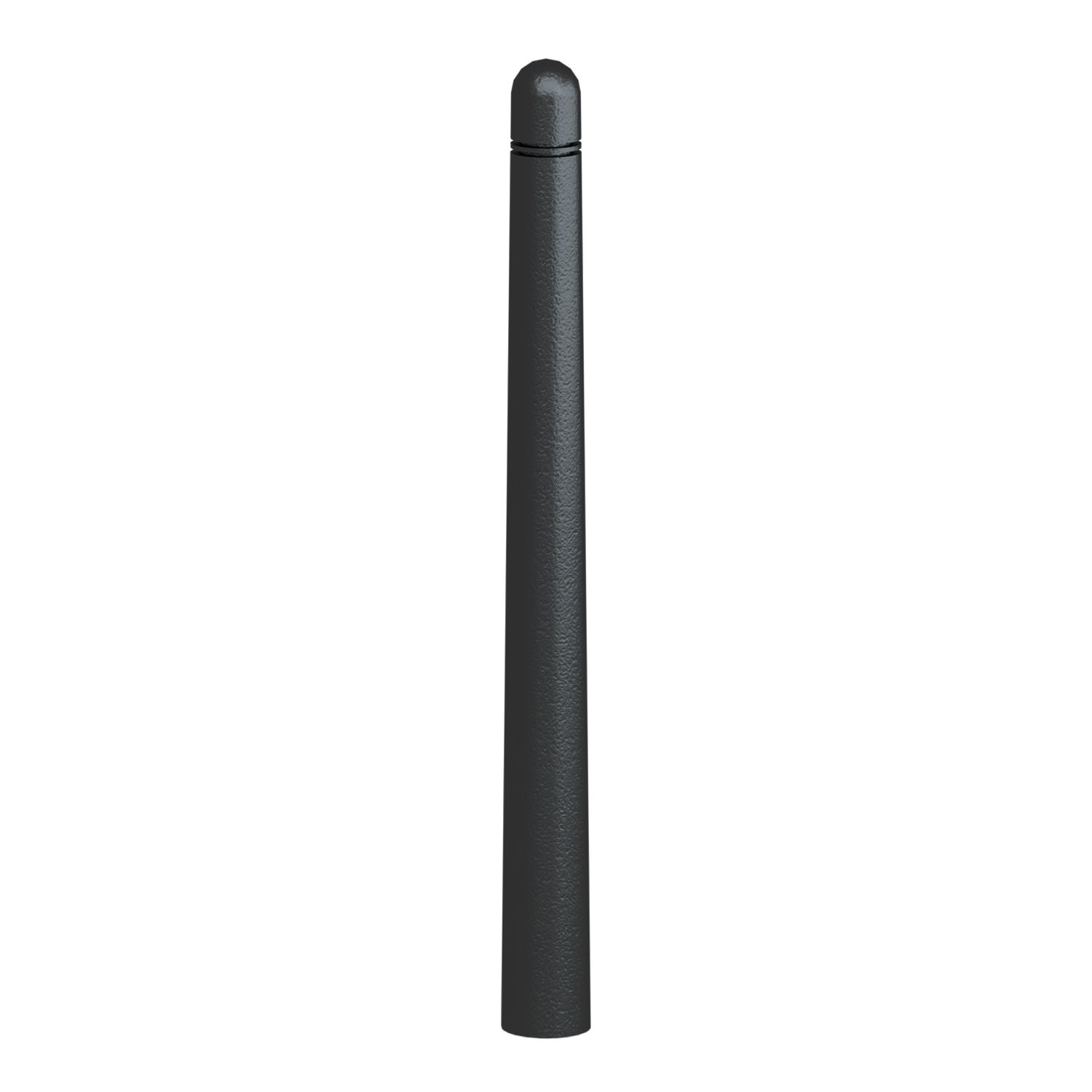

| Product or component type | wireless and batteryless range |
| Colour of base of enclosure | black (RAL 9011) |
| Range of product | Harmony XB5R |
| Product destination | for XB5R and XB4R Ø 22 mm control units |
| Antenna type | omnidirectional |
| Complementary | |

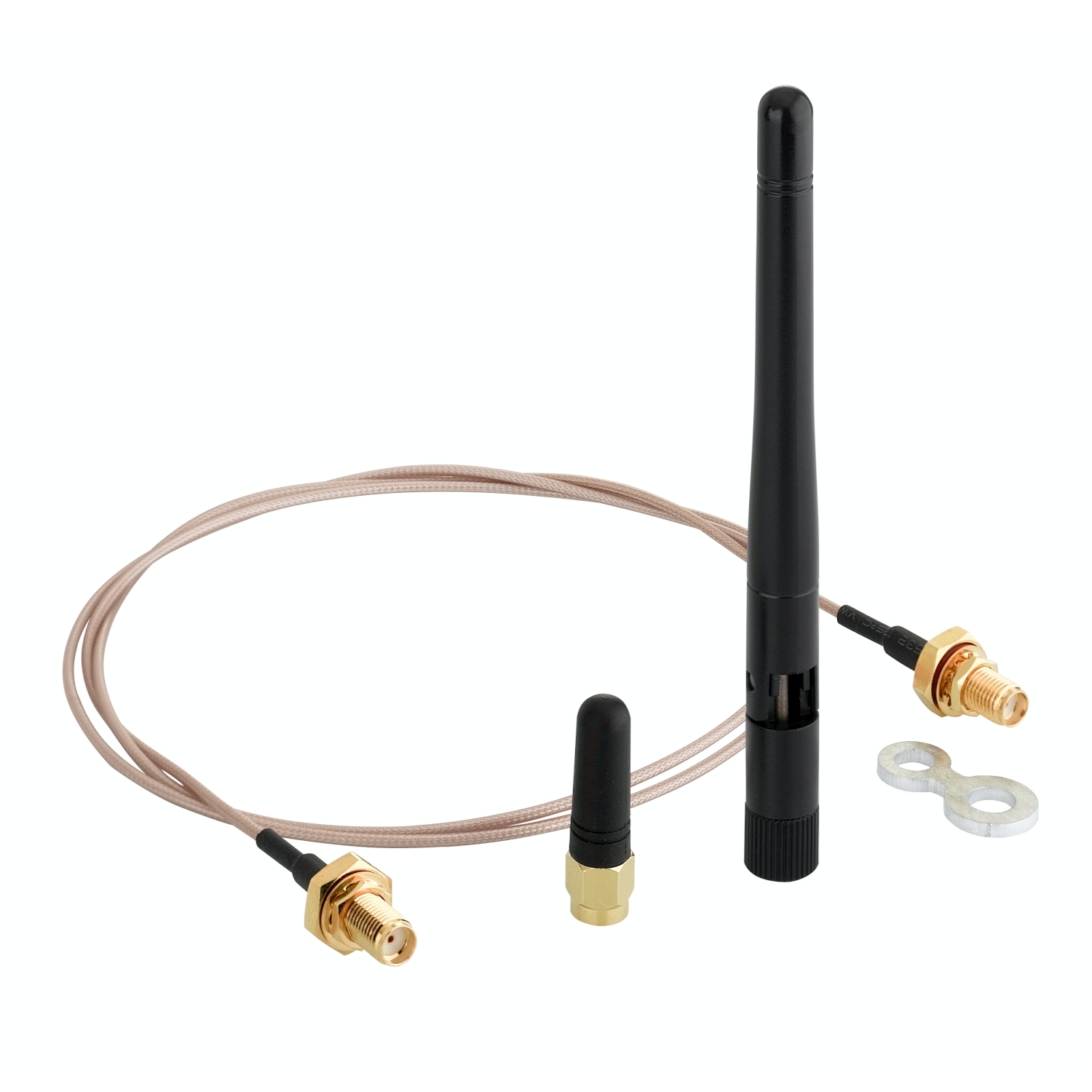

| Kit composition | antenna with cable 0.9 m |
| CAD overall depth | 1200 mm |
| CAD overall width | 13 mm |
| Input impedance | 50 Ohm |
| Maximum sensing distance | 10 m transmitters, receivers and relay-antenna |
| Connector type | SMA female |
| CAD overall height | 110 mm |
| Net weight | 0.035 kg |
| Communication port protocol | Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4 |
| Antenna gain | 3 dBi at 83-100 Hz |
| Electrical connection | cable 2.3-2.3 mm² - flexible - 0.9 m |
| Environment | |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Relative humidity | 90-90 % at -40-70 °C, without condensation conforming to ETSI EN 300 440-1 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Standards | IEC 60947-1, IEC 62262 |
| Product certifications | CE, CSA, UL |
