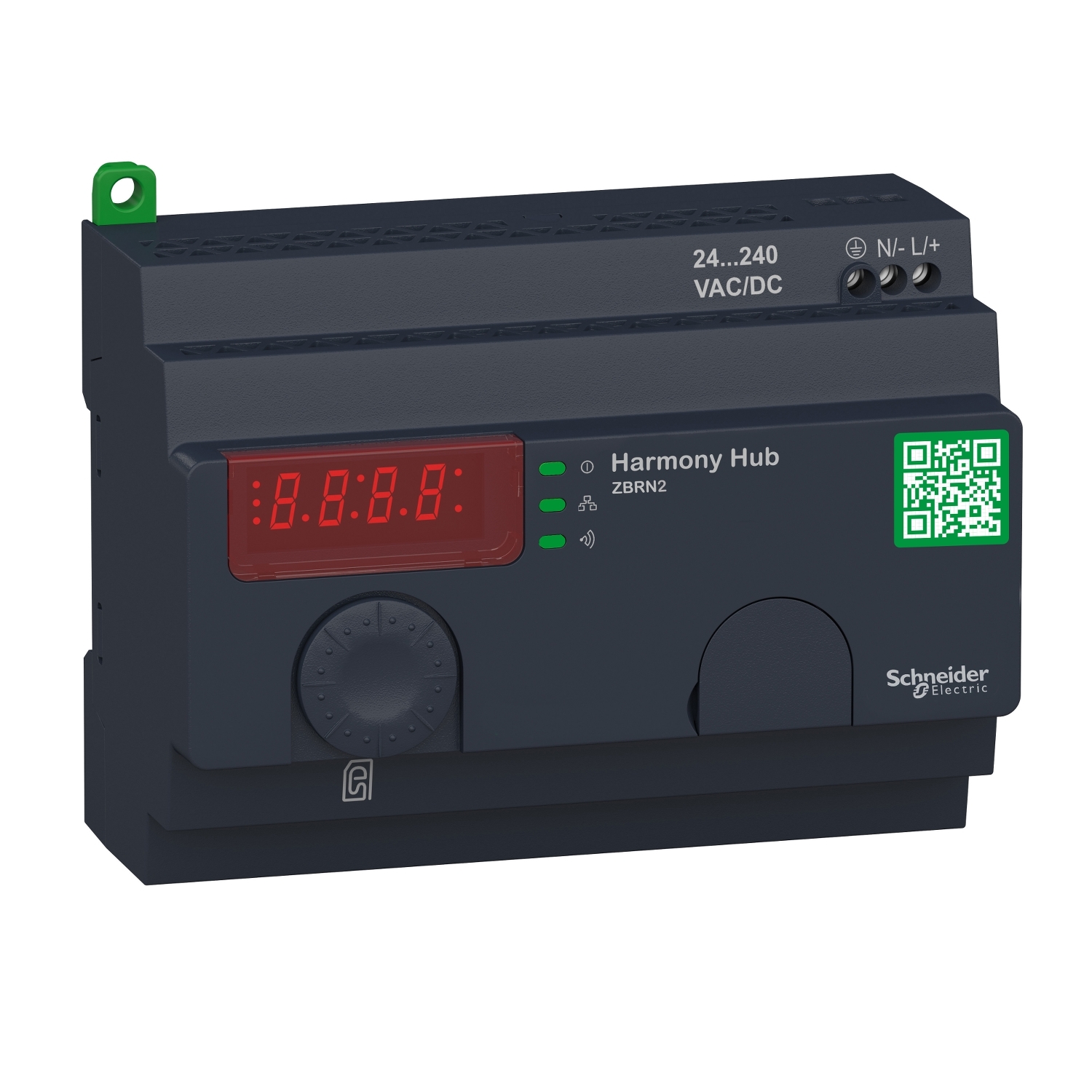

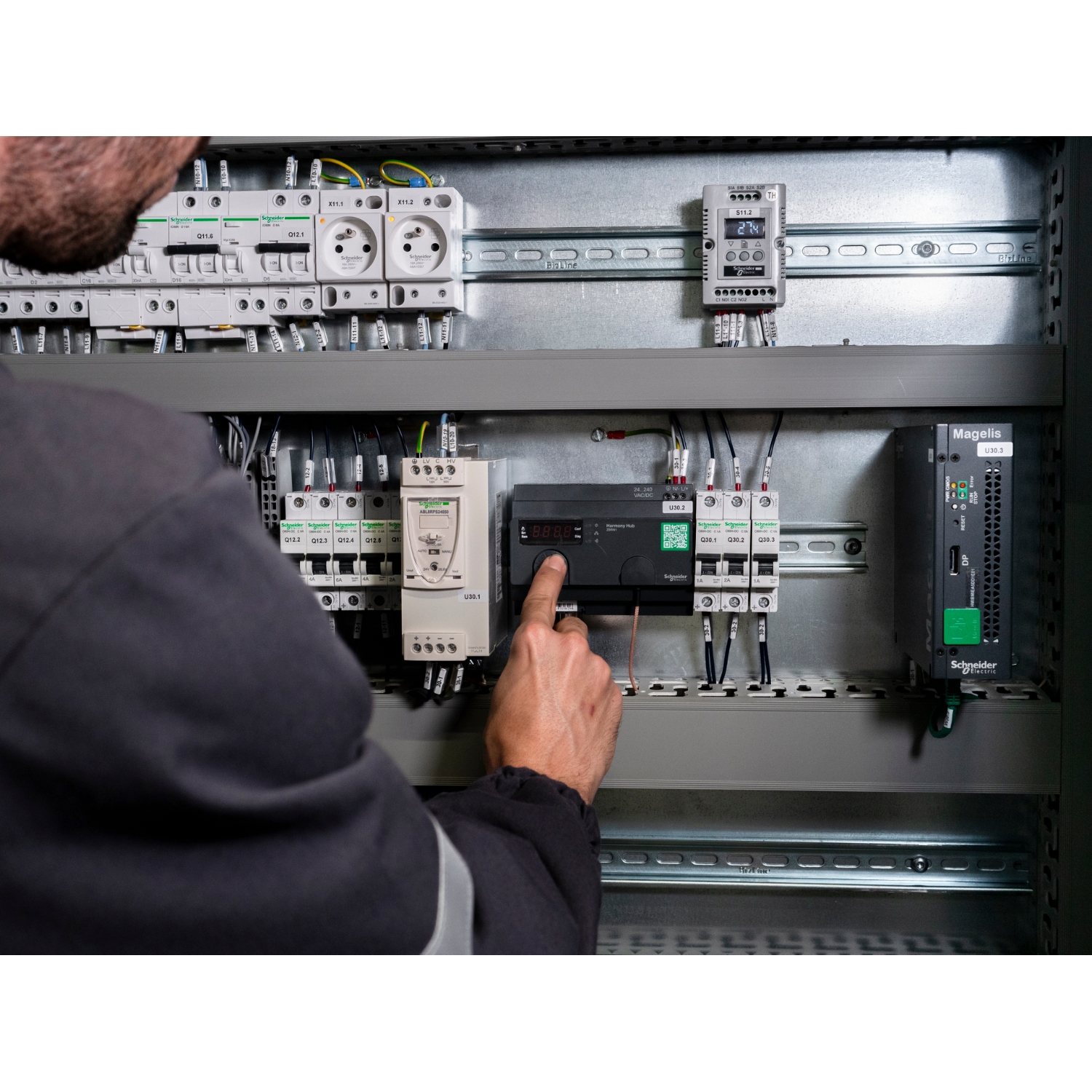

This harmony hub wireless/serial line gateway provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant and vibration resistant thanks to its IP20, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly High performance International standards & certifications (IP65)
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Transmission frequency | 2405-2480 MHz |
| Device short name | ZBRN2 |
| Function of module | Zigbee green power concentrator |
| Product specific application | Wireless Schneider Electric devices ecosystem |
| Communication port protocol | Modbus client application |
| Product or component type | Harmony Hub wireless/Serial Line gateway |
| Range of product | Harmony |
| Antenna type | integrated |
| Complementary | |
| Data storage equipment | SD card |
| Parity | odd, even, no |
| Maximum power consumption in W | 4 W AC/DC |
| Tightening torque | 3.09-3.54 lbf.in conforming to EN/IEC 60947-1, 0.35-0.4 N.m conforming to EN/IEC 60947-1 |
| Depth | 60 mm |
| Width | 122 mm |
| Control circuit frequency | 50...60 Hz +/- 10 % |
| Breaking capacity | 750 VA, 15 W |
| Housing material | self-extinguishing plastic |
| Mounting support | mounting plate, 35 mm symmetrical DIN rail conforming to EN/IEC 60715 |
| Maximum sensing distance | 25 m with Harmony Hub installed in a metal housing or in a closed metal enclosure, 60 m if an external antenna is connected to Harmony Hub, 250 m if a relay antenna is located between the transmitter and Harmony Hub, 100 m in free field |
| Rated short-duration power frequency withstand voltage | 1.5 kV 50 Hz conforming to EN/IEC 60947-5-1 |
| Surge withstand | 2 kV common mode conforming to IEC 61000-4-5, 1 kV differential mode conforming to IEC 61000-4-5 |
| Topology | devices linked by daisy-chaining or tap junctions |
| Net weight | 0.27 kg |
| Antenna gain | 0 dBi |
| Operating position | any position |
| Data format | 7 or 8 bits, 1 or 2 stop bits |
| Response time | < 30 ms |
| Immunity to microbreaks | 10 ms |
| Channels utilisation | <= 60 devices |
| Status LED | 1 LED green and yellow for reception signal, 5 LEDs red for function mode, 1 LED yellow for communication network, 1 LED green for power ON |
| Integrated connection type | 1 isolated serial link 2 x RJ45 in parallel Modbus Serial line slave Modbus slave RTU asynchronous in baseband RS485, half duplex, 1.2...115.2 kbauds, 2 twisted shielded pairs |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Short-circuit protection | 16 A GB2 circuit breaker |
| Height | 90 mm |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz - 10...10 % |
| Electrical connection | 2 conductors cable 0.2-2.5 mm² - AWG 24...AWG 18 - flexible - with cable end conforming to IEC 60947-1, 1 conductor cable 0.2-0.75 mm² - AWG 24...AWG 14 - flexible - with cable end conforming to IEC 60947-1, 2 conductors cable 0.2-1.5 mm² - AWG 24...AWG 16 - solid - without cable end conforming to IEC 60947-1, 1 conductor cable 0.2-4 mm² - AWG 24...AWG 12 - solid - without cable end conforming to IEC 60947-1 |
| Environment | |
| Dielectric strength | 2150 V between input and ground DC, 1500 V between input and ground AC, 4250 V between input and output DC, 3000 V between input and output AC |
| Operating altitude | 0...2000 m |
| Radio agreement | SRRC, RSS, category 1 conforming to ETSI EN 300 440-1, ICASA, FCC, category 2 conforming to ETSI EN 300 440-1, ANATEL, type III conforming to ETSI EN 301 489-3 |
| Relative humidity | 90-90 % at -25-55 °C, without condensation conforming to ETSI EN 300 440-1 |
| Ambient air temperature for storage | -40-70 °C |
| Directives | 1999/5/EC - R&TTE directive, 2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 (terminals), IP20 (casing) conforming to IEC 60529 |
| Vibration resistance | 2 gn (f = 8-150 Hz) on DIN rail conforming to IEC 60068-2-6, 1 gn (f = 5-150 Hz) on panel mounting conforming to IEC 60068-2-6, +/- 3.5 mm (f = 5-14 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27 |
| Electromagnetic compatibility | immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11, 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5 |
| Storage altitude | 0-3000 m |
| Standards | UL 508, EN/IEC 60950-1, ETSI EN 300 328, ETSI EN 300 440-2, EN/IEC 61131-2, EN 62311, CSA C22.2 No 14 |
| Product certifications | CCC, CSA, C-Tick, UL, CE, GOST |
Only registered users can write reviews
Related products

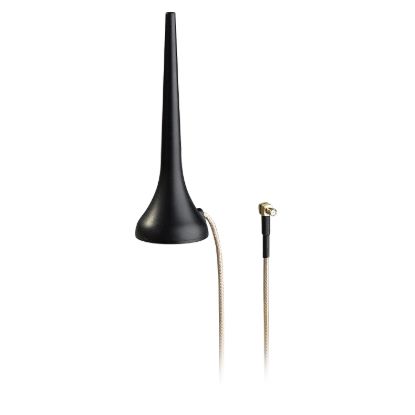

External antenna for harmony Hub ZBRN1 and ZBRN2, Harmony XB5R, 2m cable, 1 radio frequency connector
