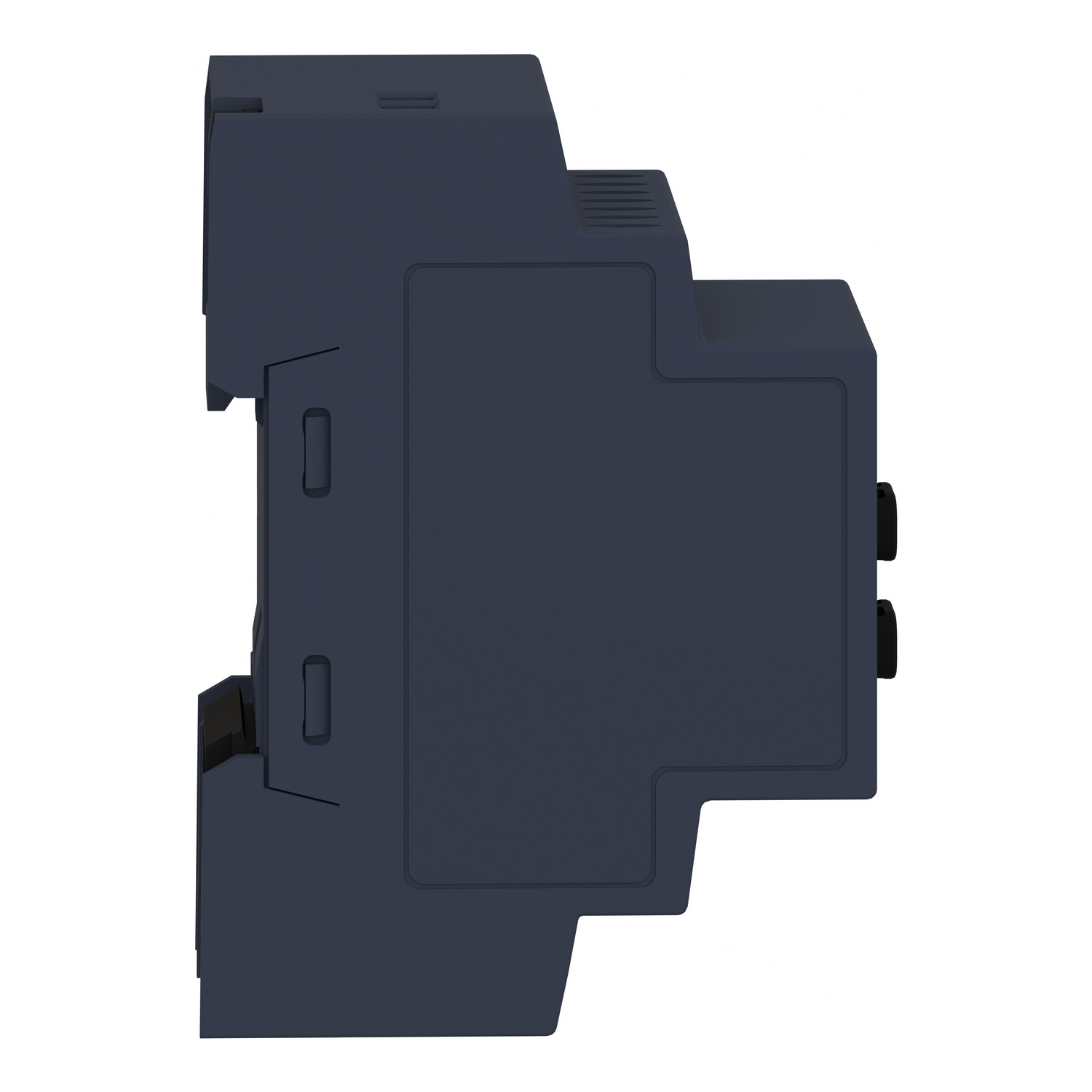

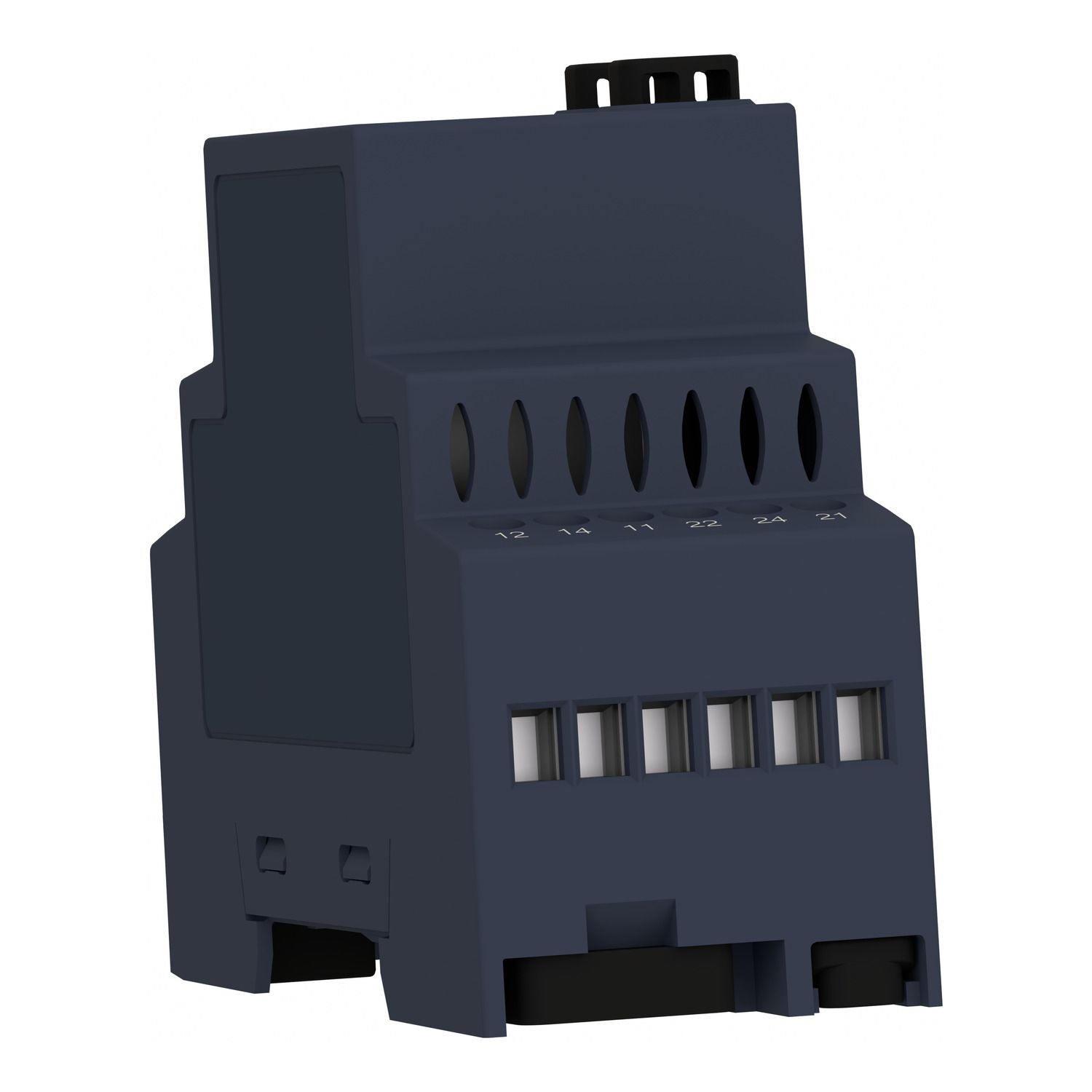

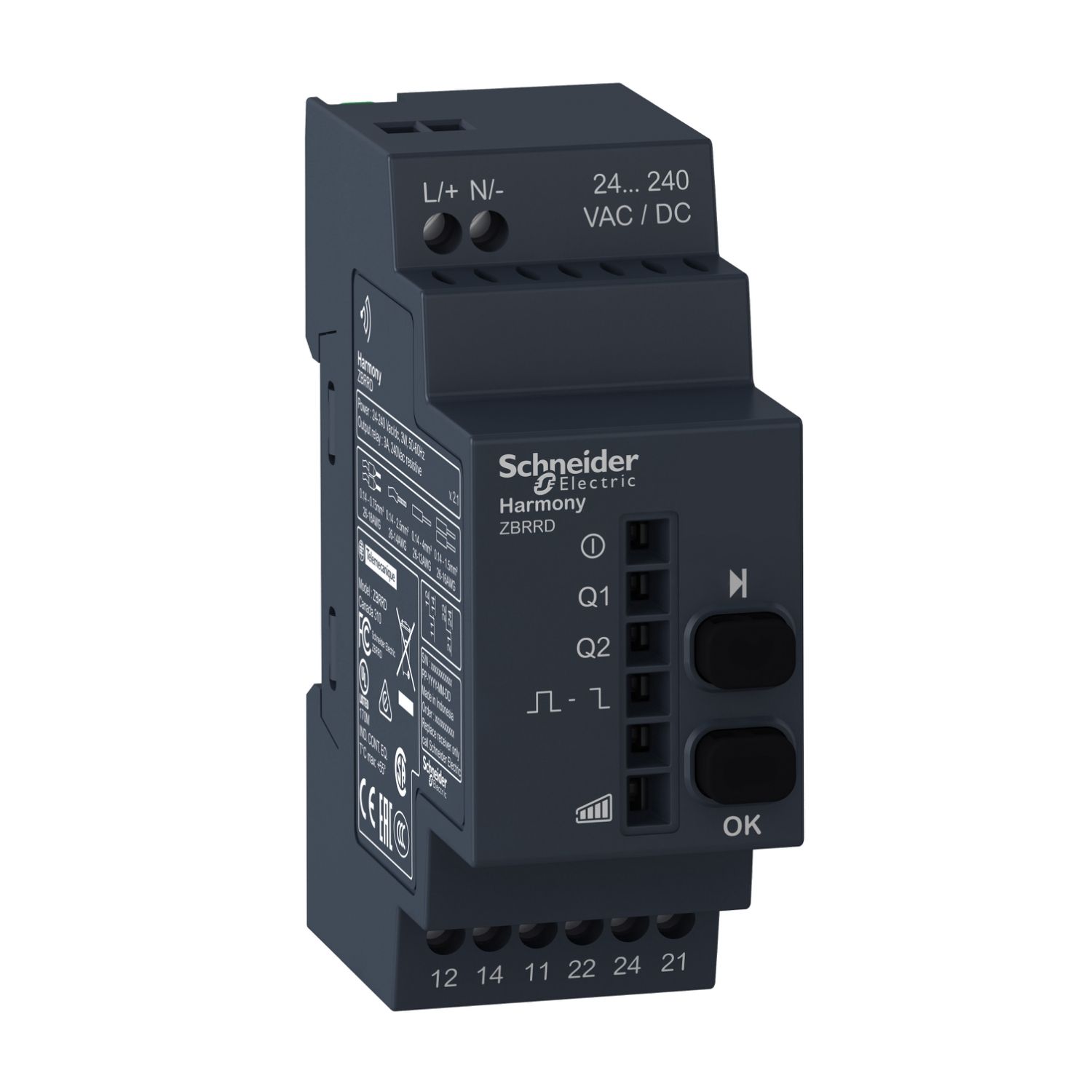

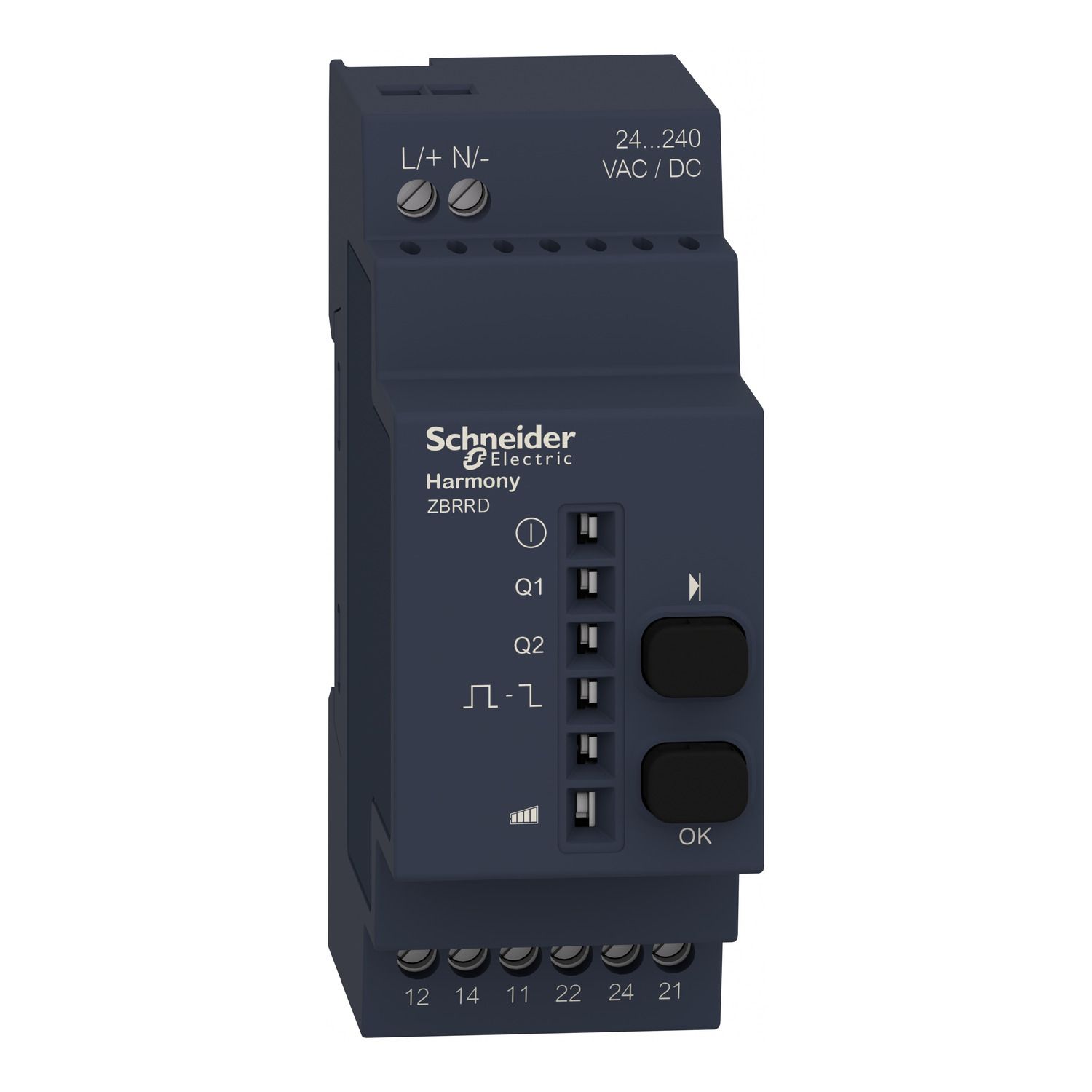

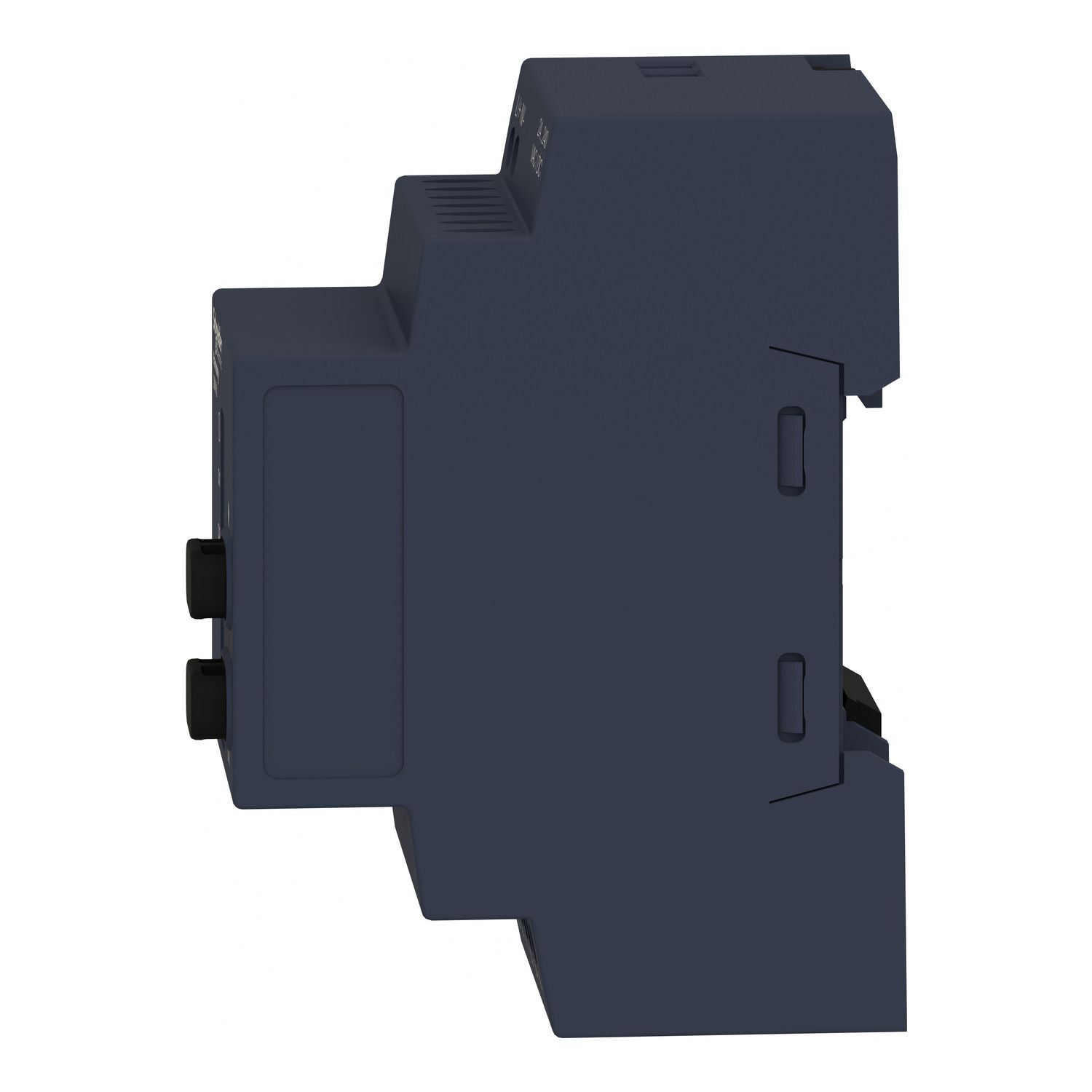

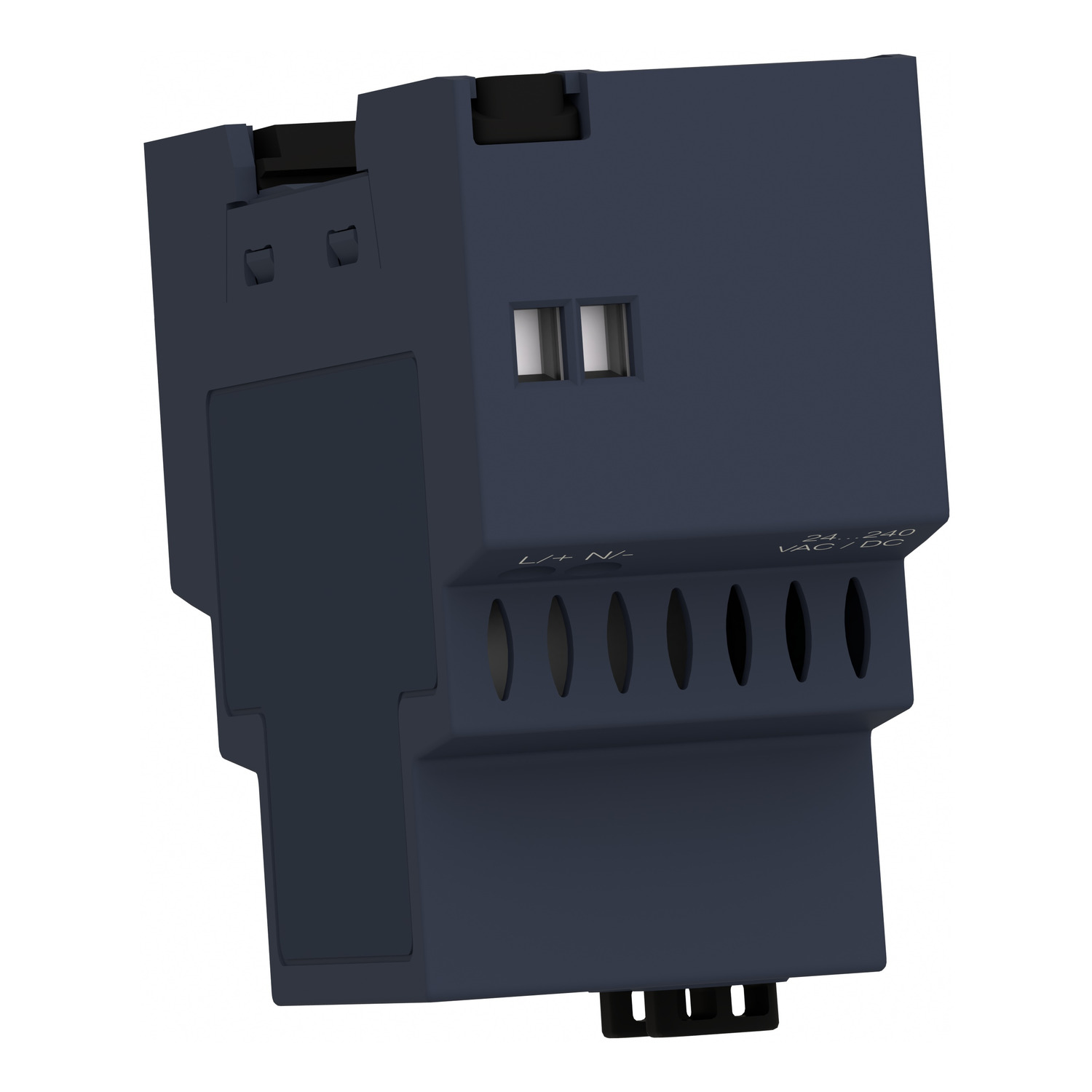

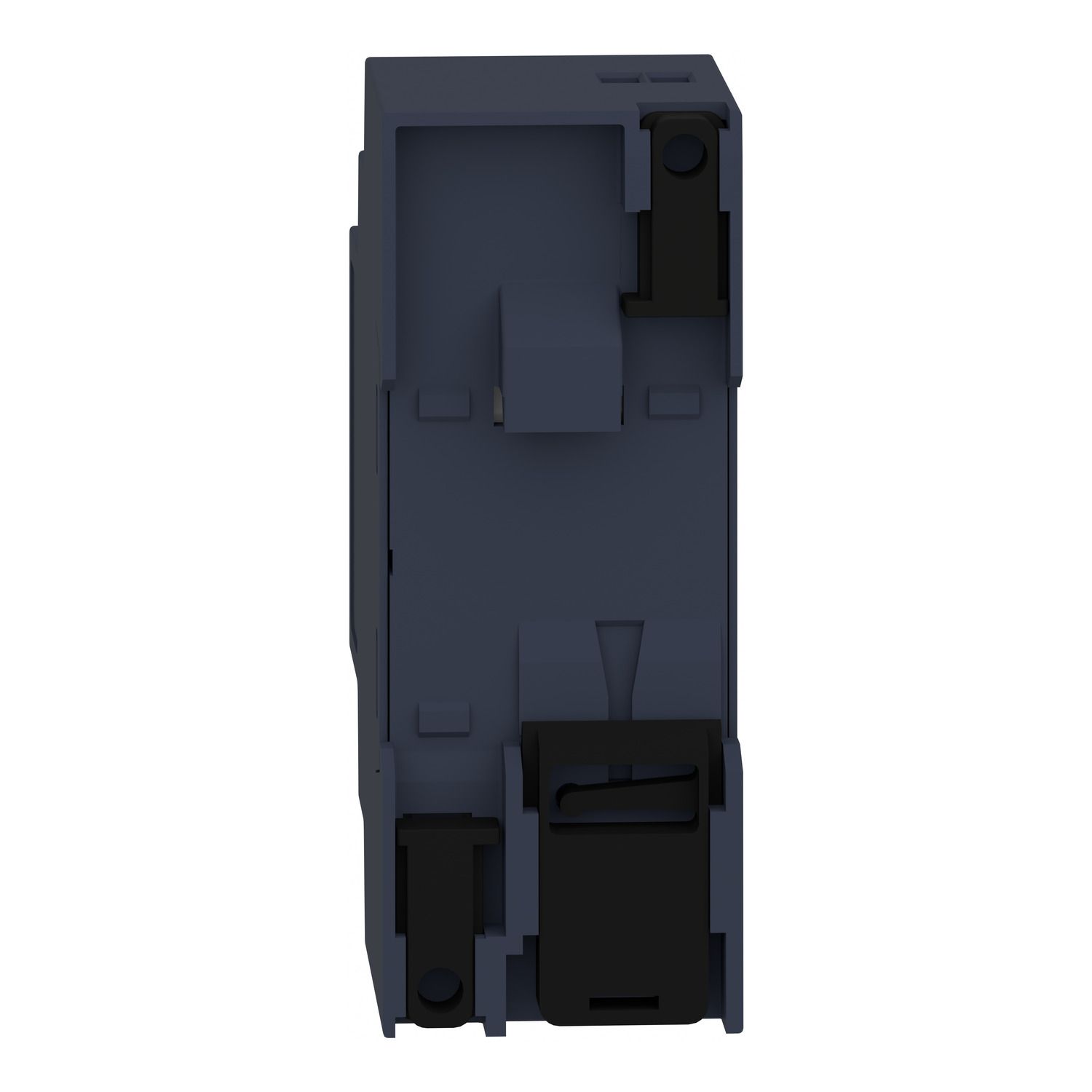

This programmable receiver is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a configurable receiver equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It is supplied set to monostable output function and can be configured to bistable and stop/start functions. Its supply voltage is 24V to 240V AC/DC.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZBRRD |
| Function of module | monostable, bi-stable |
| Product specific application | interface to actuators |
| Level or class | 5M00G7W |
| Reset time | 2 ms time delay |
| Product or component type | programmable receiver |
| Transmission frequency | 2405 MHz |
| Range of product | Harmony |
| Antenna type | omnidirectional |
| Complementary | |
| Bandwidth | 5-5 MHz |
| Maximum power consumption in W | 4 W AC/DC |
| Tightening torque | 0.5-1 N.m conforming to IEC 60947-1 |
| Depth | 75 mm |
| Output type | 2 relays |
| Width | 36 mm |
| Control circuit frequency | 50...60 Hz +/- 10 % |
| Breaking capacity | 750 VA, 15 W |
| Housing material | self-extinguishing plastic |
| Mounting support | mounting plate, 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Number of channels | 1 |
| Max power consumption in W | 1 mW |
| Maximum sensing distance | 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna, 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure, 100 m in free field |
| Rated short-duration power frequency withstand voltage | 1.5 kV 50 Hz conforming to IEC 60947-5-1 |
| Surge withstand | 2 kV common mode conforming to IEC 61000-4-5, 1 kV differential mode conforming to IEC 61000-4-5 |
| Input output isolation | galvanic isolation |
| Nominal output current | 3 A at 240 V AC conforming to CSA C22.2 No 14, 3 A at 24 V DC conforming to CSA C22.2 No 14, 3 A at 240 V AC conforming to UL 508, 3 A at 120 V AC conforming to IEC 60947-5-1, 1.5 A at 240 V AC conforming to IEC 60947-5-1, 3 A at 24 V DC conforming to UL 508, 0.3 A at 48 V DC conforming to IEC 60947-5-1 |
| Time delay range | 0.5 s (tolerance: - 15...15 %) |
| Maximum switching voltage | 250 V AC/DC |
| Net weight | 0.13 kg |
| Utilisation category | DC-12 conforming to IEC 60947-5-1, AC-15 : B300 conforming to IEC 60947-5-1 |
| Antenna gain | 0 dBi |
| Operating position | any position without derating |
| Response time | < 30 ms after transmitter clicks |
| Switching capacity in VA | 1250 VA |
| Communication port protocol | Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4 |
| Output contacts | 2 C/O |
| Status LED | 1 LED green and yellow for reception signal, 2 LEDs green for function mode, 2 LEDs green for relay ON, 1 LED green for power ON |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Modulation Technique | O-QPSK |
| Short-circuit protection | 0.4 A fuse type fast blow |
| Maximum switching current | 5 mA AC/DC |
| Height | 108 mm |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz - 10...10 %, 24...240 V |
| Electrical connection | 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - flexible - with cable end conforming to IEC 60947-1, 1 conductor cable 0.14-4 mm² - AWG 26...AWG 12 - flexible - with cable end conforming to IEC 60947-1, 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - solid - without cable end conforming to IEC 60947-1, 1 conductor cable 0.14-2.5 mm² - AWG 26...AWG 14 - solid - without cable end conforming to IEC 60947-1 |
| Environment | |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 |
| Electrical durability | 100000 cycles |
| Radio agreement | ICASA, FCC, ARIB T66, ANATEL, SRRC, RSS |
| Mechanical durability | 1000000 cycles |
| Relative humidity | 90-90 % at -20-55 °C, without condensation conforming to ETSI EN 300 440-1 |
| Overvoltage category | II conforming to IEC 60664-1 |
| Ambient air temperature for storage | -40-70 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 (terminals), IP20 (casing) conforming to IEC 60529 |
| Insulation resistance | > 500 MOhm at 500 V DC conforming to NF C 20-030 |
| Vibration resistance | 2 gn (f= 8-150 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6 |
| Marking | CE |
| Shock resistance | 10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27 |
| Electromagnetic compatibility | radiated emission conforming to ETSI EN 300 440-2, conducted emission conforming to ETSI EN 300 489-3, conducted emission conforming to EN 300-489-1, radiated emission conforming to ETSI EN 300 440-1, immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11, conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, conducted and radiated emissions class B conforming to CISPR 22, immunity for industrial environments conforming to IEC 61000-6-2 |
| Standards | IEC 60947-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14 |
| Product certifications | C-Tick, CSA, GOST, UL, CCC |
