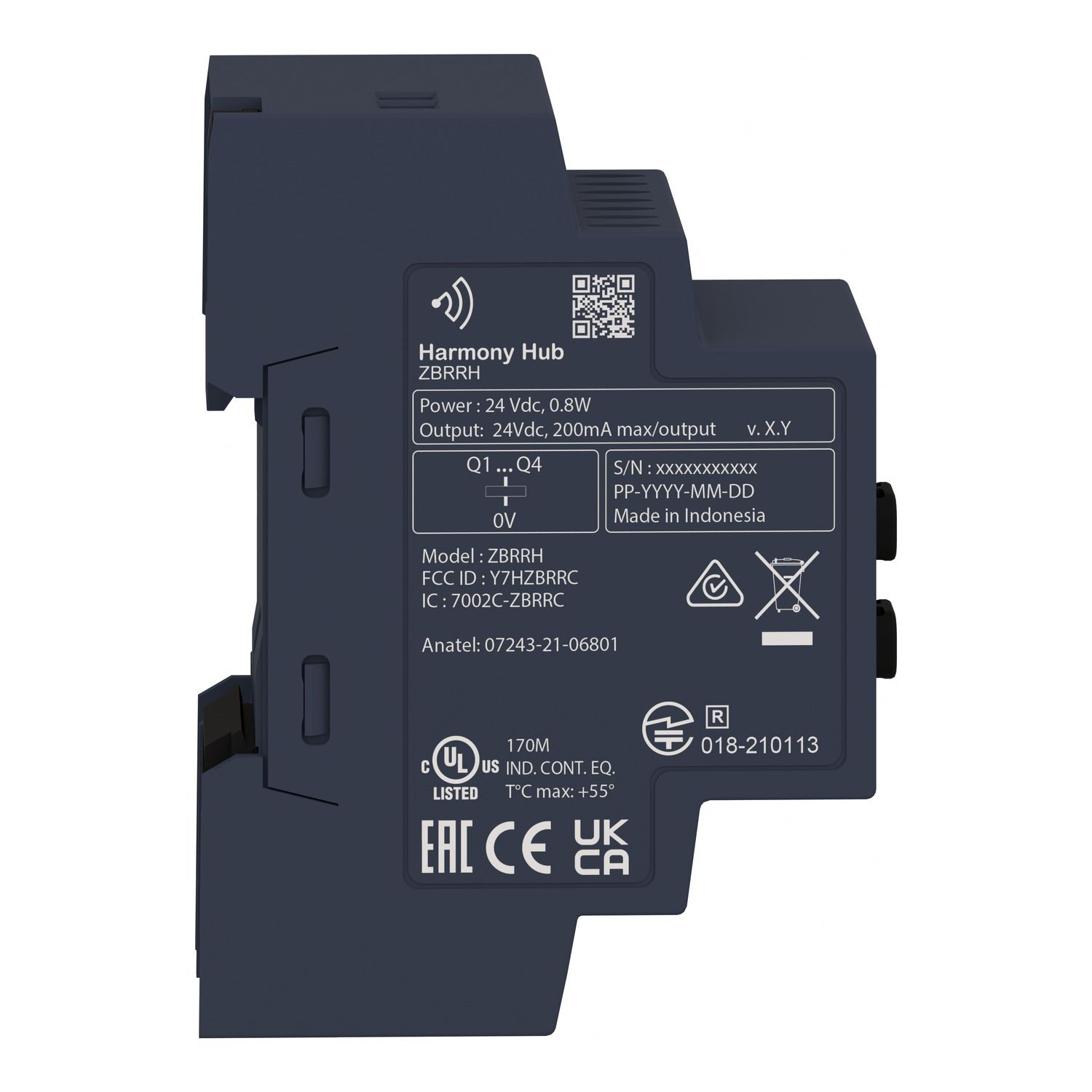

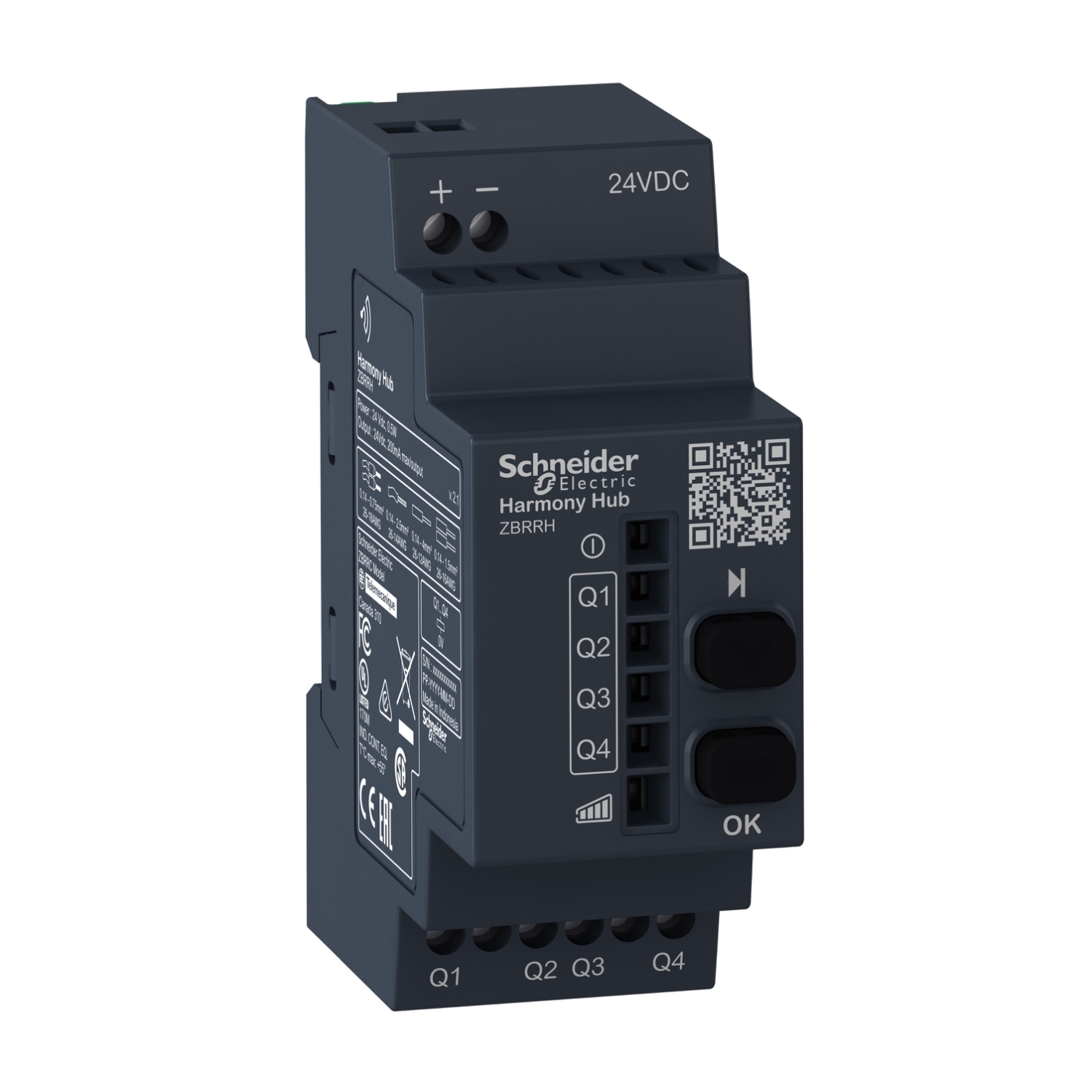

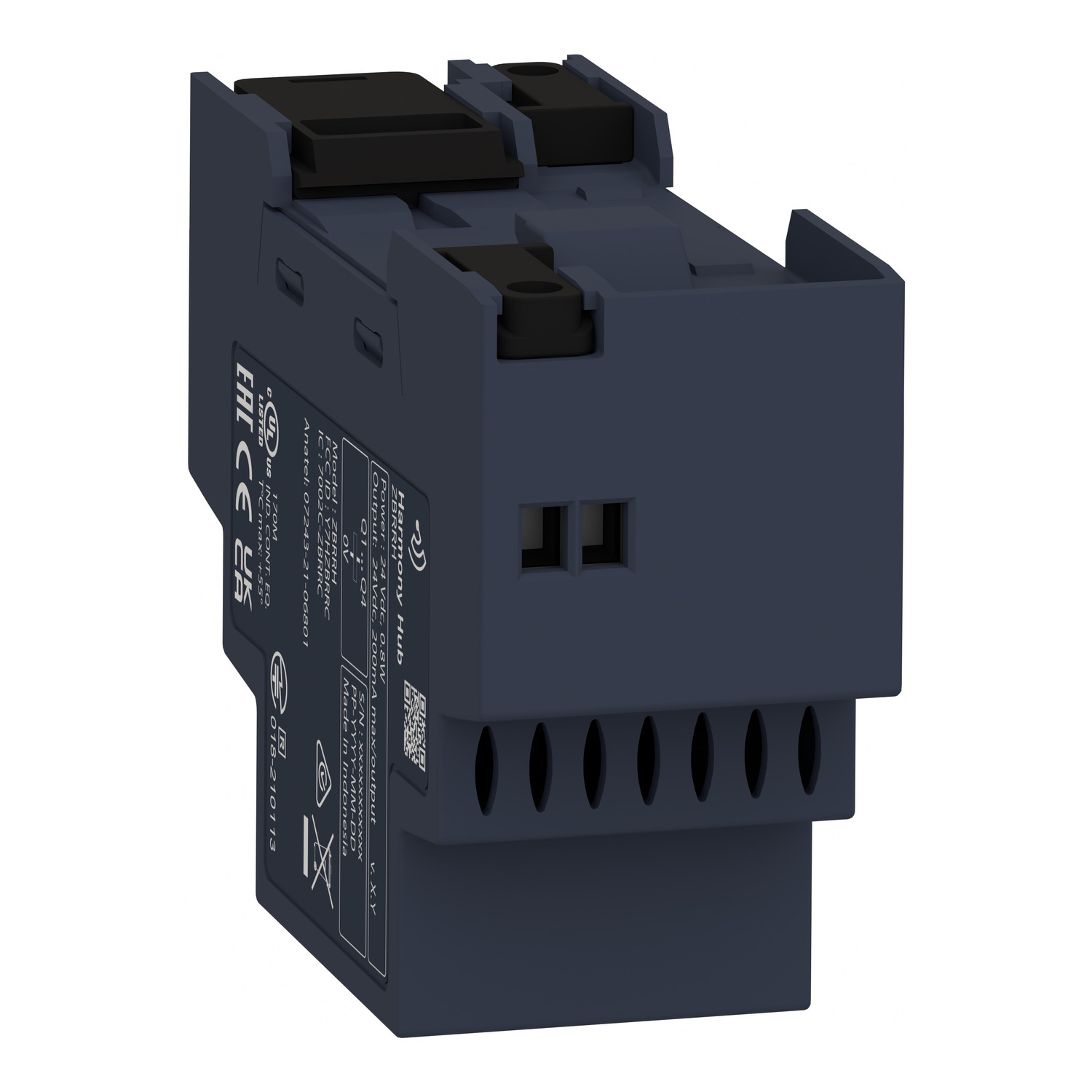

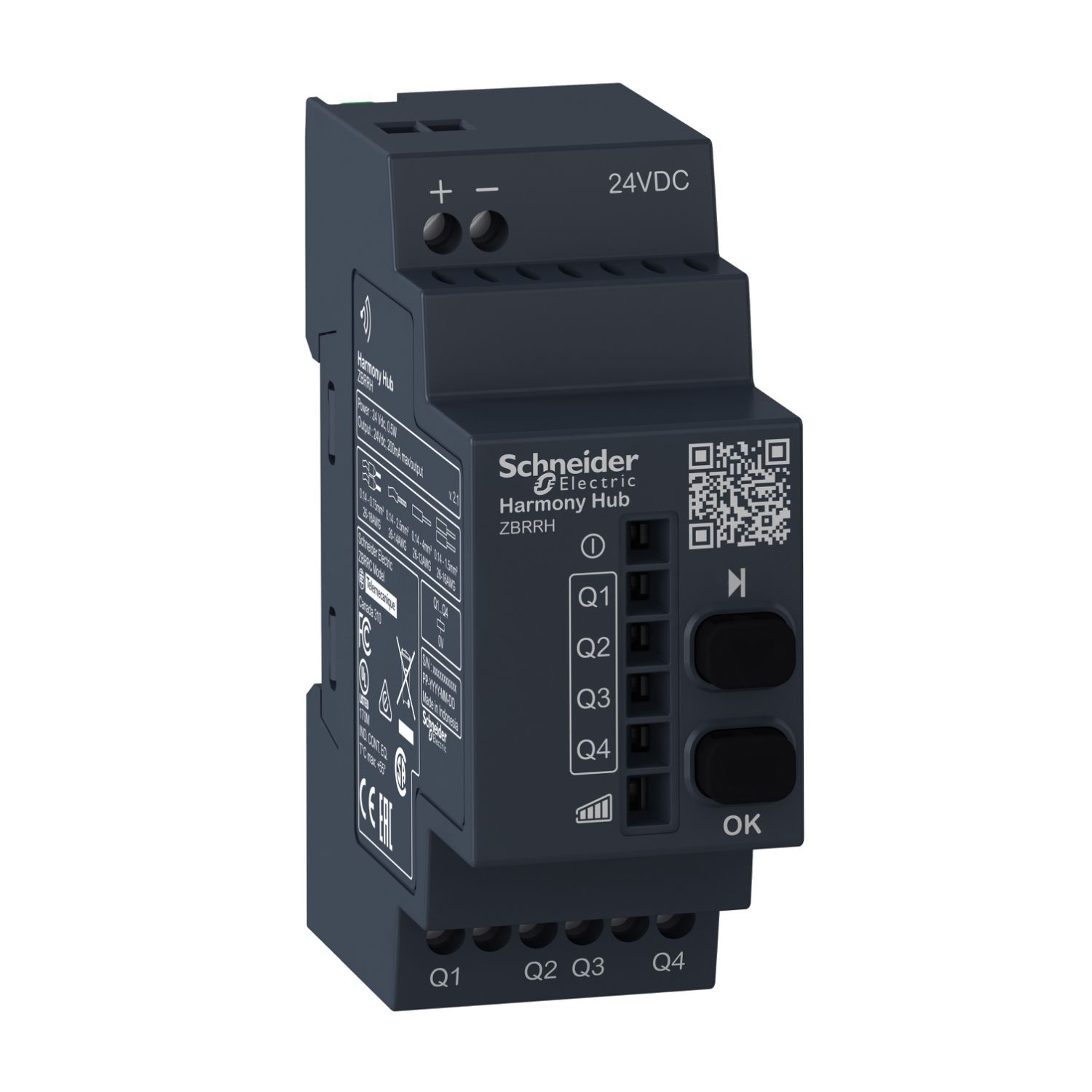

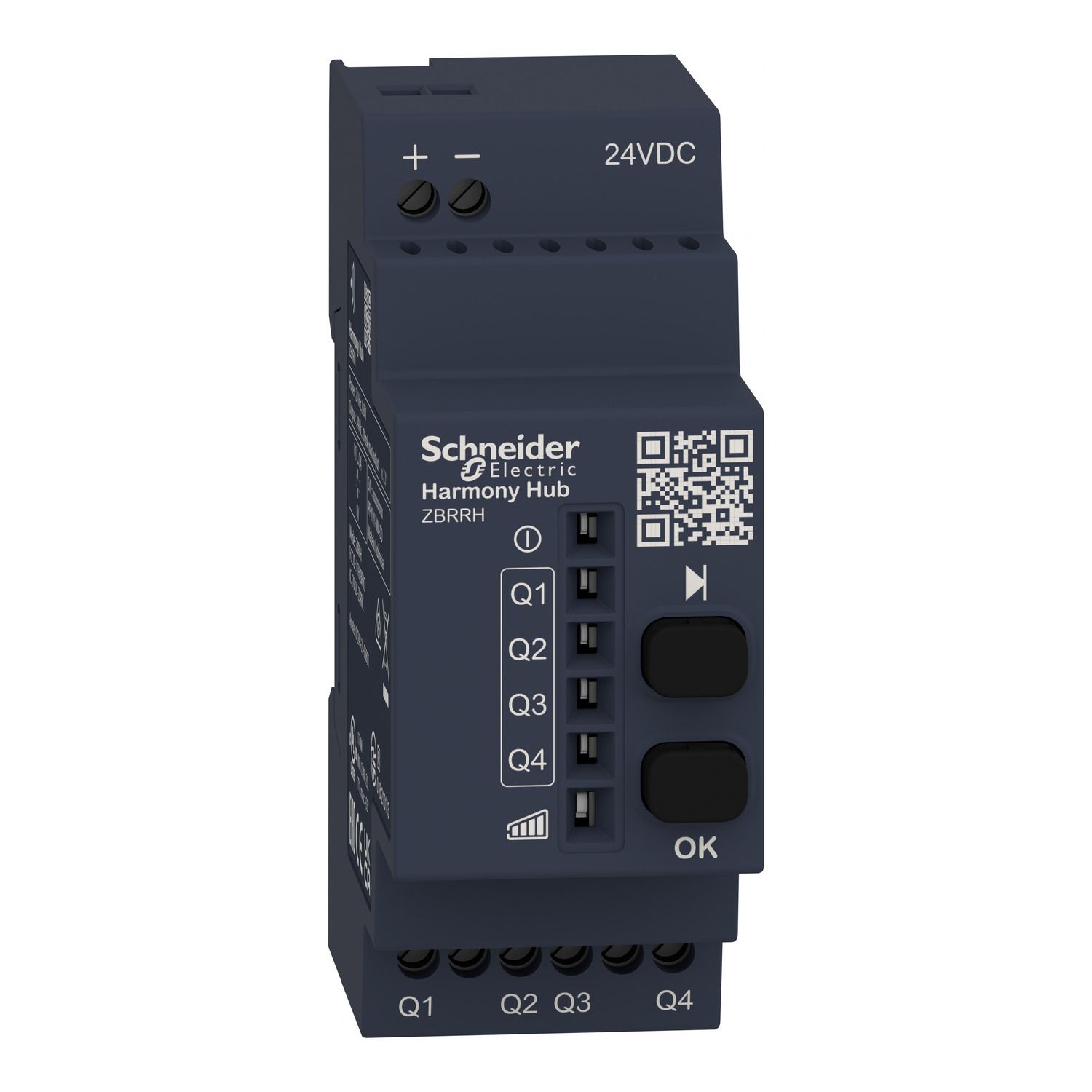

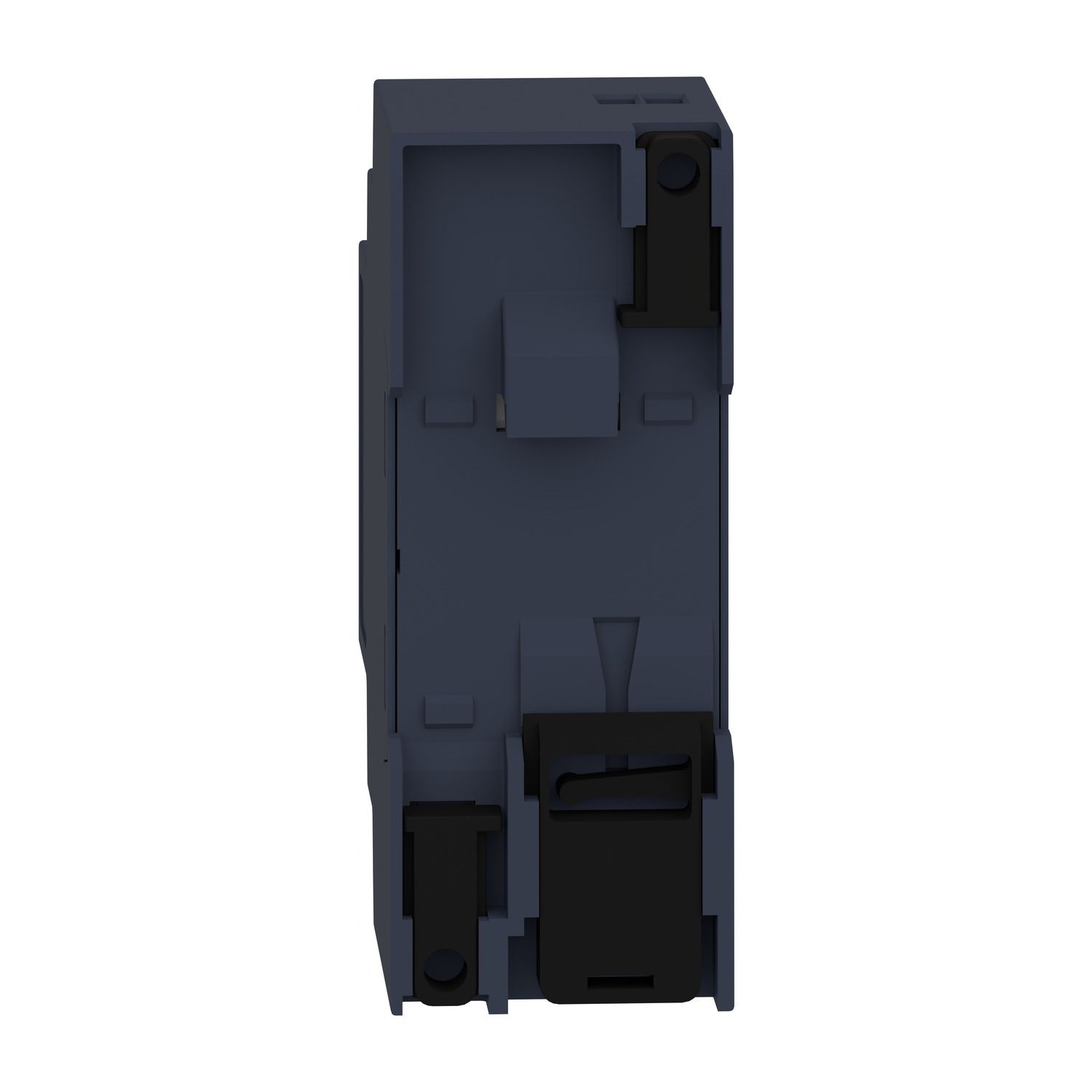

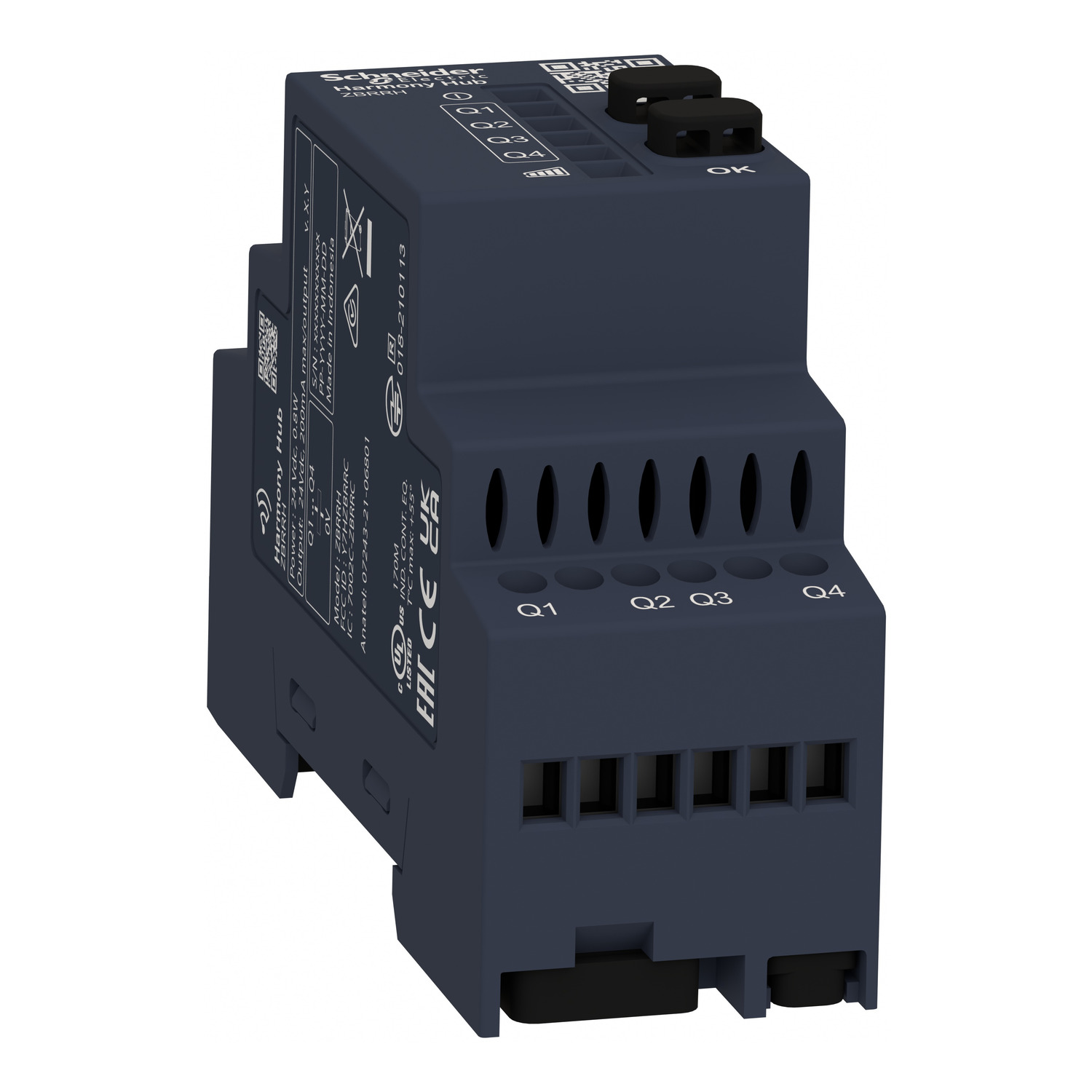

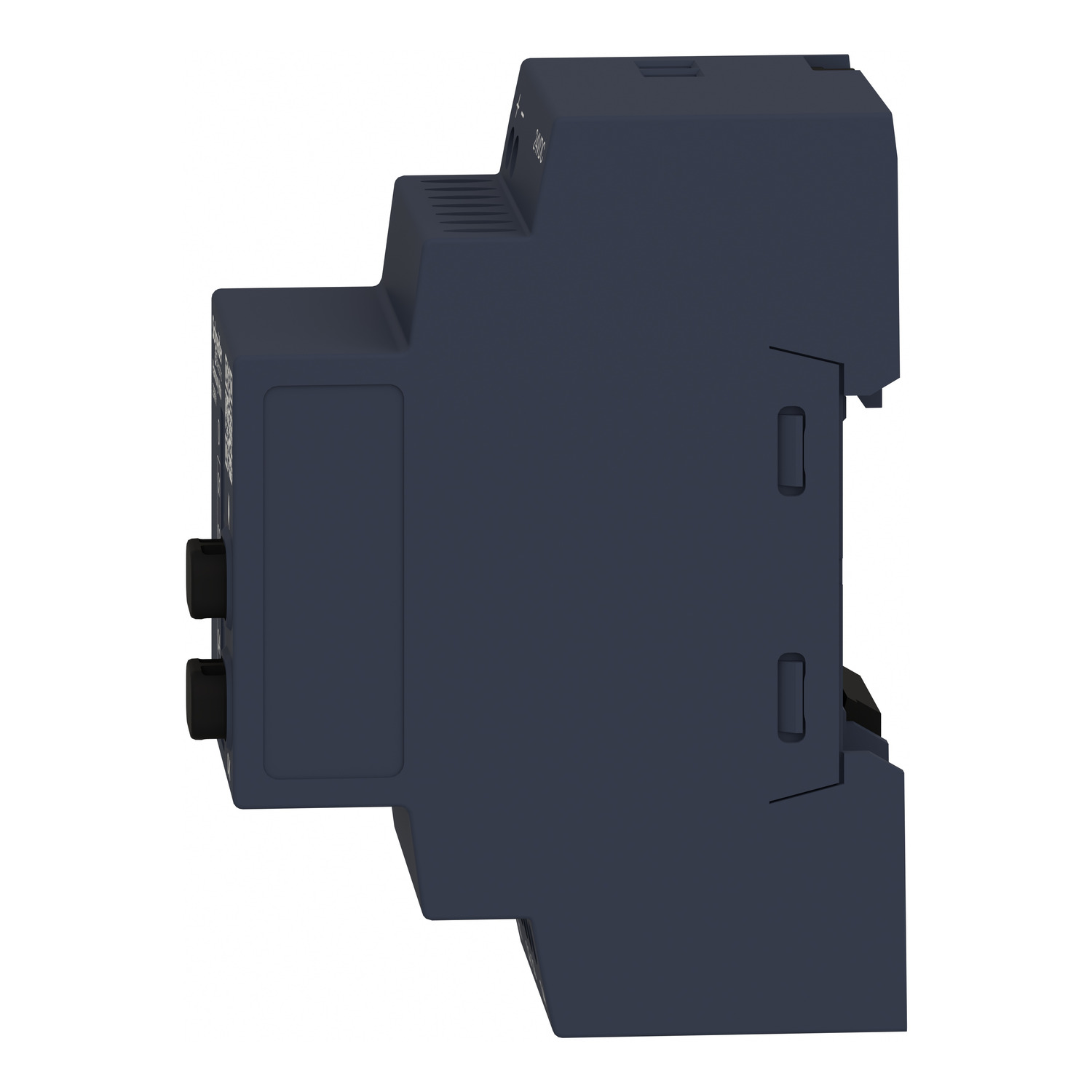

This product is part of the Harmony XB5R range, an offer of wireless receiver. It is a green premium product and conforms to international standard and certifications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZBRRH |
| Function of module | bi-stable |
| Product specific application | interface to Harmony hub |
| Level or class | 5M00G7W |
| Reset time | 2 ms time delay |
| Product or component type | wireless receiver |
| Transmission frequency | 2405 MHz |
| Range of product | Harmony |
| Antenna type | omnidirectional |
| Complementary | |
| Bandwidth | 5-5 MHz |
| Maximum power consumption in VA | 20 VA DC |
| Maximum power consumption in W | 20 W DC |
| Tightening torque | 0.5-1 N.m conforming to EN/IEC 60947-1 |
| Depth | 75 mm |
| Output type | transistor PNP |
| Width | 36 mm |
| Housing material | self-extinguishing plastic |
| Mounting support | mounting plate, 35 mm symmetrical DIN rail conforming to EN/IEC 60715 |
| Breaking capacity | 4.8 W (per output) |
| Number of channels | 1 |
| Max power consumption in W | 1 mW |
| Maximum sensing distance | 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna, 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure, 100 m in free field |
| Rated short-duration power frequency withstand voltage | 1 kV 50 Hz conforming to EN/IEC 60947-5-1 |
| Minimum switching current | 10 mA at 5 V DC |
| Surge withstand | 1 kV common mode conforming to IEC 61000-4-5, 0.5 kV differential mode conforming to IEC 61000-4-5 |
| Time delay range | 0.5 s (tolerance: - 15...15 %) |
| Net weight | 0.13 kg |
| Utilisation category | DC-13 conforming to EN/IEC 60947-5-1 |
| Antenna gain | 0 dBi |
| Operating position | any position without derating |
| Response time | < 30 ms after transmitter clicks |
| Maximum voltage drop | <2 V DC at 2 A |
| Communication port protocol | Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4 |
| Output contacts | 4 PNP |
| Channels utilisation | 1 Harmony Hub per receiver |
| Status LED | 4 LEDs green for relay ON, 1 LED green and yellow for reception signal, 1 LED green for power ON |
| [Uimp] rated impulse withstand voltage | 0.8 kV |
| Modulation Technique | O-QPSK |
| Short-circuit protection | 0.4 A fuse type fast blow |
| Maximum switching current | 0.2 mA DC |
| Height | 108 mm |
| [Us] rated supply voltage | 24 V DC - 15...20 % |
| Electrical connection | 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - flexible - with cable end conforming to IEC 60947-1, 1 conductor cable 0.14-4 mm² - AWG 26...AWG 12 - flexible - with cable end conforming to IEC 60947-1, 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - solid - without cable end conforming to IEC 60947-1, 1 conductor cable 0.14-2.5 mm² - AWG 26...AWG 14 - solid - without cable end conforming to IEC 60947-1 |
| Environment | |
| [Ui] rated insulation voltage | 60 V conforming to IEC 60664-1 |
| Radio agreement | ICASA, FCC, ARIB T66, ANATEL, SRRC, RSS |
| Relative humidity | 90-90 % at -20-55 °C, without condensation conforming to ETSI EN 300 440-1 |
| Overvoltage category | III conforming to IEC 60664-1 |
| Ambient air temperature for storage | -40-70 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 (terminals), IP20 (casing) conforming to IEC 60529 |
| Insulation resistance | > 500 MOhm at 500 V DC conforming to NF C 20-030 |
| Vibration resistance | 2 gn (f= 8-150 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6 |
| Marking | CE |
| Shock resistance | 10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27 |
| Electromagnetic compatibility | immunity to microbreaks and voltage drops - test level: 7 ms conforming to IEC 61000-4-11, 1.2/50 µs shock waves immunity test - test level: 1 kV (common mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 1 kV (PNP output wires) conforming to IEC 61000-4-4, radiated emission conforming to ETSI EN 300 440-2, conducted emission conforming to ETSI EN 300 489-3, conducted emission conforming to EN 300-489-1, radiated emission conforming to ETSI EN 300 440-1, conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6, electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, conducted and radiated emissions class B conforming to CISPR 22, immunity for industrial environments conforming to EN/IEC 61000-6-2 |
| Standards | EN/IEC 60947-5-1 |
| Product certifications | UL, C-Tick, GOST, CSA, CCC |
