Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Bulb base | integral LED |
| [Us] rated supply voltage | 24...254 V AC/DC |
| Device short name | ZBV |
| Light source colour | white |
| Signalling type | steady |
| Sale per indivisible quantity | 1 |
| Connections - terminals | screw clamp terminals, 1 x 2.5 mm² with cable end conforming to IEC 60947-1, screw clamp terminals, 2 x 1.5 mm² without cable end conforming to IEC 60947-1 |

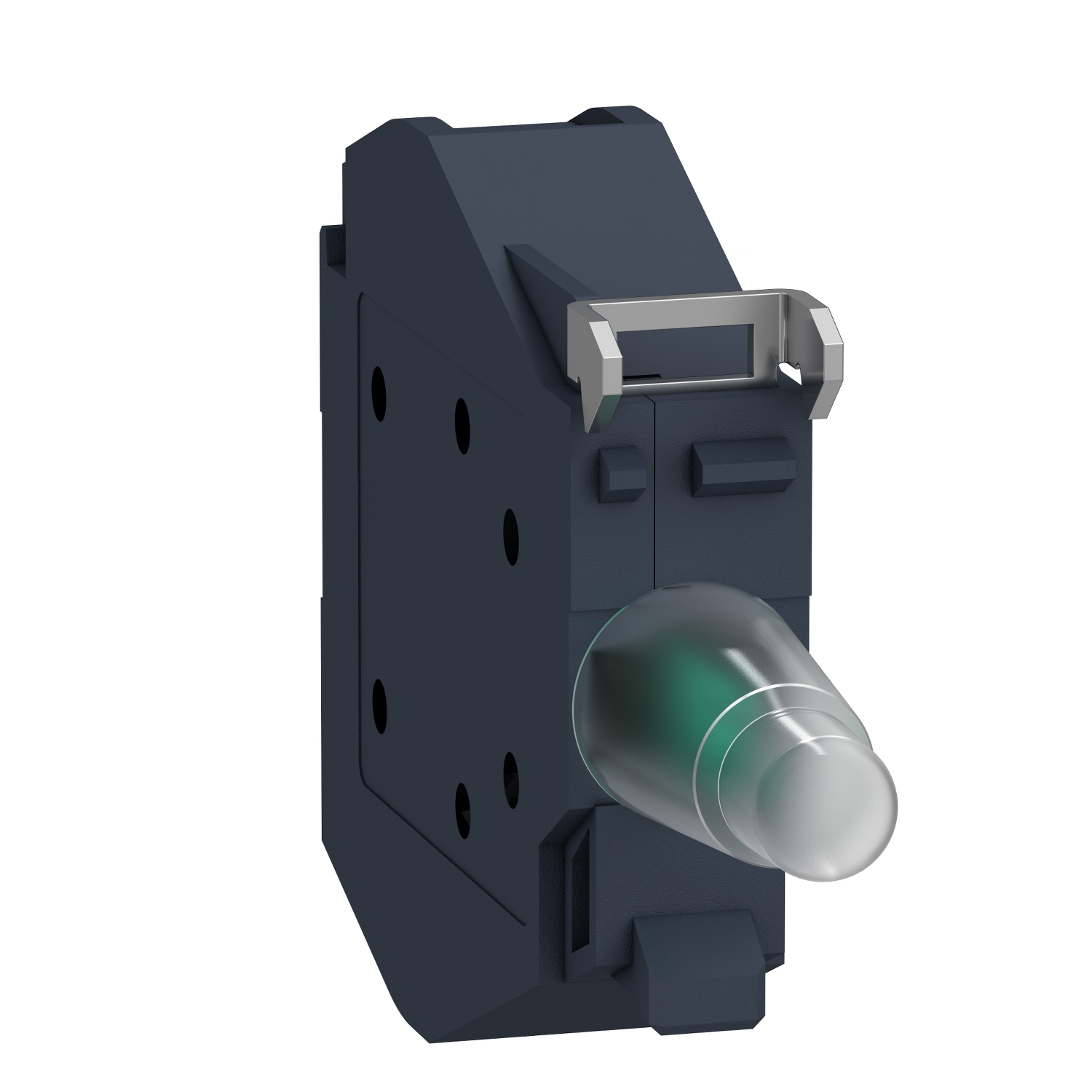

| Product or component type | light block |
| Light block supply | direct |
| Light source | LED |
| Range of product | Harmony XB4 |
| Complementary | |
| CAD overall depth | 58.8 mm |
| CAD overall width | 38 mm |
| Tightening torque | 0.8-1.2 N.m conforming to IEC 60947-1 |
| Compatibility code | ZBV |
| Service life | 100000 h at ambiant temperature |
| Current consumption | 2...10 mA |
| CAD overall height | 10 mm |
| Net weight | 0.02 kg |
| Marking | Ex eb mb IIC Gb |
| Mounting of block | front mounted |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -50-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Environmental characteristic | hazardous location class I division 2 |
| Standards | UL 60079-18, UL 60079-31, UL 60079-0, ANSI/ISA 12.12.01, CSA C22.2 No 213, IEC 60079-31, EN/IEC 60079-18, IEC 60079-7, IEC 60079-0 |
| Ambient air temperature for operation | -50-95 °C |
| Product certifications | cULus |
