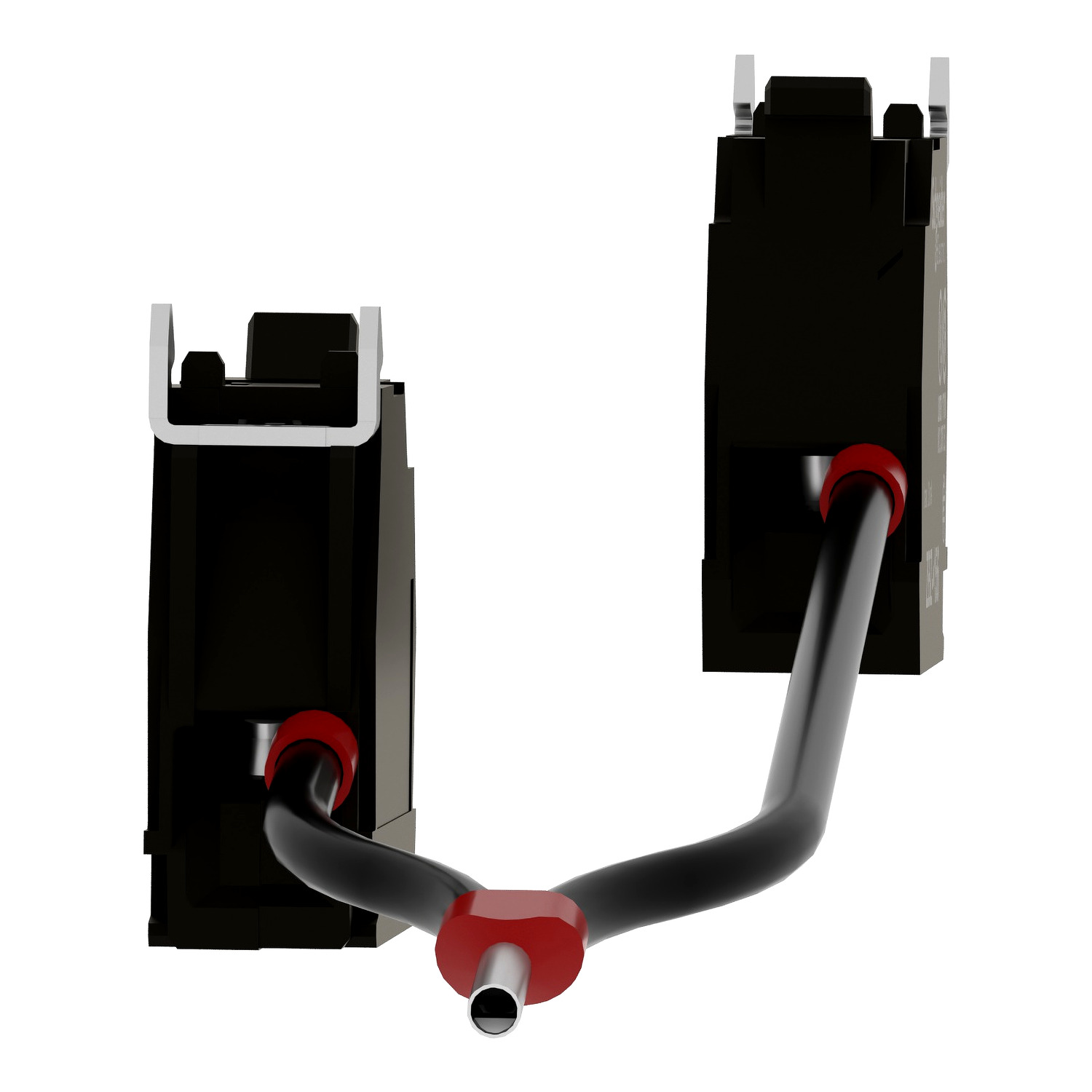

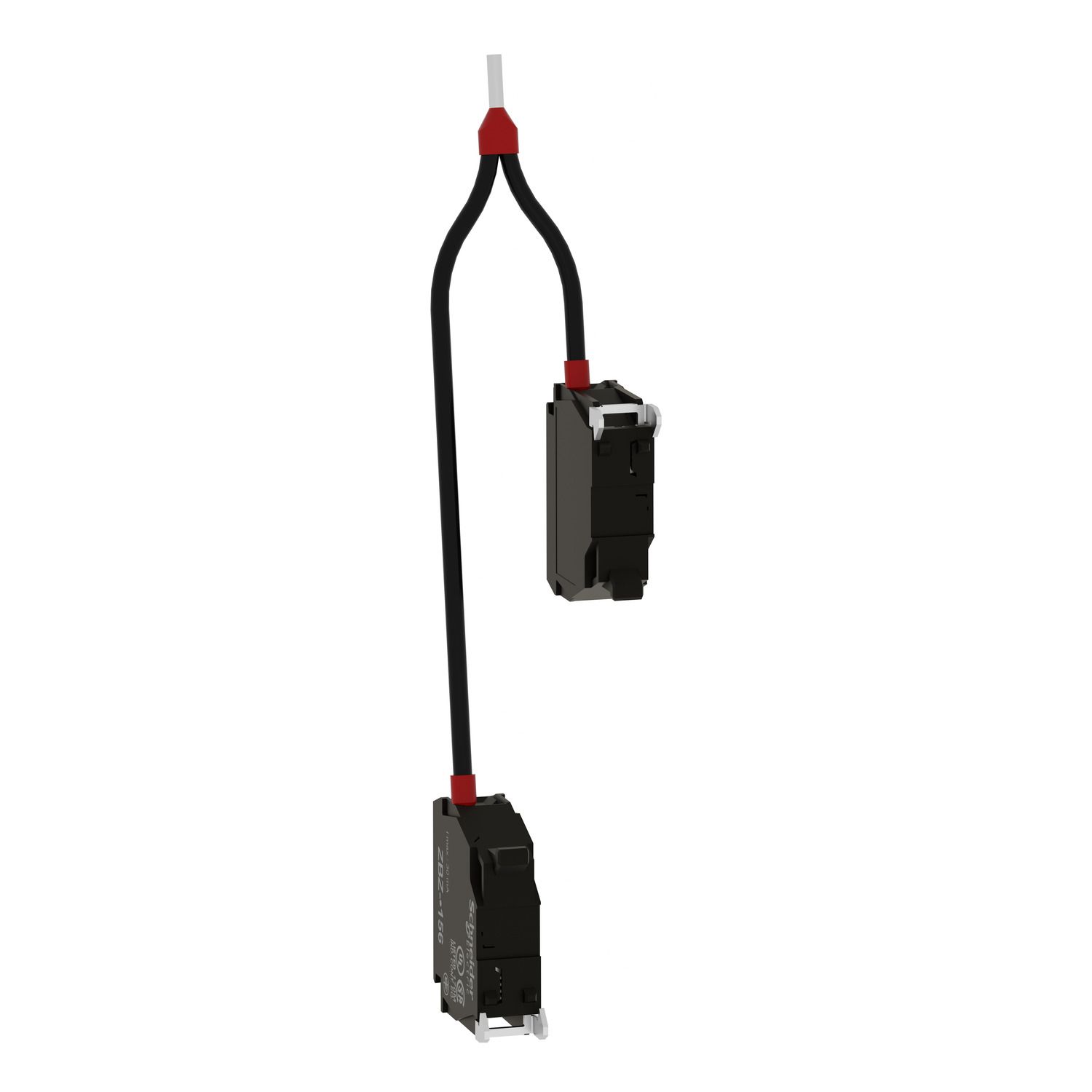

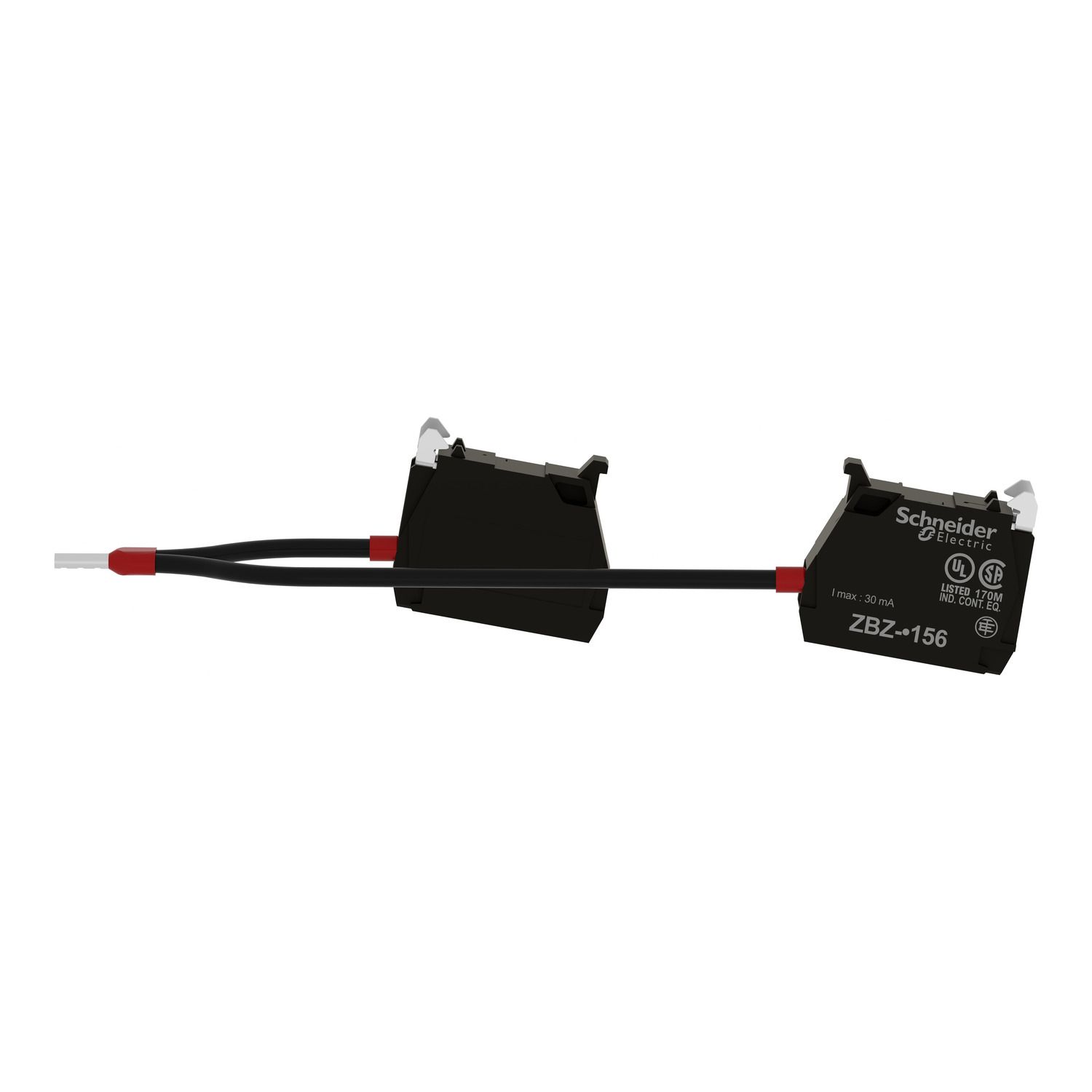

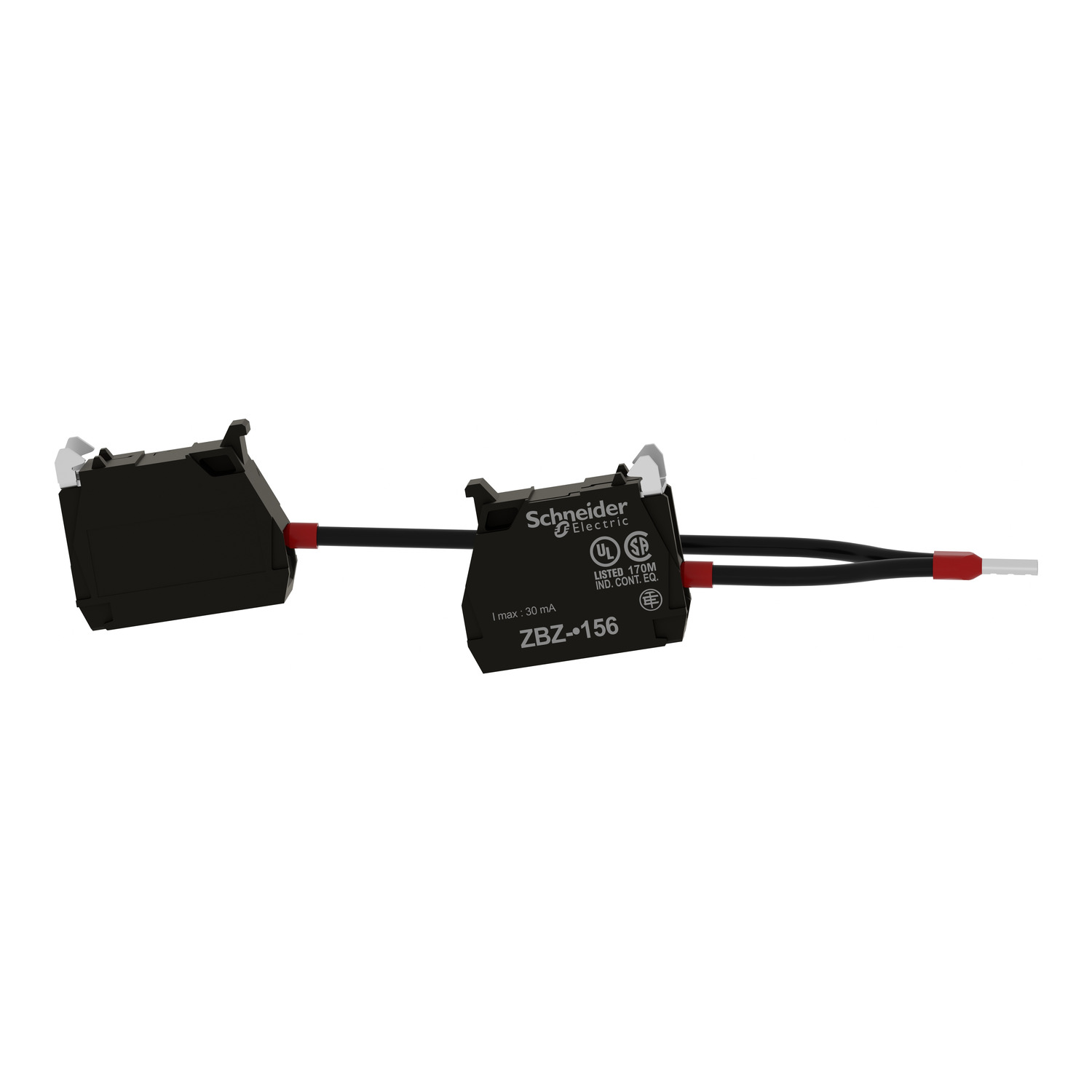

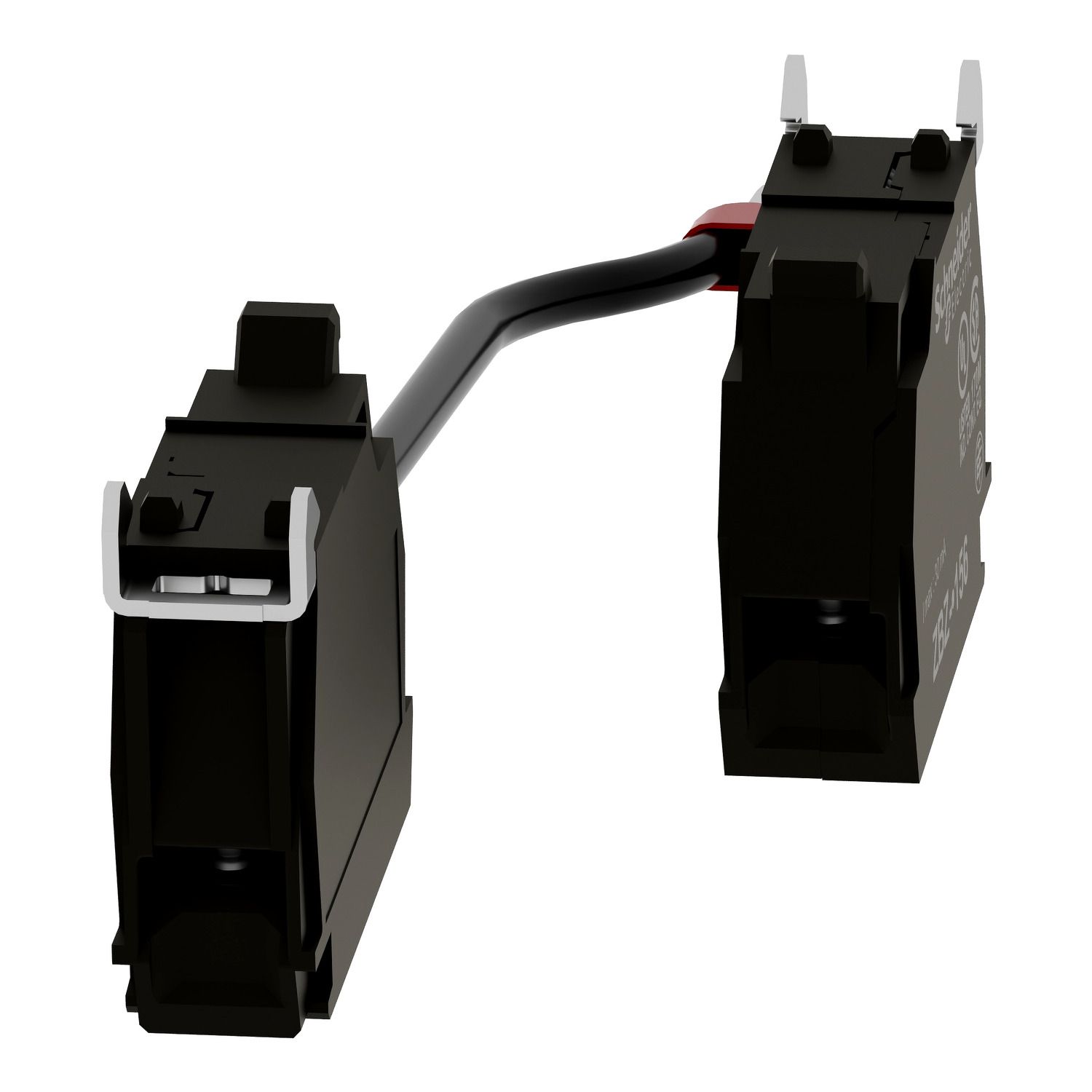

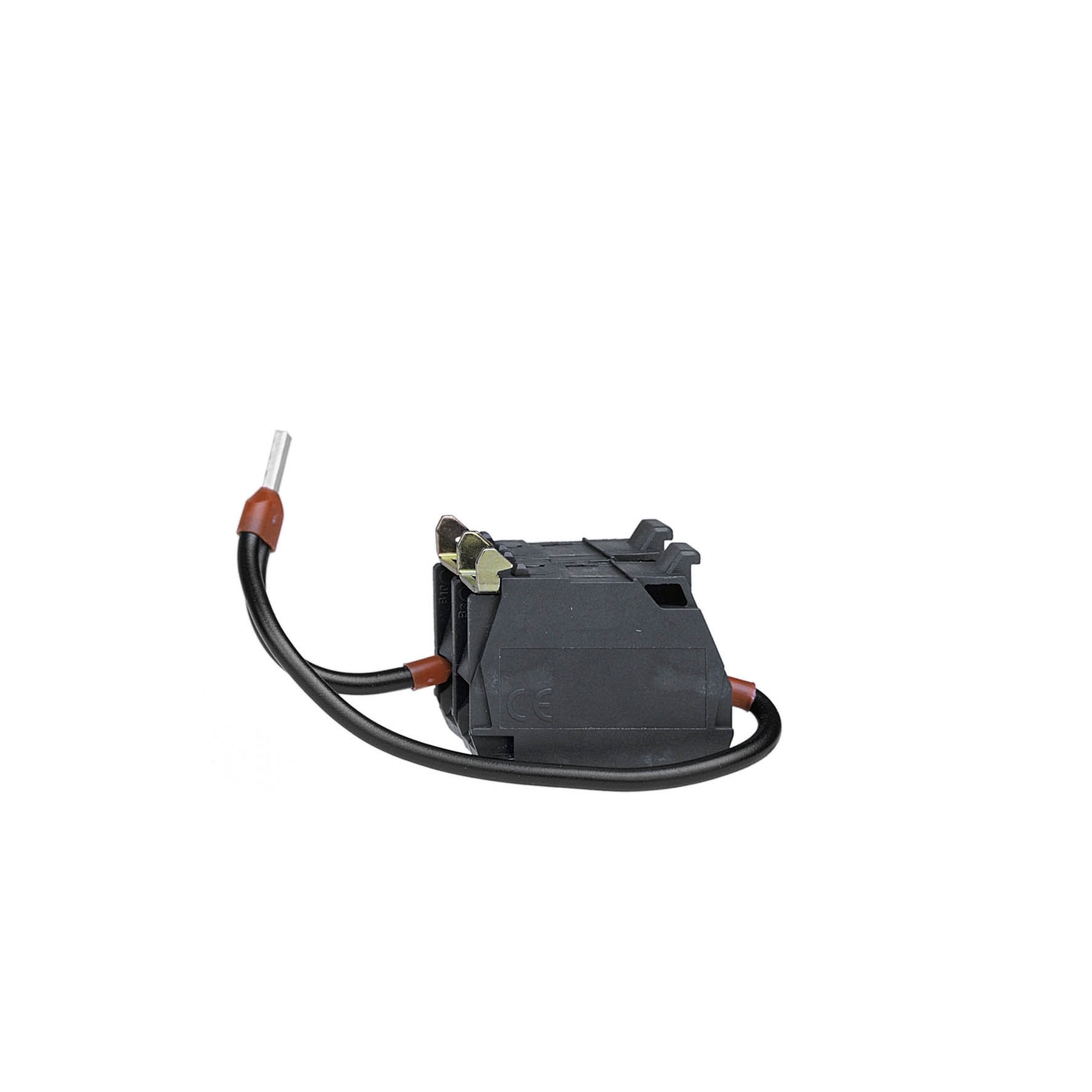

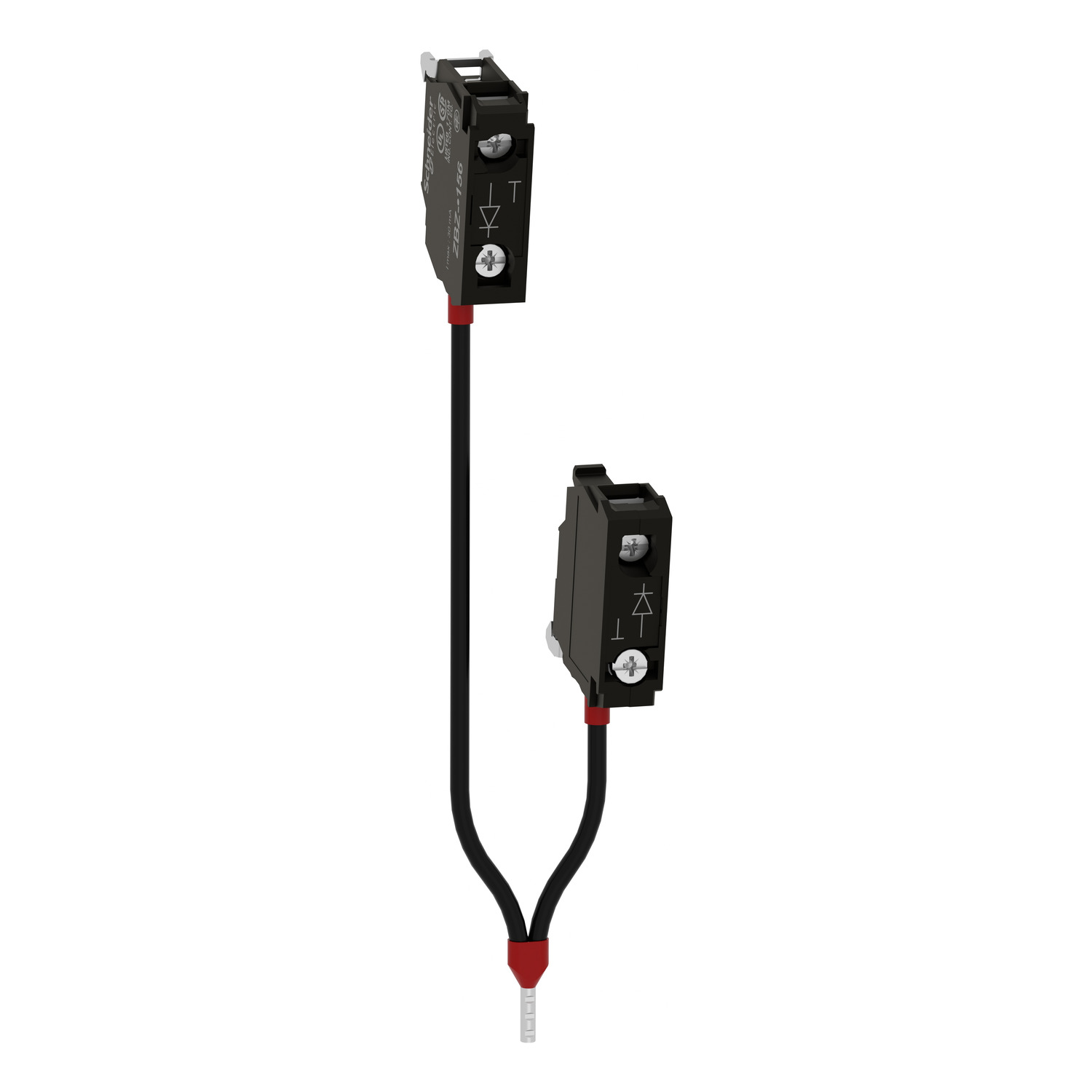

This Harmony ZB, double light block for test light function operates with an integral LED. It is supplied with 48V to 230V AC. It is compatible with Harmony XB4 and XB5. This double light block allows fast and easy replacement and configuration of your signaling units for light testing purpose. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | integral LED |
| Light block type | double block for test light function |
| Range of product | Harmony XB4, Harmony XB5 |
| [Us] rated supply voltage | 48...230 V, 48...230 V AC |
| Electrical connection | wires |
| Product or component type | block for test light |
| Complementary | |
| Customizable | 0, no |
| Electrical shock protection class | class II for Harmony XB5 conforming to IEC 60536, class I for Harmony XB4 conforming to IEC 60536 |
| Net weight | 0.01 kg |
| Material | plastic |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -25-70 °C |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27, 30 gn for 18 ms conforming to IEC 60068-2-27 |
| Standards | JIS C 4520, IEC 60947-5-5, UL 508, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-1 |
| Product certifications | CSA, BV, UL listed, LROS (Lloyds register of shipping), GL, DNV |
Only registered users can write reviews
Related products

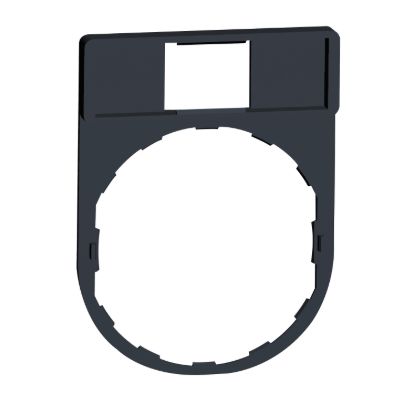

Legend holder 30x40mm, Harmony XB4, plastic, without legend 8x27mm
ZBZ32
Legend holder 30x40mm, Harmony XB4, plastic, without legend 8x27mm
$4.39 inc GST
$2.67 inc GST

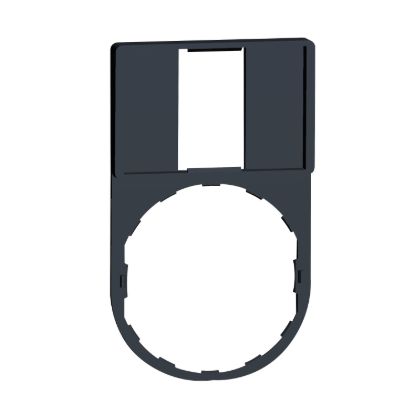

Legend holder 30x50mm, Harmony XB4, plastic, without legend 18x27mm
