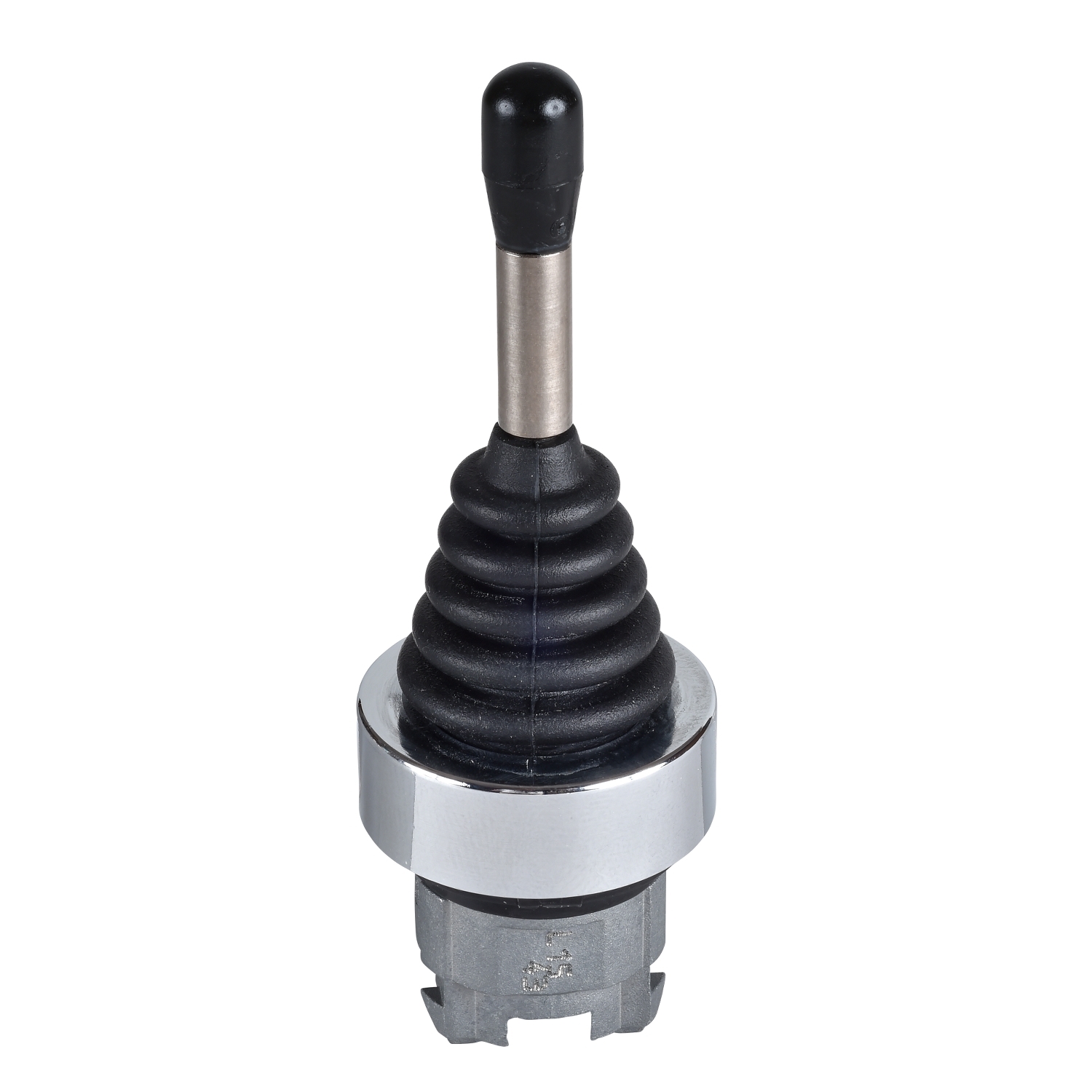

This Harmony XB4 head for joystick controller operates with 4 direction stay-put mechanism. It has a chromium-plated metal bezel. This head with operating shaft provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers and provide a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB4 |
| Operator profile | 54 mm long operating shaft |
| Bezel material | chromium plated metal |
| Sale per indivisible quantity | 1 |
| Operator direction information | 4 directions |
| Shape of signaling unit head | round |
| Product or component type | head for joystick controller |
| Type of operator | stay put |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB4 |
| Complementary | |
| Compatibility code | ZB4 |
| Mechanical durability | 1000000 cycles |
| Operator position information | 5 positions |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Device presentation | basic element |
| Net weight | 0.022 kg |
| Environment | |
| Protective treatment | TH |
| Electrical shock protection class | class I conforming to IEC 60536 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-5-5, JIS C8201-5-1 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Product certifications | BV, CSA, GL, LROS (Lloyds register of shipping), DNV, UL listed |
