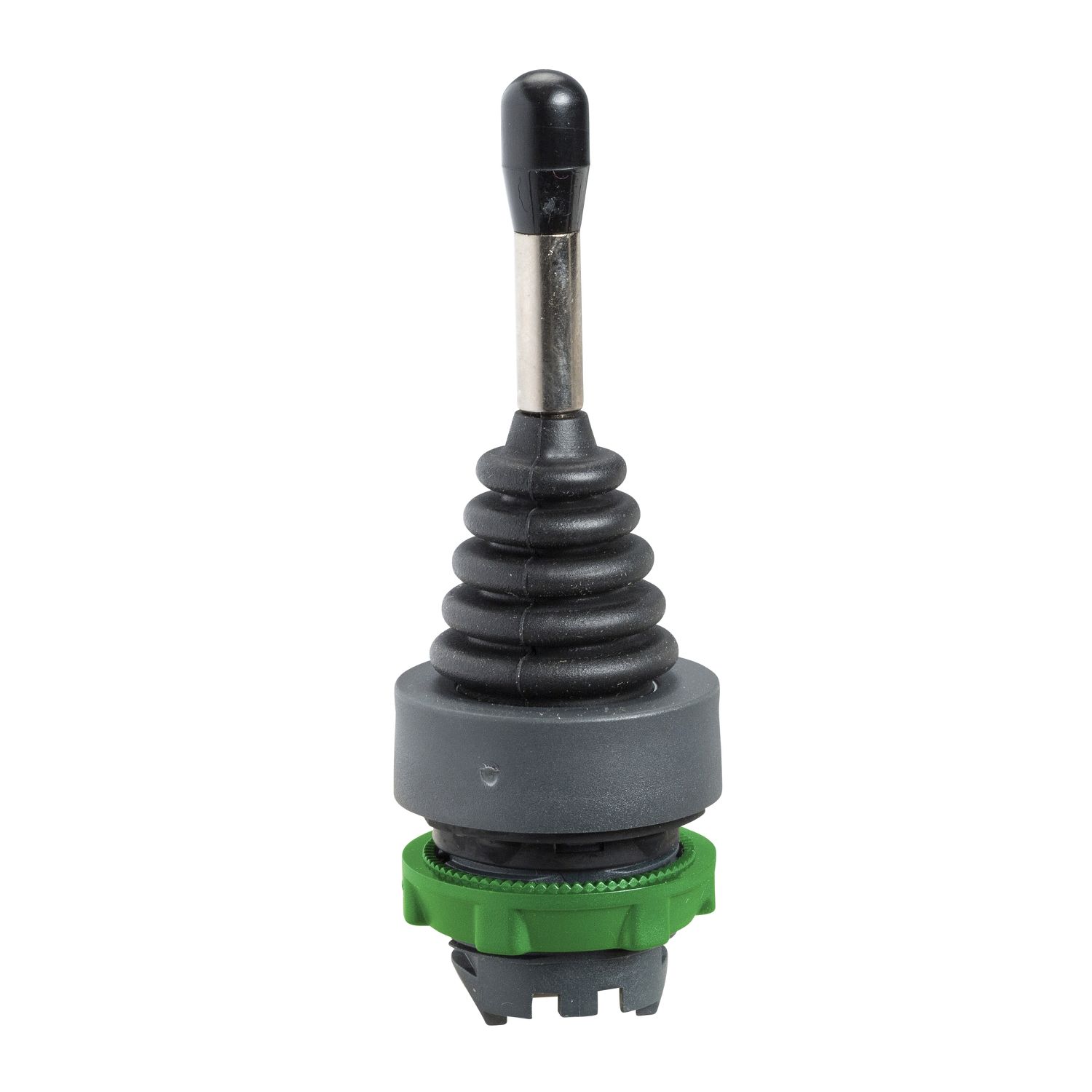

Head for joystick controller, Harmony XB5, XDA, plastic, 22mm, 2 directions, spring return, 1NO
Manufacturer: Schneider Electric
SKU: ZD5PA22
GTIN: 3389110165609
Old price: $144.32 inc GST
$87.80 inc GST
Supported cards
Supported cards
This Harmony XB5 head with operating shaft for joystick controller operates with 2 direction spring return to zero position mechanism. It has a plastic bezel. This head with operating shaft provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers and provide a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Products specifications

Attribute name Attribute value
Main
Device short name ZD5
Operator profile 54 mm long operating shaft
Bezel material plastic
Sale per indivisible quantity 1
Operator direction information 2 directions
Shape of signaling unit head round
Product or component type head for joystick controller
Type of operator to zero position spring return
Mounting diameter 22 mm
Range of product Harmony XB5
Complementary
CAD overall depth 85 mm
CAD overall width 30 mm
Compatibility code ZD5
Mechanical durability 1000000 cycles
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Device presentation basic element
CAD overall height 47 mm
Net weight 0.022 kg
Environment
Protective treatment TH
Electrical shock protection class class II conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508
Ambient air temperature for operation -25-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications BV, CSA, DNV, LROS (Lloyds register of shipping), GL, UL listed
