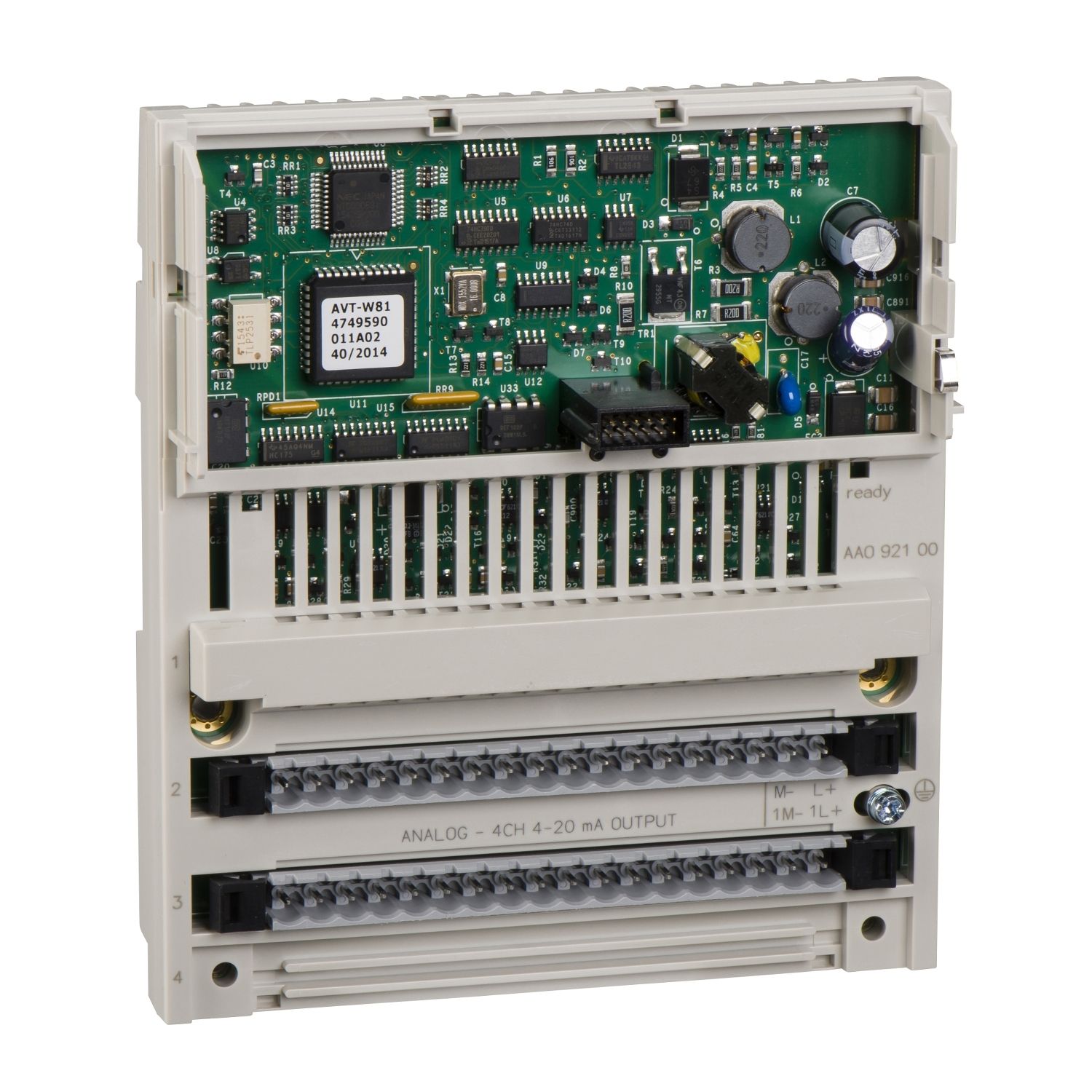

This output base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog output base offers 4 outputs with a full 16bit signed resolution. It offers analog output ranges from ±10V, 0mA to 2mA. There is an isolation between channels and ground at 500V AC. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon Momentum automation platform |
| Product or component type | analogue output base |
| Complementary | |
| Maximum load capacitance | 1 µF |
| Protection type | internal 2 A slow-blow |
| Update time | 2 ms |
| Module format | standard |
| Output short-circuit protection | with in voltage circuit |
| Analogue output number | 4 |
| Maximum power dissipation in W | 8.5 W |
| Full scale | 2 mA 0...20 mA, 10 V +/- 10 V |
| Marking | CE |
| Data format | full 16 bits signed |
| Isolation between channels and ground | 500 V AC for 1 minute |
| Temperature drift | 30 %oFS/°C 0...20 mA 60 °C, 10 %oFS/°C +/- 10 V 60 °C |
| Height | 125 mm |
| Reverse polarity protection | internal |
| Depth | 47.5 mm |
| Width | 141.5 mm |
| Local signalling | 4 LEDs for channel status |
| Permissible common mode voltage | 250 V 47...63 Hz DC, 250 V 47...63 Hz AC between channels to ground |
| Absolute accuracy error | +/- 0.4 % of full scale 0...20 mA 60 °C, +/- 0.3 % of full scale 0...20 mA 25 °C, +/- 0.25 % full scale +/- 10 V 60 °C, +/- 0.2 % of full scale +/- 10 V 25 °C |
| Analogue output range | 0...20 mA 12 bits + sign <= 0.6 kOhm, +/- 10 V 12 bits + sign >= 1 kOhm |
| Net weight | 0.215 kg |
| External power requirement | 24 V DC, +/- 30 V DC |
| Fail state | reset to zero, hold, reset to full scale |
| Current consumption | 530 mA at 24 V DC base, 150 mA at 24 V DC actuator |
| Environment | |
| Protective treatment | TC |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | <= 5000 m |
| Product certifications | CSA, UL |
