distributed analog output Modicon Momentum - 4 Output - 4..20 mA

Manufacturer: Schneider Electric

SKU: 170AAO92100

GTIN: 3595861147720

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $4,413.20 inc GST

Price: $5,836.46 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

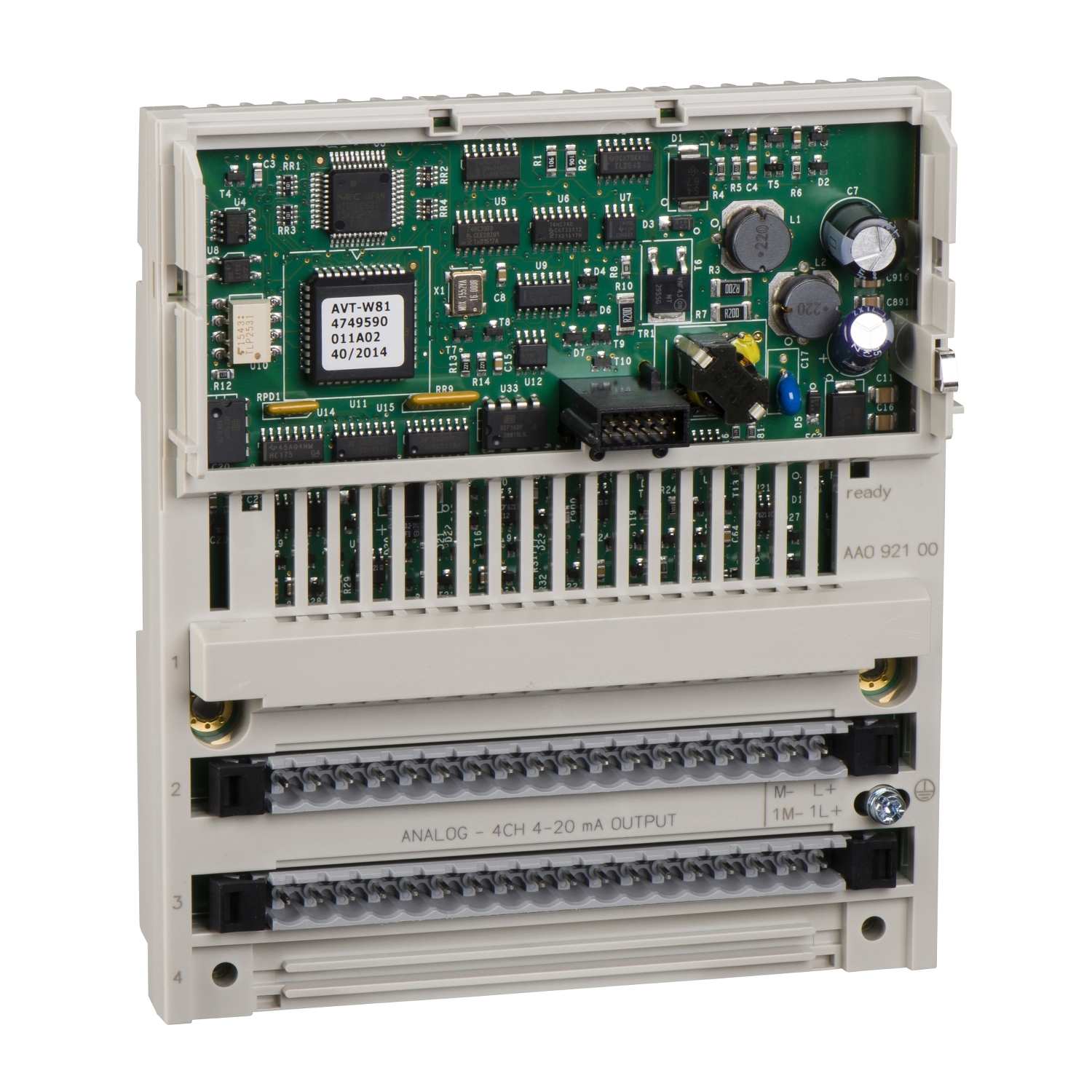

This output base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog output base offers 4 outputs with a full 16bit signed resolution. It offers analog output ranges from ±10V, 4mA to 20mA. There is an isolation between channels and ground at 500V AC. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Products specifications

Attribute name	Attribute value
Main
Range of product	Modicon Momentum automation platform
Product or component type	analogue output base
Complementary
Maximum load capacitance	1 µF
Protection type	internal 2 A slow-blow
Update time	2 ms
Module format	standard
Output short-circuit protection	with in voltage circuit
Analogue output number	4
Maximum power dissipation in W	8.5 W
Full scale	2 mA 4...20 mA, 10 V +/- 10 V
Marking	CE
Data format	full 16 bits signed
Isolation between channels and ground	500 V AC for 1 minute
Temperature drift	30 %oFS/°C 4...20 mA 60 °C, 10 %oFS/°C +/- 10 V 60 °C
Height	125 mm
Reverse polarity protection	internal
Depth	47.5 mm
Width	141.5 mm
Local signalling	4 LEDs for channel status
Permissible common mode voltage	250 V 47...63 Hz DC, 250 V 47...63 Hz AC between channels to ground
Absolute accuracy error	+/- 0.5 % of full scale 4...20 mA 60 °C, +/- 0.4 % of full scale 4...20 mA 25 °C, +/- 0.25 % full scale +/- 10 V 60 °C, +/- 0.2 % of full scale +/- 10 V 25 °C
Analogue output range	4...20 mA 12 bits + sign <= 0.6 kOhm, +/- 10 V 12 bits + sign >= 1 kOhm
Net weight	0.215 kg
External power requirement	24 V DC, +/- 30 V DC
Fail state	reset to zero, reset to full scale, hold
Current consumption	530 mA at 24 V DC base, 150 mA at 24 V DC actuator
Environment
Protective treatment	TC
Resistance to electrostatic discharge	8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity	95-95 % without condensation
Ambient air temperature for storage	-40-85 °C
Resistance to electromagnetic fields	10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0-60 °C
Operating altitude	<= 5000 m
Product certifications	CSA, UL
