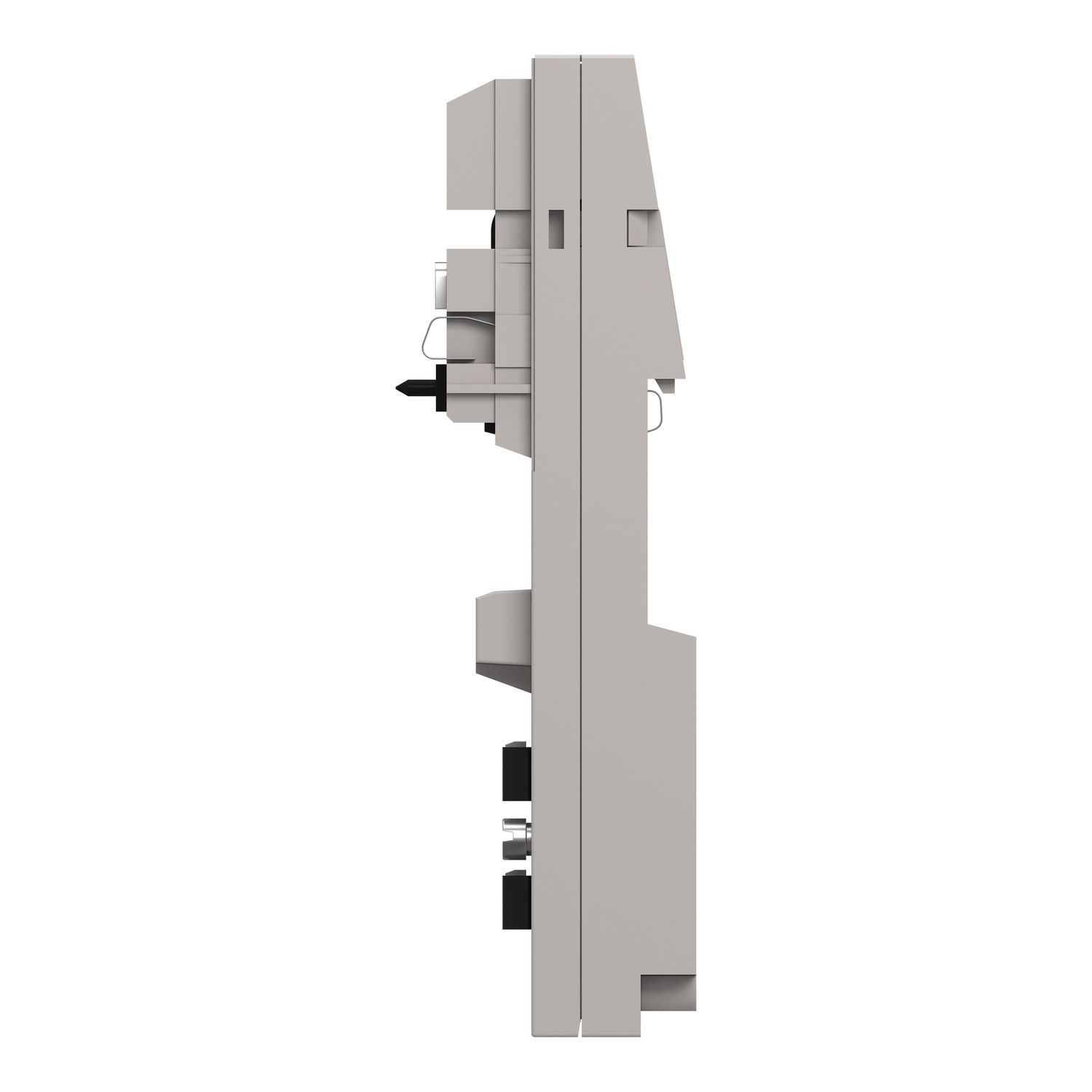

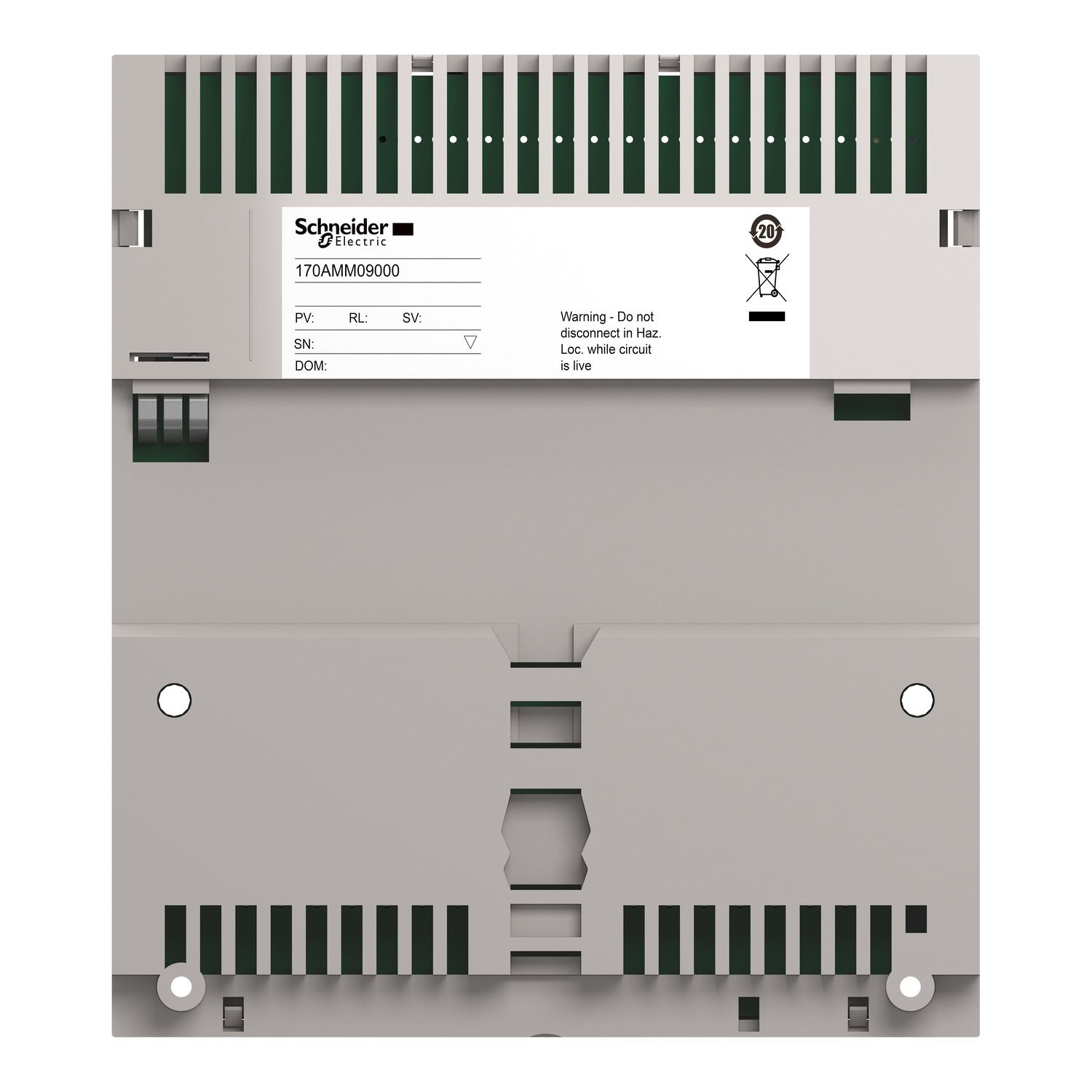

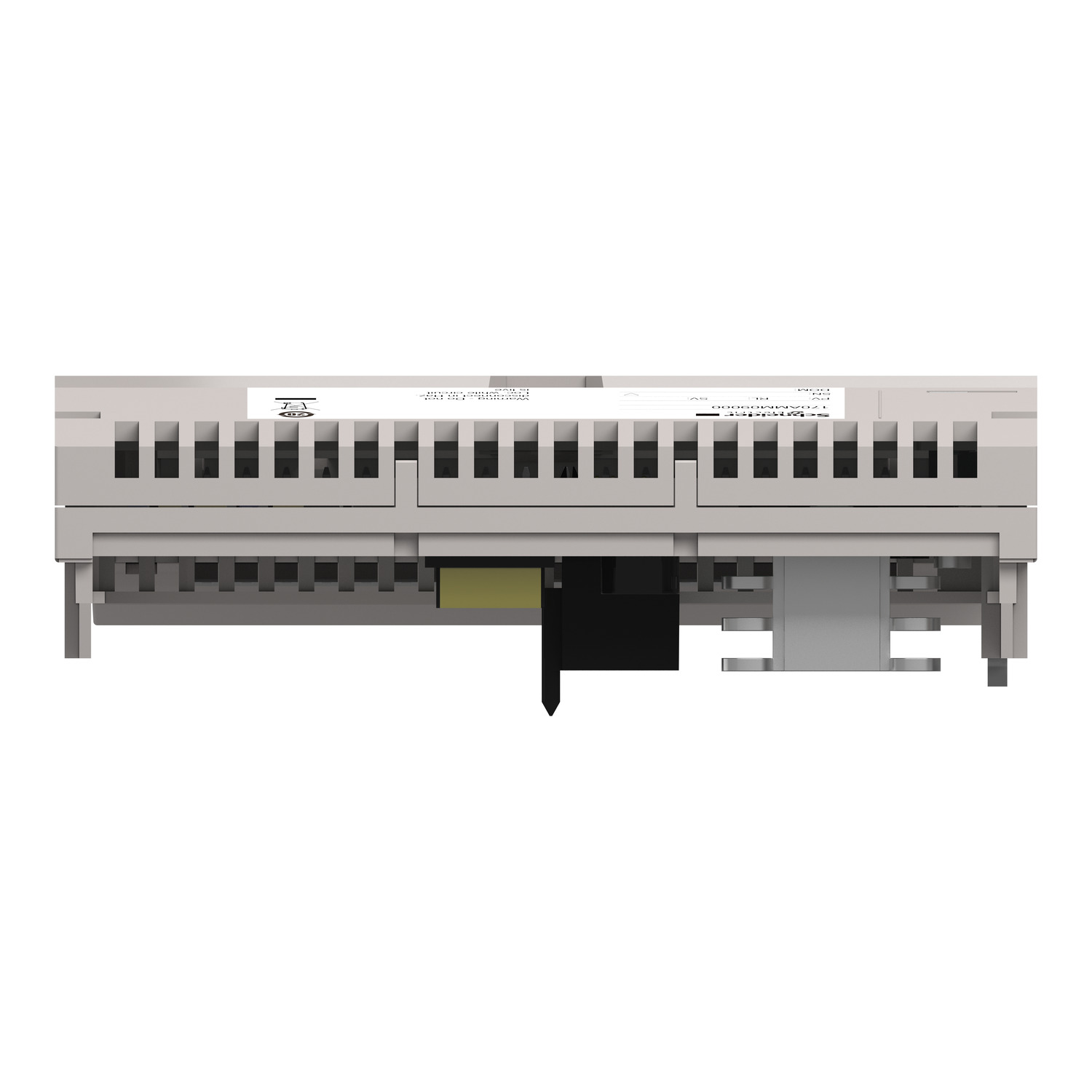

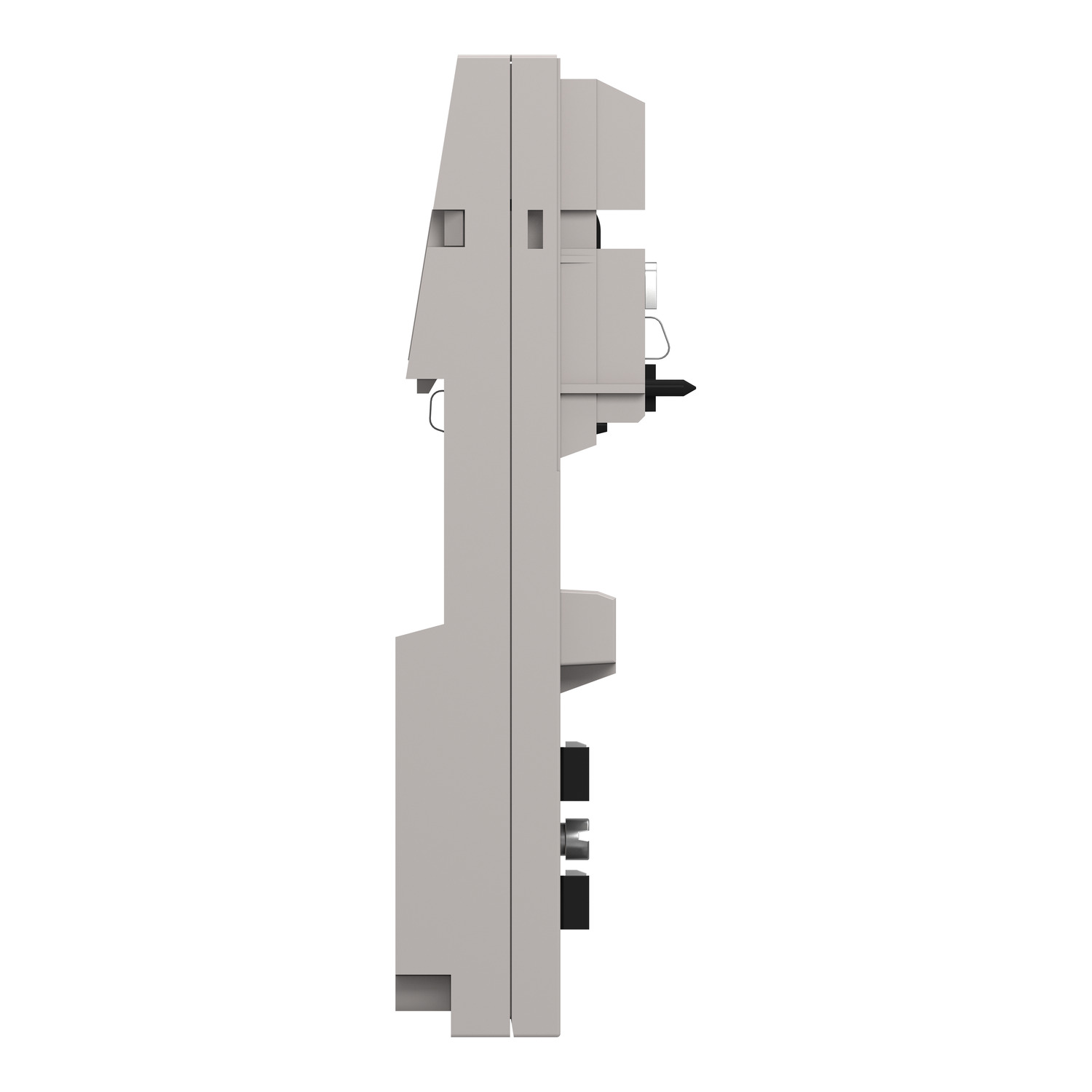

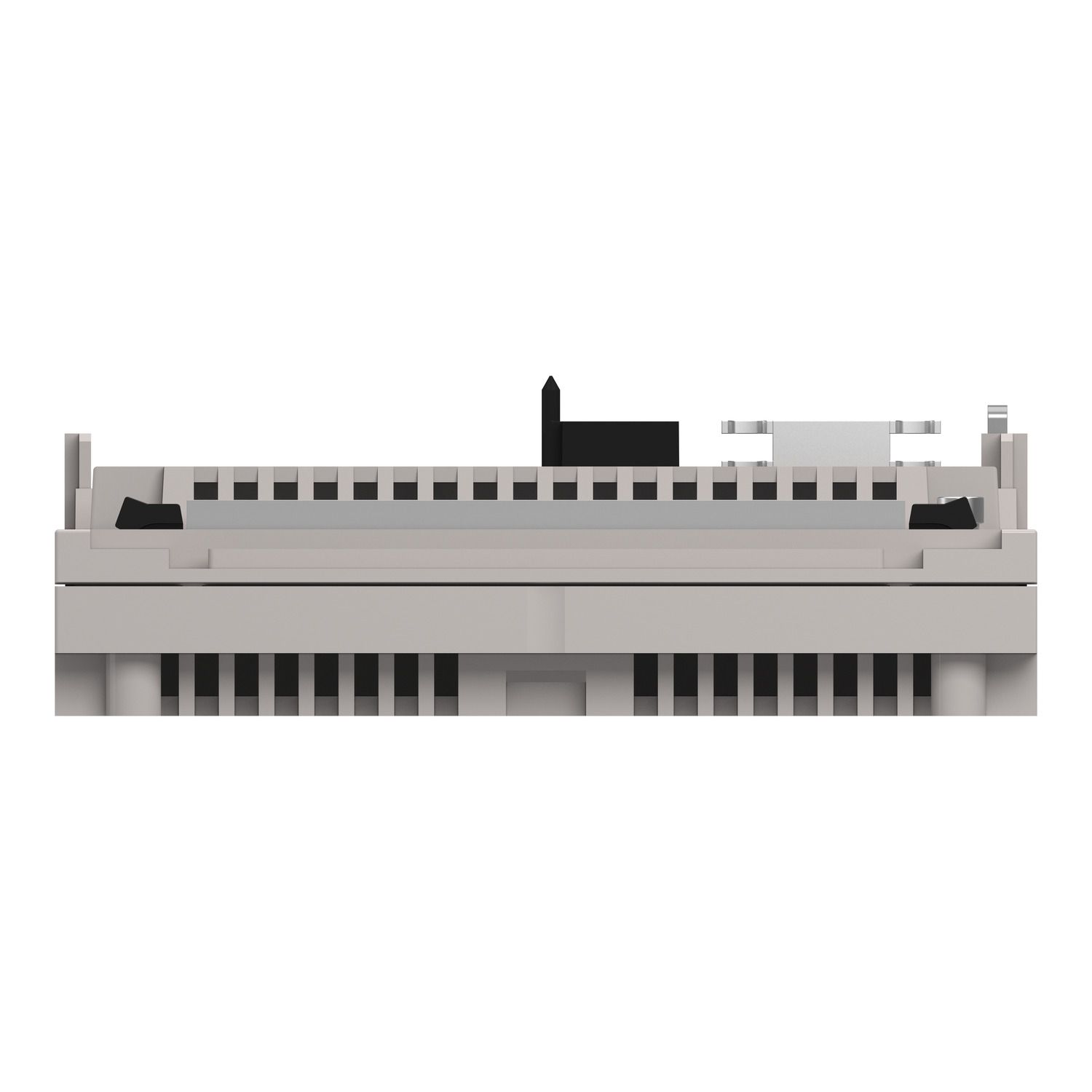

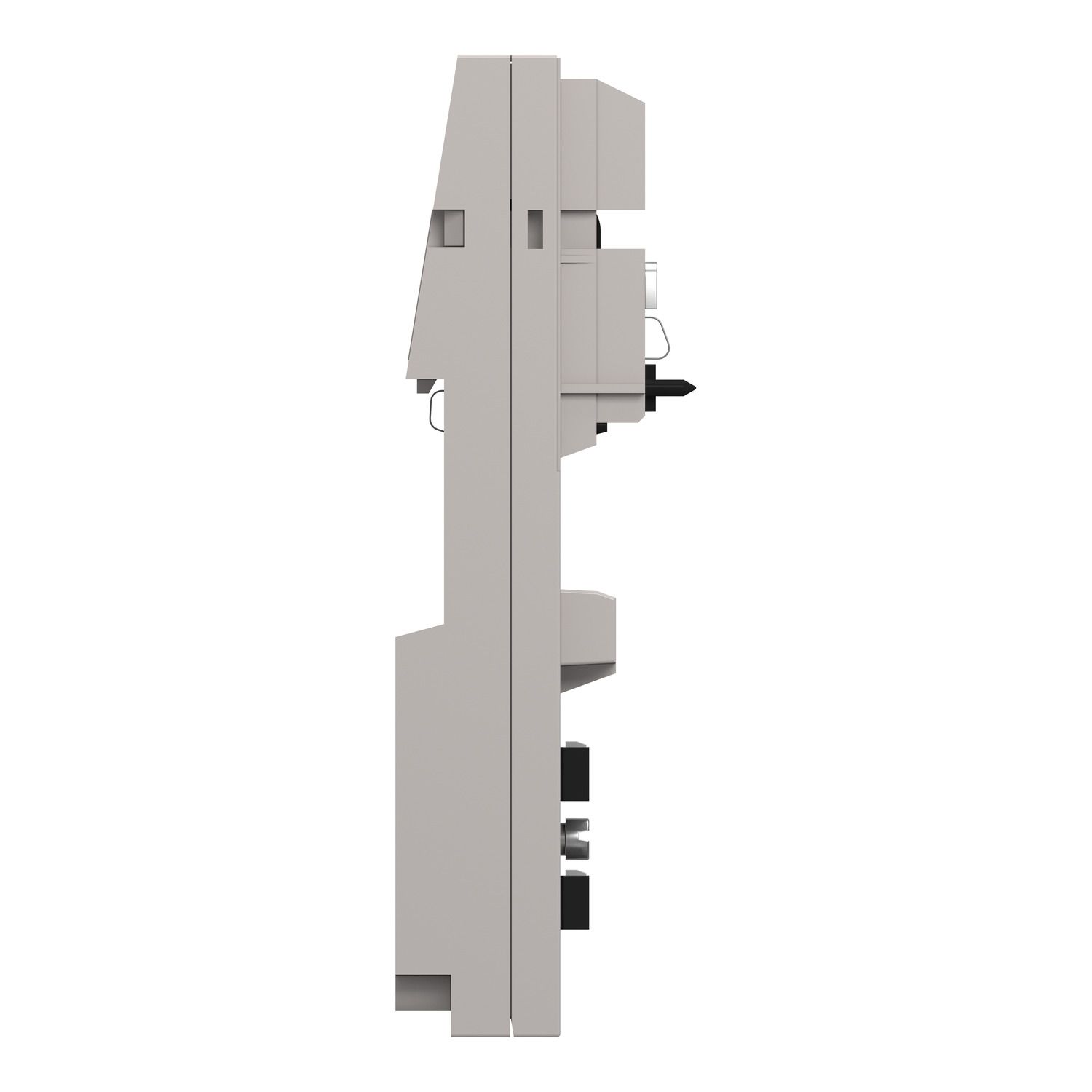

distributed analog/discrete I/O Modicon Momentum

Manufacturer: Schneider Electric

SKU: 170AMM09000

GTIN: 3595861000292

User guide

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $4,655.20 inc GST

Price: $6,156.50 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

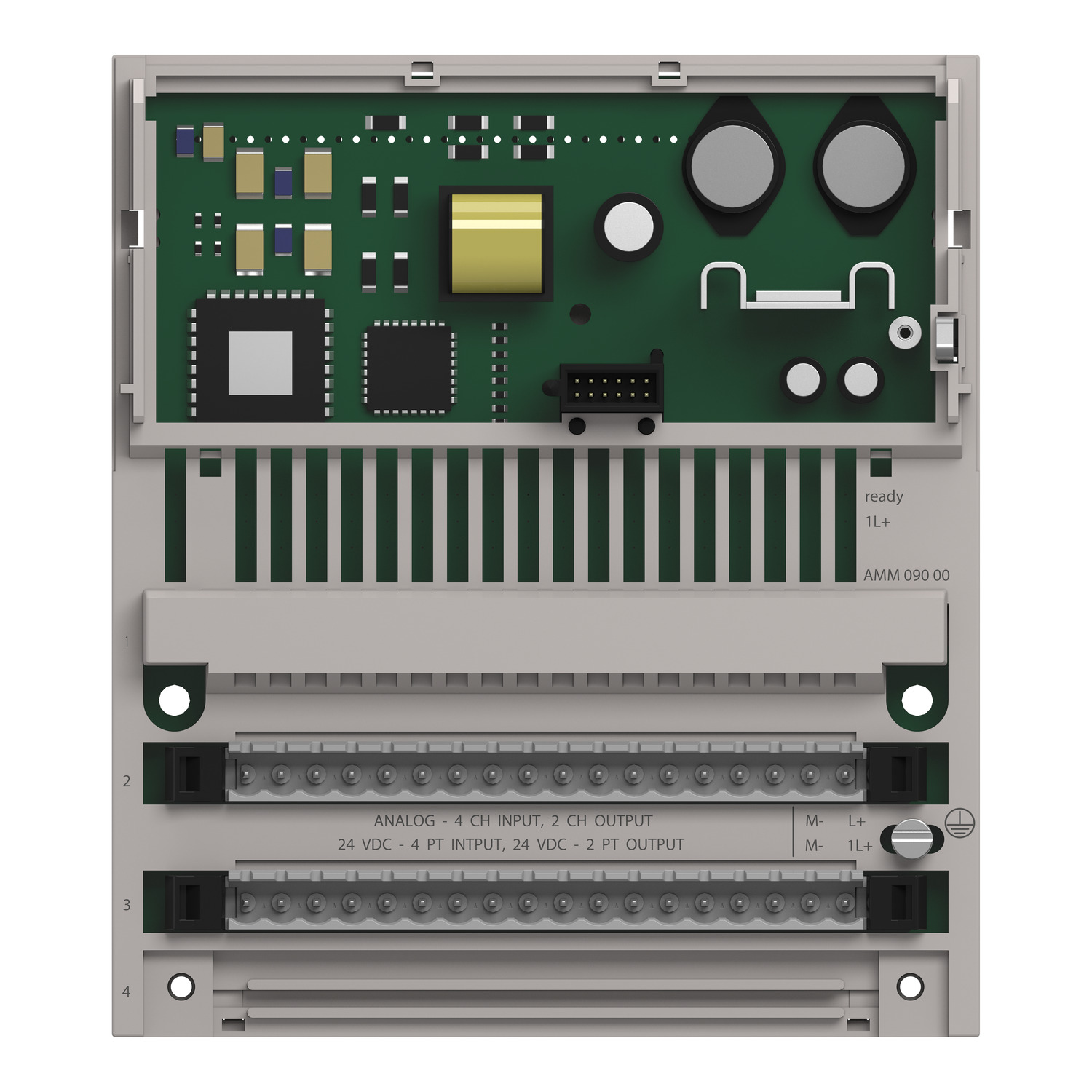

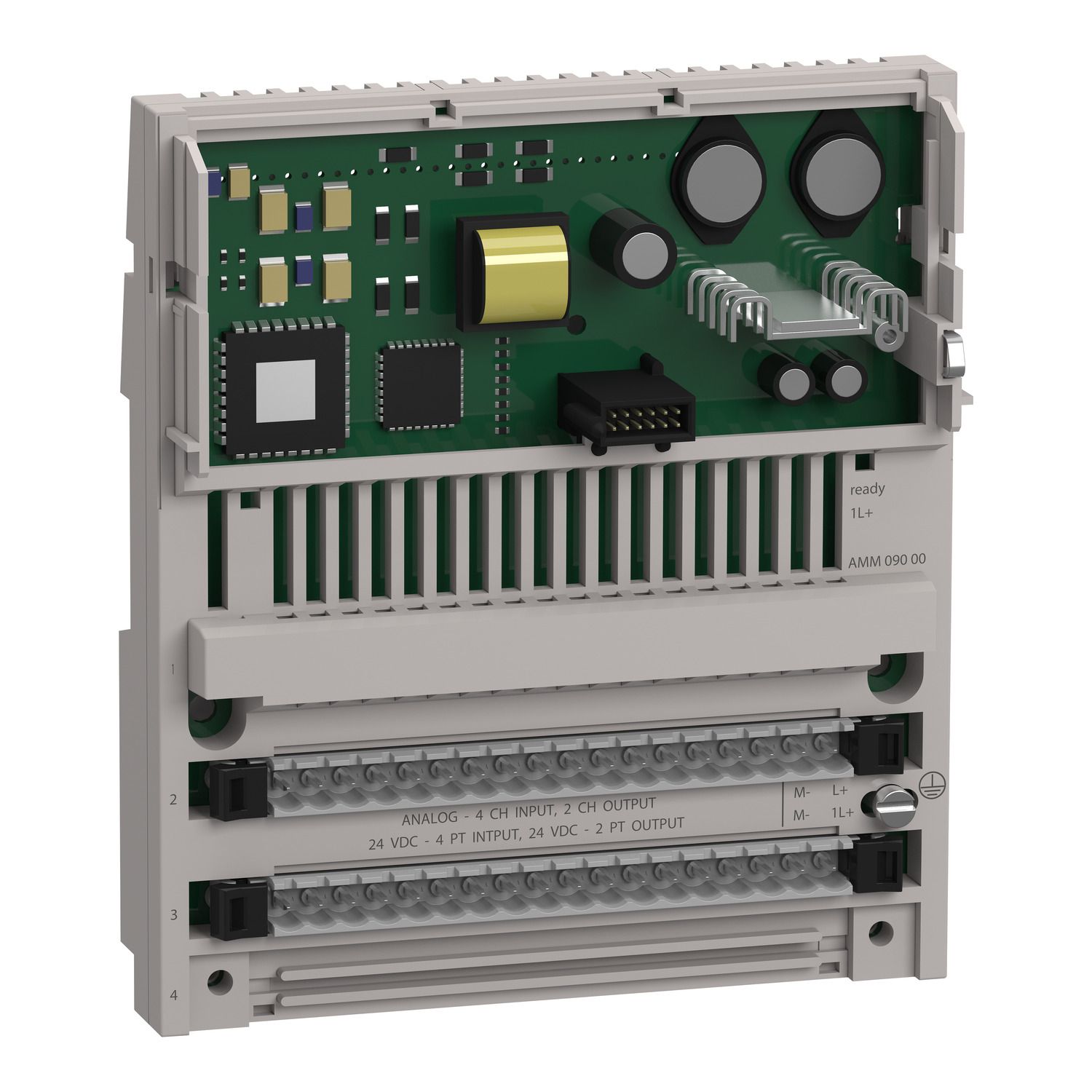

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analogue/discrete module has 1 group of 2 discrete outputs, 4 discrete inputs, 4 analogue differential inputs and 2 analogue output with positive discrete input logic. It is an analogue/discrete module with a rated supply voltage of 24V DC, a discrete output current of 1A per point, 2A per group, 2A per module and a maximum power dissipation of 6W. It is furnished with 2 connectors for removable terminal blocks. Analogue input range of this product is ±10V, ±20mA, ±5V, 1V to 5V, 4mA to 20mA and analogue output range is ±10V 12bit and 0mA to 20mA 12bit. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height) and weighs 0.24kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Products specifications

Attribute name	Attribute value
Main
Analogue input type	differential
Analogue input range	4...20 mA, 1...5 V, +/- 5 V, +/- 20 mA, +/- 10 V
Range of product	Modicon Momentum automation platform
Group of channels	1 group of 2 analog outputs, 1 group of 4 analog differential inputs, 1 group of 4 discrete inputs, 1 group of 2 discrete outputs
Discrete output voltage	<= 30 V
Output short-circuit protection	with discrete output
Analogue output range	0...20 mA 12 bits, +/- 10 V 12 bits
Analogue input resolution	14 bits +/- 10 V, 13 bits +/- 5 V, 13 bits +/- 20 mA, 12 bits 4...20 mA, 12 bits 1...5 V
Product or component type	analogue,discrete I/O base
Output overload protection	with discrete output
Discrete input voltage	24 V DC
Complementary
Discrete input number	4 conforming to IEC 1131-2 Type 1
Common mode rejection	> 54 dB analogue input circuit
Input overvoltage protection	-30-30 V 24 V analogue input circuit, -50-50 V <= 100 s analogue input circuit
Discrete input logic	positive
Maximum power dissipation in W	6 W
Current state 0 guaranteed	<= 1.2 mA (discrete input)
Voltage state 0 guaranteed	-3...5 V for discrete input
Discrete output current	2 A per module, 2 A per group, 1 A per point
Input voltage limits	< 30 V
Marking	CE
Response time	3.3 ms from state 1 to state 0 for discrete input, 2.2 ms from state 0 to state 1 for discrete input, < 0.1 ms from state 1 to state 0 for discrete output, < 0.1 ms from state 0 to state 1 for discrete output
[Us] rated supply voltage	24 VDC
Discrete output logic	positive
Height	125 mm
Discrete output type	transistor
Depth	47.5 mm
Width	141.5 mm
Conversion time	10 ms analogue input circuit, 1 ms analogue output
Local signalling	8 LEDs for channel status
Input resistance	4 kOhm discrete input, 1 MOhm analogue input circuit
Fail state	for analogue input circuit: reset to zero, for analogue input circuit: hold
Isolation voltage	500 V (duration = 1 min) between operating voltage and I/O from ground, 500 V (duration = 1 min) between analogue I/O and operating voltage
Voltage state 1 guaranteed	11...30 V for discrete input
Maximum leakage current	1 mA DC 24 V discrete output
Net weight	0.24 kg
Current state 1 guaranteed	>= 2.5 mA (discrete input)
Current consumption	200 mA at 24 V DC, <= 350 mA at 24 V DC
Conversion consistency	+/- 0.04 % 4...20 mA analogue input circuit, +/- 0.04 % 1...5 V analogue input circuit, +/- 0.04 % +/- 5 V analogue input circuit, +/- 0.04 % +/- 20 mA analogue input circuit, +/- 0.02 % +/- 10 V analogue input circuit
Maximum voltage drop	<0.5 V 1 A at state on discrete output
Conversion error	0,0016 1...5 V 25 °C analogue input circuit, 0,0016 +/- 5 V 25 °C analogue input circuit, 0,0016 +/- 20 mA 25 °C analogue input circuit, 0,0015 +/- 10 V 60 °C analogue input circuit, 0,0008 +/- 10 V 25 °C analogue input circuit, +/- 0.70 % 0...20 mA 60 °C analogue output, +/- 0.70 % +/- 10 V 60 °C analogue output, +/- 0.35 % 0...20 mA 25 °C analogue output, 0,003 4...20 mA 60 °C analogue input circuit, 0,003 1...5 V 60 °C analogue input circuit, 0,003 +/- 5 V 60 °C analogue input circuit, 0,003 +/- 20 mA 60 °C analogue input circuit, 0,0016 4...20 mA 25 °C analogue input circuit, +/- 0.35 % +/- 10 V 25 °C analogue output
Operating rate	8 cyc/s tungsten <2.4 W discrete output, 1000 cyc/h inductive 1 A discrete output, 100 cyc/s resistive 1 A discrete output
Output load	>= 3 kOhm +/- 10 V analogue output, <= 600 Ohm 0...20 mA analogue output
Electrical connection	2 connectors for removable terminal blocks
Environment
Protective treatment	TC
Resistance to electrostatic discharge	8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity	95-95 % without condensation
Ambient air temperature for storage	-40-85 °C
Resistance to electromagnetic fields	10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0-60 °C
Operating altitude	<= 5000 m
Product certifications	FM Class 1 Division 2, CSA, UL
