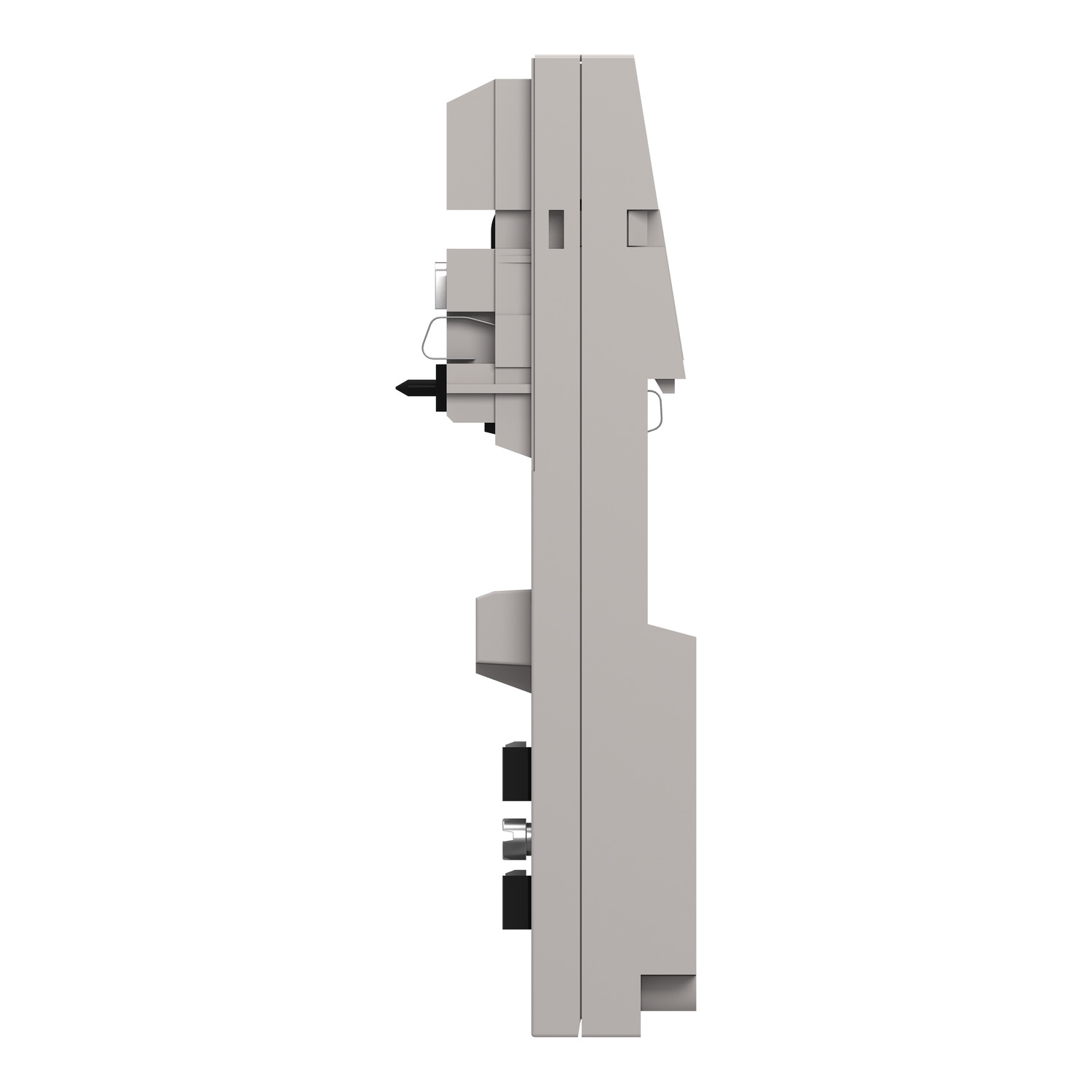

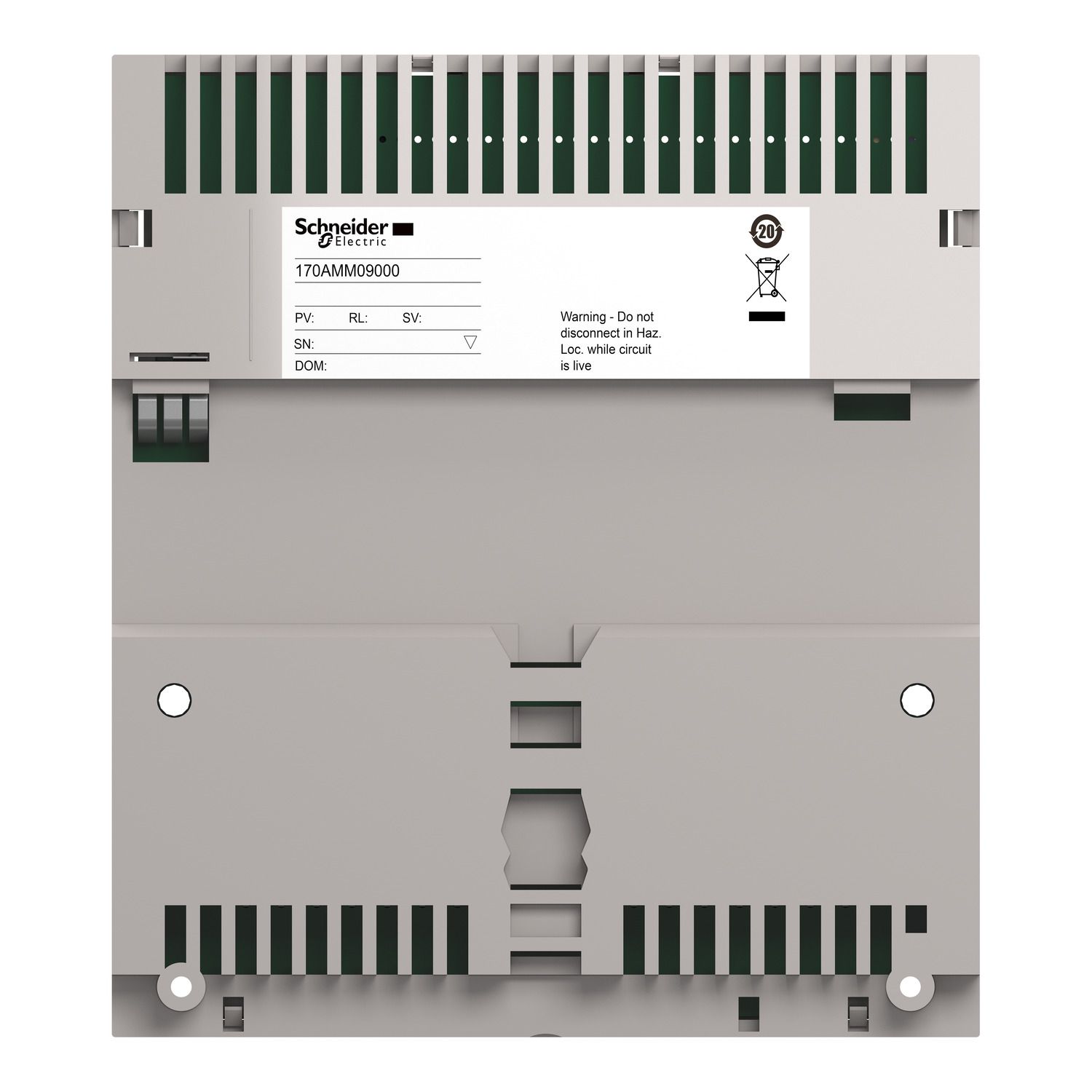

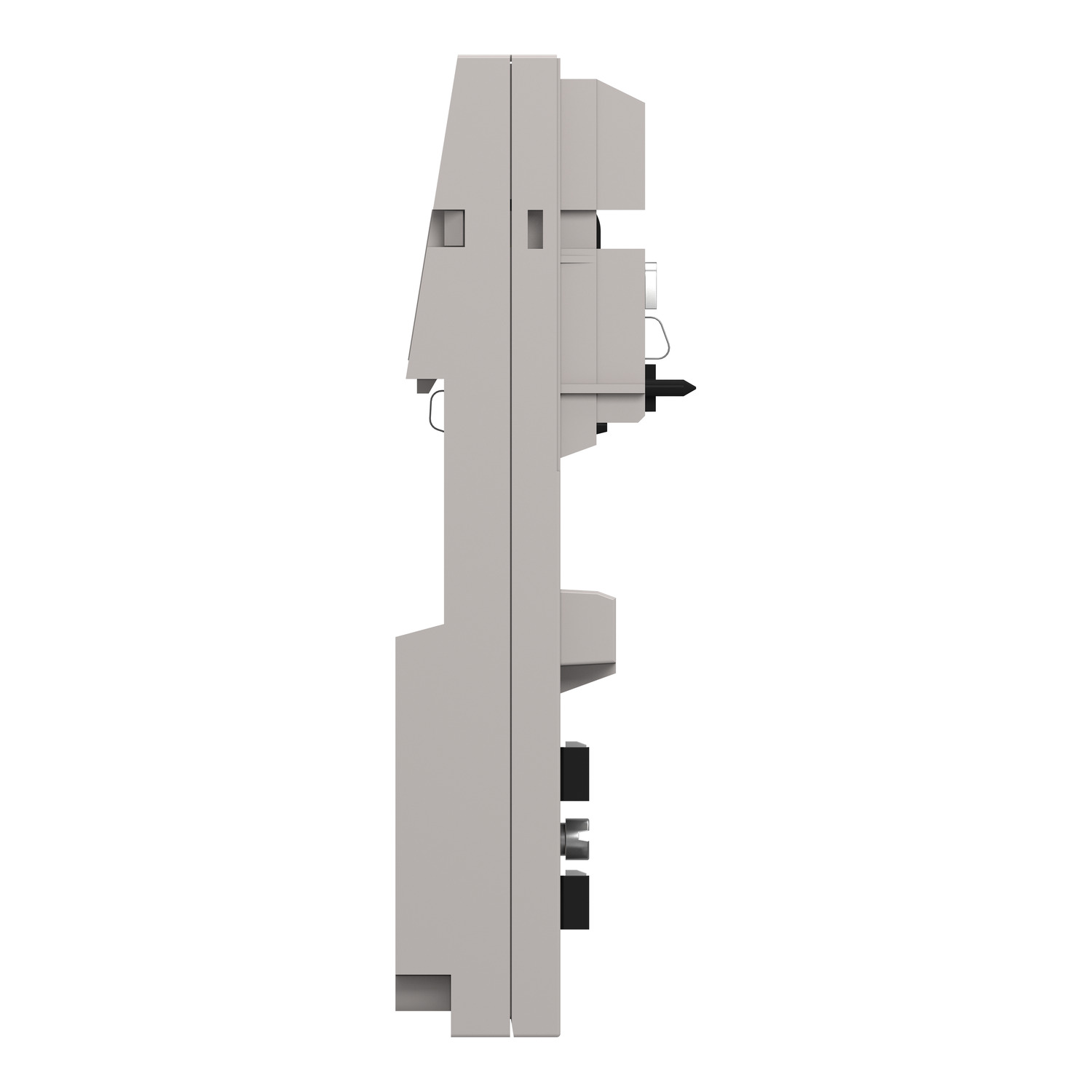

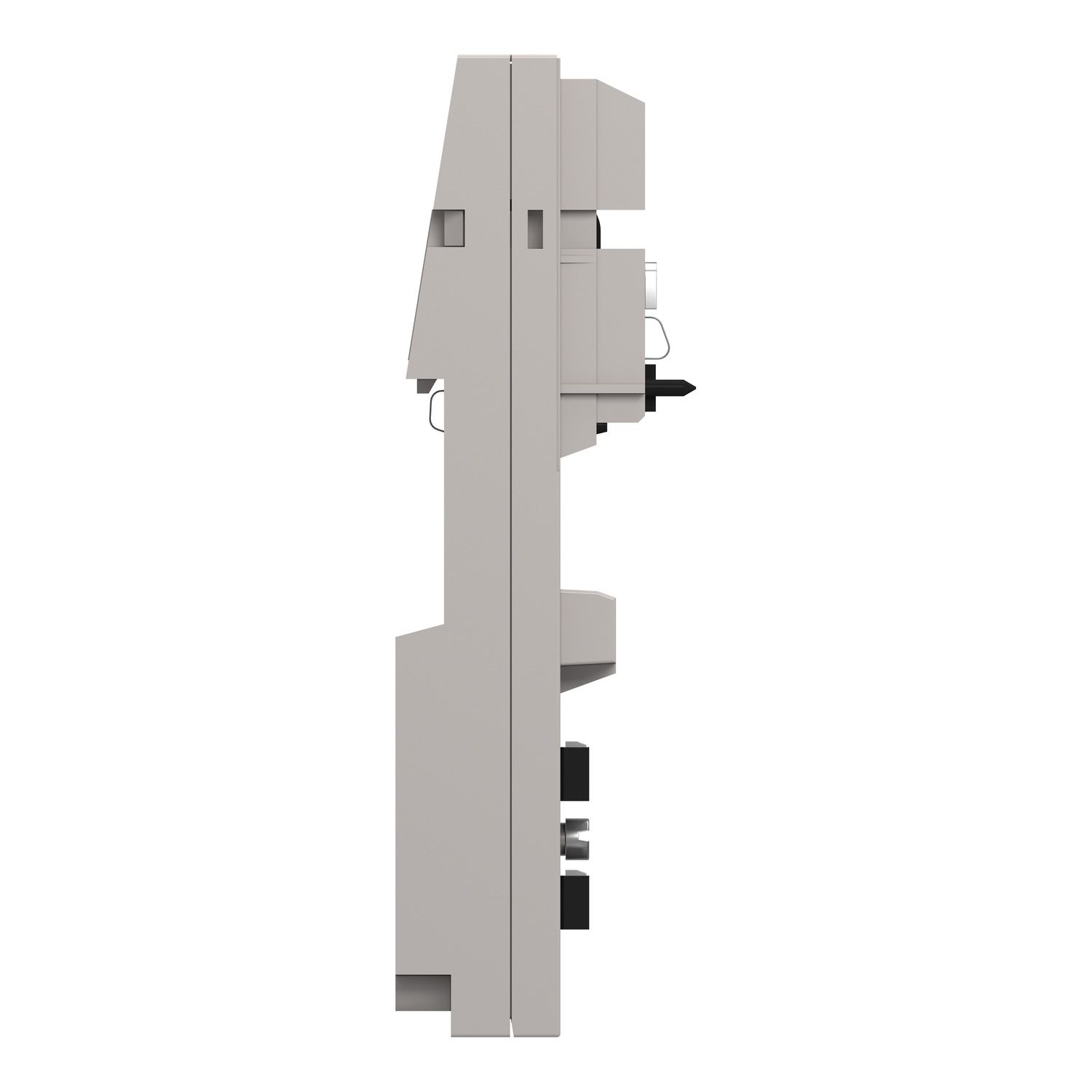

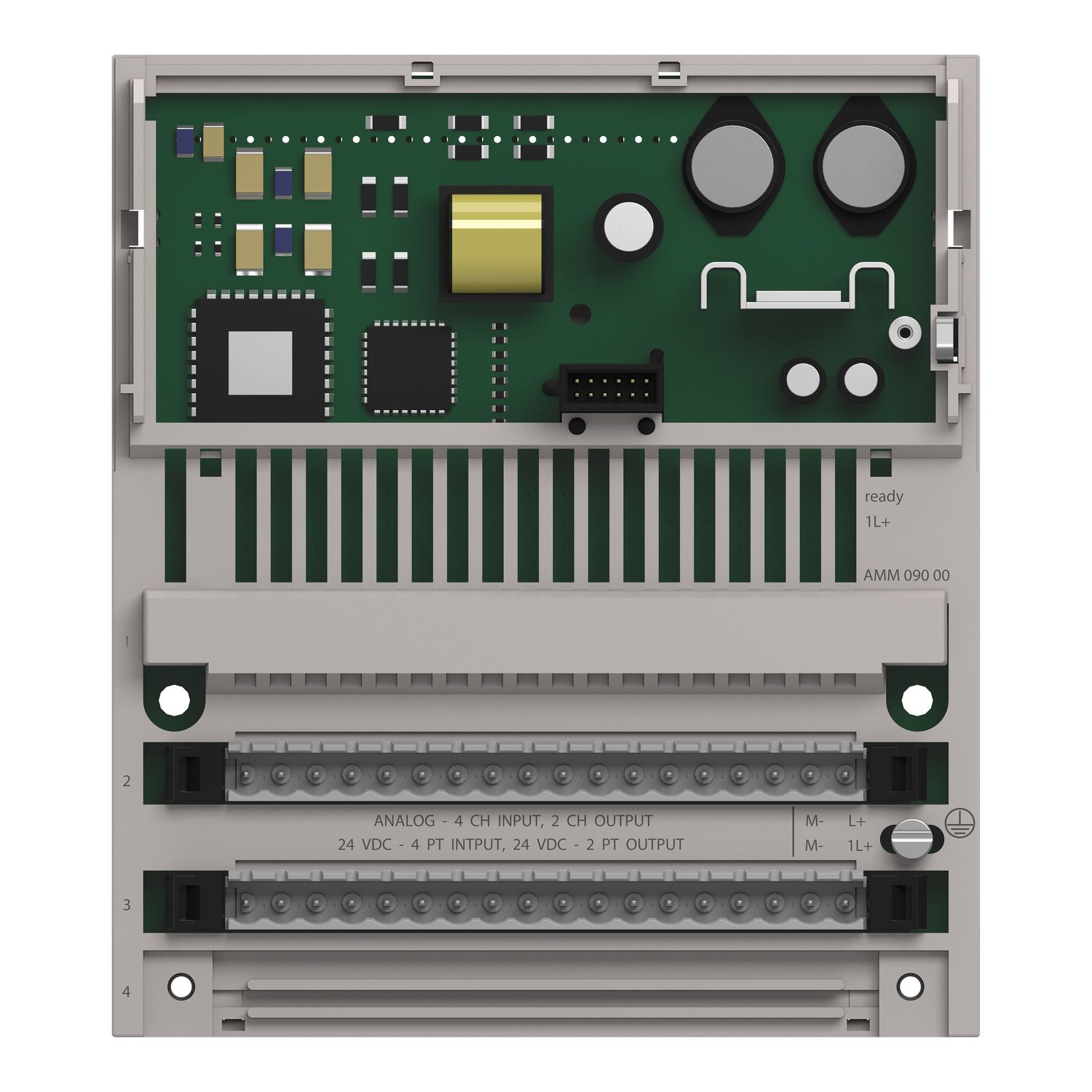

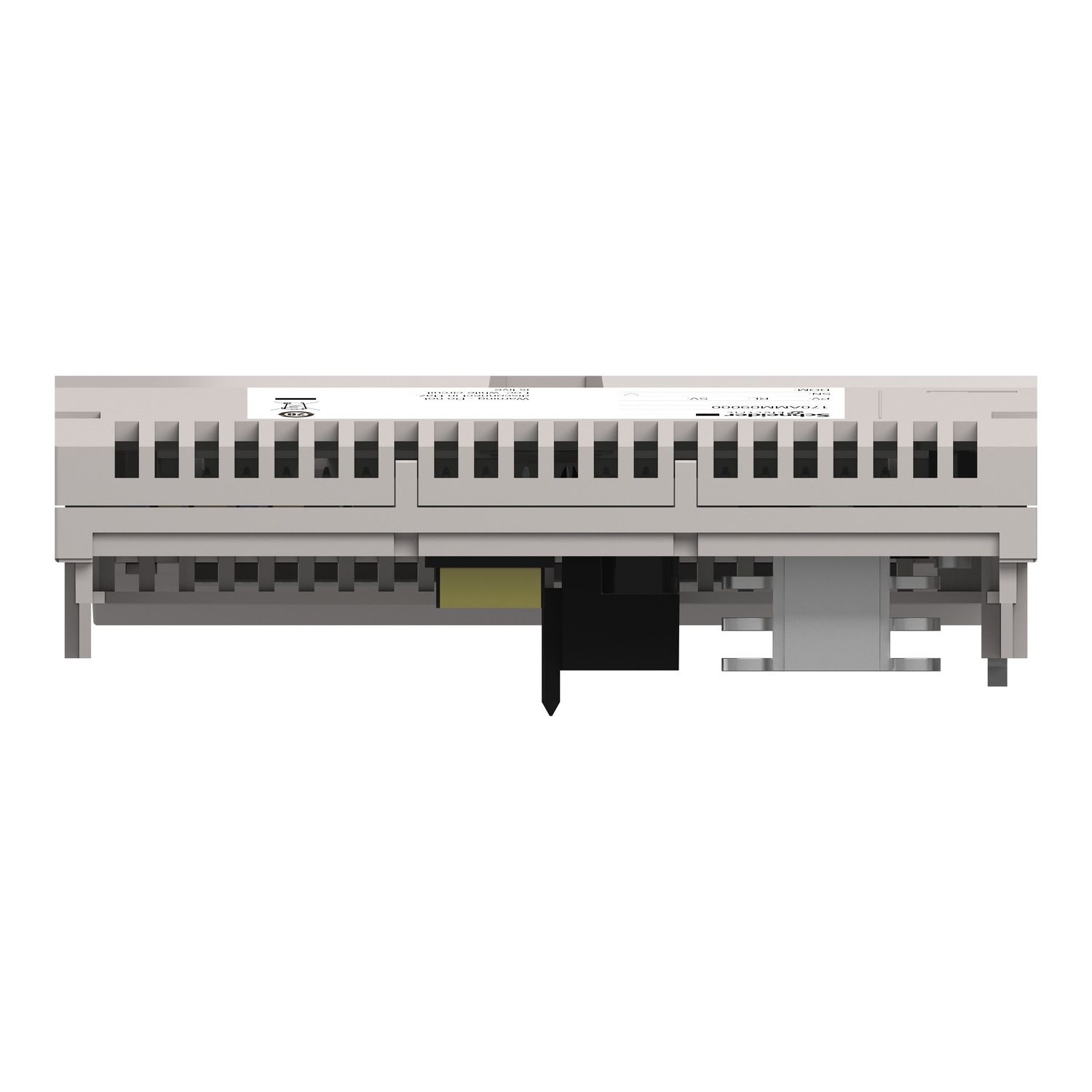

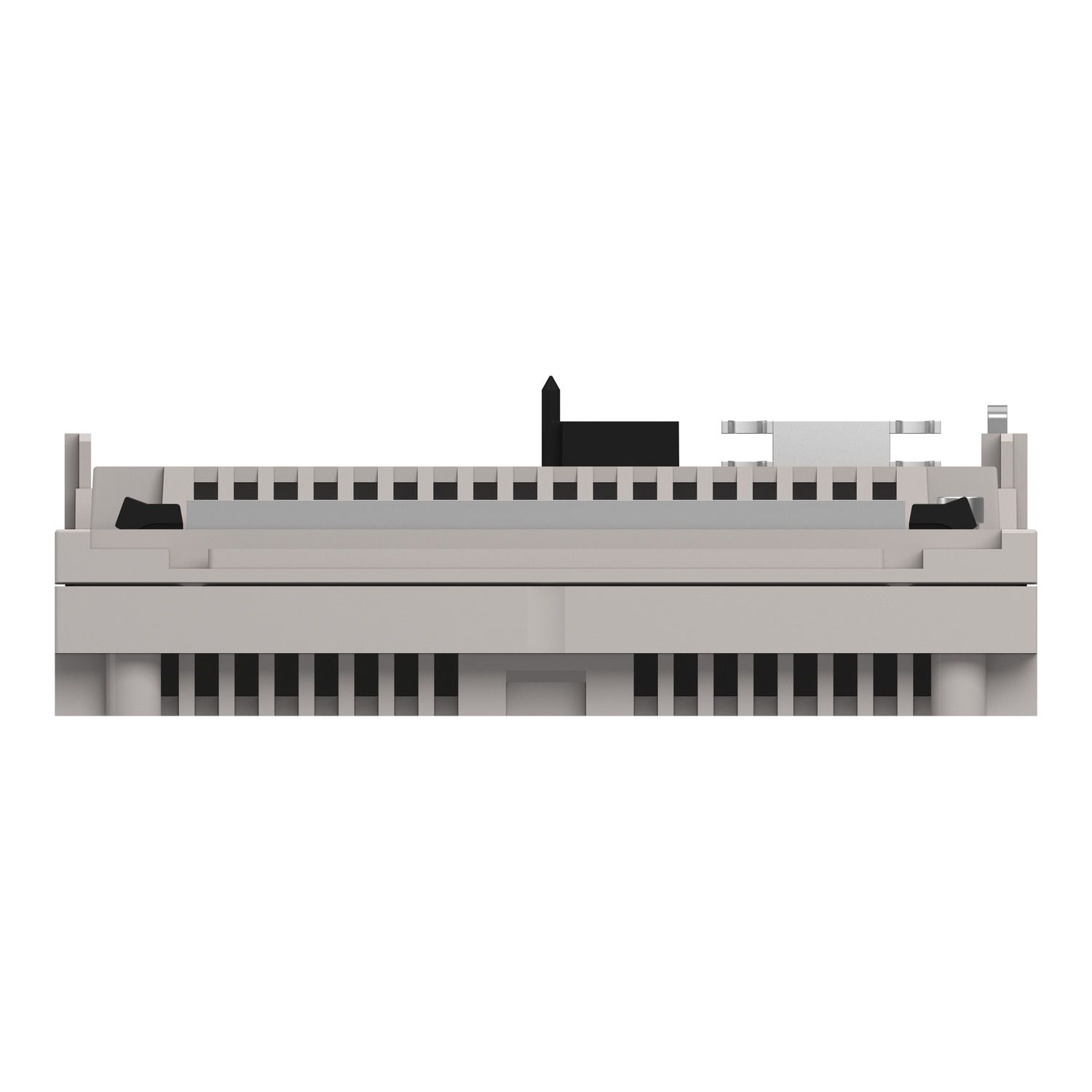

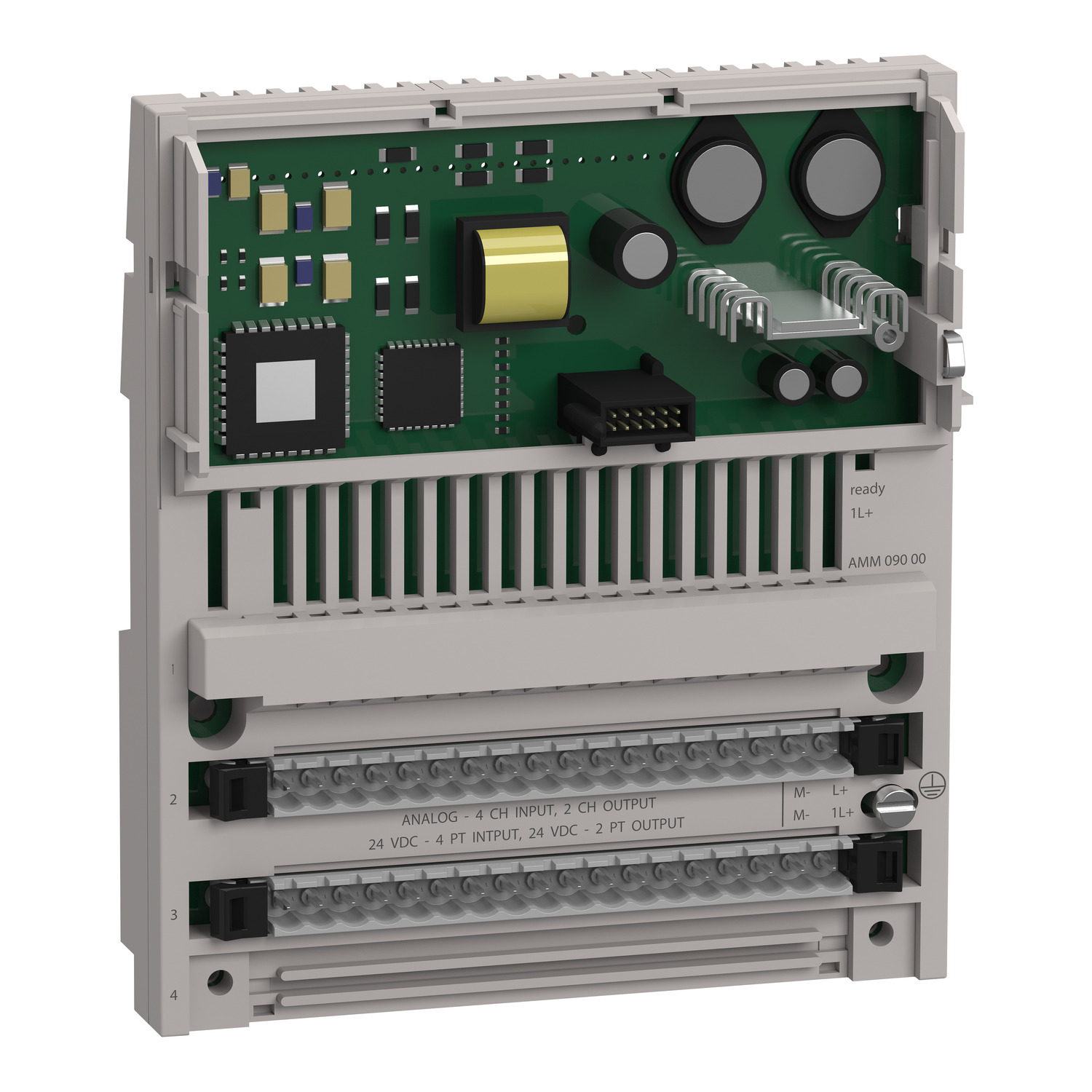

This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analog, discrete I/O base module offers 8 discrete outputs, 8 discrete inputs, 6 analog inputs and 4 analog outputs. It is a module with analog input/output voltage ranges from 0V to 10V and discrete input voltage of 24V DC and discrete output voltage from 10V to 30V. There is an isolation between analog I/O and operating voltage, operating voltage and I/O from the ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.24kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue input type | single ended |
| Analogue input range | 0...10 V |
| Range of product | Modicon Momentum automation platform |
| Group of channels | 1 group of 4 analog outputs, 1 group of 6 analog inputs, 2 groups of 4 discrete inputs, 1 group of 8 discrete outputs |
| Discrete output voltage | 10...30 V |
| Output short-circuit protection | with discrete output |
| Analogue output range | 0...10 V 14 bits |
| Analogue input resolution | 14 bits 0...10 V |
| Product or component type | analogue,discrete I/O base |
| Output overload protection | with discrete output |
| Discrete input voltage | 24 V DC |
| Complementary | |
| Discrete input number | 8 conforming to IEC 1131-2 Type 2 |
| Input overvoltage protection | 45-45 V 10 s discrete input |
| Discrete input logic | positive |
| Maximum power dissipation in W | 6 W |
| Current state 0 guaranteed | <= 2 mA (discrete input) |
| Voltage state 0 guaranteed | <= 5 V for discrete input |
| Discrete output current | 0.25 A per point, 2 A per module, 2 A per group |
| Input voltage limits | 3...32 V |
| Marking | CE |
| Response time | 1.2 ms from state 1 to state 0 for discrete input, 1.2 ms from state 0 to state 1 for discrete output, 1.2 ms from state 0 to state 1 for discrete input, 1.05 ms from state 1 to state 0 for discrete output |
| [Us] rated supply voltage | 24 V (19.2-30 V)DC |
| Discrete output logic | positive |
| Height | 125 mm |
| Discrete output type | transistor |
| Depth | 47.5 mm |
| Width | 141.5 mm |
| Conversion time | 1.2 ms analogue output, 0.75 ms analogue input circuit |
| Local signalling | 4 LEDs for channel status |
| Input resistance | 1 MOhm analogue input circuit |
| Fail state | for analogue output: reset to zero, for analogue output: hold |
| Isolation voltage | 500 V (duration = 1 min) between operating voltage and I/O from ground, 500 V (duration = 1 min) between analogue I/O and operating voltage |
| Voltage state 1 guaranteed | >= 11 V for discrete input |
| Maximum leakage current | 0.4 mA DC 30 V discrete output |
| Net weight | 0.24 kg |
| Surge current | 2.5 A 1 ms discrete output |
| Current state 1 guaranteed | >= 6 mA (discrete input) |
| Current consumption | 400 mA at 24 V DC |
| Maximum voltage drop | <0.4 V 0.25 A at state on discrete output |
| Conversion error | 0,002 0...10 V 25 °C analogue input circuit, +/- 0.4 % 0...10 V 25 °C analogue output |
| Output load | >= 2 kOhm 0...10 V analogue output |
| Electrical connection | 2 connectors for removable terminal blocks |
| Maximum analogue input voltage | 15 V |
| Environment | |
| Protective treatment | TC |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | <= 5000 m |
| Product certifications | CSA, UL |
