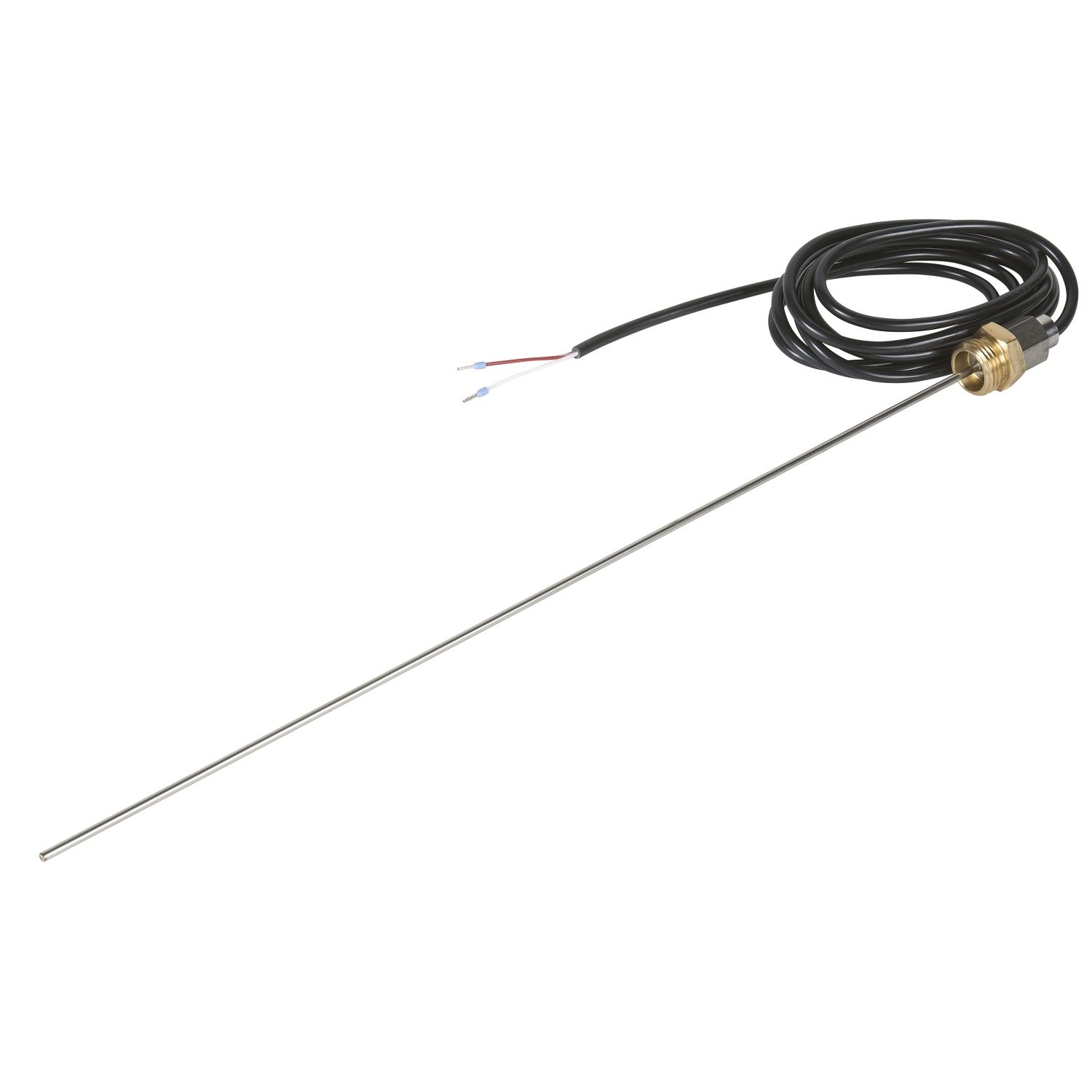

The STX122 is primarily intended for pipe mounting without a separate pocket in heating coils. The insert pipe is stainless steel. The sensor is delivered with a 2 m (6.56 ft.) connecting cable, and has a R1/4 in. (DN 8) male thread fixing.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP65 |
| Device application | immersion application |
| Colour | cable: black |
| Output type | resistive output |
| Sensor type | 1.8 kOhm NTC temperature |
| Mounting mode | pipe thread |
| Net weight | 0.145 kg |
| Location | plant room |
| Ambient air temperature for operation | -40-100 °C |
| Product or component type | sensor |
| Type of measurement | temperature |
| Targeted region | Europe, Asia Pacific. |
| Mounting support | pipe |
| Range of product | STX122 |
| Complementary | |
| Measurement accuracy | 0...25 °C +/- 0.3 °C |
| Number of cables | 1 <2.5 m |
| Material | stainless steel: insert pipe |
| Connections - terminals | wire (AWG 24...AWG 18) |
| Former part number | 5123306000 |
| Time constant | 1.5 s |
| Environment | |
| Product certifications | CE |
