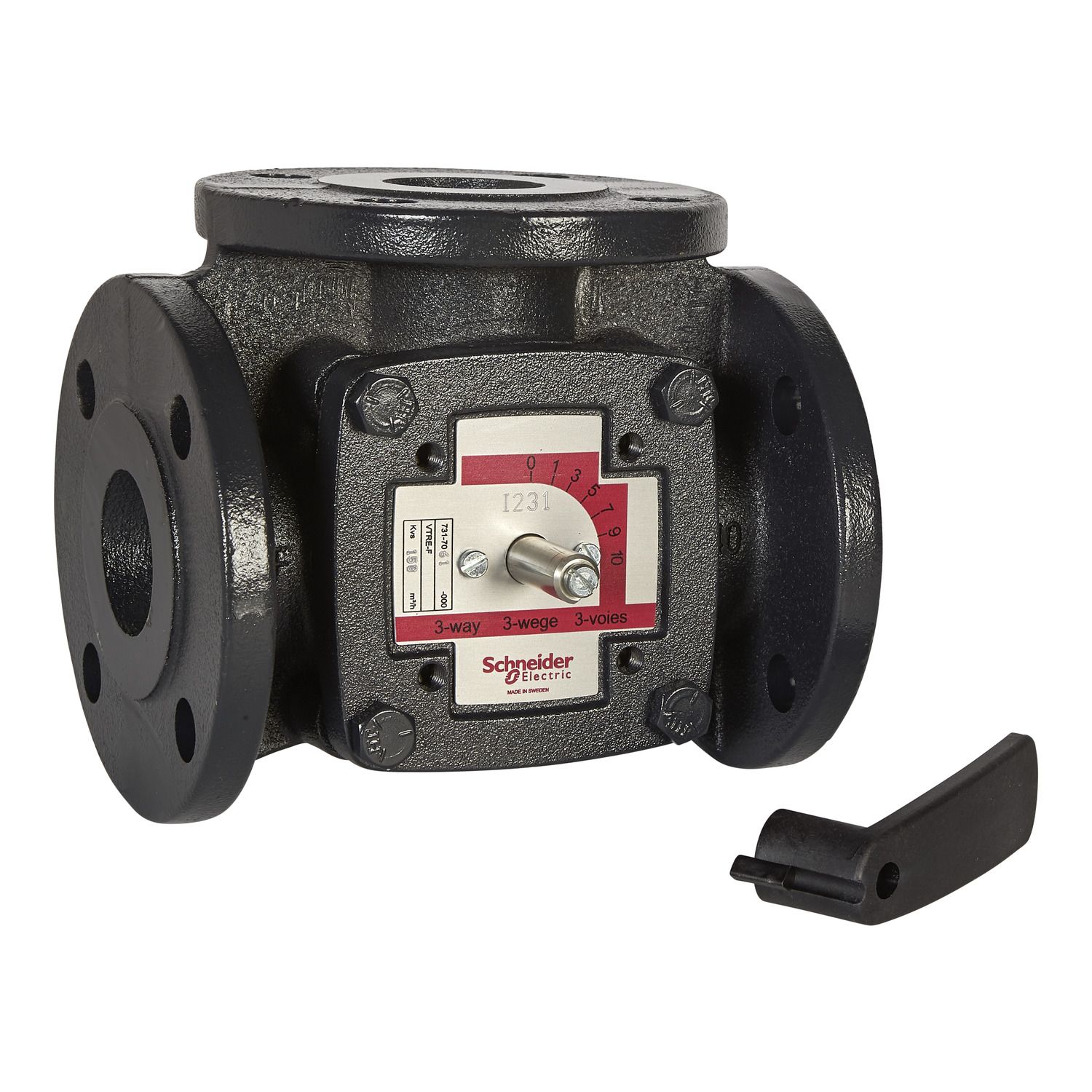

The VTRE is a 3-way rotary shoe valve that is suitable for mixing and diverting flows in heating and cooling applications. The valve is delivered with a handle for manual operation. Valve size: DN8, modified linear, kvs: 15 m³/h. Constructed and flanged to a PN6 pressure class. The mixing valve provide a working temperature range of -1 °C to 1 °C. 9 ° operating angle. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). Flanged DIN 2531 connection.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating fluid temperature | -10-110 °C |
| Body material | cast iron |
| Seat leakage | Port A: Less than 1 % of kvs |
| Valve Rotation | 90 ° |
| Product or component type | valve |
| Targeted region | Australia., Asia Pacific., Europe |
| Medium compatibility | Water, Glycol 50 %, Glycol 30 %, Glycol 25 % |
| Material sleeve | brass |
| Valve product series | VTRE |
| Flow coefficient | 150 kvs, 173.43 cv |
| Valve configuration | 3-Way |
| Stem movement | rotary |
| Valve type | shoe |
| Valve model | VTRE/80/150 |
| Valve connection type | flanged |
| Flow characteristic | equal percentage |
| Trim material | brass |
| Pipe size | 80 mm |
| Pressure class | PN6 |
| Body size | 80 mm (3 in) |
