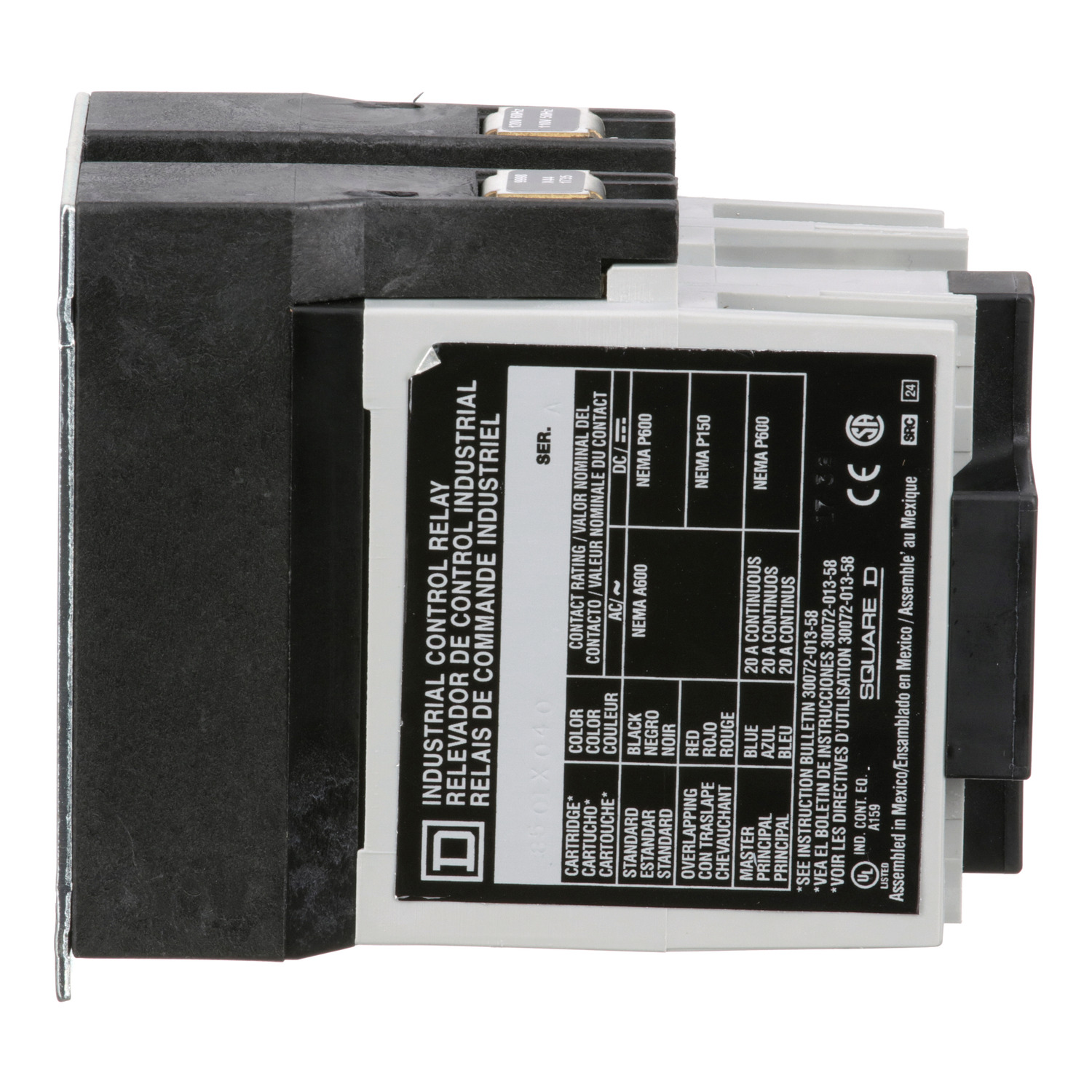

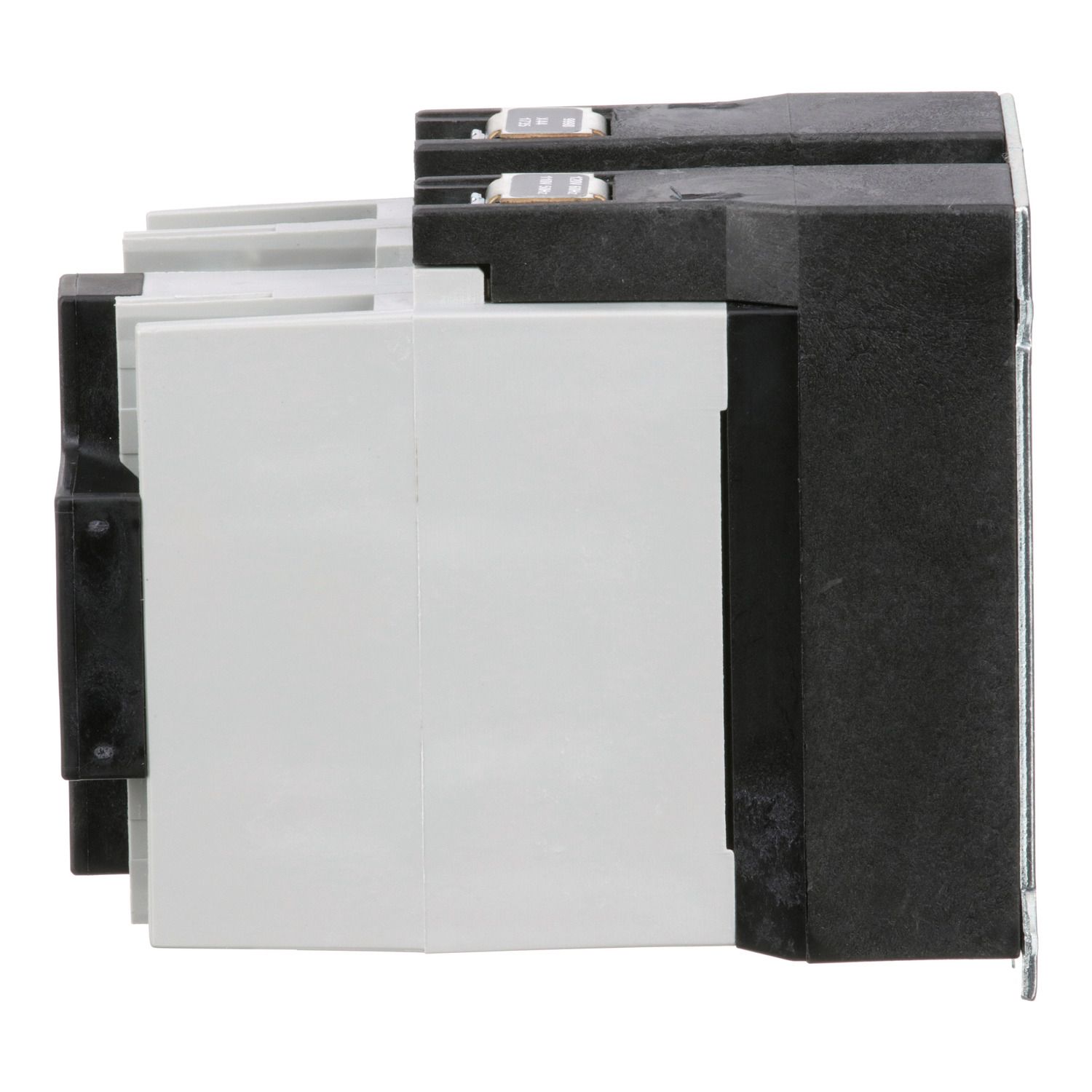

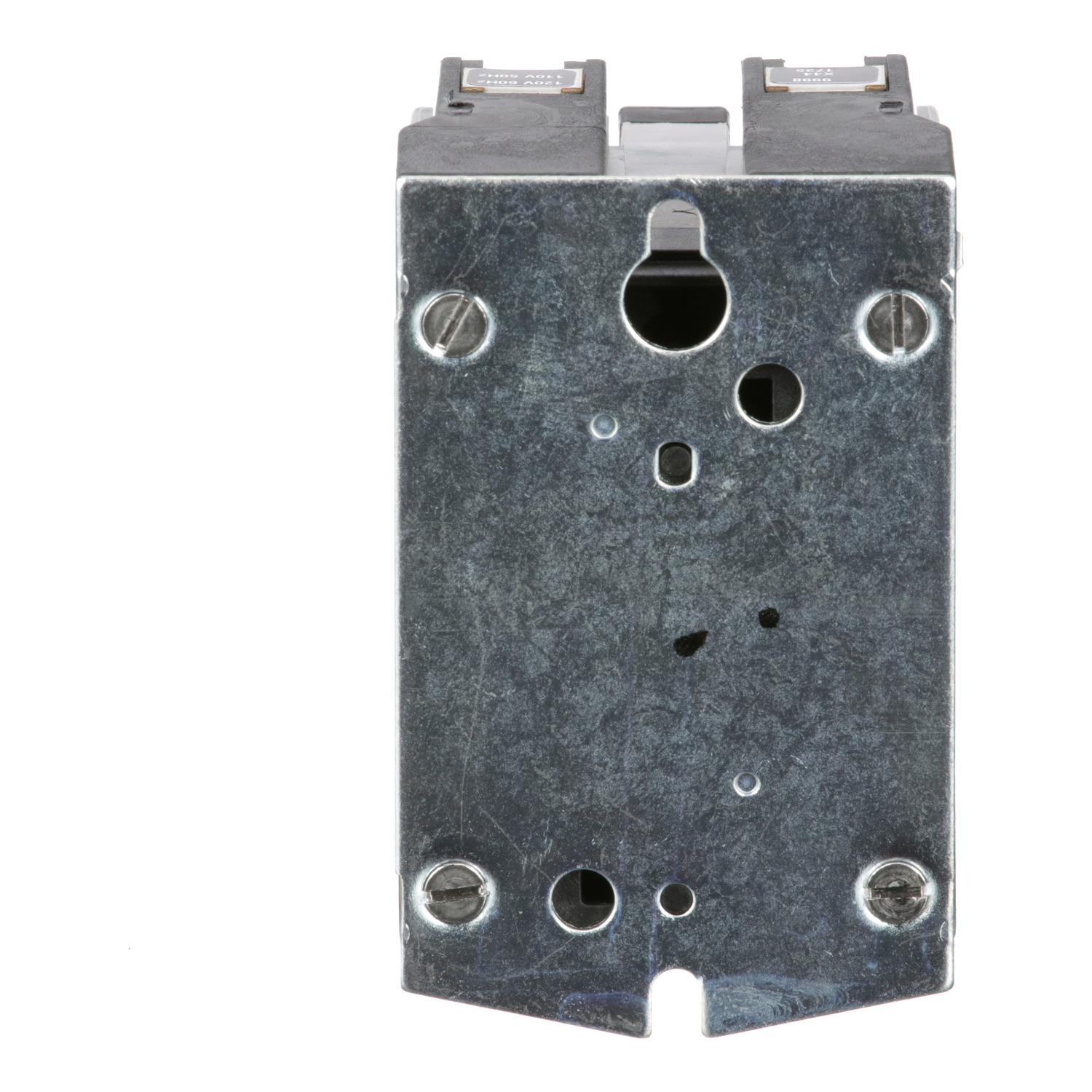

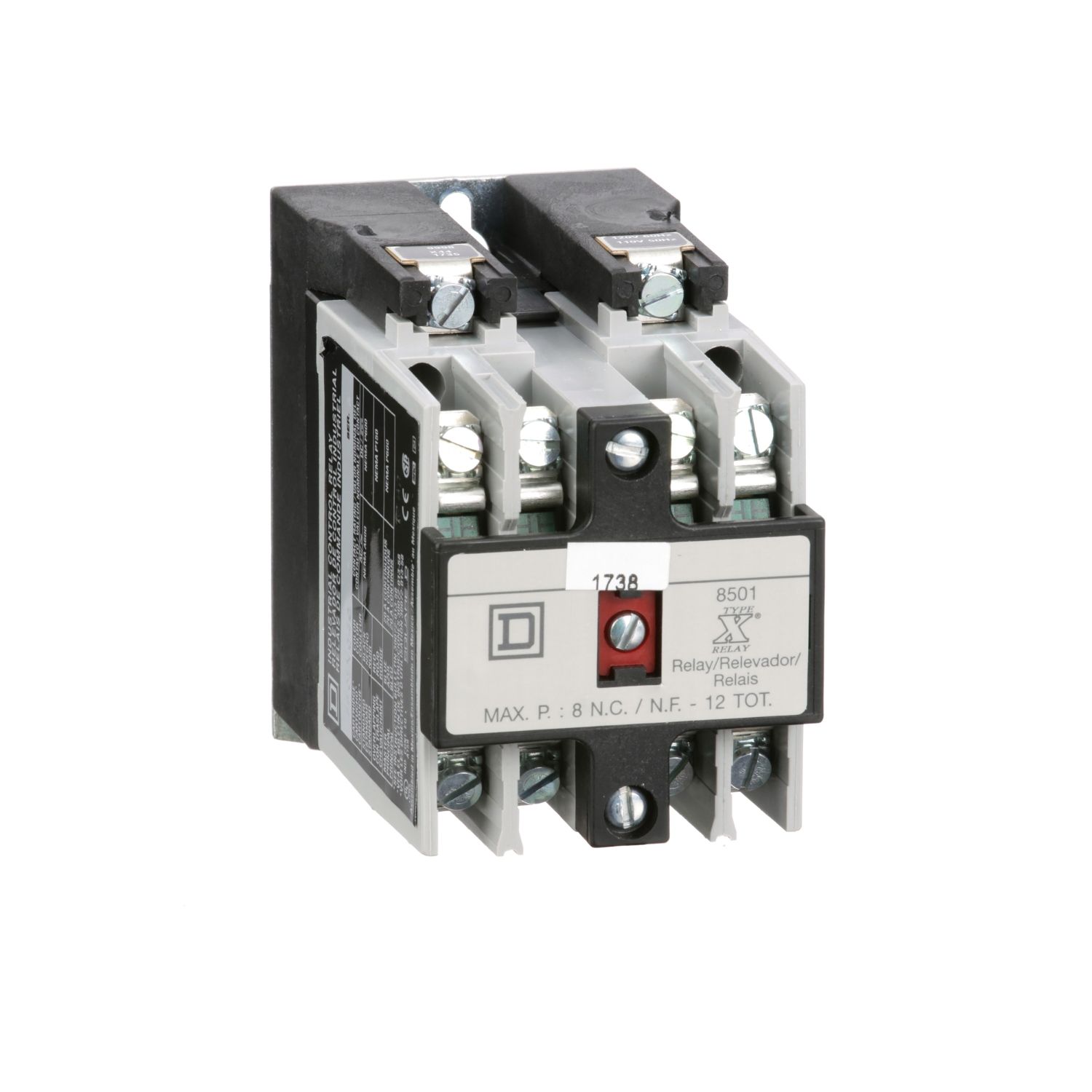

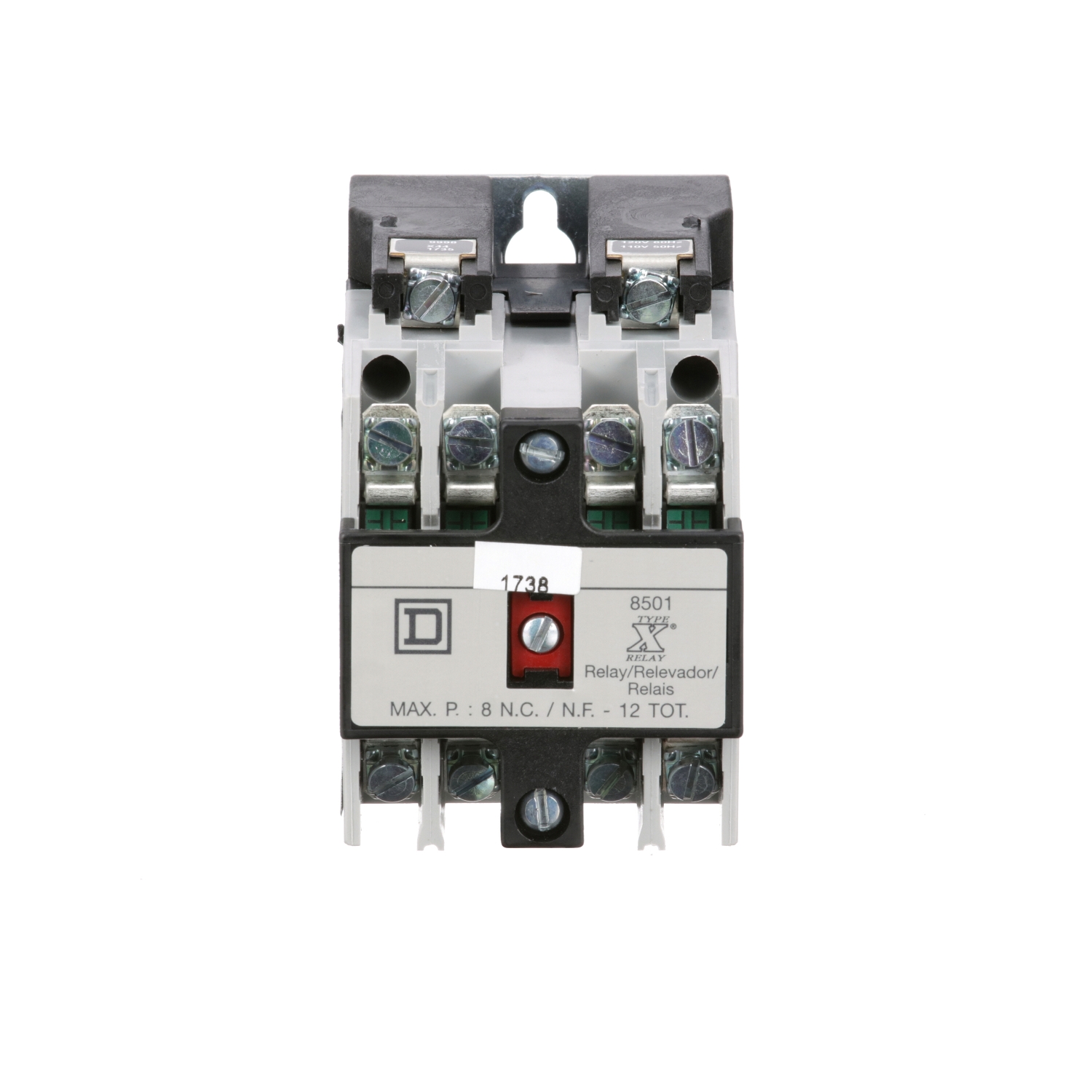

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has four 8501XC1 contact cartridges. This relay has four normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Relay type | control |
| Product or component type | relay |
| Range of product | 8501X |
| [In] rated current | 5 A DC, 10 A AC |
| Complementary | |
| Depth | 3.95 in |
| Tightening torque | control circuit: 1.02-1.36 N.m - on screw terminals |
| AWG gauge | AWG 18...AWG 12 copper |
| Width | 2.23 in |
| Operating time | 16 ms - drop-out, 15 ms - pick-up |
| Electrical connection | screw clamp terminals |
| Hold-in power consumption in VA | 25-25 VA 50 Hz, 23-23 VA 60 Hz |
| [Icm] rated short-circuit making capacity | 4 A at: 125 V DC for inductive load control circuit conforming to UL 508, 0.2 A at: 301...600 V DC for inductive load control circuit conforming to UL 508, 0.55 A at: 250 V DC for inductive load control circuit conforming to UL 508, 1.1 A at: 125 V DC for inductive load control circuit conforming to UL 508, 10 A at: <= 600 V AC for resistive load control circuit conforming to UL 508, 12 A at: 600 V AC for inductive load control circuit conforming to UL 508, 15 A at: 480 V AC for inductive load control circuit conforming to UL 508, 30 A at: 240 V AC for inductive load control circuit conforming to UL 508, 0.8 A at: 250 V DC for resistive load control circuit conforming to UL 508, 60 A at: 120 V AC for inductive load control circuit conforming to UL 508 |
| Inrush power in VA | 143-143 VA 50 Hz, 148-148 VA 60 Hz |
| Rated breaking capacity | 4 A at 125 V DC for resistive control circuit conforming to UL 508, 0.2 A at 301...600 V DC for inductive control circuit conforming to UL 508, 0.55 A at 250 V DC for inductive control circuit conforming to UL 508, 1.1 A at 125 V DC for inductive control circuit conforming to UL 508, 10 A at <= 600 V AC for resistive control circuit conforming to UL 508, 1.2 A at 600 V AC for inductive control circuit conforming to UL 508, 1.5 A at 480 V AC for inductive control circuit conforming to UL 508, 3 A at 240 V AC for inductive control circuit conforming to UL 508, 0.8 A at 250 V DC for resistive control circuit conforming to UL 508, 6 A at 120 V AC for inductive control circuit conforming to UL 508 |
| Contacts type and composition | 4 NO 4 standard contact cartridges |
| Mounting support | panel |
| Control circuit voltage limits | operational: 0.85...1.1 Uc AC 50/60 Hz |
| Height | 3.5 in |
| [Uc] control circuit voltage | 120 V AC 60 Hz, 110 V AC 50 Hz |
| Environment | |
| Ambient air temperature for operation | -40-160 °F |
| Product certifications | CSA LR60905 class 3211 03, UL listed file E78403 CCN NKCR |
