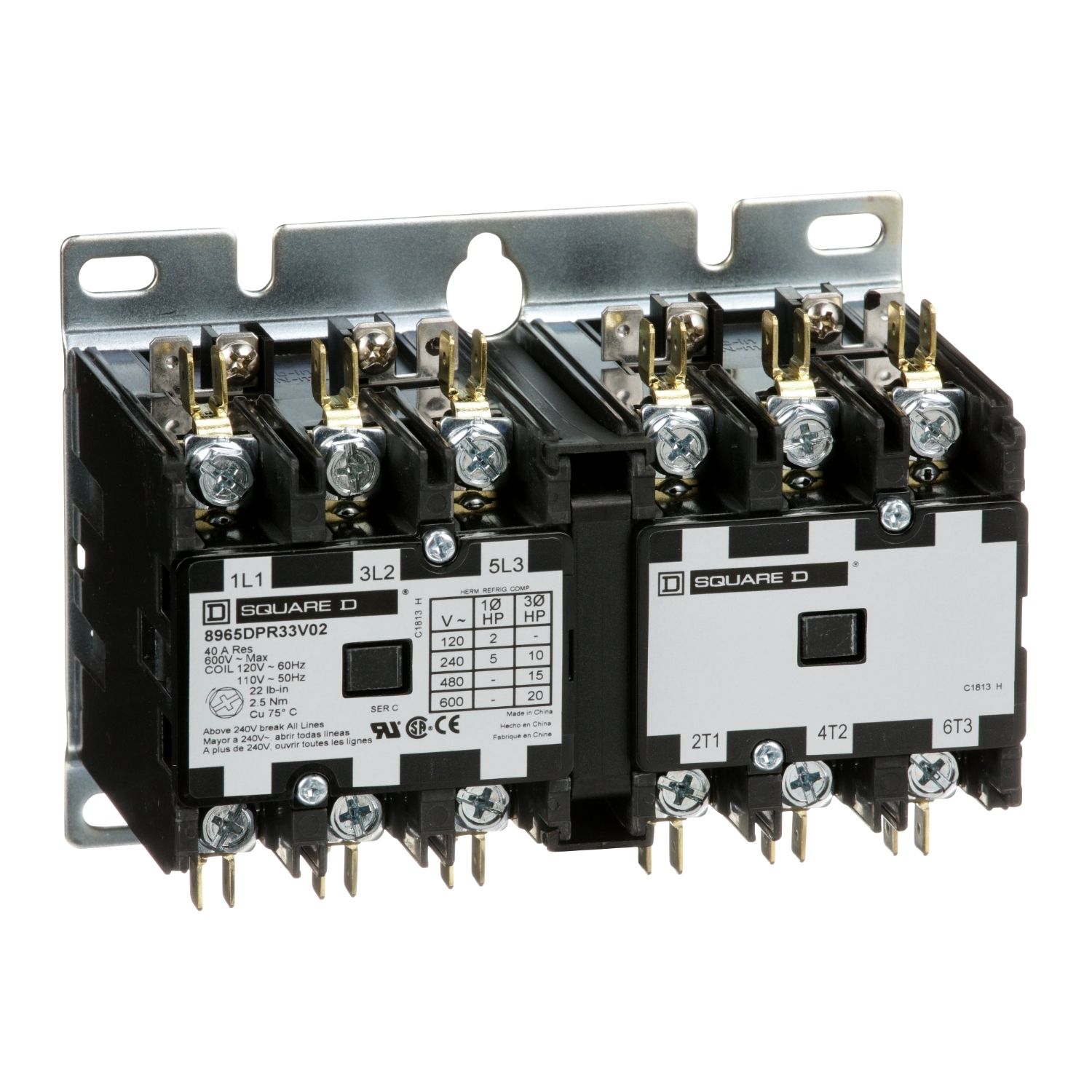

8965 reversing hoist contactors are designed for control of hoists, overhead doors, small elevators and commercial laundry equipment. They are rated to perform in the short periods of jogging experienced in hoist service. This 3 pole contactor has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. Has ratings of 10 HP at 230 HP and 15 HP at 460 VAC and 575 VAC poly phase. The replaceable coil is available with a variety of coil voltages. This device has a 110/240 VAC 50/60 Hz coil. This reversing contactor doesn't have an enclosure. Reversing contactor is 3.98 inches tall, 5.87 inches wide and 3.07 inches deep. Auxiliary contacts are available for these contactors. 8965DPR reversing hoist contactors are UL component recognized and CSA certified.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [In] rated current | 30 A |
| Product or component type | Reversing Hoist Contactor |
| Motor power hp | 15-15 hp at 575 V AC, 3 phases, 15-15 hp at 460 V AC, 3 phases, 10-10 hp at 230 V AC, 3 phases, 5-5 hp at 230 V AC, 1 phase, 2-2 hp at 115 V AC, 1 phase |
| Complementary | |
| [Ue] rated operational voltage | 600 V AC |
| Poles description | 3P |
| Network number of phases | 3 phases |
| Range of product | DPR |
| [Uc] control circuit voltage | 120 V AC at 60 Hz, 110 V AC at 50 Hz |
| Product certifications | CSA, UL listed |
