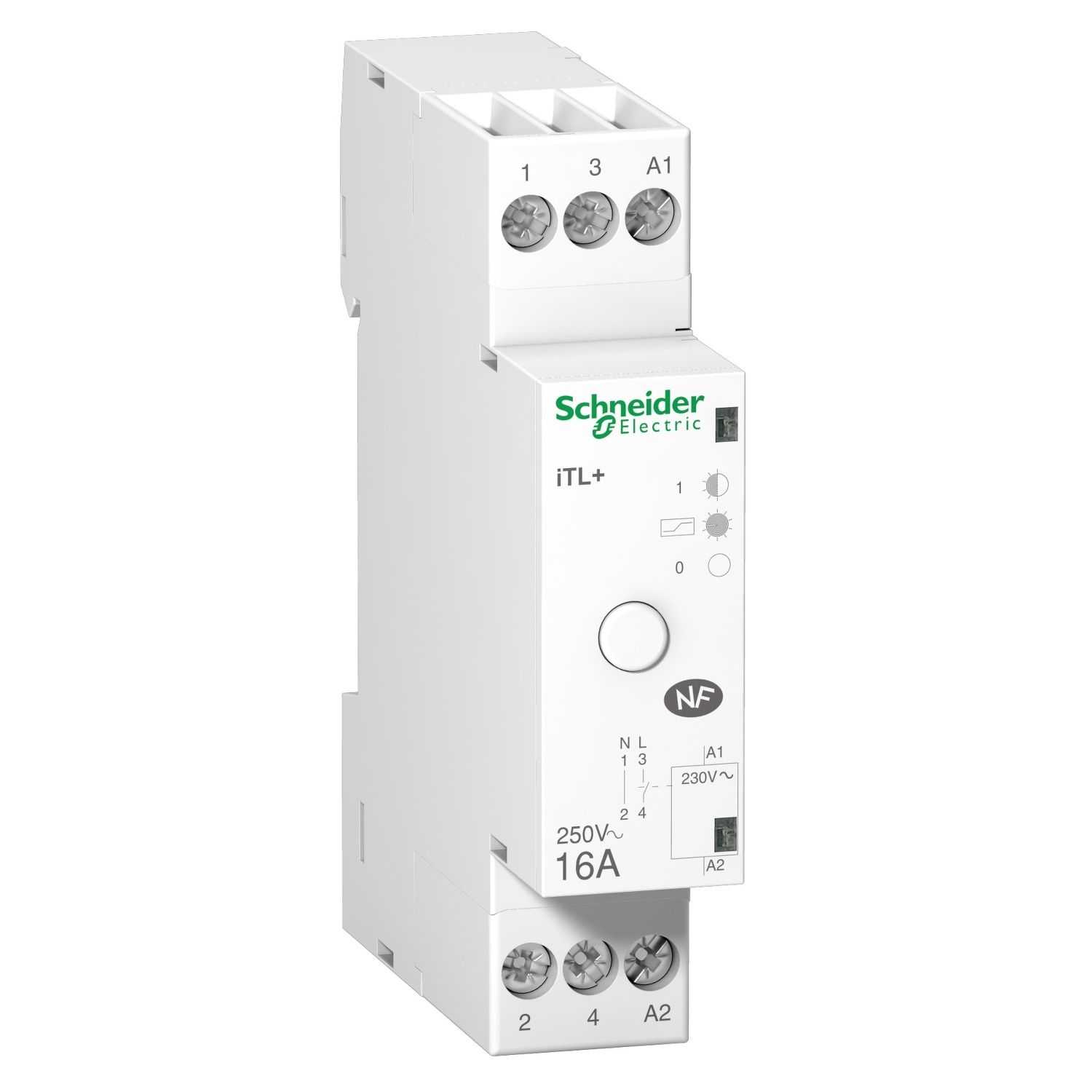

This Acti9 iTL+ is a silent modular impulse relay. This 1P+N device has 1 normally open contact. The rated current is 16A, 230VAC operating voltage and it operates with 230VAC control voltage. Electrical endurance goes up to 5000000 cycles for AC-21 or 5000000 cycles for AC-22. The switching frequency is 6 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. The iTL+ high-performance impulse relay allows remote control of single-phase circuits. It is designed for demanding applications. It is mainly used for lighting control applications. It is DIN rail mountable. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The product weight is 70g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -5°C to 55°C. The storage temperature is from -40°C to 60°C. This product is compliant with IEC/EN 60669-2-2 standard.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | standard |
| Neutral position | left |
| Network type | AC |
| Device short name | iTL+ |
| Range | Acti9 |
| Range of product | iTL |
| Poles description | 1P + N |
| Pole contact composition | 1 NO |
| Product name | Acti9 iTL+ |
| Product or component type | impulse relay |
| [Uc] control circuit voltage | 230 V AC 50 Hz |
| [In] rated current | 16 A |
| Complementary | |
| Compatibility code | iTL+ |
| Electrical durability | AC-22: 5000000 cycles, AC-21: 5000000 cycles |
| Control signal type | impulse |
| Hold-in power consumption in VA | 1.1-1.1 VA |
| Switching frequency | 6 switching operation/minute |
| Connections - terminals | tunnel type terminals top or bottom 1 cable(s) 4-4 mm² flexible without cable end, tunnel type terminals top or bottom 1 cable(s) 4-4 mm² rigid, tunnel type terminals top or bottom 2 cable(s) 2.5-2.5 mm² flexible without cable end, tunnel type terminals top or bottom 2 cable(s) 2.5-2.5 mm² rigid, tunnel type terminals top or bottom 2 cable(s) 1.5-1.5 mm² flexible with ferrule, tunnel type terminals top or bottom 2 cable(s) 1.5-1.5 mm² rigid |
| Height | 84 mm |
| Market segment | residential, small commercial |
| Inrush power in VA | 11 VA |
| Net weight | 70 g |
| 9 mm pitches | 2 |
| Product compatibility | no auxiliary |
| Tightening torque | 1-1 N.m |
| Mounting mode | clip-on |
| Impulse duration | 50 ms...1 s |
| Control type | remote and manual control |
| Wire stripping length | 10 mm |
| Remote control type | illuminated push-button 5 mA |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| Depth | 60 mm |
| Width | 18 mm |
| Local signalling | ON/OFF indication |
| Mounting support | DIN rail |
| Network frequency | 50 Hz |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-60 °C |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Quality labels | NF |
| IP degree of protection | IP40 conforming to IEC 60529 (in enclosure), IP20 conforming to IEC 60529 (on opening) |
| Noise level | 30 dB |
| Ambient air temperature for operation | -5-55 °C |
| Standards | EN 669-2-2 |
