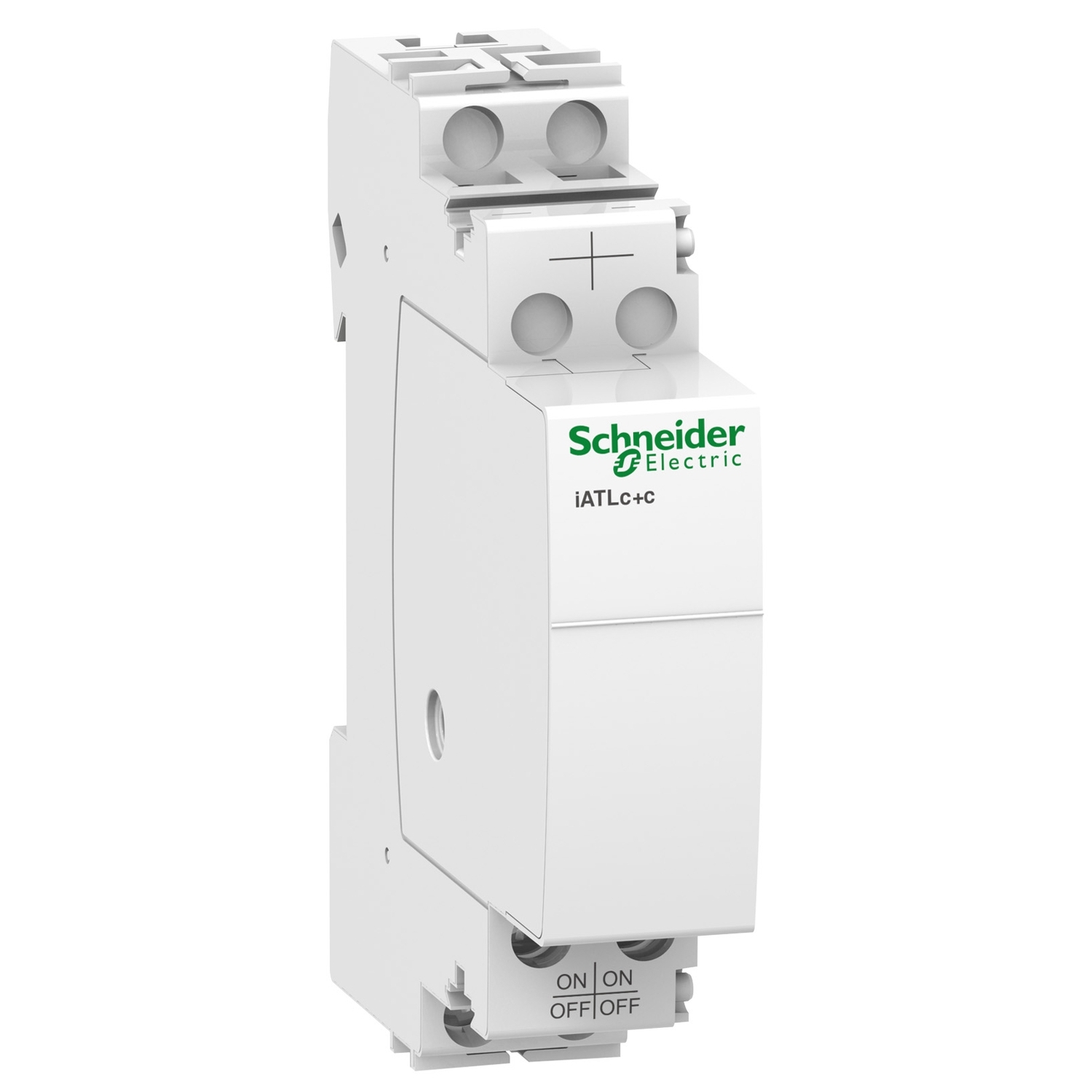

This Acti9 iATLc+c is reliable multilevel centralized control auxiliary. Is operates with 24VAC to 240VAC control voltage. Mounting is performed on the right of iATLc+s or iATLc. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow centralized control of a group of iTLc or iTL+iATLc impulse relays. This product is compliant with EN/IEC 60669-2-2.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iATLc+c |
| Range | Acti9 |
| Range of product | Acti9 |
| Product or component type | multilevel centralized control auxiliary |
| [Uc] control circuit voltage | 24...240 V AC 50/60 Hz impulse |
| Complementary | |
| Tightening torque | 1-1 N.m |
| Colour | white |
| Compatibility code | iATLc+c |
| Mounting mode | fixed |
| Wire stripping length | 11 mm |
| Remote control type | 2 entries for switch |
| Height | 86 mm |
| Depth | 71 mm |
| Market segment | small commercial, residential |
| Width | 18 mm |
| [Ui] rated insulation voltage | 440 V |
| Connections - terminals | tunnel type terminals1-4 mm² - flexible - with cable end, tunnel type terminals1-4 mm² - flexible, tunnel type terminals0.5-4 mm² - rigid - with cable end, tunnel type terminals0.5-4 mm² - rigid |
| [Uimp] rated impulse withstand voltage | 4 kV |
| 9 mm pitches | 2 |
| Range compatibility | Acti 9 Acti9 iTL iATLc+s, Acti 9 Acti9 iTL iATLc, Acti 9 Acti9 iTL iTLc |
| Mounting support | DIN rail |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Tropicalisation | 2 |
| Ambient air temperature for operation | -20-50 °C |
| Overvoltage category | III |
| Standards | EN/IEC 60669-2-2 |
