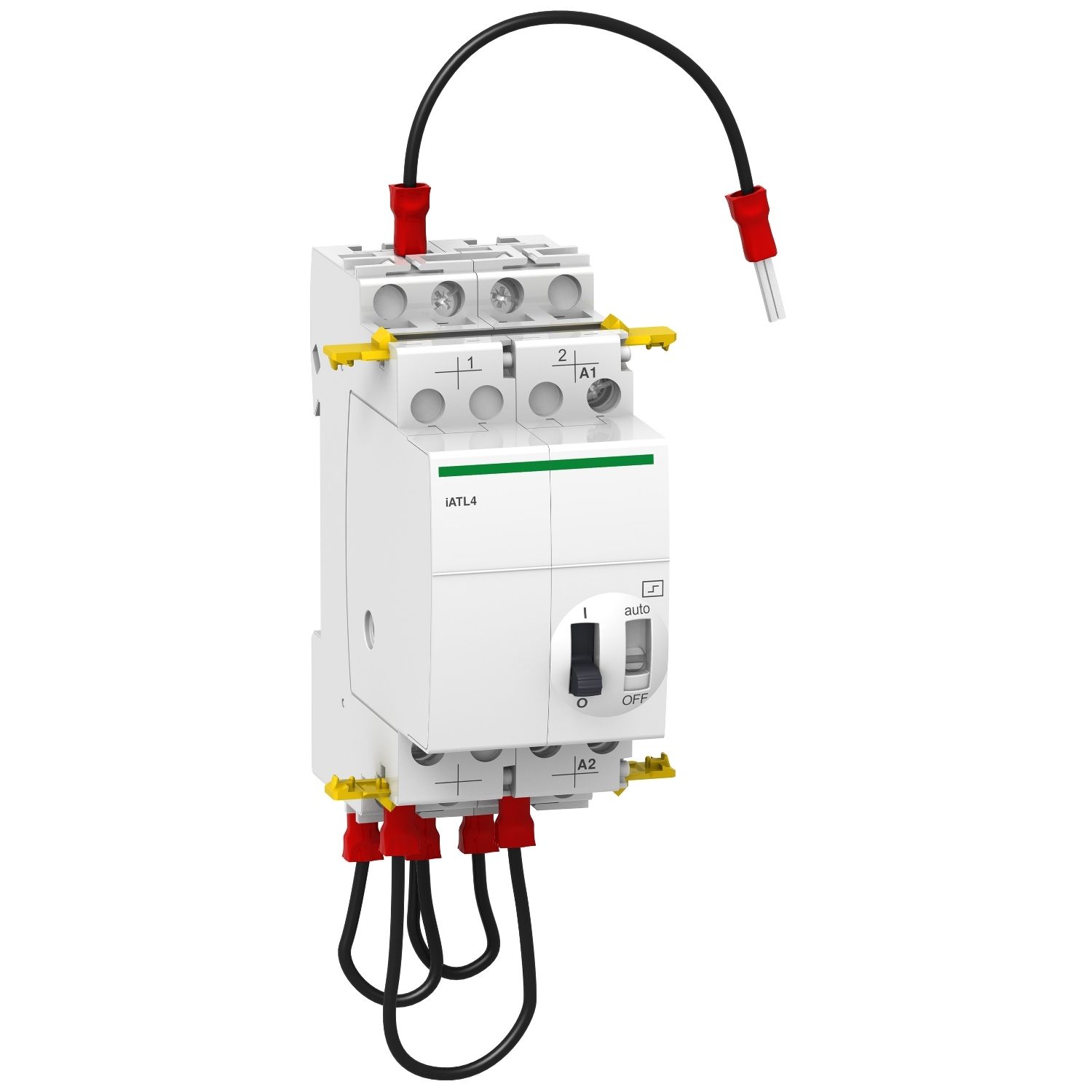

This Acti9 iATL4 is reliable step by step control auxiliary. Is operates with 230VAC control voltage. Mounting is performed between 2 iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow step by step control of two circuits through a single push button. This product is compliant with EN/IEC 60669-2-2.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iATL4 |
| Range | Acti9 |
| Range of product | Acti9 |
| Product or component type | step by stel control auxiliary |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz impulse 50 ms |
| Complementary | |
| Product compatibility | iTL (16 A), iTL (32 A) |
| Tightening torque | 1-1 N.m |
| Colour | white |
| Compatibility code | iATL4 |
| Mounting mode | fixed, between 2 TL |
| Wire stripping length | 11 mm |
| Remote control type | push-button |
| Height | 86 mm |
| Depth | 71 mm |
| Market segment | residential, small commercial |
| Width | 36 mm |
| [Ui] rated insulation voltage | 440 V |
| Connections - terminals | tunnel type terminals1-4 mm² - flexible - with cable end, tunnel type terminals1-4 mm² - flexible, tunnel type terminals0.5-4 mm² - rigid - with cable end, tunnel type terminals0.5-4 mm² - rigid |
| [Uimp] rated impulse withstand voltage | 4 kV |
| 9 mm pitches | 4 |
| Range compatibility | Acti 9 Acti9 iTL iTLc, Acti 9 Acti9 iTL iTLs, Acti 9 Acti9 iTL iTLi, Acti 9 Acti9 iTL iTL |
| Mounting support | DIN rail |
| Step sequences | 2nd impulse - TL1 off, TL2 on, 4th impulse - TL1 off, TL2 off, 3rd impulse - TL1 on, TL2 on, 1st impulse - TL1 on, TL2 off |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Tropicalisation | 2 |
| Ambient air temperature for operation | -20-50 °C |
| Overvoltage category | III |
| Standards | EN/IEC 60669-2-2 |
