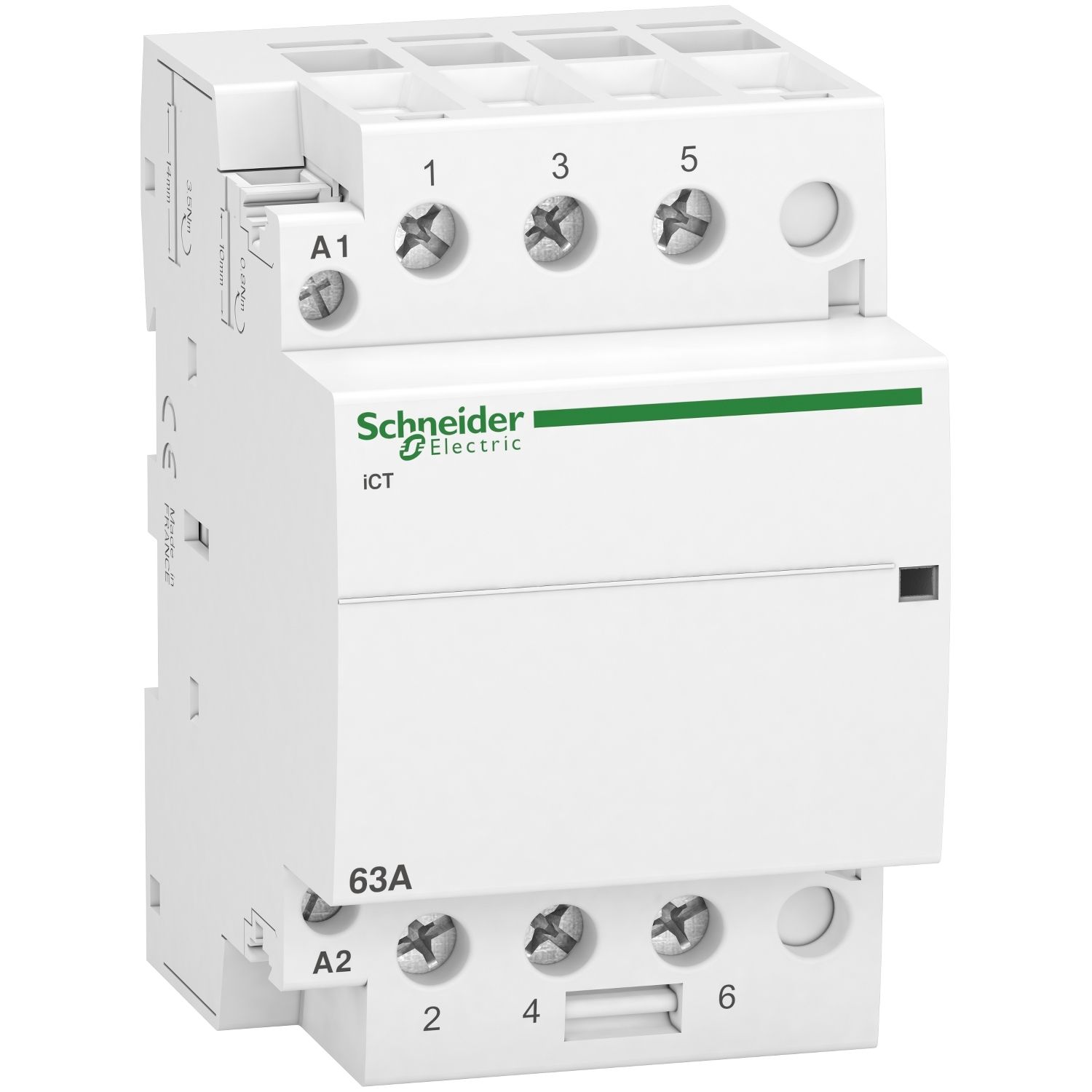

Contactor, Acti9, ICT 63A 3NO 220...240V 50Hz

Manufacturer: Schneider Electric

SKU: A9C20863

GTIN: 3606480375149

Environmental Disclosure

Old price: $318.45 inc GST

Price: $111.19 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This Acti9 iCT is a modular contactor. It is a 3P remote control device with 3 normally open contacts. The rated current is 63A for AC-7a and 20A for AC-7b. The Ue rated operational voltage is 400VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 6 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 85mm x (H) 54mm x (D) 68.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.

Products specifications

Attribute name	Attribute value
Main
Device short name	iCT
Device application	motor-heating-lighting
[Ie] rated operational current	20 A AC-7B, 63 A AC-7A
Control type	remote control
Range	Acti9
Range of product	iCT
Poles description	3P
Pole contact composition	3 NO
Product name	Acti9 iCT
Product or component type	contactor
Network type	AC
[Uc] control circuit voltage	220...240 V AC 50 Hz
Complementary
Product compatibility	iATEt, iACTs, iACTp, iACTc
Tightening torque	power circuit: 3.5-3.5 N.m, control circuit: 0.8-0.8 N.m
Colour	white
[Uimp] rated impulse withstand voltage	4 kV
Compatibility code	iCT
Mechanical durability	1000000 cycles
Electrical durability	30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b, 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a, 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3, 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1, 30000 cycles IEC/EN 61095 50 Hz AC-7C, 30000 cycles IEC/EN 61095 20 A 50 Hz AC-7B, 100000 cycles IEC/EN 61095 63 A 50 Hz AC-7A
Mounting mode	clip-on
Control signal type	maintained
Hold-in power consumption in VA	6.5-6.5 VA
Switching frequency	100 switching operations/day
Height	85 mm
Connections - terminals	control circuit: tunnel type terminals2 cable(s) 1.5-2.5 mm² flexible, power circuit: tunnel type terminals1 cable(s) 6-25 mm² rigid, power circuit: tunnel type terminals1 cable(s) 6-16 mm² flexible, control circuit: tunnel type terminals1 cable(s) 1.5-2.5 mm² rigid, control circuit: tunnel type terminals2 cable(s) 1.5-1.5 mm² rigid
[Ue] rated operational voltage	400 V AC 50 Hz
Maximum power	2.1 W at 400 V AC
Depth	68.5 mm
Market segment	residential, small commercial
Width	54 mm
Local signalling	action indicator
Inrush power in VA	53 VA
[Ui] rated insulation voltage	500 V AC 50/60 Hz
9 mm pitches	6
Mounting support	35 mm symmetrical DIN rail
Network frequency	50 Hz
Environment
Heat dissipation	2.1-2.1 W at 50/60 Hz
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-70 °C
Pollution degree	2
Noise level	30 dB
IP degree of protection	IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Tropicalisation	2 conforming to IEC 1095, 2 conforming to EN 61095, 2 conforming to EN 60947-4-1
Ambient air temperature for operation	-5-60 °C
Operating altitude	2000 m
Standards	IEC/EN 61095
