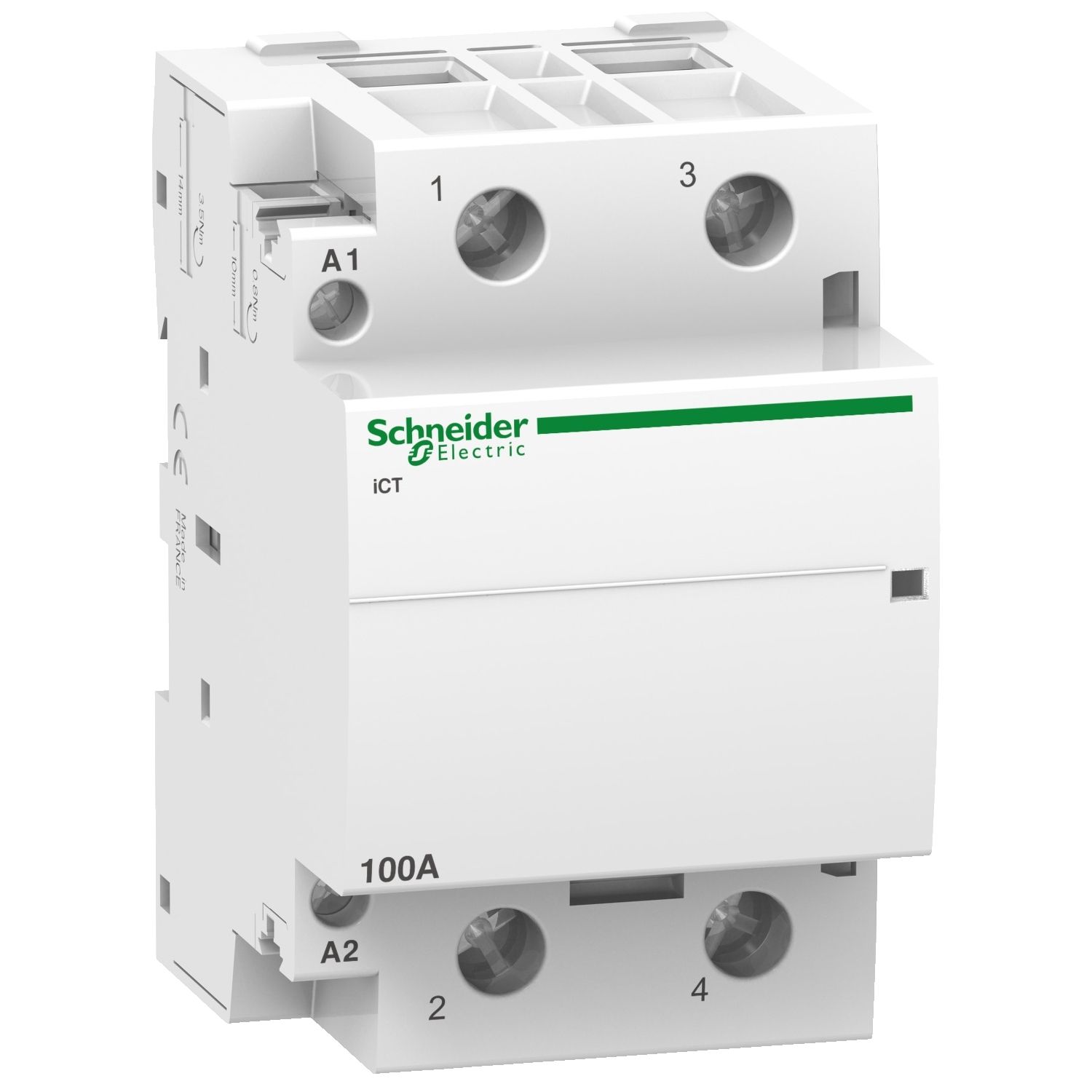

This Acti9 iCT is a modular contactor. It is a 2P remote control device with 2 normally open contact. The In rated current is 100A for AC-7a. The Ue rated operational voltage is 250VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. This device could be used for HVAC system applications. This product is compliant with EN/IEC 61095 standard. Electrical endurance goes up to 30000 cycles for AC-7A. The maximum switching operations is 100 per day. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 6 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 85mm x (H) 54mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iCT |
| Device application | heating-low inductive load |
| [Ie] rated operational current | 100 A AC-7A |
| Control type | remote control |
| Range | Acti9 |
| Range of product | iCT |
| Poles description | 2P |
| Pole contact composition | 2 NO |
| Utilisation category | AC-1 conforming to IEC 60947-4-1, AC-7A conforming to UTE C 61-481, AC-7A conforming to IEC 61095, AC-7A conforming to EN 61095, AC-1 conforming to EN 60947-4-1 |
| Product name | Acti9 iCT |
| Product or component type | contactor |
| Network type | AC |
| [Uc] control circuit voltage | 220...240 V AC 50 Hz |
| Complementary | |
| Product compatibility | iACTc, iATEt, iACTp, iACTs |
| Tightening torque | control circuit: 0.8-0.8 N.m A1 / A2, power circuit: 3.5-3.5 N.m |
| Colour | white |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Compatibility code | iCT |
| Electrical durability | 30000 cycles IEC 61095 250 V AC 50 Hz AC-7A, 30000 cycles UTE C 61-481 250 V 6 A AC 50 Hz AC-7A, 30000 cycles EN 61095 250 V 16 A AC 50 Hz AC-7A |
| Mounting mode | clip-on |
| Control signal type | maintained |
| Hold-in power consumption in VA | 6.5-6.5 VA |
| Switching frequency | 100 switching operations/day |
| Height | 85 mm |
| Connections - terminals | power circuit: tunnel type terminals1 cable(s) 6-35 mm² solid or flexible, control circuit: tunnel type terminals2 cable(s) 1.5-2.5 mm² flexible, control circuit: tunnel type terminals1 cable(s) 1.5-2.5 mm² rigid, control circuit: tunnel type terminals2 cable(s) 1.5-1.5 mm² rigid |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Maximum power | AC-7A: 2.1 W at 250 V AC 50 Hz |
| Depth | 60 mm |
| Market segment | residential, small commercial |
| Width | 54 mm |
| Local signalling | action indicator |
| Inrush power in VA | 53 VA |
| [Ui] rated insulation voltage | 500 V AC 50 Hz |
| 9 mm pitches | 6 |
| Mounting support | 35 mm symmetrical DIN rail |
| Network frequency | 50 Hz |
| Environment | |
| Heat dissipation | 2.1-2.1 W at 50/60 Hz |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-70 °C |
| Pollution degree | 2 |
| Noise level | 30 dB |
| IP degree of protection | IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529 |
| Tropicalisation | 2 conforming to EN 60947-4-1 |
| Ambient air temperature for operation | -5-60 °C |
| Operating altitude | 2000 m |
| Standards | EN 61095, IEC 61095, UTE C 61-481 |
