Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

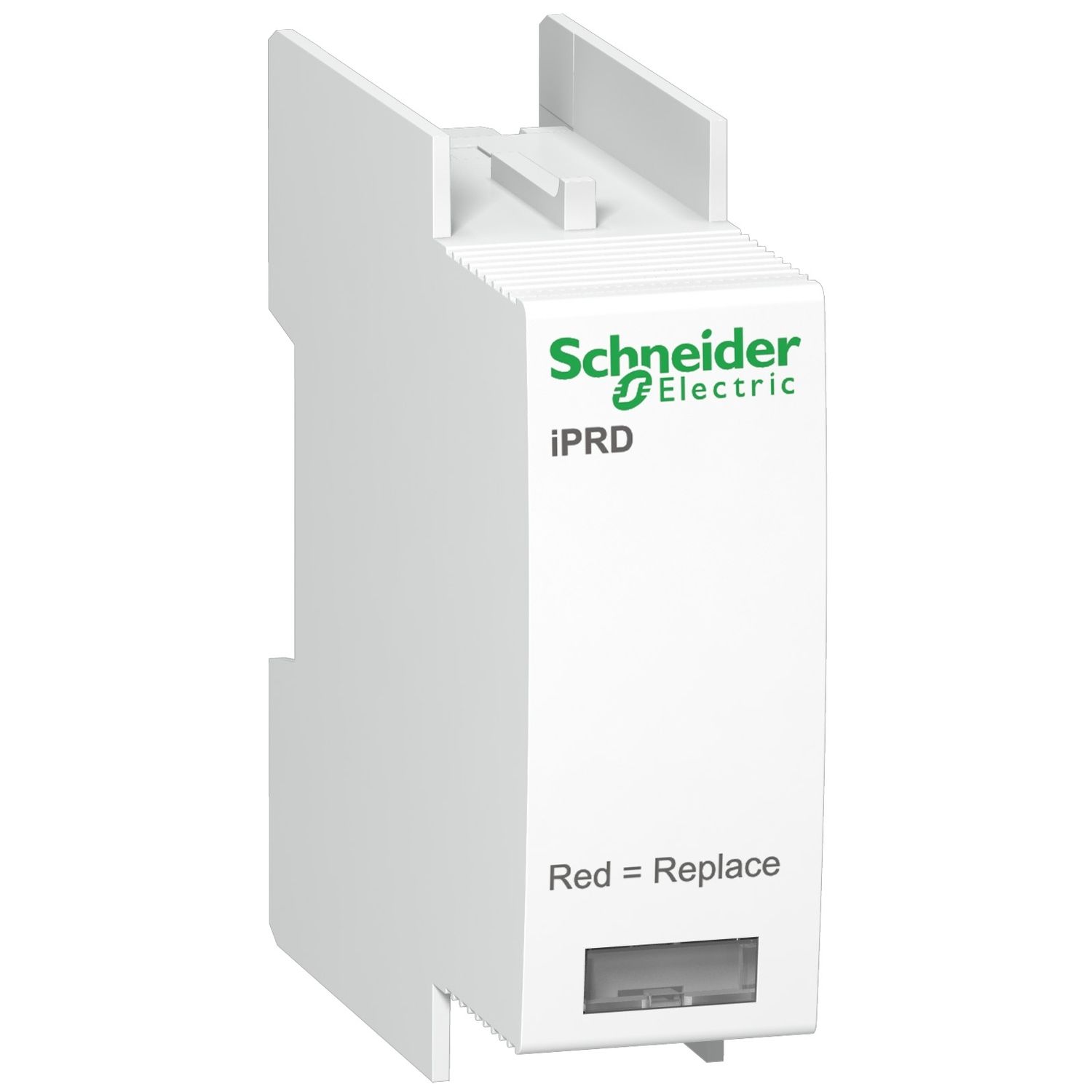

| Device short name | C8-350 |
| Surge arrester type | electrical distribution network |
| Product or component type | cartridge |
| Range of product | iPRD |
| Complementary | |
| Depth | 56 mm |
| Width | 18 mm |
| Colour | white (RAL 9003) |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| Maximum [Up] voltage protection level | <1.1 kV type 2 |
| Response time | < 25 ns |
| Local signalling | flag (white/red) |
| Mounting mode | plug-in |
| Net weight | 0.051 kg |
| Material | PBT (polybutylene terephthalate) |
| Product destination | surge protection device iPRD8 4P, surge protection device iPRD8 3P, surge protection device iPRD8 2P, surge protection device iPRD8 1P, surge protection device iPRD8r 4P, surge protection device iPRD8r 3P, surge protection device iPRD8r 2P, surge protection device iPRD8r 1P |
| Maximum discharge current | 8 kA |
| [Uc] maximum continuous operating voltage | 350 V |
| Earthing system | TT, TN |
| 9 mm pitches | 2 |
| Nominal discharge current | 2.5 kA |
| Mounting support | into SPD module |
| Surge arrester class type | type 2 |
| Height | 57 mm |
| Surge arrester technology | MOV |
| Environment | |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 front face: |
| Quality labels | CE |
| Relative humidity | 5-90 % |
| Ambient air temperature for storage | -40-85 °C |
| Standards | IEC 61643-11: 2011, EN 61643-11 |
| Ambient air temperature for operation | -25-60 °C |
