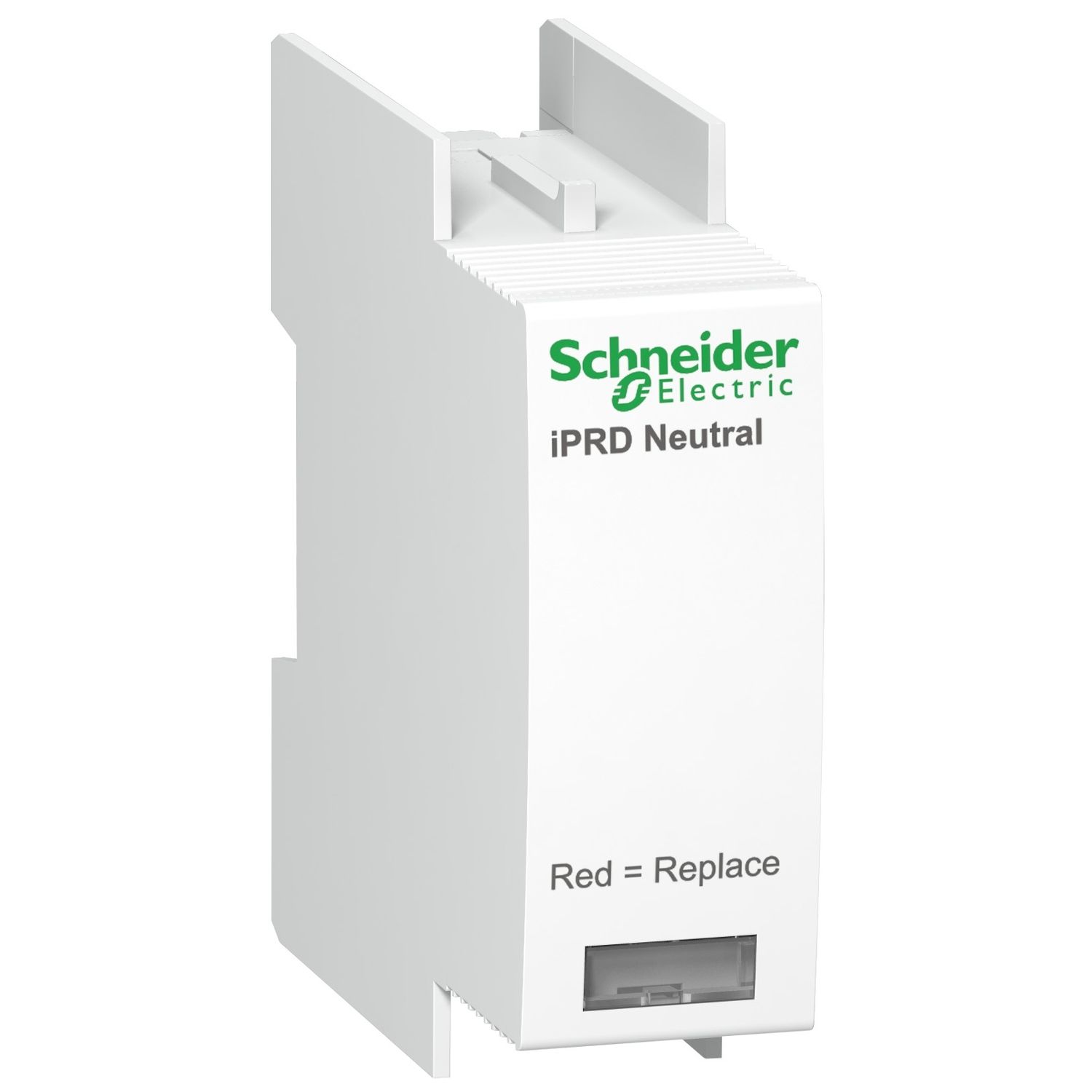

This iPRD product is a cartridge for surge arrester device (SPD). It is plugged into the surge protection device module. The maximum discharge current is 65kA. The nominal discharge current is 20kA.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | C neutral-350 |
| Surge arrester type | electrical distribution network |
| Product or component type | cartridge |
| Range of product | iPRD |
| Complementary | |
| Depth | 56 mm |
| Width | 18 mm |
| Colour | white (RAL 9003) |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| Maximum [Up] voltage protection level | <1.4 kV type 2 |
| Response time | < 100 ns |
| Local signalling | flag (white/red) |
| Mounting mode | plug-in |
| Net weight | 0.044 kg |
| Material | PBT (polybutylene terephthalate) |
| Product destination | surge protection device iPRD8 3P + N, surge protection device iPRD8r 3P + N, surge protection device iPRD8 1P + N, surge protection device iPRD8r 1P + N, surge protection device iPRD20 3P + N, surge protection device iPRD20r 3P + N, surge protection device iPRD20 1P + N, surge protection device iPRD20r 1P + N, surge protection device iPRD40 3P + N, surge protection device iPRD40r 3P + N, surge protection device iPRD40 1P + N, surge protection device iPRD40r 1P + N, surge protection device iPRD65r 3P + N, surge protection device iPRD65r 1P + N |
| Maximum discharge current | 65 kA |
| [Uc] maximum continuous operating voltage | 260 V |
| Earthing system | TN, TT |
| 9 mm pitches | 2 |
| Nominal discharge current | 20 kA |
| Mounting support | into SPD module |
| Surge arrester class type | type 2 |
| Height | 57 mm |
| Surge arrester technology | GDT |
| Environment | |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 front face: |
| Relative humidity | 5-90 % |
| Ambient air temperature for storage | -40-85 °C |
| Standards | IEC 61643-11: 2011, EN 61643-11 |
| Ambient air temperature for operation | -25-60 °C |
| Product certifications | CE |
