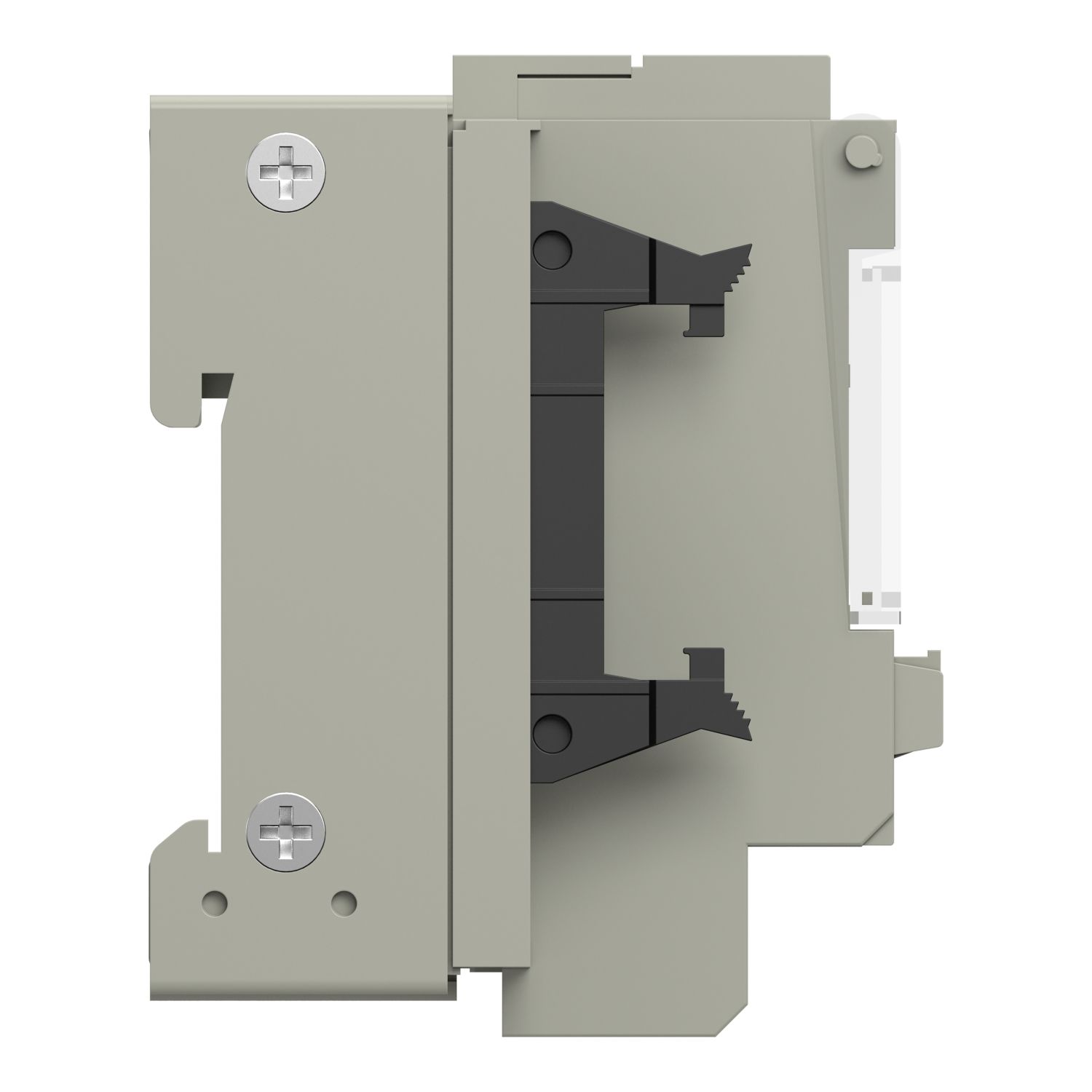

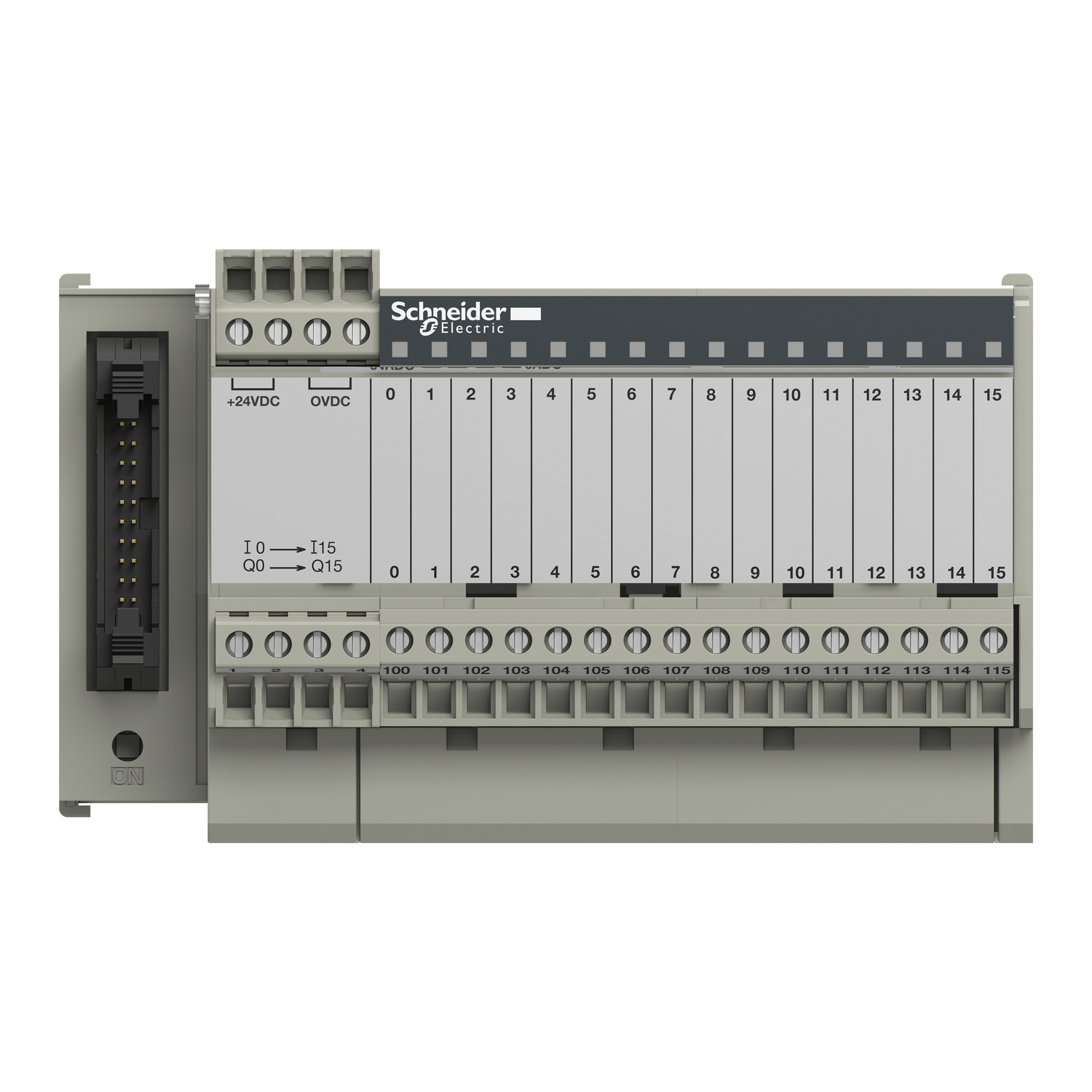

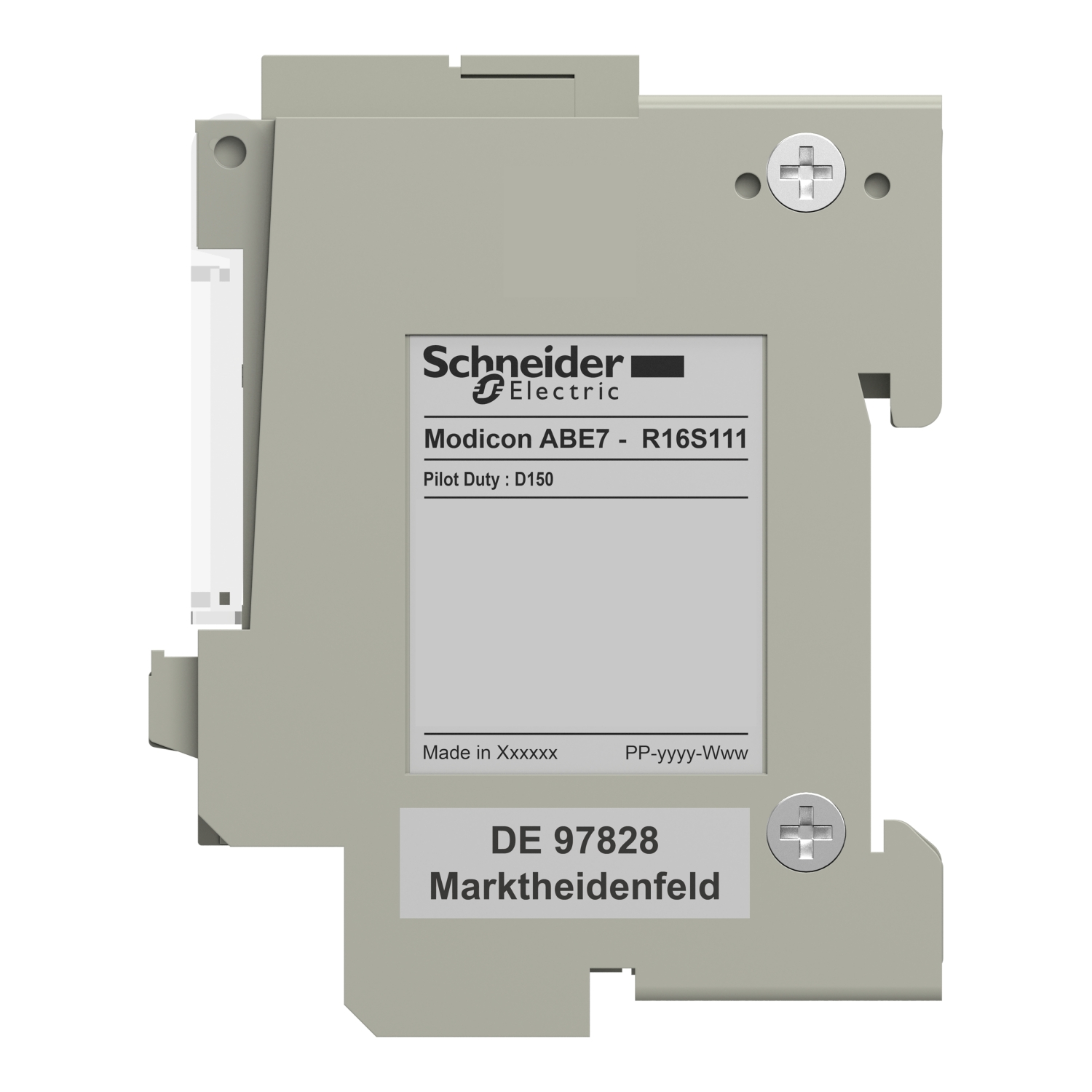

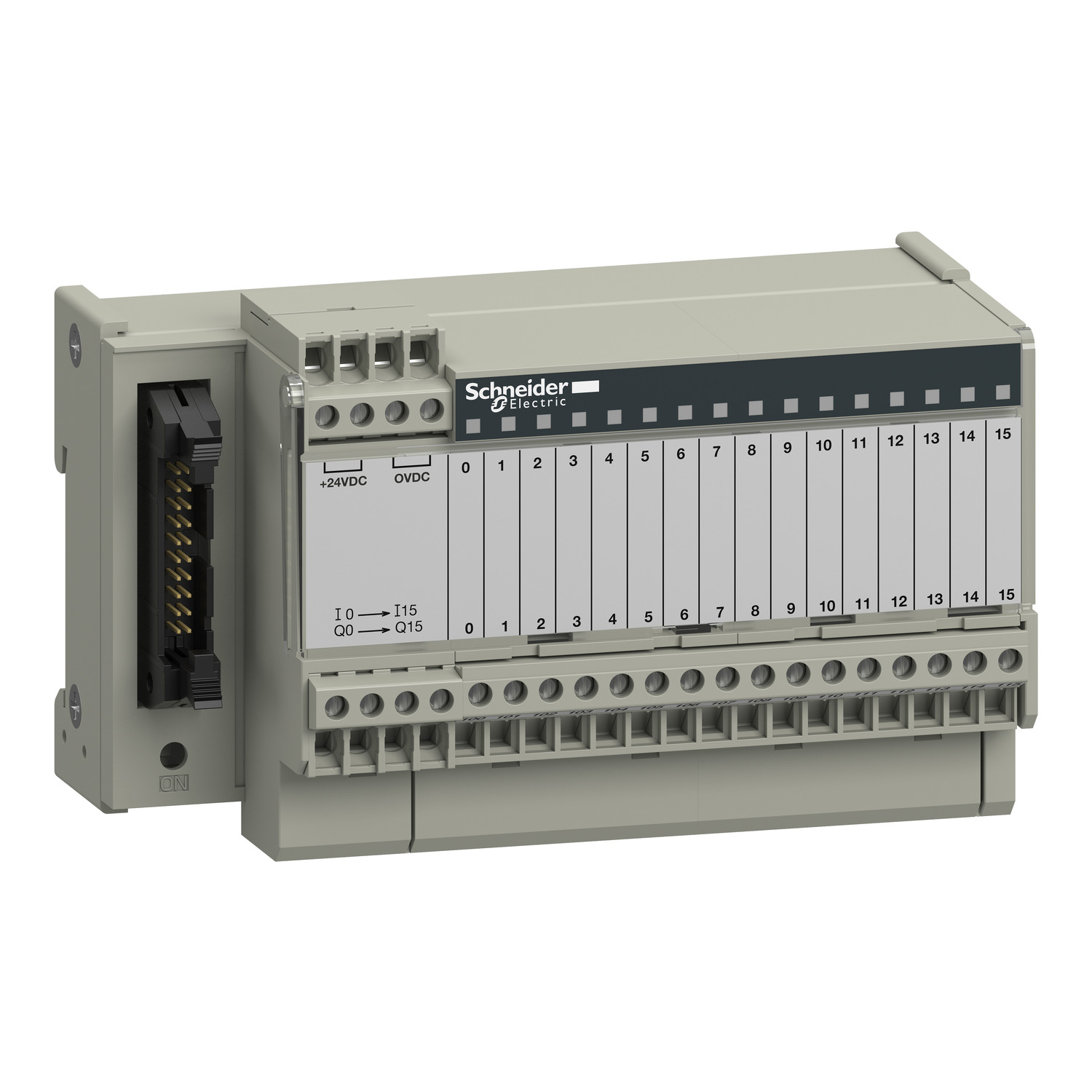

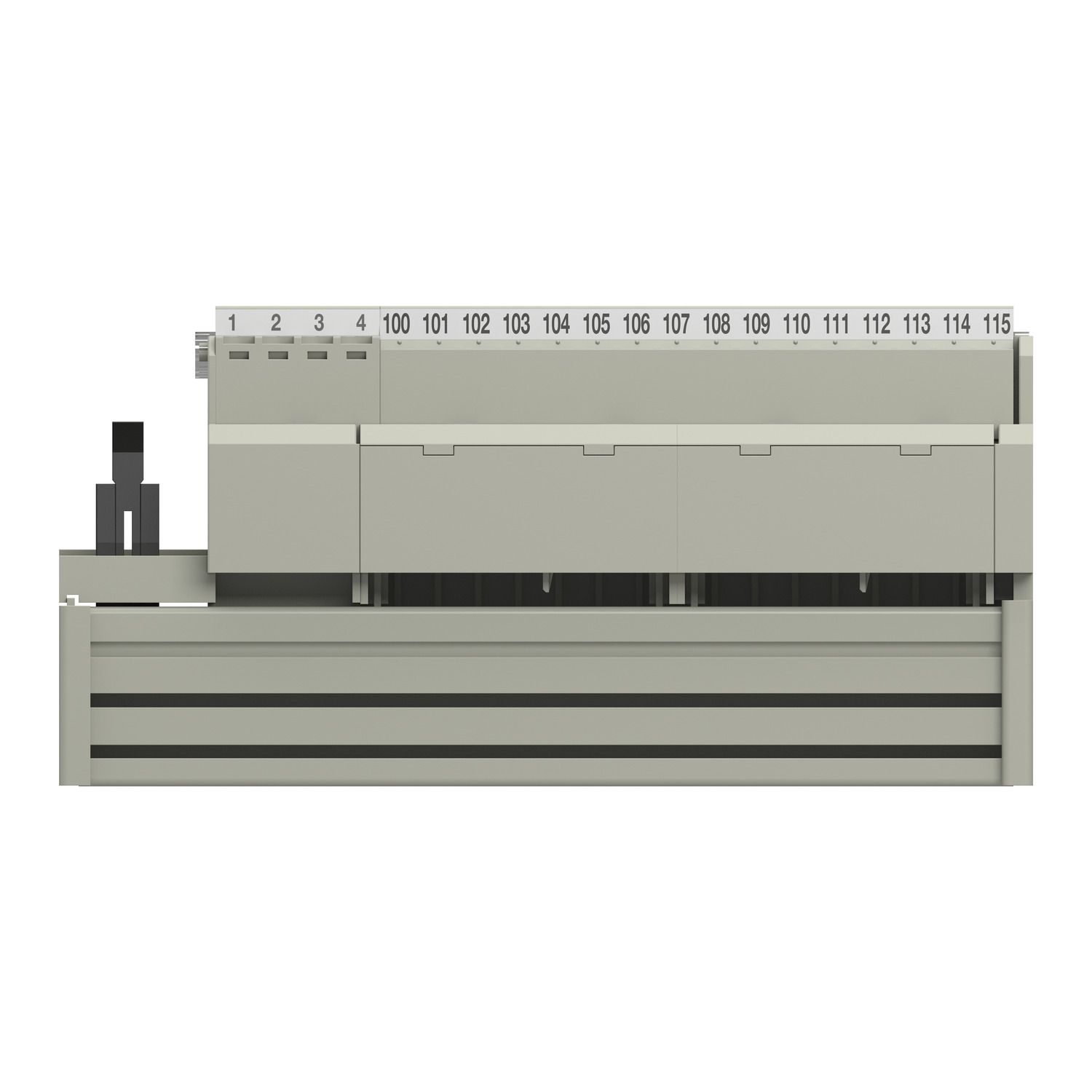

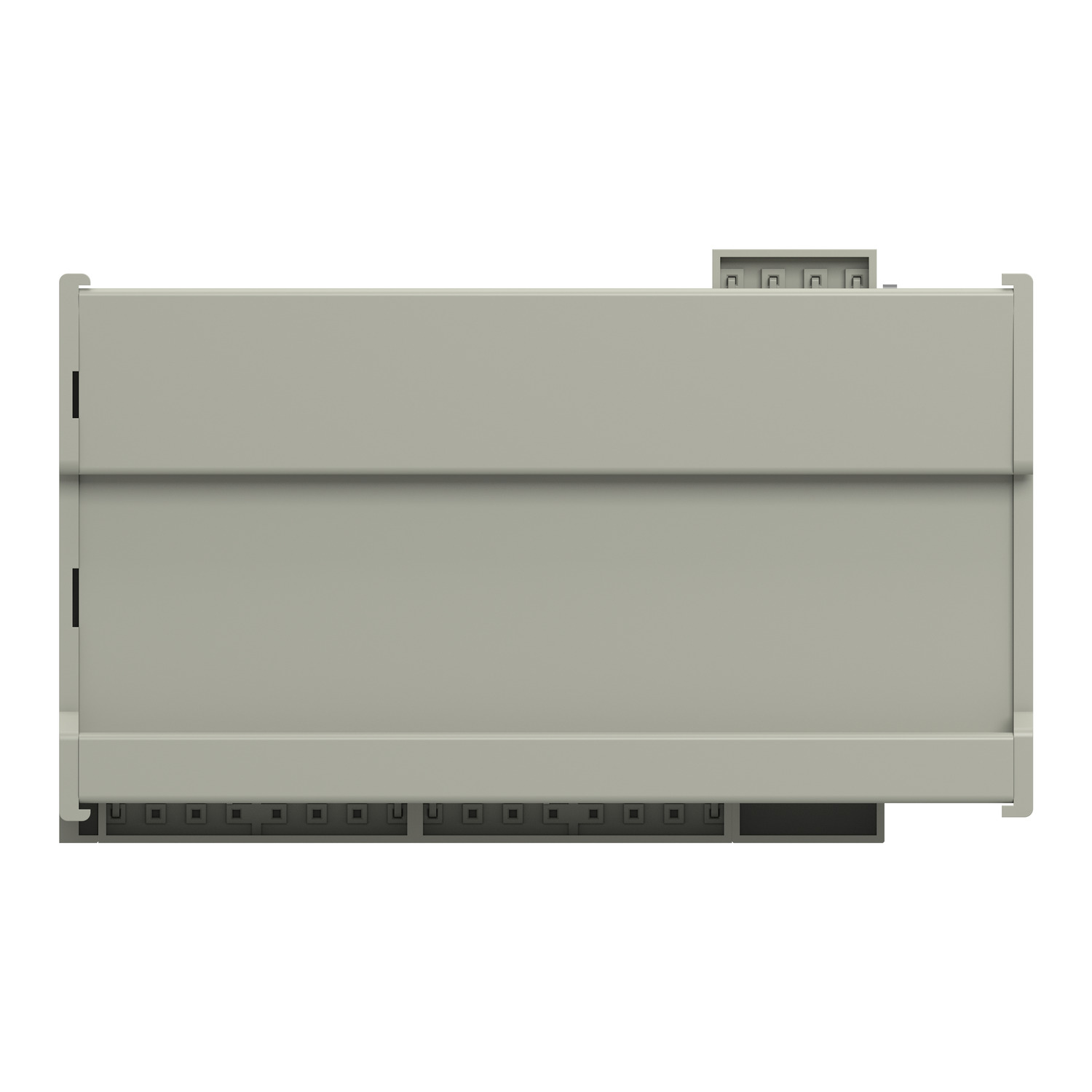

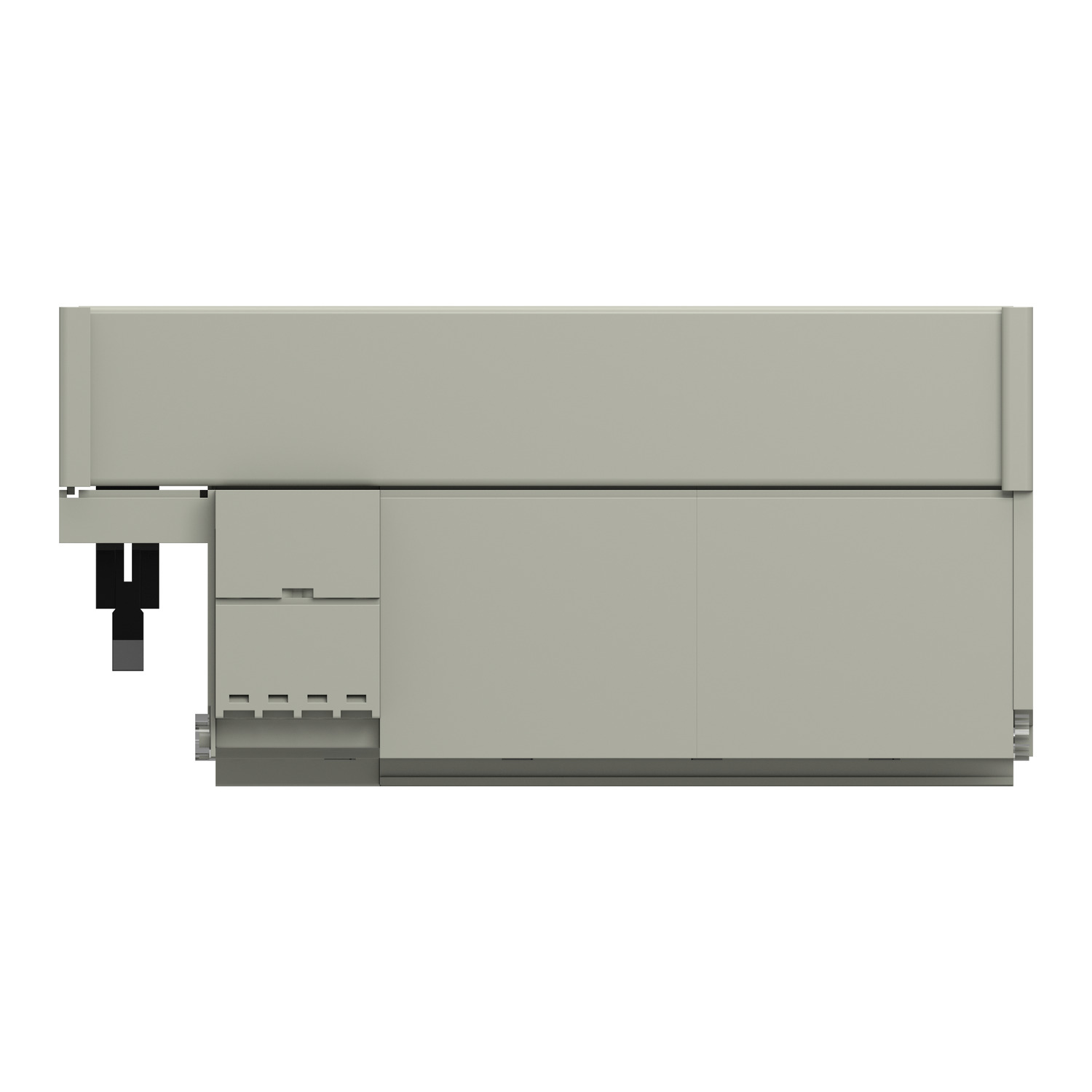

This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered electromechanical relay sub base offers 16 channels with 1 terminal per channel. The input sub base offers a rated supply voltage of 24V DC for PLC end and NO contact for pre actuator end. It is furnished with removable terminal block. It is an IP2x rated product. Its dimensions are 125mm (width) x 58mm (depth) x 77mm (height). It weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by DNV, UL, CSA, GL, BV, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Number of channels | 16 |
| Range of product | Modicon ABE7 |
| [Us] rated supply voltage | 24 V DC for PLC end |
| Number of terminal per channel | 1 |
| Product or component type | electromechanical output relay sub-base |
| Complementary | |
| Electrical reliability | 1E-08 |
| Operating rate in Hz | 0.5 Hz at Ie, 10 Hz no load |
| Mechanical durability | 20000000 cycles |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Polarity distribution | polarity distribution contact common per group of 8 channels |
| Contact bounce time | <= 5 ms 1 NO |
| Fixing mode | by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail) |
| Current per channel | 2 A for preactuator end |
| Maximum current per output common | 12 A |
| Installation category | II conforming to IEC 60664-1 |
| Switching frequency | <= 0.5 Hz, <= 10 Hz |
| Height | 77 mm |
| Contacts type and composition | 1 NO for preactuator end |
| Drop-out current | 0.5 mA at 20 °C |
| Threshold tripping voltage | 19.2 V at 40 °C |
| Depth | 58 mm |
| Width | 125 mm |
| Drop-out voltage | 2.4 V at 20 °C (PLC end) |
| Maximum power dissipation per channel in W | 0.22 W (PLC end) |
| Operating time | <= 6 ms coil de-energisation and NO opening, <= 10 ms coil energisation and NO closing |
| Number of channel per common | 8 |
| Maximum switching voltage | 30 V DC conforming to IEC 60947-5-1, 250 V AC 50/60 Hz conforming to IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| Electrical durability | 500000 cycles, maximum switching current: 600 mA at 24 V DC-12 (preactuator end), 500000 cycles, maximum switching current: 600 mA at 230 V AC-12 (preactuator end), 500000 cycles, maximum switching current: 400 mA at 230 V AC-15 (preactuator end), 500000 cycles, maximum switching current: 200 mA at 24 V DC-13 10 ms (preactuator end) |
| Net weight | 0.405 kg |
| [Ui] rated insulation voltage | 2000 V |
| Terminal block type | removable |
| Minimum switching current | 1 mA at >= 5 V |
| Environment | |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Max immunity to microbreaks | 5 ms |
| Ambient air temperature for operation | -5-60 °C conforming to IEC 61131-2 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Dielectric strength | 2000 V conforming to IEC 60947-1 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Resistance to radiated fields | 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Product certifications | EAC, GL, CSA, UL, DNV |
