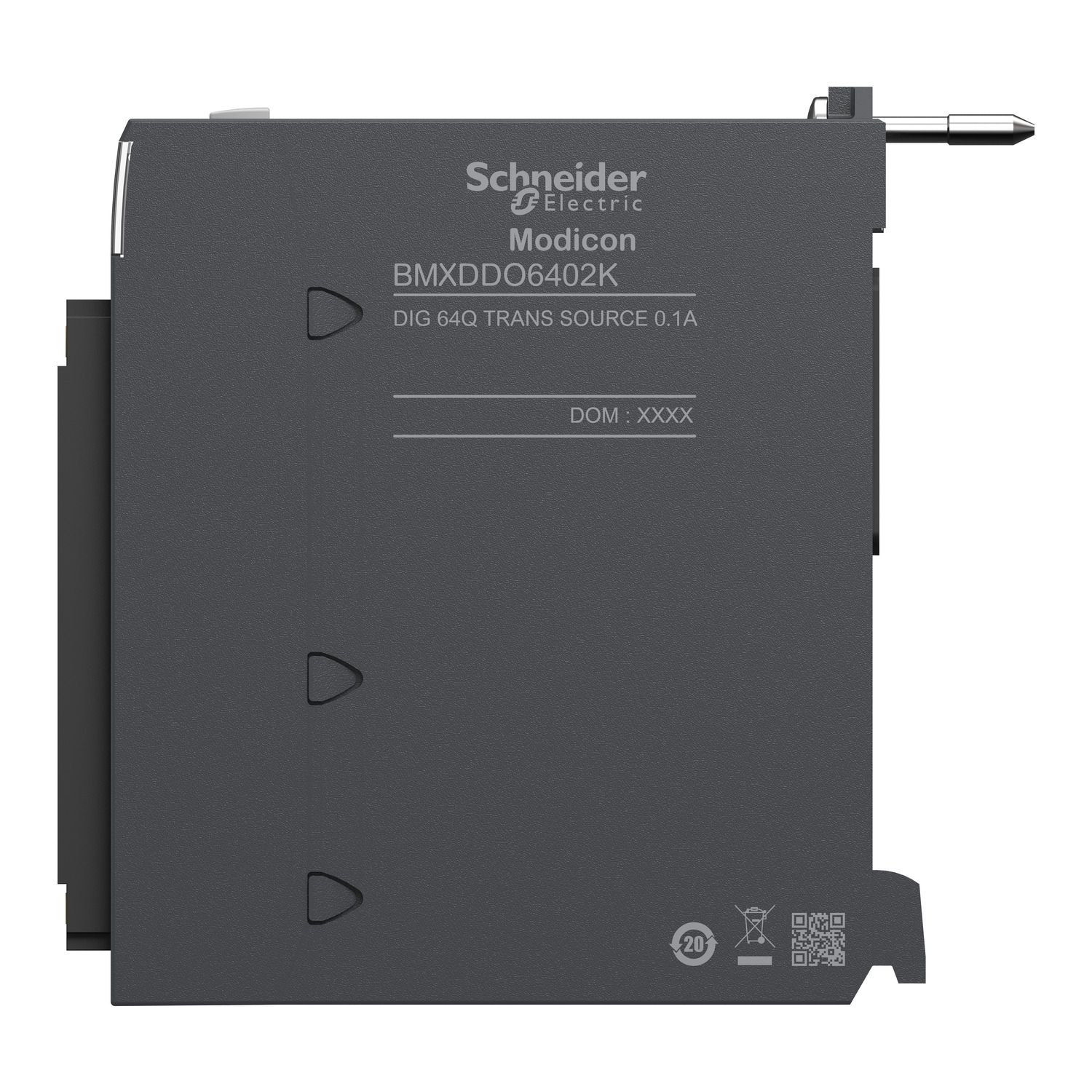

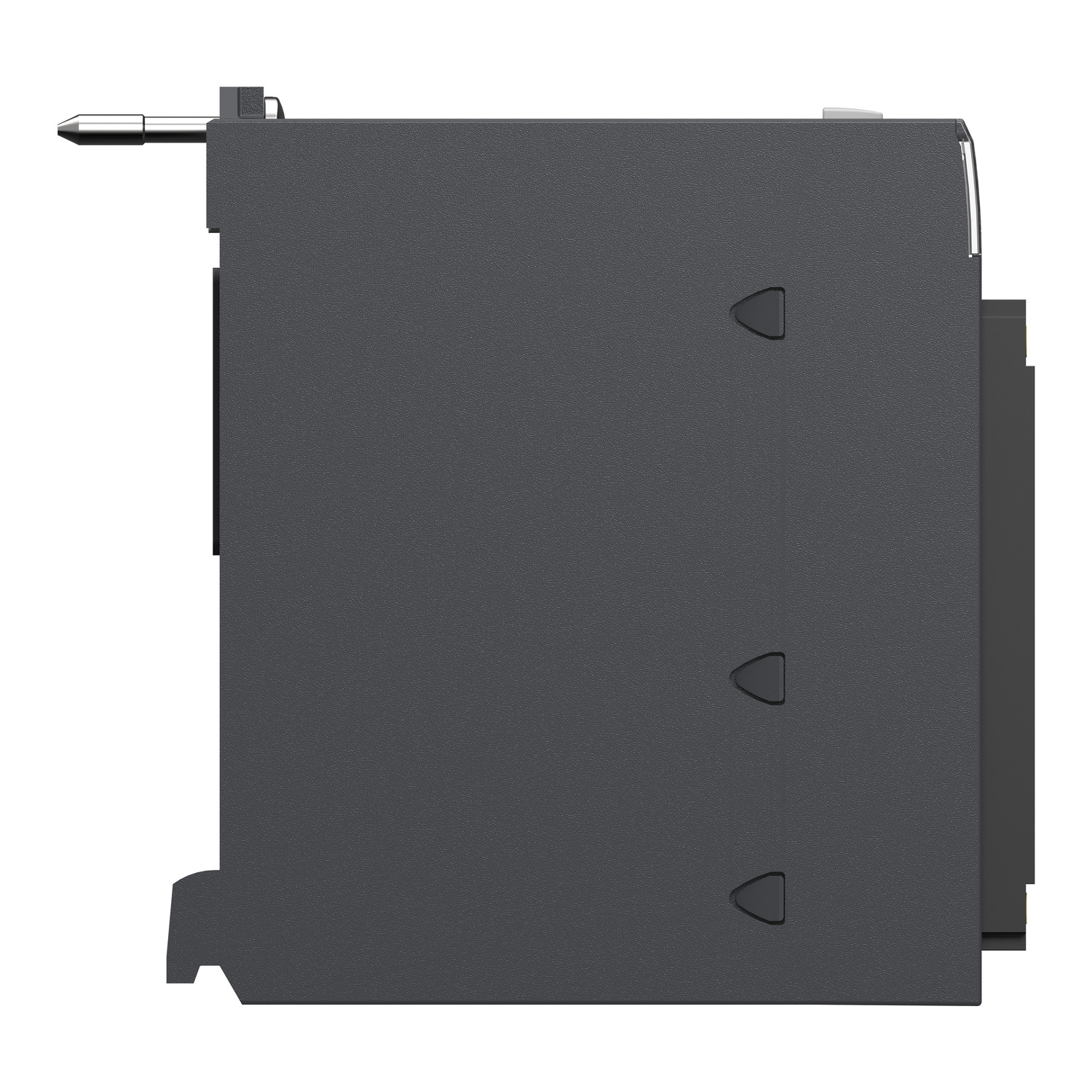

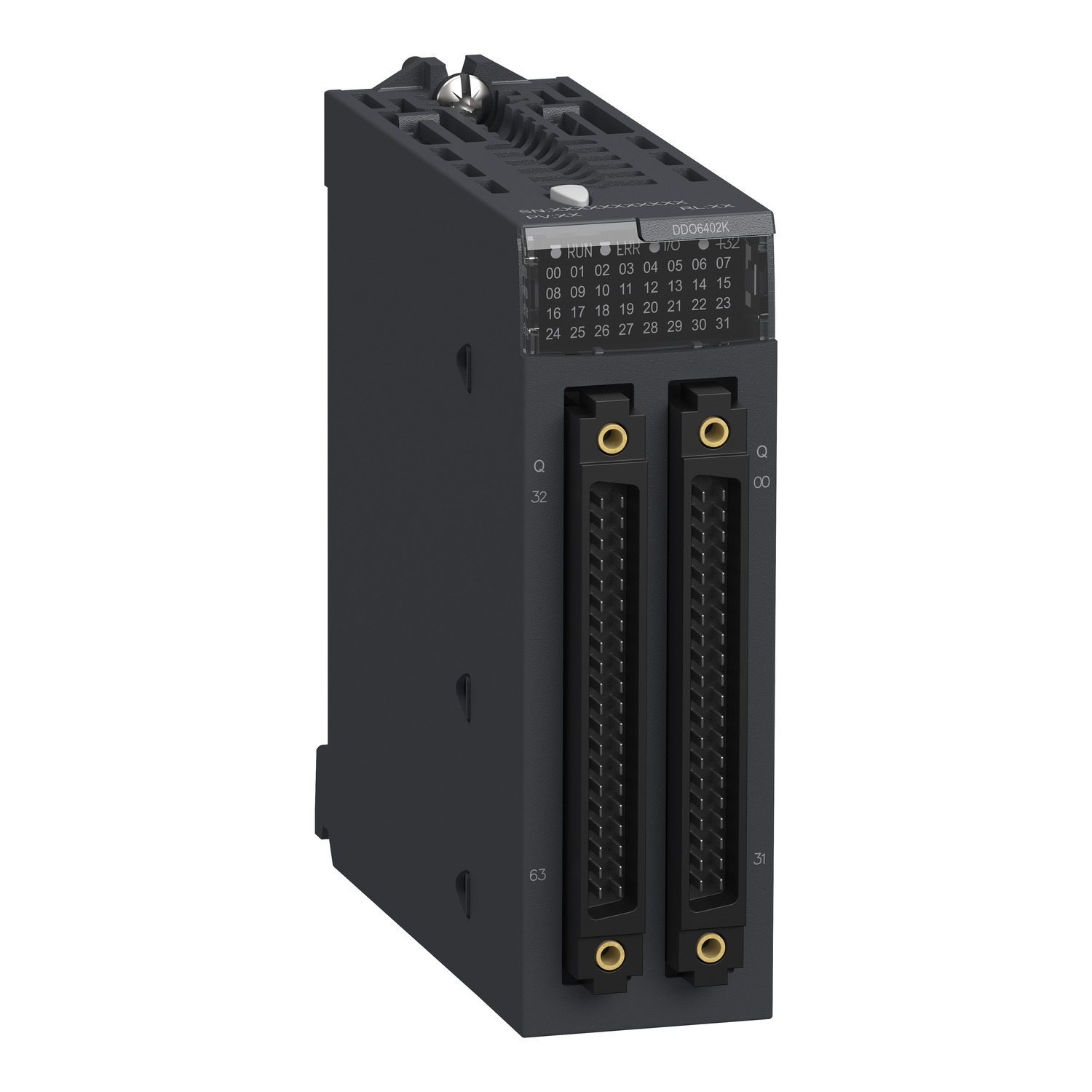

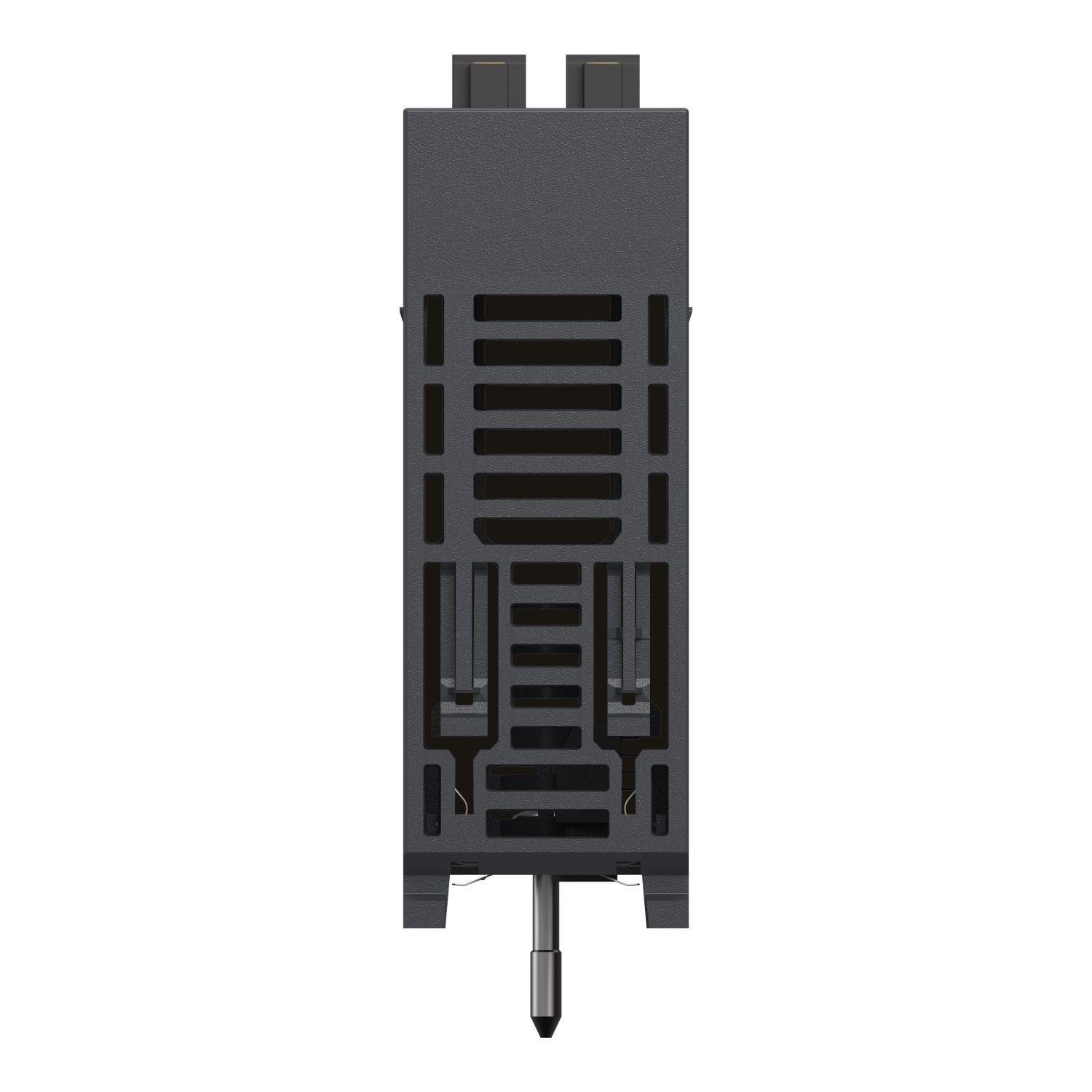

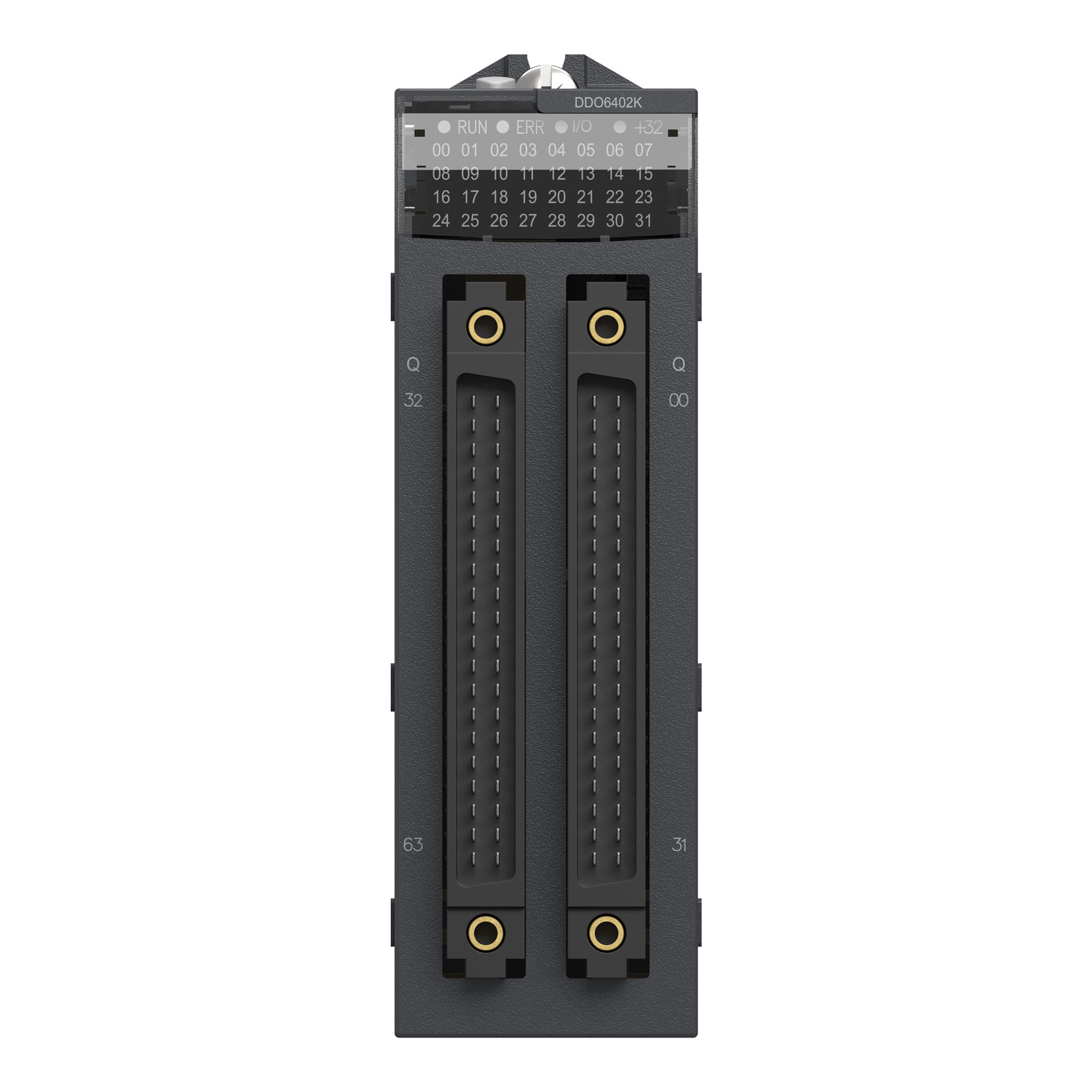

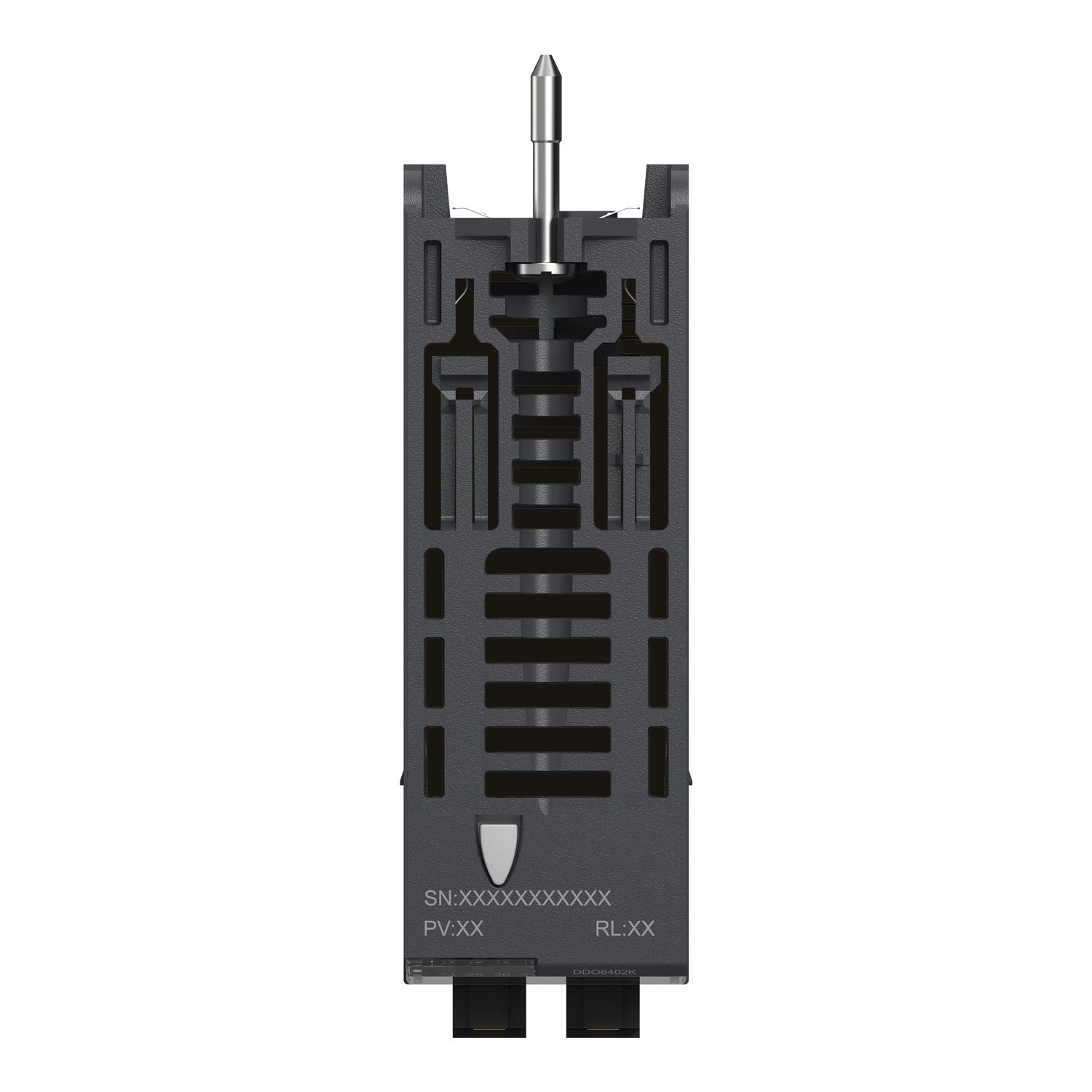

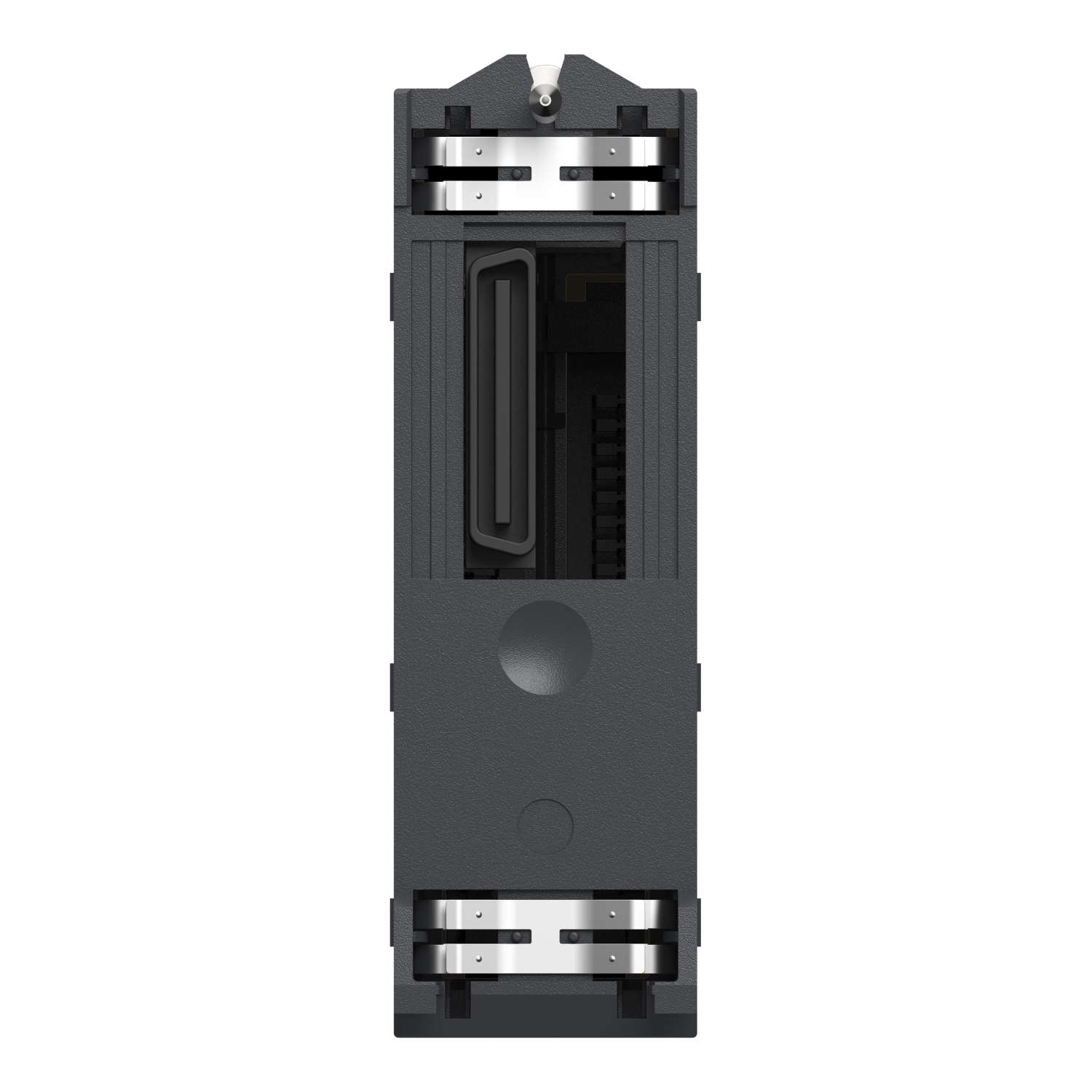

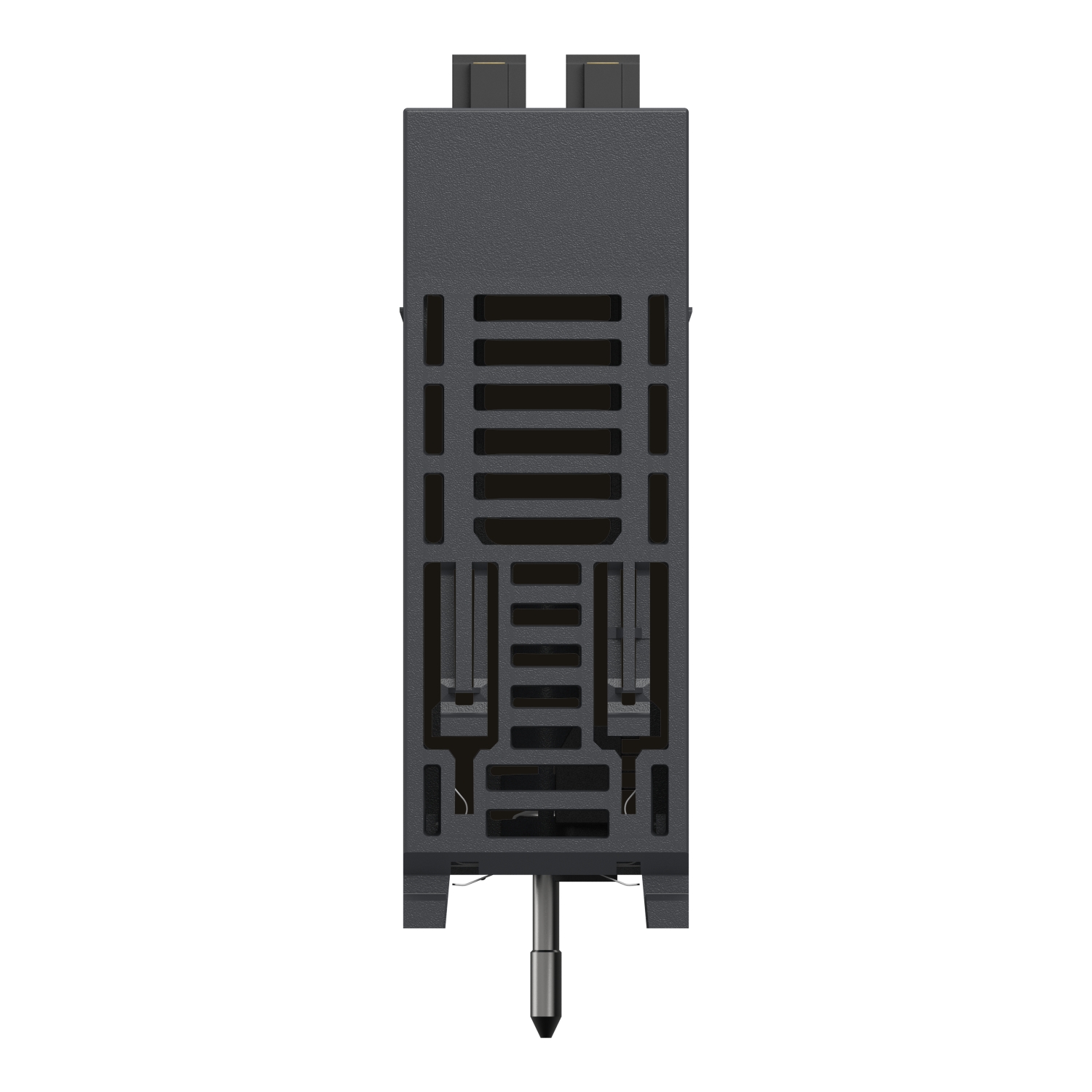

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 64 outputs with sink (positive) logic. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, a typical current consumption of 79mA at 3.3V DC and an output current of 0.5A. This product is robust, high quality and based on the latest innovative technology. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. It offers 159924 hours of MTBF. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output current | 0.1 A |
| Discrete output voltage | 24 V 19...30 V DC |
| Discrete output logic | positive |
| Range of product | Modicon X80 |
| Discrete output type | solid state |
| Product or component type | discrete output module |
| Discrete output number | 64 conforming to EN/IEC 61131-2 |
| Complementary | |
| Response time on output | 1.2 ms |
| Output overload protection | with electronic circuit breaker 0.125 A < Id < 0.185 A, with current limiter |
| Output short-circuit protection | with 2 A external fuse |
| Output overvoltage protection | with transil diode |
| Typical current consumption | 160 mA at 3.3 V DC |
| Power dissipation in W | 6.85 W |
| Protection type | overvoltage protection, overload protection, short-circuit protection, external fuse reverse polarity protection |
| Voltage detection threshold | > 18 V DC preactuator at state 0, < 14 V DC preactuator fault |
| Current per channel | 0.125 A |
| Status LED | 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN), 1 LED (green) +32 channels indicator |
| Maximum overload time | 15 ms |
| Switching frequency | 0.5/LI² Hz |
| Maximum current per module | 6.4 A |
| MTBF reliability | 150000 H |
| Reverse polarity protection | reverse mounted diode |
| Maximum tungsten load | 1.2 W |
| Paralleling of outputs | yes : 3 maximum |
| Load impedance ohmic | >= 220 Ohm |
| Net weight | 0.15 kg |
| Insulation resistance | > 10 MOhm 500 V DC |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Vibration resistance | 3 gn |
| Dielectric strength | 500 V DC 1 minute, between group of channels, 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, output/ground |
| Shock resistance | 30 gn |
