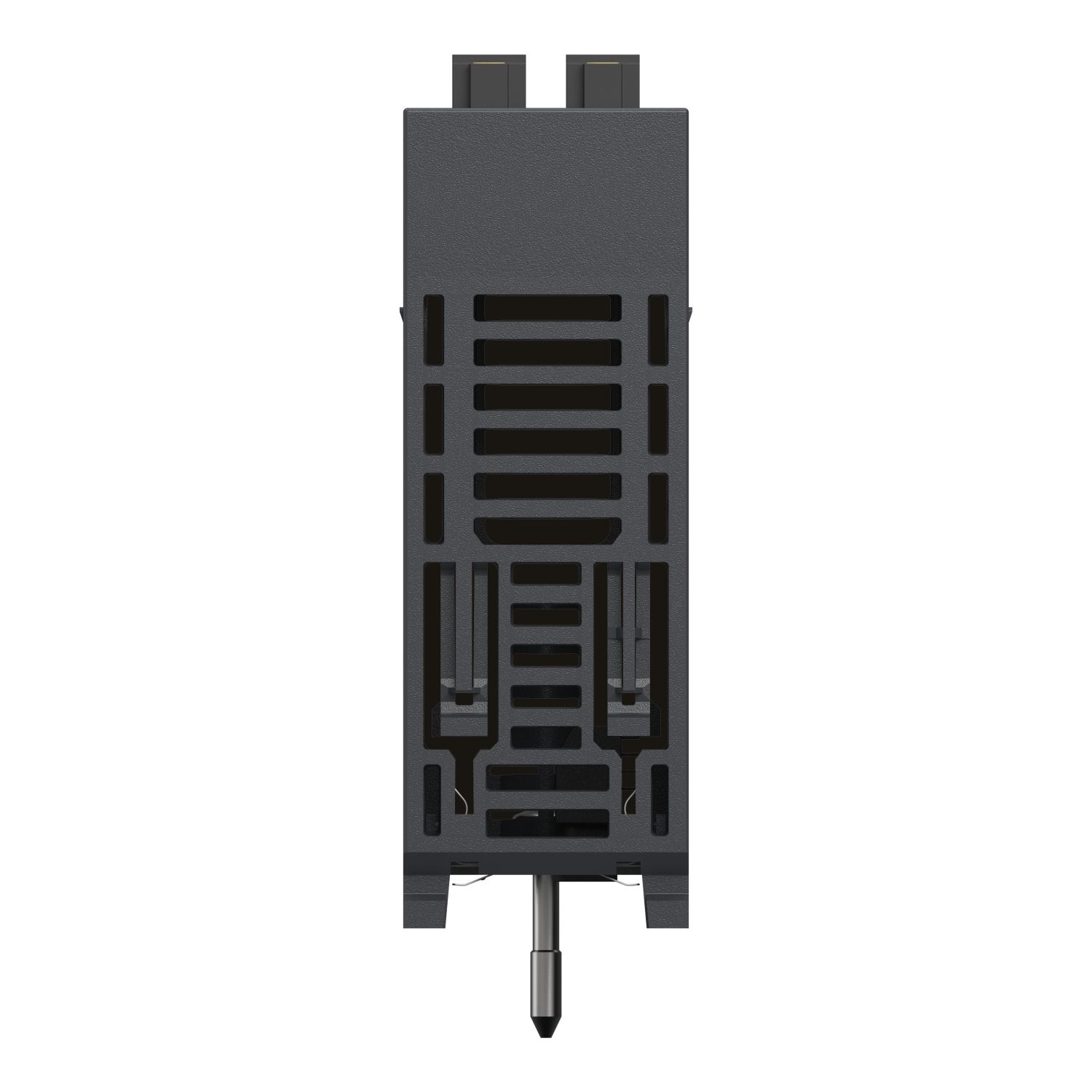

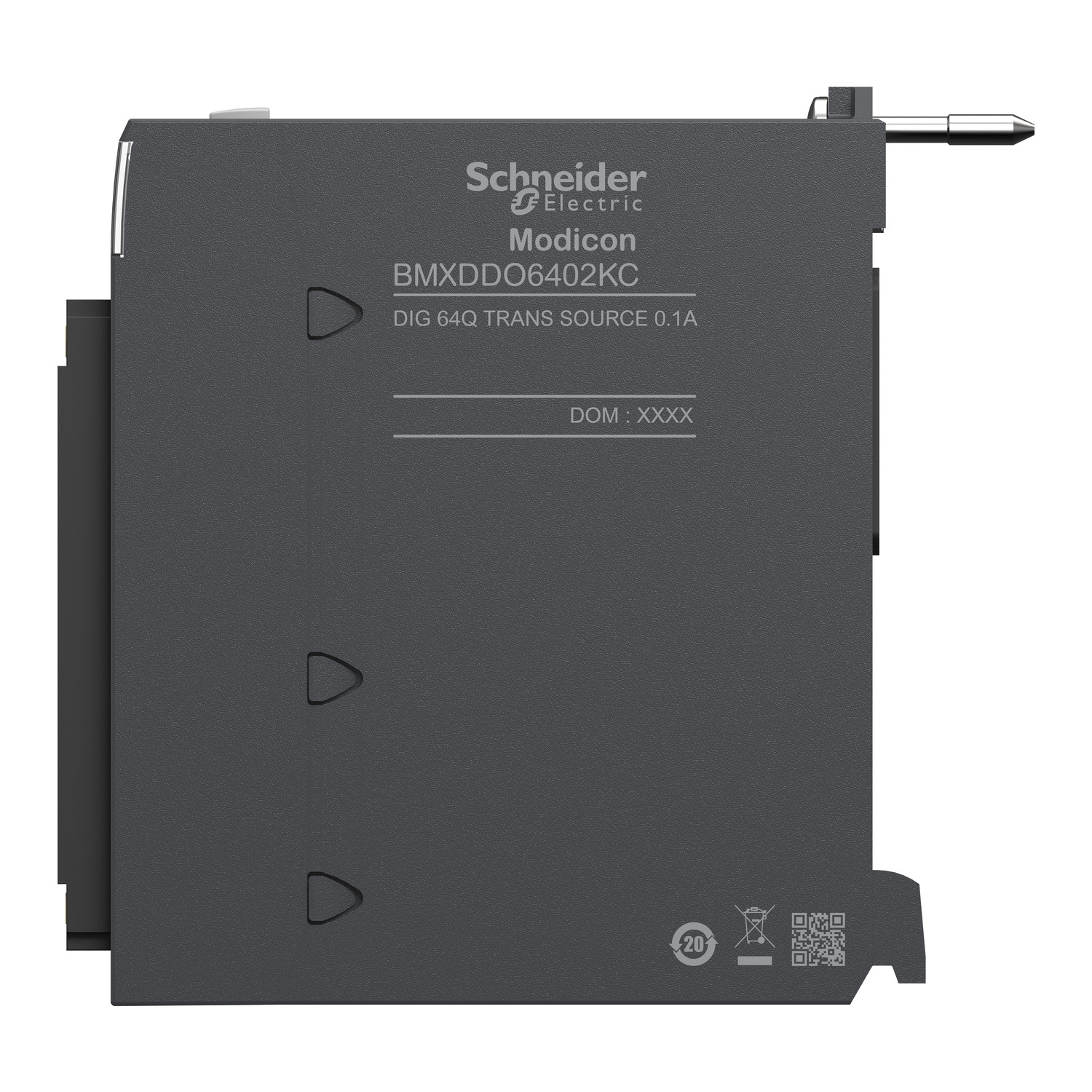

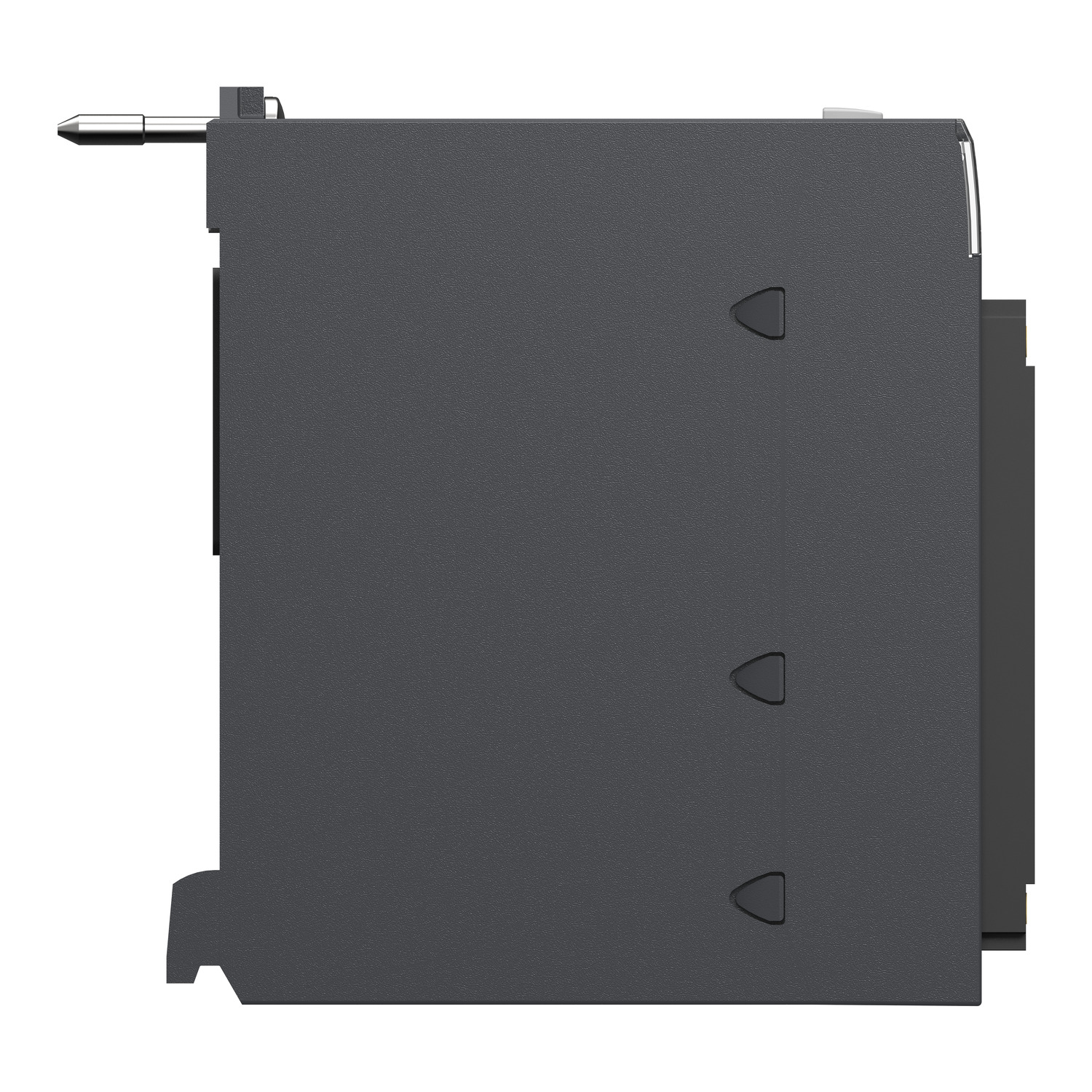

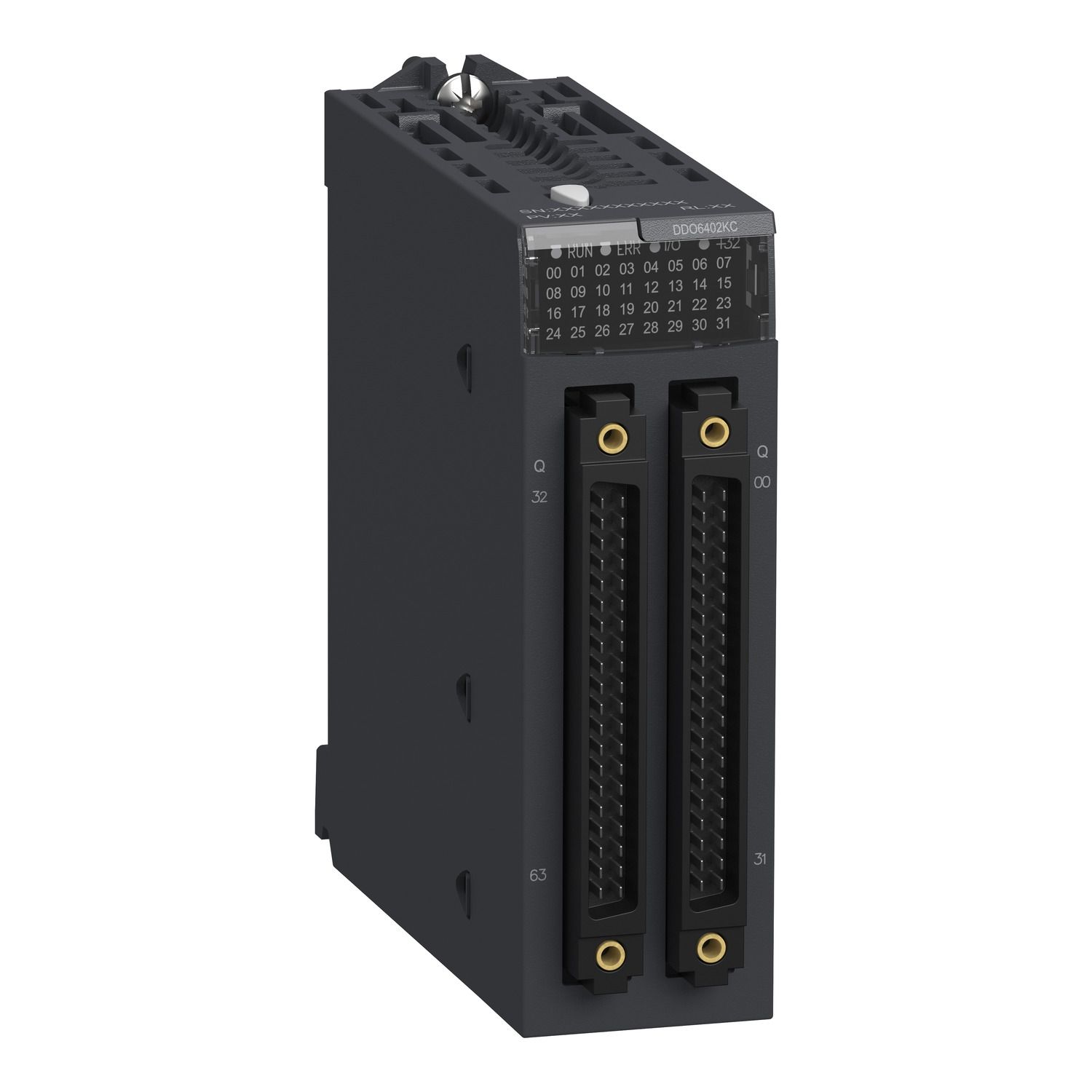

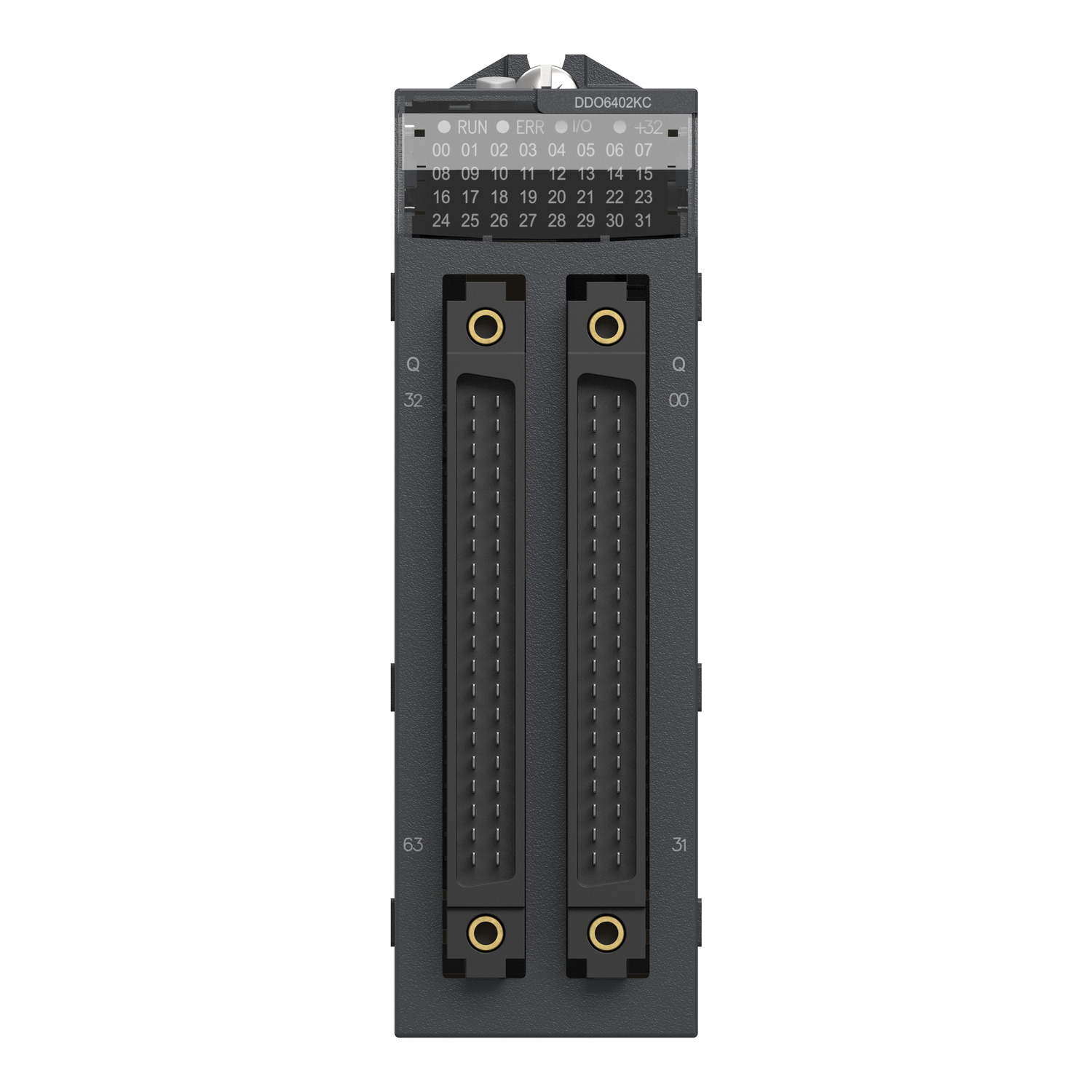

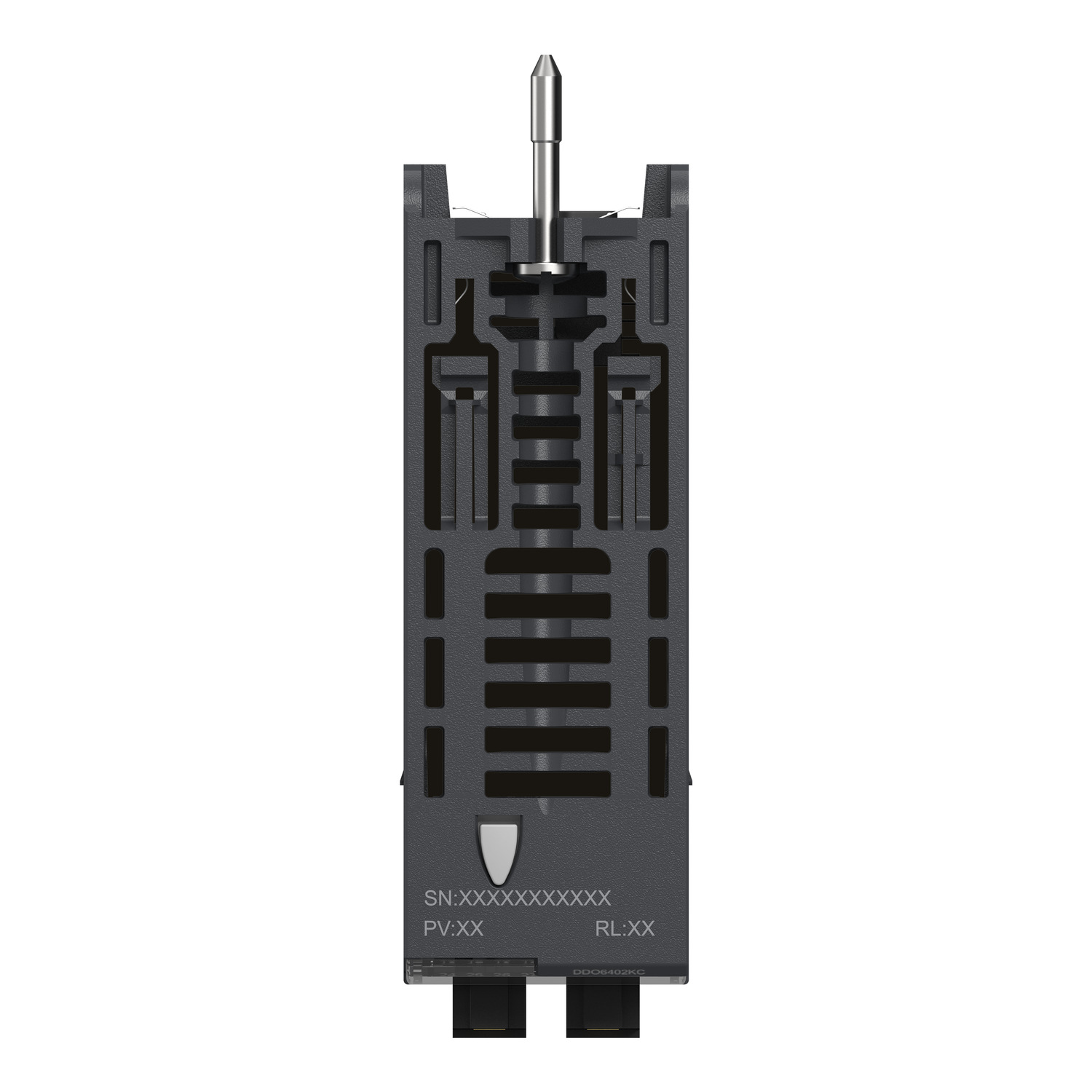

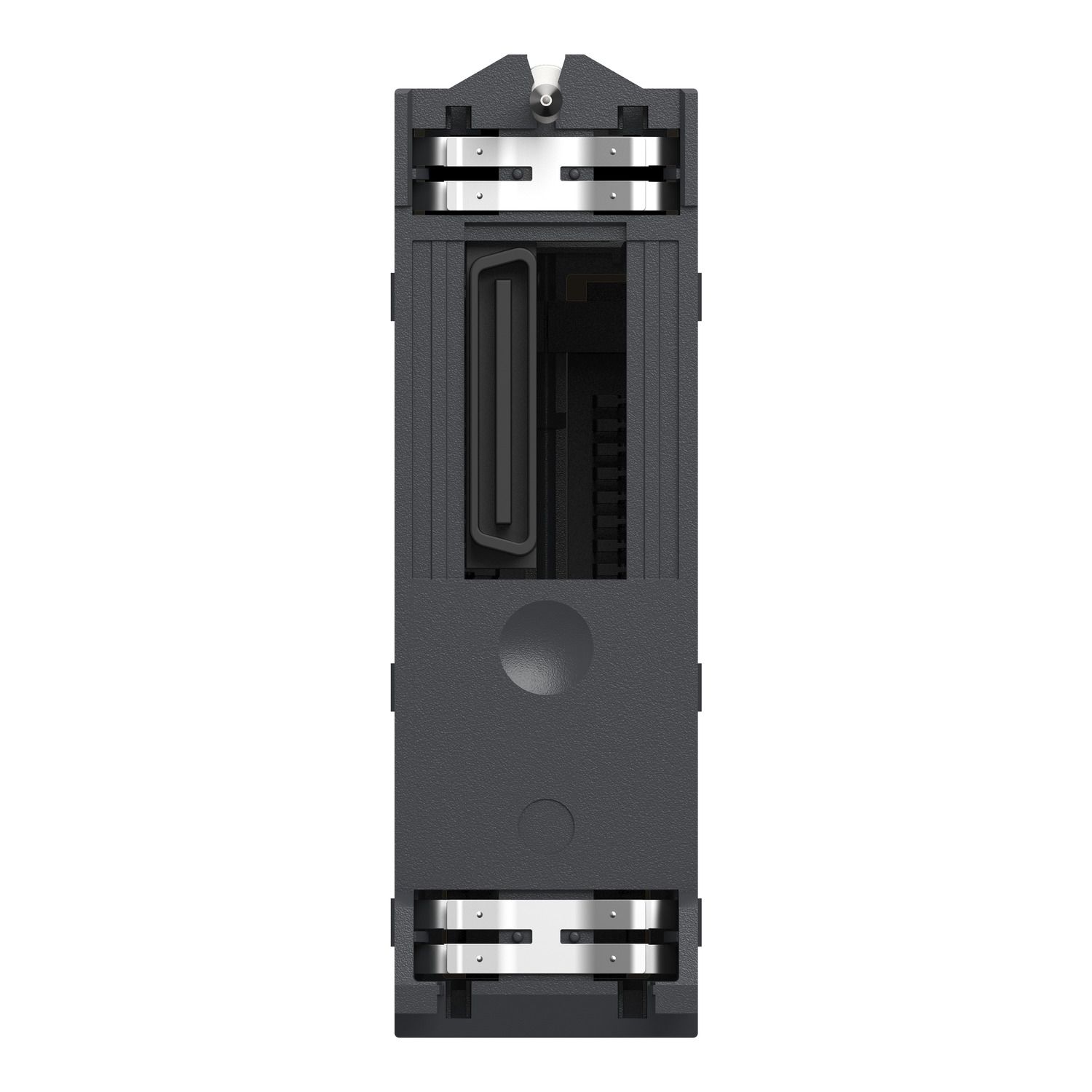

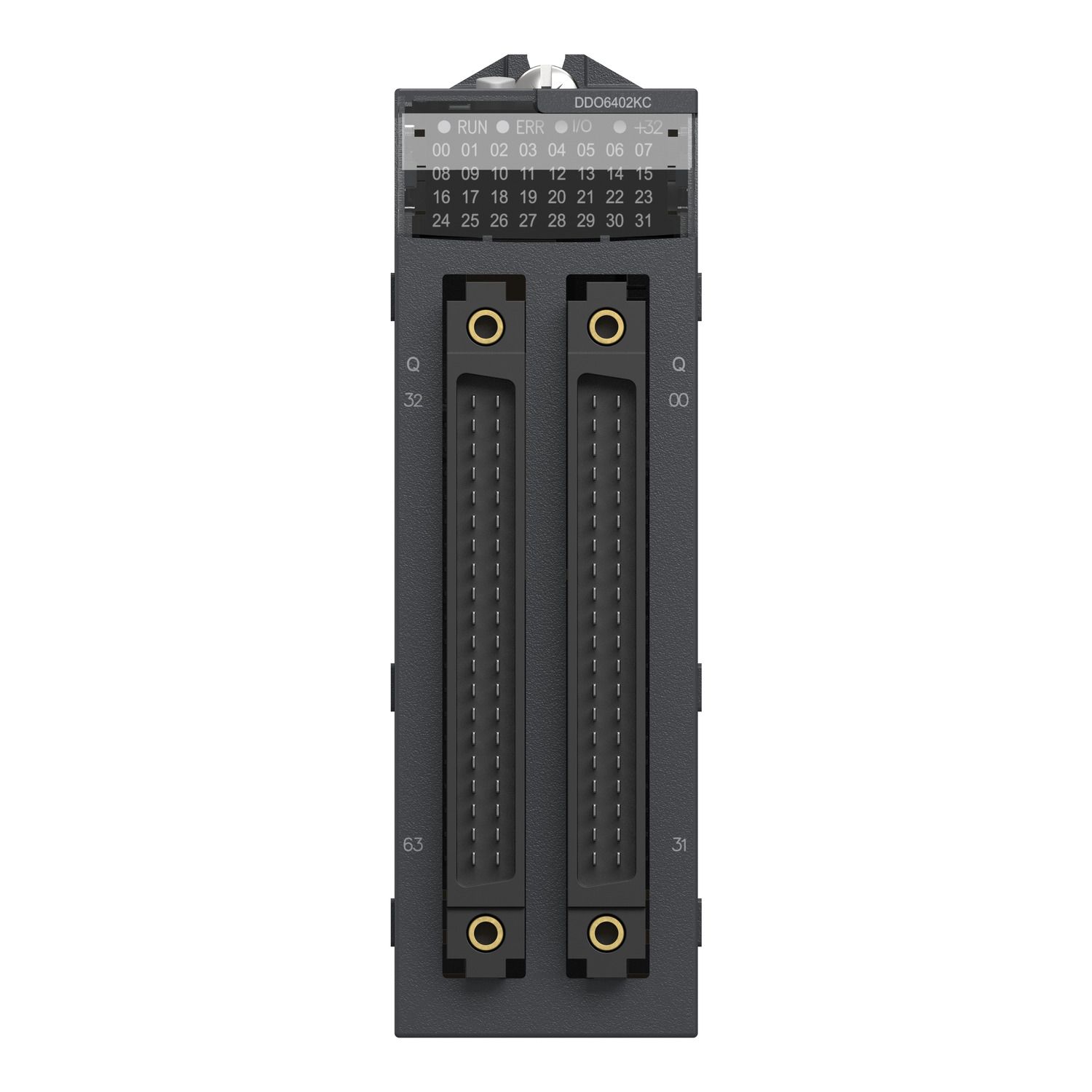

This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 64 output channels and it is supplied with 24V DC (positive). Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 148469 hours of MTBF. This discrete module has a weight of 0.150kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with two 40-way connectors. The product must be installed on the rack and fixed with 2 screws.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product specific application | for severe environments |
| Discrete output current | 0.1 A |
| Product or component type | discrete output module |
| Discrete output voltage | 24 V 19...30 V DC |
| Discrete output logic | positive |
| Discrete output number | 64 conforming to EN/IEC 61131-2 |
| Range of product | Modicon X80 |
| Discrete output type | solid state |
| Complementary | |
| Response time on output | 1.2 ms |
| Reverse polarity protection | reverse mounted diode |
| Maximum tungsten load | 1.2 W |
| Output overload protection | with electronic circuit breaker 0.125 A < Id < 0.185 A, with current limiter |
| Output short-circuit protection | with 2 A external fuse |
| Output overvoltage protection | with transil diode |
| Typical current consumption | 160 mA at 3.3 V DC |
| Paralleling of outputs | yes : 3 maximum |
| Load impedance ohmic | >= 220 Ohm |
| Net weight | 0.15 kg |
| Power dissipation in W | 6.85 W |
| Protection type | overvoltage protection, overload protection, external short-circuit protection, reverse polarity protection |
| Insulation resistance | > 10 MOhm 500 V DC |
| Current per channel | 0.125 A |
| Voltage detection threshold | > 18 V DC preactuator at state 0, < 14 V DC preactuator fault |
| Status LED | 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN), 1 LED (green) +32 channels indicator |
| Maximum overload time | 15 ms |
| Switching frequency | 0.5/LI² Hz |
| Maximum current per module | 6.4 A |
| MTBF reliability | 150000 H |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Relative humidity | 5-95 % at 0-60 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Dielectric strength | 500 V DC 1 minute, between group of channels, 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, output/ground |
| Environmental characteristic | fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | 0-60 °C |
