Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue output number | 4 |
| Analog/digital conversion | 11 bits + sign |

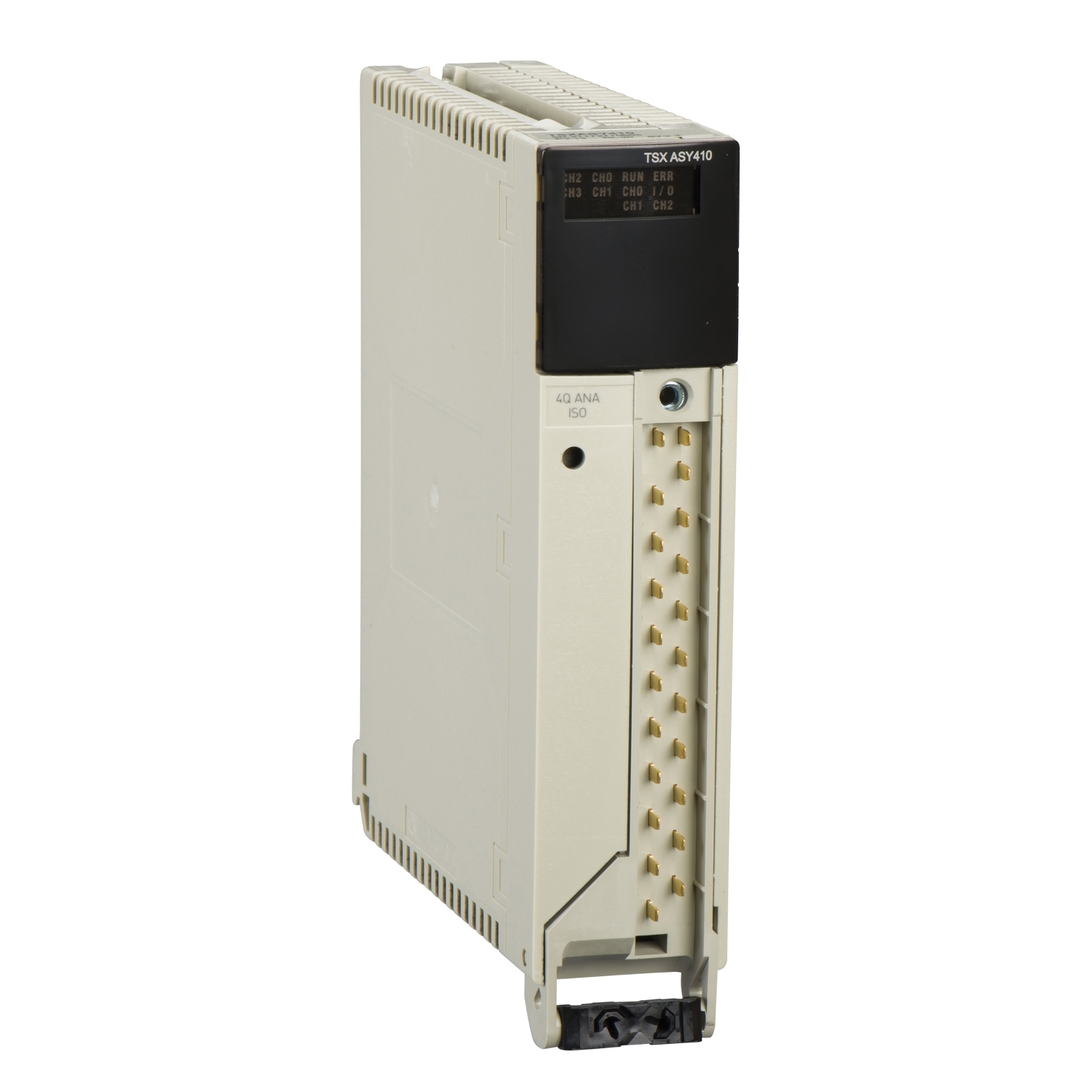

| Product or component type | analog output module |
| Analogue output type | voltage: +/- 10 V, current: 4...20 mA, current: 0...20 mA |
| Range of product | Modicon Premium Automation platform |
| Complementary | |
| Measurement resolution | 5.12 mV +/- 10 V, 10.25 µA 4...20 mA, 10.25 µA 0...20 mA |
| Maximum load capacitance | 0.1 µF |
| Conversion time | 2.5 ms |
| Module format | standard |
| Protection type | short-circuit protection, overload protection |
| Electrical connection | screw terminal block |
| Output voltage limits | <= 30 V |
| Load impedance ohmic | > 1000 Ohm +/- 10 V, < 600 Ohm 4...20 mA, < 600 Ohm 0...20 mA |
| Net weight | 0.35 kg |
| Maximum load inductance | 300 µH |
| Marking | CE |
| Isolation between channels | 1500 Vrms |
| Current consumption | 900 mA at 5 V DC |
| Isolation between channels and bus | 1500 Vrms |
| Terminals description PLC n°1 | (10)OUT_ANA_SHIELD#, (17)OUT_ANA_COM#3, (3)OUT_ANA_CUR#0, (9)OUT_ANA_SHIELD#, (8)OUT_ANA_CUR#1, (4)OUT_ANA_SHIELD#, (13)OUT_ANA_CUR#2, (2)OUT_ANA_COM#0, (7)OUT_ANA_COM#1, (6)OUT_ANA_VOLT#1, (20)OUT_ANA_SHIELD#, (12)OUT_ANA_COM#2, (11)OUT_ANA_VOLT#2, (15)OUT_ANA_SHIELD#, (16)OUT_ANA_VOLT#3, (5)OUT_ANA_SHIELD#, (1)OUT_ANA_VOLT#0, (18)OUT_ANA_CUR#3, (19)OUT_ANA_SHIELD#, (14)OUT_ANA_SHIELD# |
| Measurement error | 0.98 % of full scale 4...20 mA 0...60 °C, 0.98 % of full scale 0...20 mA 0...60 °C, 0.75 % of full scale +/- 10 V 0...60 °C, 0.52 % of full scale 4...20 mA 25 °C, 0.52 % of full scale 0...20 mA 25 °C, 0.45 % of full scale +/- 10 V 25 °C |
| Isolation between channels and ground | 500 V |
| Environment | |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Relative humidity | 5-95 % without condensation for storage, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Standards | UL 508, CSA C22.2 No 213 Class I Division 2 Group D, 73/23/EEC, IEC 61131-2, 93/68/EEC, CSA C22.2 No 213 Class I Division 2 Group A, 89/336/EEC, 92/31/EEC, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 213 Class I Division 2 Group B |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | BV, LR, RMRS, DNV, RINA, ABS, GL |
