Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Memory usage | 256000 telegrams |
| Range compatibility | AS-Interface cabling system |
| Operating system | Windows XP, Windows 95/98, Windows 2000, Windows NT 4.0, Windows ME |
| AS-i version | V2.1 |

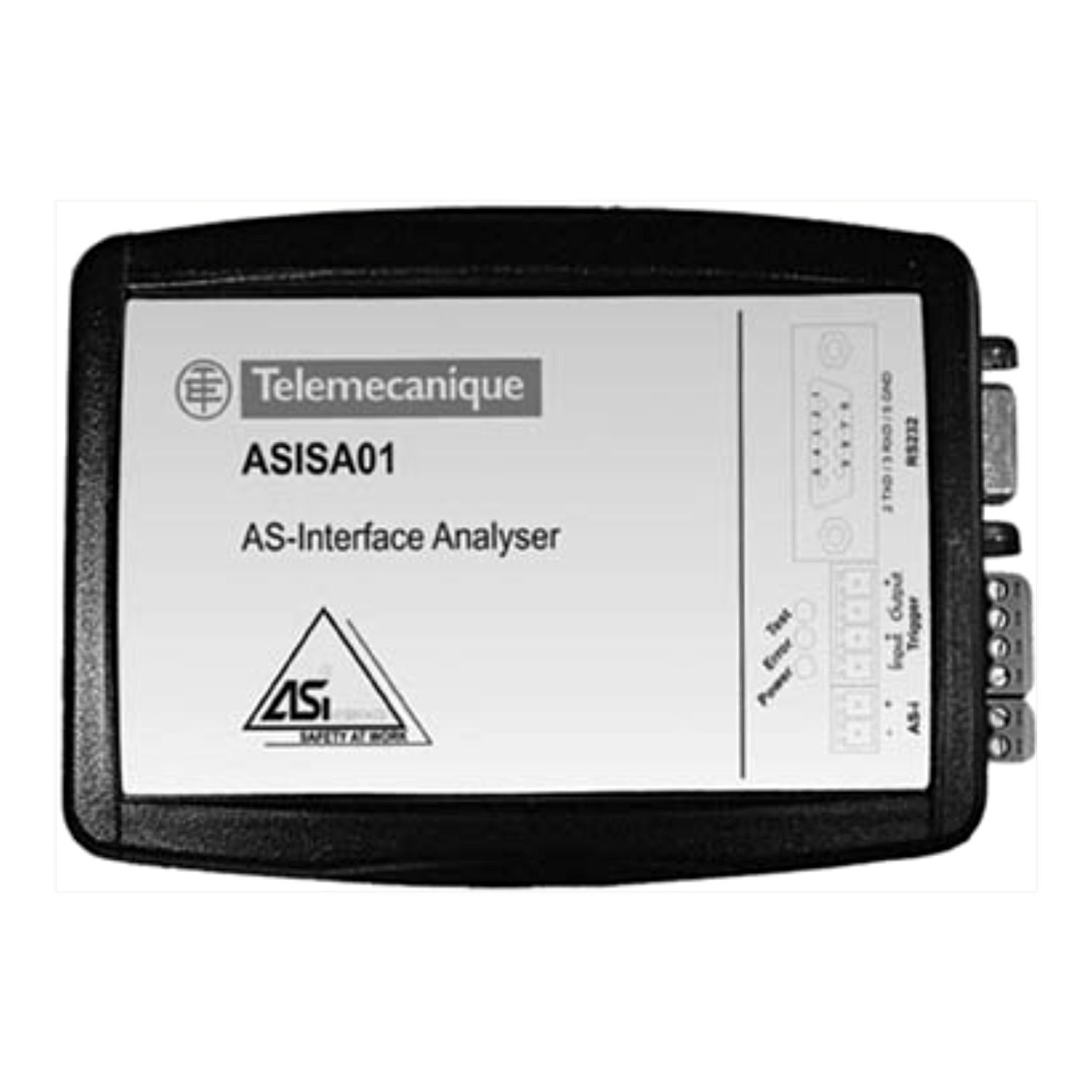

| Product or component type | AS-Interface line analyser |
| Complementary | |
| Kit composition | diagnostic software, SUB-D data cable, AS-Interface line analyser |
| Depth | 28 mm |
| Width | 139 mm |
| Local signalling | 1 LED (yellow) for RS232 link activity, 1 LED (green/red) for test mode, 1 LED (green) for correct supply voltage |
| Product compatibility | IBM compatible PC, processor: 80486 or higher |
| Net weight | 0.16 kg |
| [Ui] rated insulation voltage | 500 V |
| Electrical connection | terminal block (tripping inputs (24 V), tripping outputs (TTL)), terminal block (AS-Interface line), 1 connector SUB-D 9, RS232 (PC connection) |
| Height | 91.5 mm |
| Current consumption | 70 mA |
| Environment | |
| Ambient air temperature for storage | -25-70 °C |
| Electromagnetic compatibility | EN 50081-2, EN 61000-6-2 |
| Ambient air temperature for operation | 0-55 °C |
