Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Actuator sensor interface profile [AS-i] | 7.F |
| Product specific application | for enhanced monitoring of safety devices |
| Discrete output number | 1 |
| Number of safety circuits | 2 NO |

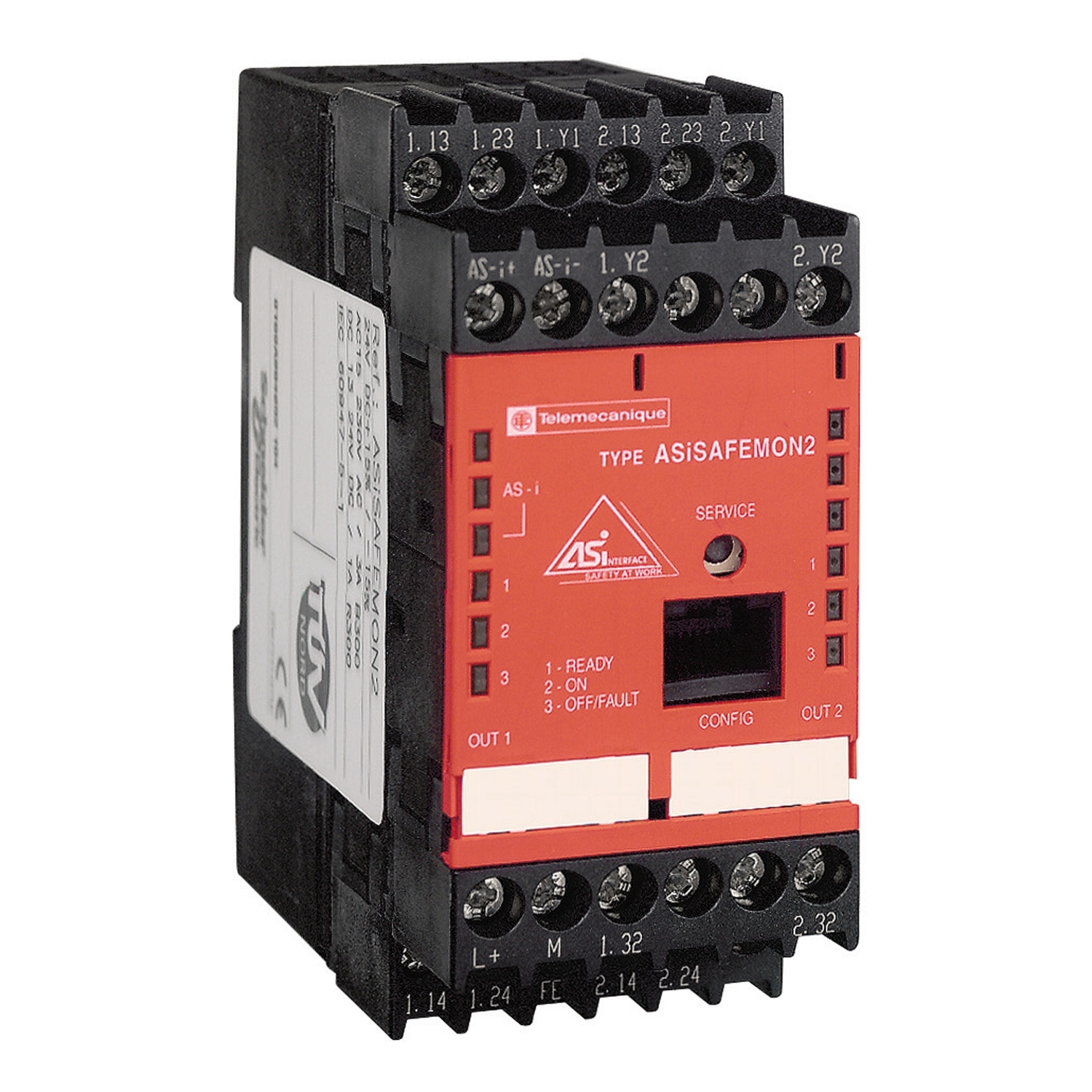

| Product or component type | AS-Interface Safety at work monitor |
| Complementary | |
| Protection type | external fuse |
| Input type | opto-electronic coupler, 10 mA at 24 V for start function, opto-electronic coupler, 10 mA at 24 V for protection control function |
| Fixing mode | clip-on, mounting on symmetrical DIN rail conforming to EN 50022 |
| Maximum pick up duration | 10000 ms |
| [Us] rated supply voltage | 24 V DC +/- 15 % |
| Discrete output type | PNP transistor output(s), 0.2 mA |
| Output type | solid state |
| Enclosure material | polyamide PA66 |
| [Ie] rated operational current | 0.15 A |
| Local signalling | 1 LED (yellow) for restart signal, 1 LED (red) for safety outputs open (on steady) or output error (flashing), 1 LED (red) for AS-Interface line fault, 1 LED (green) for safety outputs closed, 1 LED (green) for AS-Interface line supply |
| Response time | < 40 ms |
| Net weight | 0.35 kg |
| Maximum associated fuse rating | 4 A |
| Current consumption | 44 mA for AS-Interface line |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -30-70 °C |
| Ambient air temperature for operation | -20-60 °C |
| Standards | EN/IEC 60204-1, ISO 13849-1 category 4, IEC 61508, EN 61000-6-2, EN 954-1 category 4, EN/IEC 60947-5-1, ISO 13851, EN/IEC 61496-1, EN 574, EN 50295, EN 50081-2 |
| Product certifications | UL, TÜV, CSA |
