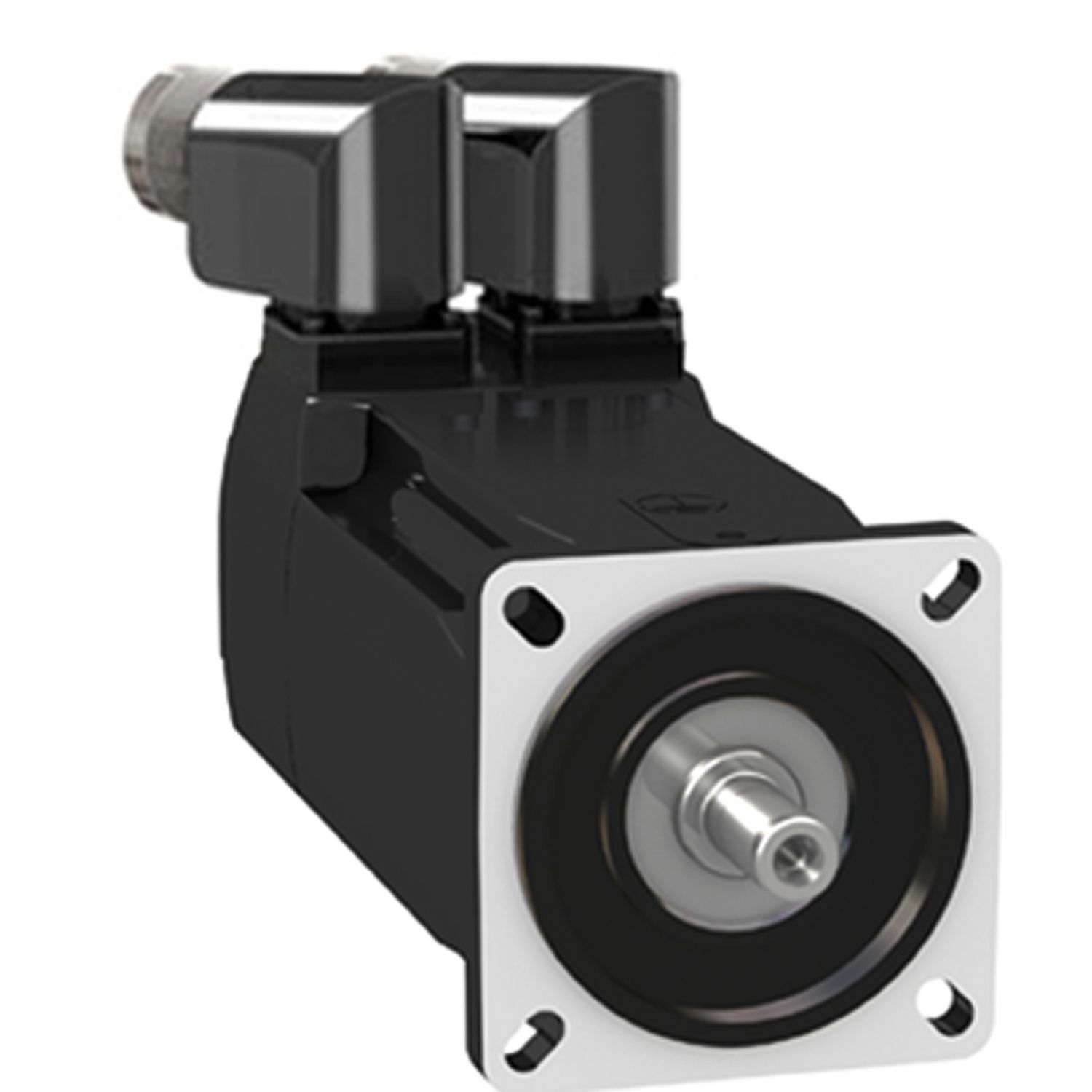

servo motor BMH, Lexium 32, 3.4Nm, 8000rpm, keyed shaft, with brake, IP65, IP67, 128 multiturn encoder, 3 phases

Manufacturer: Schneider Electric

SKU: BMH0703P32F2A

GTIN: 3606485199344

Catalog

User guide

Environmental Disclosure

CAD

Declaration of conformity

Availability: Out of stock

Old price: $3,029.40 inc GST

Price: $4,362.34 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 8000RPM, a keyed shaft end, without holding brake. It is equipped with a multi-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 3.91A, a continuous power of 1.68W, and a continuous stall torque of 3.4Nm. Shaft end is IP65 rated, and IP67 with an IP67kit. The motor flange size is 70mm, fixed by 4x 5.5mm holes. The circle diameter of the mounting holes is 82mm. It weighs 4kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AD18N4, LXM32SD18N4, LXM32MD18N4, and LXM32CD18N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.

Products specifications

Attribute name	Attribute value
Main
Continuous stall torque	3.4 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 3.4 N.m for LXM32.D18N4 at 6 A, 400 V, three phase
Device short name	BMH
Nominal speed	5000 rpm for LXM32.D18N4 at 6 A, 480 V, three phase, 5000 rpm for LXM32.D18N4 at 6 A, 400 V, three phase
IP degree of protection	IP67 with IP67 kit, IP65 standard
Product compatibility	LXM32.D18N4 at 400...480 V three phase
Peak stall torque	10.2 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 10.2 N.m for LXM32.D18N4 at 6 A, 400 V, three phase
Nominal output power	1300 W for LXM32.D18N4 at 6 A, 480 V, three phase, 1300 W for LXM32.D18N4 at 6 A, 400 V, three phase
Speed feedback resolution	131072 points/turn x 4096 turns
Maximum mechanical speed	8000 rpm
Nominal torque	2.4 N.m for LXM32.D18N4 at 6 A, 480 V, three phase, 2.4 N.m for LXM32.D18N4 at 6 A, 400 V, three phase
Electrical connection	rotatable right-angled connectors
Shaft end	keyed
Product or component type	servo motor
Holding brake	with
Mounting support	international standard flange
Complementary
Temperature copper hot	135 °C
Coefficient 1_2	1.1550721732E-18 N.m/rpm²
Coefficient 1_1	-0.0001750000000006 N.m/rpm
Coefficient 1_4	1.737E-25 N.m/rpm4
Coefficient 1_3	-6.762416E-22 N.m/rpm3
Coefficient 1_6	8.7E-34 N.m/rpm6
Coefficient 1_5	-2.02562E-29 N.m/rpm5
Temperature magnet rt	20 °C
Motor voltage drop coefficient	1
Coefficient 2_1	2.12500000000002E-05 N.m/rpm
Accuracy error [angular]	1.4 °
Type of cooling	natural convection
Number of mounting holes	4
[Us] rated supply voltage	480 V
Motor flange size	70 mm
Stator inductance	8.6 mH at 20 °C
Brake pull-in power	7 W
Centring collar depth	2.5 mm
Back emf constant	55.8 V/krpm at 120 °C
Maximum radial force Fr	400 N at 6000 rpm, 430 N at 5000 rpm, 460 N at 4000 rpm, 510 N at 3000 rpm, 580 N at 2000 rpm, 730 N at 1000 rpm
Saturation coefficient 1	-1.53406885169E-17
Saturation coefficient 3	8.051345425E-19
Saturation coefficient 2	-0.0052093973442288
Temperature magnet hot	100 °C
Continuous power	1.68 W
Circle diameter of the mounting holes	82 mm
Maximum permanent current	12.57 A
Torque constant	0.87 N.m/A at 120 °C
Network number of phases	3, three phase
Continuous stall current	3.91 A
Range compatibility	Lexium 32
Stator resistance	2.65 Ohm at 20 °C
Feedback type	multiturn SinCos Hiperface
Mounting holes diameter	5.5 mm
Shaft diameter	14 mm
Key width	20 mm
Centring collar diameter	60 mm
Sizing reference	BMH0703P
Net weight	4 kg
Maximum current Irms	12.6 A for LXM32.D18N4
Length	225 mm
Shaft length	30 mm
Second shaft	without second shaft end
Maximum axial force Fa	0.2 x Fr
Number of motor poles	10
Rotor inertia	1.78 kg.cm²
Number of motor stacks	3
Holding torque	3 N.m holding brake
Stator electrical time constant	3.2 ms at 20 °C
