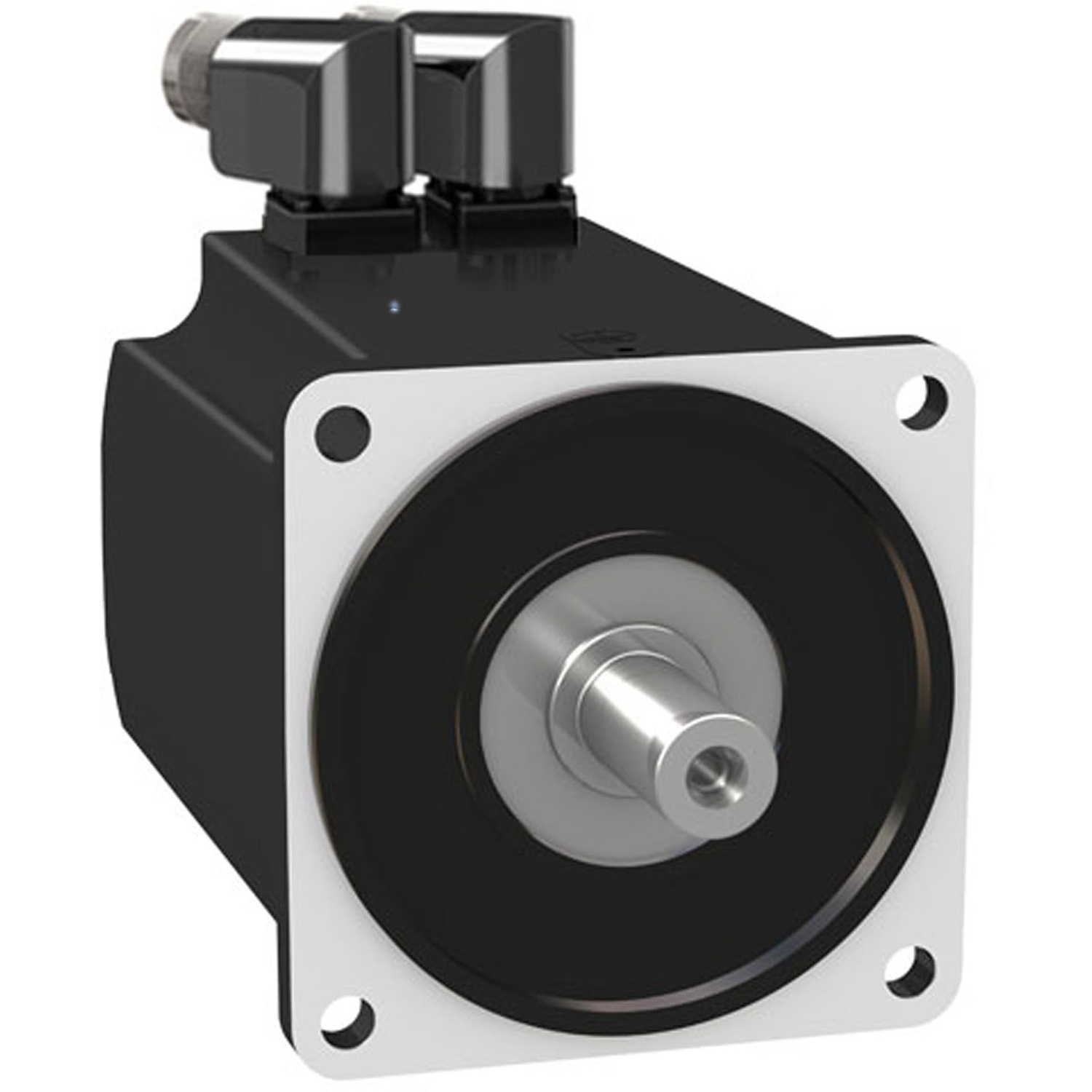

servo motor BMH, Lexium 32, 18.5Nm, 4000rpm, untapped shaft, without brake, IP54, 16bit encoder

Manufacturer: Schneider Electric

SKU: BMH1402P06A2A

GTIN: 3606480160875

Catalog

User guide

Environmental Disclosure

CAD

Declaration of conformity

Availability: Out of stock

Old price: $3,531.00 inc GST

Price: $5,084.64 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 4000RPM, an untapped shaft end, without holding brake. It is equipped with a single-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 16.83A, a continuous power of 4.44W, and a continuous stall torque of 18.5Nm. Its degree of protection is IP54 rated. The motor flange size is 140mm, fixed by 4x 11mm holes. The circle diameter of the mounting holes is 165mm. It weighs 12kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AD72N4, LXM32SD72N4, LXM32MD72N4, and LXM32CD72N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.

Products specifications

Attribute name	Attribute value
Main
Continuous stall torque	18.5 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 18.5 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Device short name	BMH
Nominal speed	3000 rpm for LXM32.D72N4 at 24 A, 480 V, three phase, 3000 rpm for LXM32.D72N4 at 24 A, 400 V, three phase
IP degree of protection	IP54 standard
Product compatibility	LXM32.D72N4 at 400...480 V three phase
Peak stall torque	50.3 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 50.3 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Nominal output power	3500 W for LXM32.D72N4 at 24 A, 480 V, three phase, 3500 W for LXM32.D72N4 at 24 A, 400 V, three phase
Speed feedback resolution	32768 points/turn
Maximum mechanical speed	4000 rpm
Nominal torque	12.2 N.m for LXM32.D72N4 at 24 A, 480 V, three phase, 12.2 N.m for LXM32.D72N4 at 24 A, 400 V, three phase
Electrical connection	rotatable right-angled connectors
Shaft end	smooth shaft
Product or component type	servo motor
Holding brake	without
Mounting support	international standard flange
Complementary
Temperature copper hot	135 °C
Coefficient 1_2	-7.40962495854577E-09 N.m/rpm²
Coefficient 1_1	-0.0015580971044942 N.m/rpm
Coefficient 1_4	-5.2956438523721E-15 N.m/rpm4
Coefficient 1_3	9.68956725377379E-12 N.m/rpm3
Coefficient 1_6	-1.0211119865247E-22 N.m/rpm6
Coefficient 1_5	1.22533438374952E-18 N.m/rpm5
Temperature magnet rt	20 °C
Motor voltage drop coefficient	1
Coefficient 2_1	0.000210624396135302 N.m/rpm
Accuracy error [angular]	4.8 °
Type of cooling	natural convection
Number of mounting holes	4
[Us] rated supply voltage	480 V
Motor flange size	140 mm
Stator inductance	3 mH at 20 °C
Centring collar depth	3.5 mm
Back emf constant	70.7 V/krpm at 120 °C
Maximum radial force Fr	1550 N at 3000 rpm, 1780 N at 2000 rpm, 2240 N at 1000 rpm
Saturation coefficient 1	8.9283669812E-18
Saturation coefficient 3	-3.881898687E-19
Saturation coefficient 2	-0.008682328907048
Temperature magnet hot	100 °C
Continuous power	4.44 W
Circle diameter of the mounting holes	165 mm
Maximum permanent current	57.4 A
Torque constant	1.1 N.m/A at 120 °C
Network number of phases	3, three phase
Continuous stall current	16.83 A
Range compatibility	Lexium 32
Stator resistance	0.23 Ohm at 20 °C
Feedback type	single turn SinCos Hiperface
Mounting holes diameter	11 mm
Shaft diameter	24 mm
Centring collar diameter	130 mm
Sizing reference	BMH1402P
Net weight	12 kg
Maximum current Irms	57.4 A for LXM32.D72N4
Length	192 mm
Shaft length	50 mm
Second shaft	without second shaft end
Maximum axial force Fa	0.2 x Fr
Number of motor poles	10
Rotor inertia	32 kg.cm²
Number of motor stacks	2
Stator electrical time constant	13 ms at 20 °C
