Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Continuous stall torque | 1.3 N.m for LXM05AD17M3X, 200...240 V, three phase, 1.2 N.m for LXM32.D18M2 at 6 A, 115 V, single phase, 1.3 N.m for LXM05CD17M2, 200...240 V, single phase, 1.3 N.m for LXM05CD17F1, 110...120 V, single phase, 1.3 N.m for LXM05BD17M2, 200...240 V, single phase, 1.3 N.m for LXM05BD17F1, 110...120 V, single phase, 1.3 N.m for LXM05AD17M2, 200...240 V, single phase, 1.3 N.m for LXM05AD17F1, 110...120 V, single phase, 1.3 N.m for LXM05CD17M3X, 200...240 V, three phase, 1.3 N.m for LXM05BD17M3X, 200...240 V, three phase, 1.2 N.m for LXM32.U90M2 at 3 A, 230 V, single phase |
| Device short name | BSH |
| Nominal speed | 3000 rpm for LXM05AD17M3X, 200...240 V, three phase, 3000 rpm for LXM32.D18M2 at 6 A, 115 V, single phase, 3000 rpm for LXM05CD17M2, 200...240 V, single phase, 3000 rpm for LXM05BD17M2, 200...240 V, single phase, 3000 rpm for LXM05AD17M2, 200...240 V, single phase, 3000 rpm for LXM05CD17F1, 110...120 V, single phase, 3000 rpm for LXM05BD17F1, 110...120 V, single phase, 3000 rpm for LXM05AD17F1, 110...120 V, single phase, 3000 rpm for LXM05CD17M3X, 200...240 V, three phase, 3000 rpm for LXM05BD17M3X, 200...240 V, three phase, 6000 rpm for LXM32.U90M2 at 3 A, 230 V, single phase |
| IP degree of protection | IP50 standard |
| Product compatibility | LXM05AD17M3X at 200...240 V three phase, LXM32.D18M2 at 115 V single phase, LXM32.U90M2 at 230 V single phase, LXM05CD17M2 at 200...240 V single phase, LXM05CD17F1 at 110...120 V single phase, LXM05BD17M2 at 200...240 V single phase, LXM05BD17F1 at 110...120 V single phase, LXM05AD17M2 at 200...240 V single phase, LXM05CD17M3X at 200...240 V three phase, LXM05BD17M3X at 200...240 V three phase, LXM05AD17F1 at 110...120 V single phase |
| Peak stall torque | 3.31 N.m for LXM05AD17M3X, 200...240 V, three phase, 3.3 N.m for LXM32.D18M2 at 6 A, 115 V, single phase, 3.31 N.m for LXM05CD17M2, 200...240 V, single phase, 3.31 N.m for LXM05CD17F1, 110...120 V, single phase, 3.31 N.m for LXM05BD17M2, 200...240 V, single phase, 3.31 N.m for LXM05BD17F1, 110...120 V, single phase, 3.31 N.m for LXM05AD17M2, 200...240 V, single phase, 3.31 N.m for LXM05AD17F1, 110...120 V, single phase, 3.31 N.m for LXM05CD17M3X, 200...240 V, three phase, 3.31 N.m for LXM05BD17M3X, 200...240 V, three phase, 3 N.m for LXM32.U90M2 at 3 A, 230 V, single phase |
| Nominal output power | 350 W for LXM05AD17M3X, 200...240 V, three phase, 350 W for LXM32.D18M2 at 6 A, 115 V, single phase, 350 W for LXM05CD17M2, 200...240 V, single phase, 350 W for LXM05CD17F1, 110...120 V, single phase, 350 W for LXM05BD17M2, 200...240 V, single phase, 350 W for LXM05BD17F1, 110...120 V, single phase, 350 W for LXM05AD17M2, 200...240 V, single phase, 350 W for LXM05AD17F1, 110...120 V, single phase, 350 W for LXM05CD17M3X, 200...240 V, three phase, 350 W for LXM05BD17M3X, 200...240 V, three phase, 550 W for LXM32.U90M2 at 3 A, 230 V, single phase |
| Speed feedback resolution | 131072 points/turn |
| Maximum mechanical speed | 9000 rpm |
| Nominal torque | 1.1 N.m for LXM05AD17M3X, 200...240 V, three phase, 1.14 N.m for LXM32.D18M2 at 6 A, 115 V, single phase, 1.1 N.m for LXM05CD17M2, 200...240 V, single phase, 1.1 N.m for LXM05CD17F1, 110...120 V, single phase, 1.1 N.m for LXM05BD17M2, 200...240 V, single phase, 1.1 N.m for LXM05BD17F1, 110...120 V, single phase, 1.1 N.m for LXM05AD17M2, 200...240 V, single phase, 1.1 N.m for LXM05AD17F1, 110...120 V, single phase, 1.1 N.m for LXM05CD17M3X, 200...240 V, three phase, 1.1 N.m for LXM05BD17M3X, 200...240 V, three phase, 0.84 N.m for LXM32.U90M2 at 3 A, 230 V, single phase |
| Electrical connection | straight connectors |
| Shaft end | keyed |

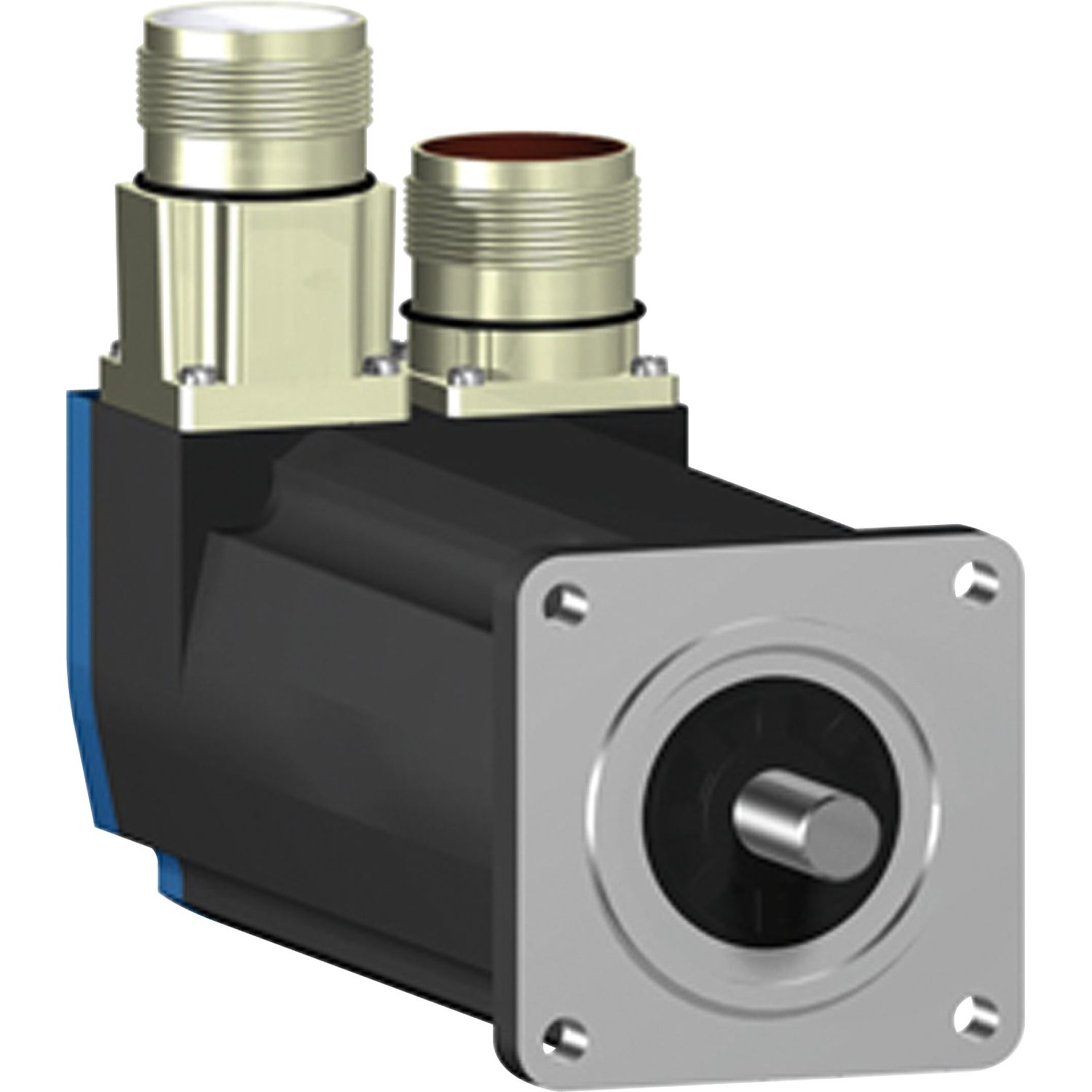

| Product or component type | servo motor |
| Holding brake | without |
| Mounting support | international standard flange |
| Complementary | |
| Temperature copper hot | 120 °C |
| Coefficient 1_2 | -2.567453870888E-18 N.m/rpm² |
| Coefficient 1_1 | -1.87500000003E-05 N.m/rpm |
| Coefficient 1_4 | -2.5023E-25 N.m/rpm4 |
| Coefficient 1_3 | 1.186198773E-21 N.m/rpm3 |
| Coefficient 1_6 | 0 N.m/rpm6 |
| Coefficient 1_5 | 2.4E-29 N.m/rpm5 |
| Temperature magnet rt | 20 °C |
| Motor voltage drop coefficient | 1 |
| Accuracy error [angular] | 1.4 ° |
| Type of cooling | natural convection |
| Number of mounting holes | 4 |
| [Us] rated supply voltage | 480 V |
| Motor flange size | 55 mm |
| Stator inductance | 7.4 mH at 20 °C |
| Centring collar depth | 2 mm |
| Back emf constant | 22 V/krpm at 120 °C |
| Maximum radial force Fr | 390 N at 1000 rpm, 310 N at 2000 rpm, 270 N at 3000 rpm, 240 N at 4000 rpm, 230 N at 5000 rpm, 210 N at 6000 rpm, 200 N at 7000 rpm, 190 N at 8000 rpm |
| Saturation coefficient 1 | -2.559177653241E-18 |
| Saturation coefficient 3 | 1.43774025462E-19 |
| Saturation coefficient 2 | -0.0112504371592276 |
| Switching frequency | 8 kHz |
| Temperature magnet hot | 100 °C |
| Continuous power | 0.97 W |
| Circle diameter of the mounting holes | 63 mm |
| Maximum permanent current | 11.9 A |
| Torque constant | 0.39 N.m/A at 120 °C |
| Network number of phases | 3, three phase |
| Continuous stall current | 3.1 A |
| Range compatibility | Lexium 05, Lexium 32 |
| Stator resistance | 3.1 Ohm at 20 °C |
| Feedback type | single turn SinCos Hiperface |
| Mounting holes diameter | 5.5 mm |
| Shaft diameter | 9 mm |
| Key width | 12 mm |
| Centring collar diameter | 40 mm |
| Sizing reference | BSH0553T |
| Net weight | 1.76 kg |
| Maximum current Irms | 11.9 A for LXM05CD17M3X, 11.9 A for LXM05CD17M2, 11.9 A for LXM05CD17F1, 11.9 A for LXM05BD17M3X, 11.9 A for LXM05BD17M2, 11.9 A for LXM05BD17F1, 11.9 A for LXM05AD17M3X, 11.9 A for LXM05AD17M2, 9 A for LXM32.U90M2, 10 A for LXM32.D18M2, 11.9 A for LXM05AD17F1 |
| Length | 176.5 mm |
| Shaft length | 20 mm |
| Second shaft | without second shaft end |
| Maximum axial force Fa | 0.2 x Fr |
| Number of motor poles | 6 |
| Rotor inertia | 0.134 kg.cm² |
| Number of motor stacks | 3 |
| Stator electrical time constant | 2.39 ms at 20 °C |
