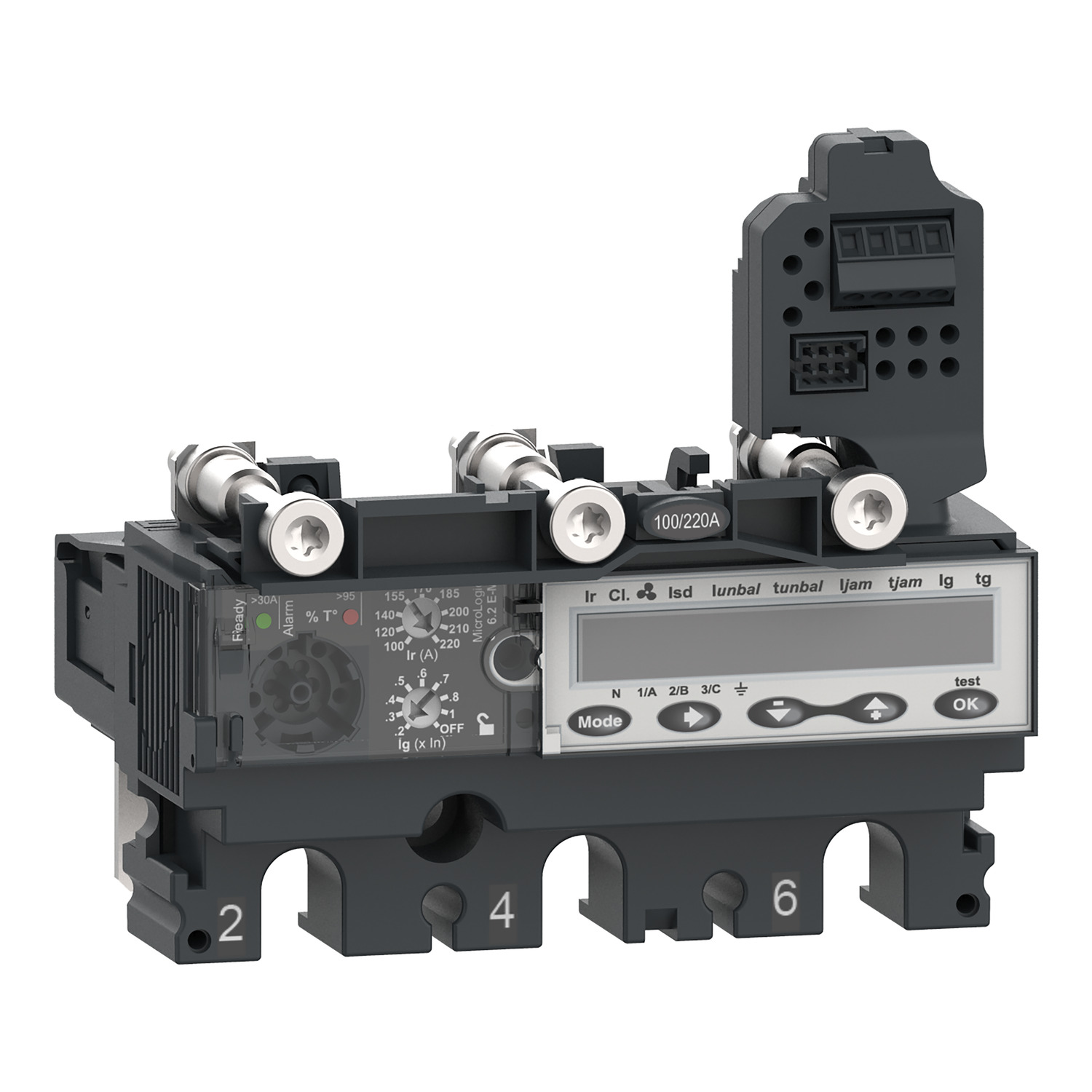

This MicroLogic 6.2 E-M (Energy) is a 3 poles 3d electronic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 80A rating electronic trip unit is an optimum choice for motor protection applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. It offers a phase unbalance or phase loss protection, and an additional and adjustable ground fault protection. MicroLogic 6.2 E-M indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 6.2 E-M is equipped with a display module that gives energy measurement and allows fine adjustment settings. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | motor |
| Range compatibility | ComPacT new generation NSX250, ComPacT new generation NSX160, ComPacT new generation NSX100 |
| Trip unit technology | electronic |
| Network type | AC |
| Mounting mode | fixed |
| Range | ComPacT new generation |
| Protection type | G : for ground fault protection, I : for instantaneous short-circuit protection, S : for short time short-circuit protection with fixed delay, L : for overload protection (long time) |
| Protected poles description | 3D |
| Range of product | ComPacT NSX100...250 new generation |
| Trip unit name | MicroLogic 6.2 E-M |
| Poles description | 3P |
| Product or component type | trip unit |
| Trip unit protection functions | LSIG |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [In] rated current | 80 A at 65 °C |
| Network frequency | 50/60 Hz |
| Complementary | |
| Short-time pick-up adjustment type Isd | adjustable 9 settings |
| Display type | LCD display |
| Long time pick-up adjustment type Ir | adjustable 9 settings |
| Zone selective interlocking ZSI | with |
| Communication of data | maximeters/minimeters, power quality, demand current and power, maintenance indicators, instantaneous and demand values, time-stamped histories and event tables, protection and alarm settings, energy metering |
| Earth-leakage protection | without |
| Thermal memory | 20 minutes before and after tripping |
| [Ig] ground-fault pick-up adjustment range | Ig enable on/off, 0.2...1 x In for In = 50 A |
| Motor tripping class | 20, 5, 30, 10 |
| [tr] long-time delay adjustment range | 720-720 s at 1.5 x Ir for trip class 30, 20-20 s at 7.2 x Ir for trip class 20, 26-26 s at 6 x Ir for trip class 20, 480-480 s at 1.5 x Ir for trip class 20, 10-10 s at 7.2 x Ir for trip class 10, 13.5-13.5 s at 6 x Ir for trip class 10, 240-240 s at 1.5 x Ir for trip class 10, 5-5 s at 7.2 x Ir for trip class 5, 6.5-6.5 s at 6 x Ir for trip class 5, 120-120 s at 1.5 x Ir for trip class 5 |
| Electrical data recording | maintenance indicators |
| Long time delay adjustment type | adjustable |
| Complementary motor protection | underload, current unbalance, stalled rotor, protracted starting time |
| Ground-fault time delay adjustment type -tg | adjustable |
| Long time pick-up adjustment range | 35...80 A |
| Instantaneous pick-up adjustment range | 1200 A |
| Short-time delay adjustment type | fixed |
| [Isd] short-time pick-up adjustment range | 5...13 x Ir |
| Local signalling | LED 95 % Ith (red) for temperature over set point, flashing LED (green) for ready to operate |
| Instantaneous pick-up adjustment type Ii | fixed |
| Type of measurement | energy meter |
| Ground-fault pick-up adjustment type | adjustable |
| [tg] Ground-fault time delay adjustment range | 0-0.4 s |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| Electrical shock protection class | class II |
| Pollution degree | 3 conforming to IEC 60947-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -25-70 °C |
| Standards | EN/IEC 60947-2 |
