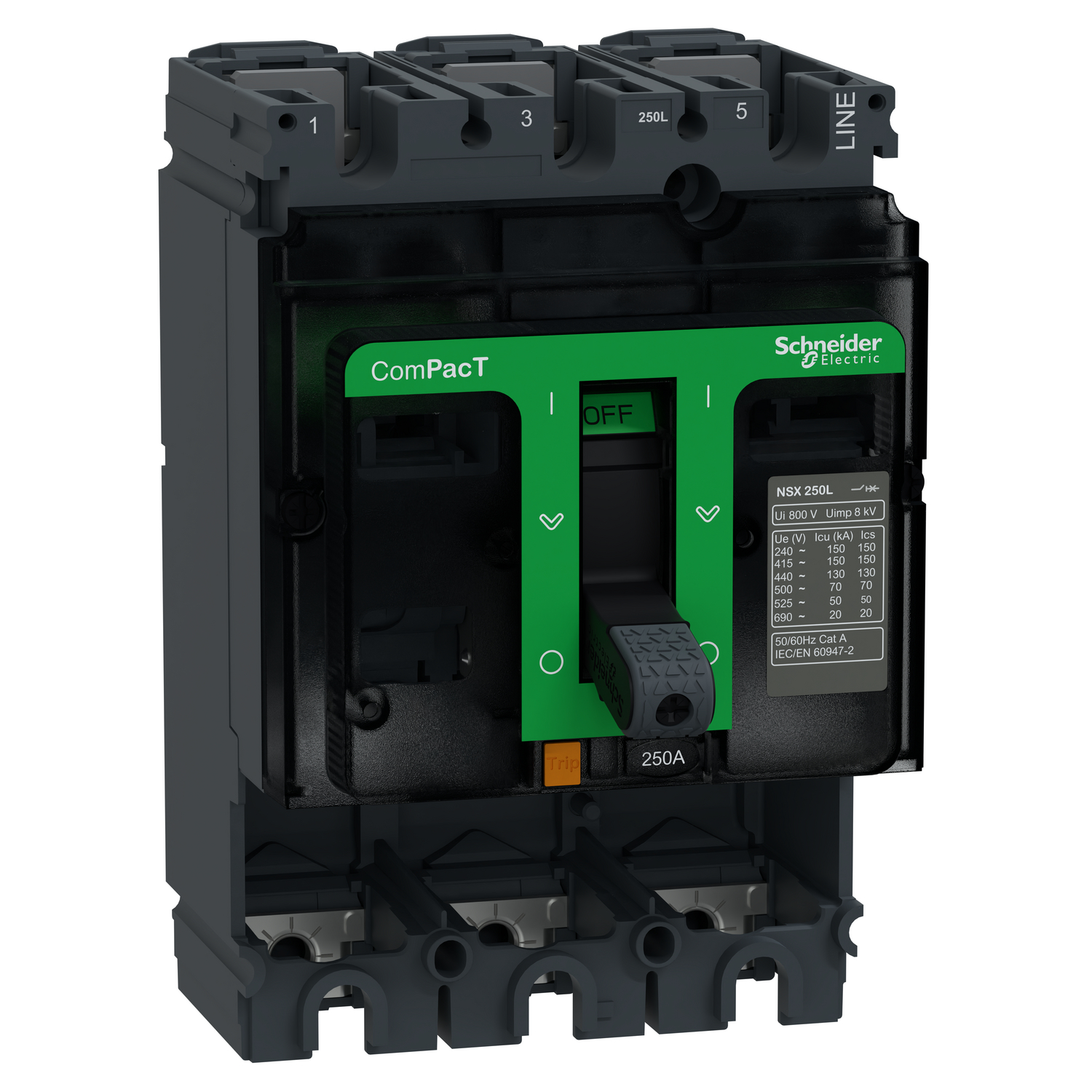

Circuit breaker basic frame, ComPacT NSX100F, 36kA/415VAC, 3 poles, 100A frame rating, without trip unit

Manufacturer: Schneider Electric

SKU: C10F3

GTIN: 3606481999320

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Old price: $401.50 inc GST

Price: $268.65 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This is a 3 poles basic frame for ComPacT NSX100F. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit ordered separately. The breaking capacity Icu is 36kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 105mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX100F is part of Schneider Electric EcoStruxure Power architecture.

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
Suitability for isolation	yes conforming to EN/IEC 60947-2
Utilisation category	category A
Network type	AC
Device short name	NSX100F
Breaking capacity code	F 36 kA 415 V AC
Breaking capacity	85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA at 240 V AC 50/60 Hz conforming to UL 508, 25 kA at 480 V AC 50/60 Hz conforming to UL 508, 10 kA at 600 V AC 50/60 Hz conforming to UL 508
Mounting mode	fixed
Control type	toggle
Range	ComPacT new generation
Range of product	ComPacT NSX100...250 new generation
Poles description	3P
Product name	ComPacT NSX new generation
Product or component type	basic frame
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current	100 A at 40 °C
Network frequency	50/60 Hz
Complementary
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-2
Compatibility code	NSX100
Electrical durability	50000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 30000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2, 20000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 10000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2
Downside connection	front
Height	161 mm
[Ics] rated service breaking capacity	12.5 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 4 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability	50000 cycles conforming to IEC 60947-2
[Ui] rated insulation voltage	800 V AC 50/60 Hz conforming to IEC 60947-2
Protection type	without protection
Upside connection	front
Connection pitch	35 mm
Depth	86 mm
Width	105 mm
Mounting support	backplate
Environment
Ambient air temperature for storage	-50-85 °C
Product certifications	CSA, UL
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
Standards	UL 508, EN/IEC 60947-2
