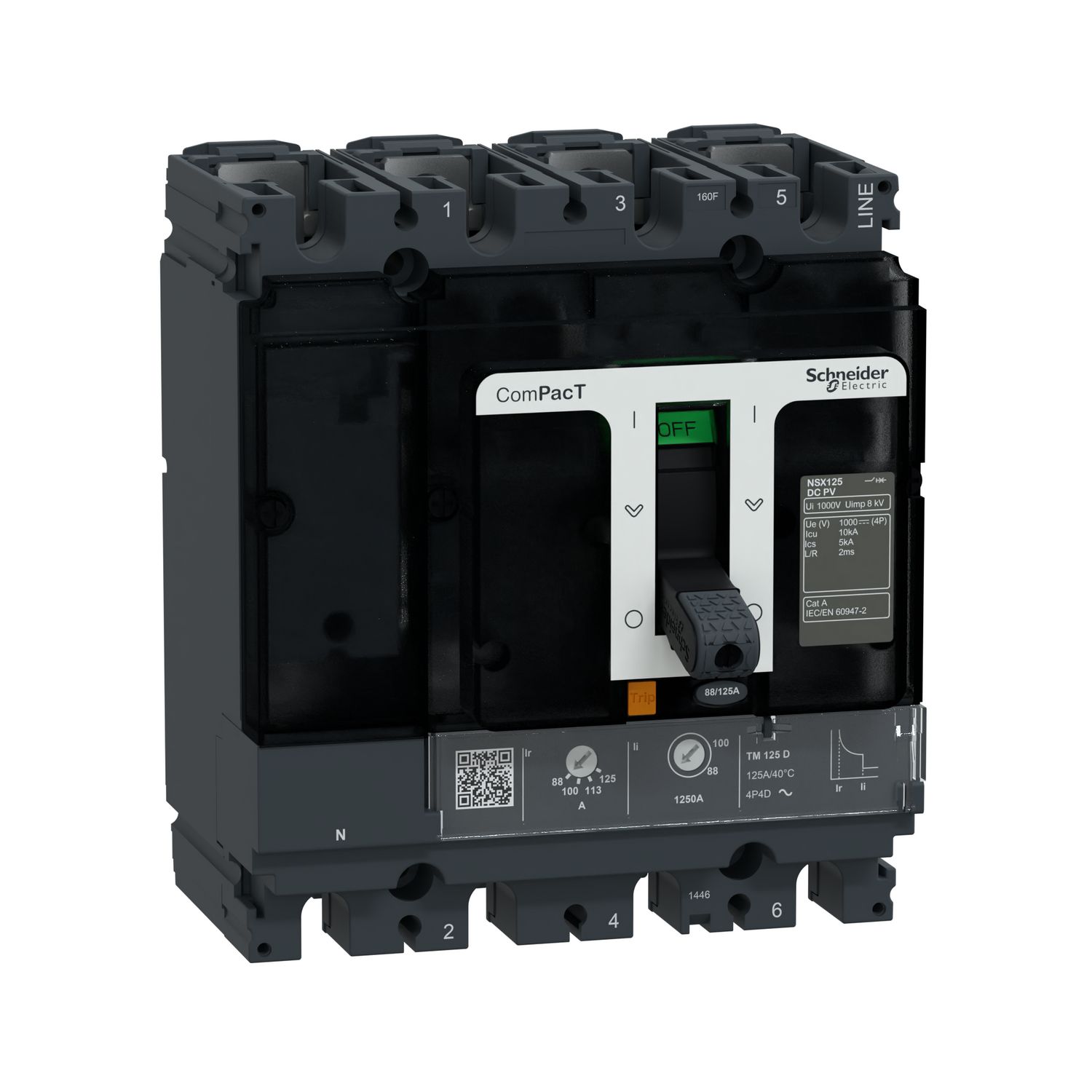

Circuit breaker, ComPacT NSX125 DC PV, 10kA/1000VDC, 4 poles, TM-DC PV trip unit 125A

Manufacturer: Schneider Electric

SKU: C16F4TM125D1

GTIN: 3606482003569

Catalog

User guide

Instruction sheet

Environmental Disclosure

Declaration of conformity

Old price: $647.90 inc GST

Price: $433.53 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

ComPacT NSX 125F DC PV is a 4 poles circuit breaker designed to optimize space and breaking capacity. It's an optimal choice for photovoltaic applications. The breaking capacity (Icu) is 10kA at 1000VDC with 4 poles series. The rated current is 125A and the operational voltage is 1000VDC. The dimensions are 161mm x 140mm x 186mm. It is compliant with international standard EN/IEC 60947.

Products specifications

Attribute name	Attribute value
Main
Device short name	NSX125 DC PV
Device application	photovoltaic
Breaking capacity code	F 10 kA 1000 V DC
Suitability for isolation	yes conforming to EN/IEC 60947-2
Breaking capacity	10 kA Icu at 1000 V DC 4 poles in series conforming to IEC 60947-2
Mounting mode	fixed
Control type	toggle
Range	ComPacT new generation
Range of product	ComPacT NSX100...250 DC PV new generation
Trip unit name	TM-DC
Trip unit technology	thermal-magnetic
Poles description	4P
Utilisation category	category A
Product name	ComPacT NSX DC PV
Product or component type	circuit breaker
Network type	DC
Trip unit protection functions	LI
[Ue] rated operational voltage	1000 V DC
[In] rated current	125 A at 40 °C
Complementary
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-2
Connection pitch	35 mm
Compatibility code	NSX125
Mechanical durability	10000 cycles
Trip unit rating	125-125 A at 40 °C
Upside connection	front
Long time pick-up adjustment type Ir	adjustable
Long time pick-up adjustment range	0.7...1 x In
Electrical durability	1500 cycles at 1000 V In
Protection type	I : for short-circuit protection (magnetic), L : for overload protection (thermal)
Downside connection	front
Earth-leakage protection	without
Height	161 mm
[Ics] rated service breaking capacity	10 kA at 1000 V DC conforming to IEC 60947-2
Depth	86 mm
Width	140 mm
Mounting position	flat on the back, horizontal and vertical
[Ui] rated insulation voltage	1000 V DC conforming to IEC 60947-2
Net weight	2.8 kg
Instantaneous pick-up adjustment type Ii	fixed
Long time delay adjustment type	fixed
Instantaneous pick-up adjustment range	1250 A
Mounting support	backplate
Environment
Relative humidity	0-95 %
Ambient air temperature for storage	-50-85 °C
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
Overvoltage category	class II
Operating altitude	2000 m...5000 m with derating, 0...2000 m without derating
Electrical shock protection class	class II
Standards	EN/IEC 60947
Product certifications	Marine, EAC, CCC
