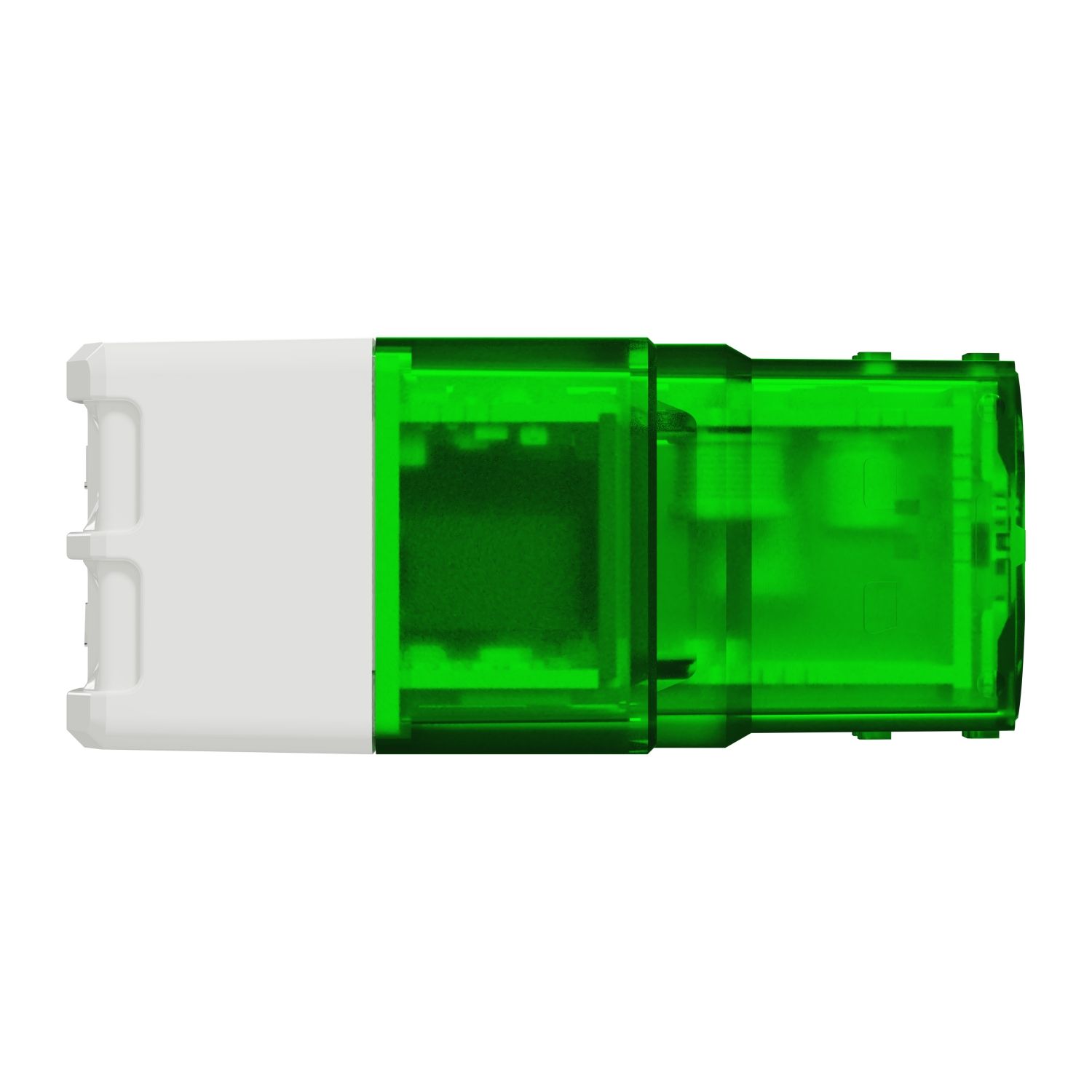

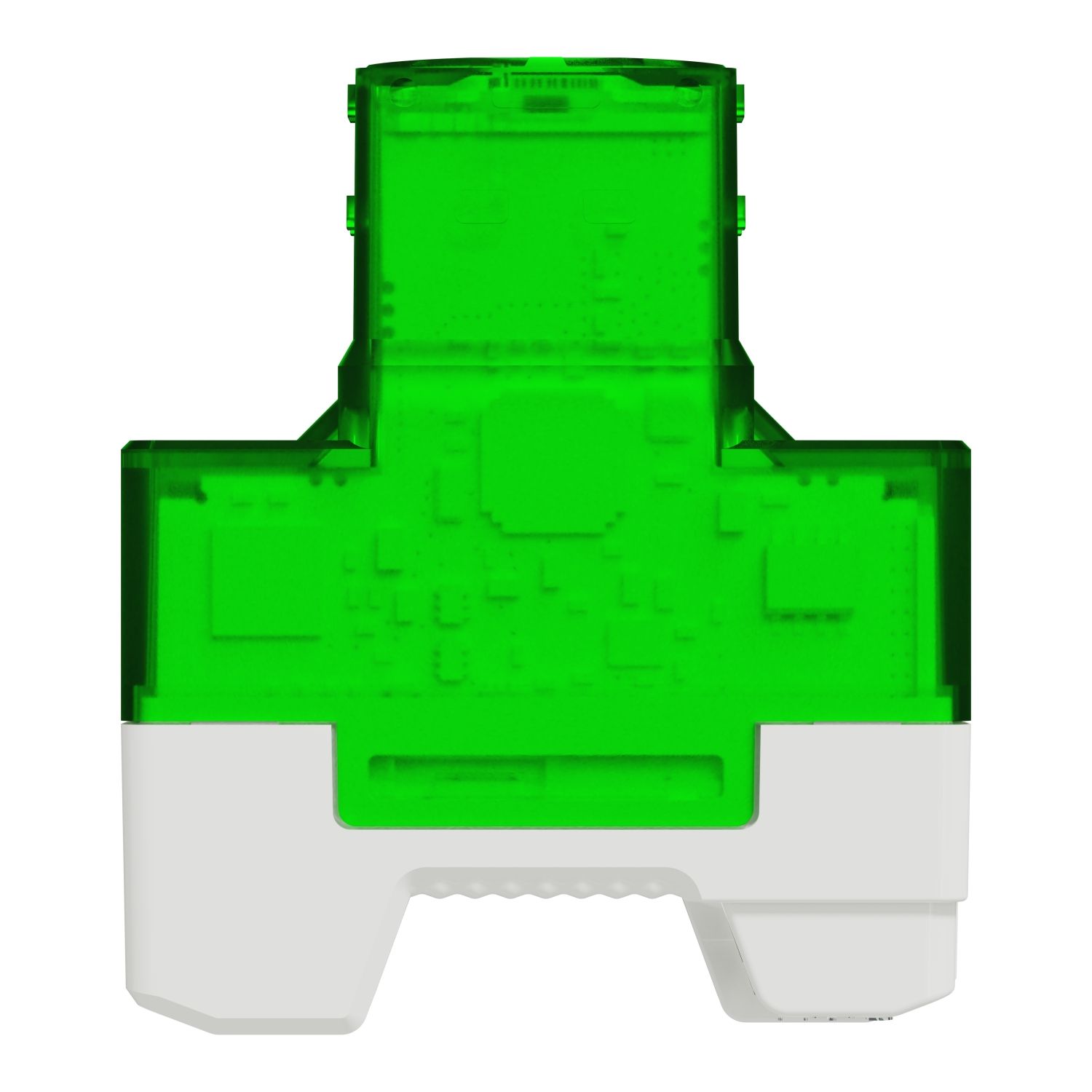

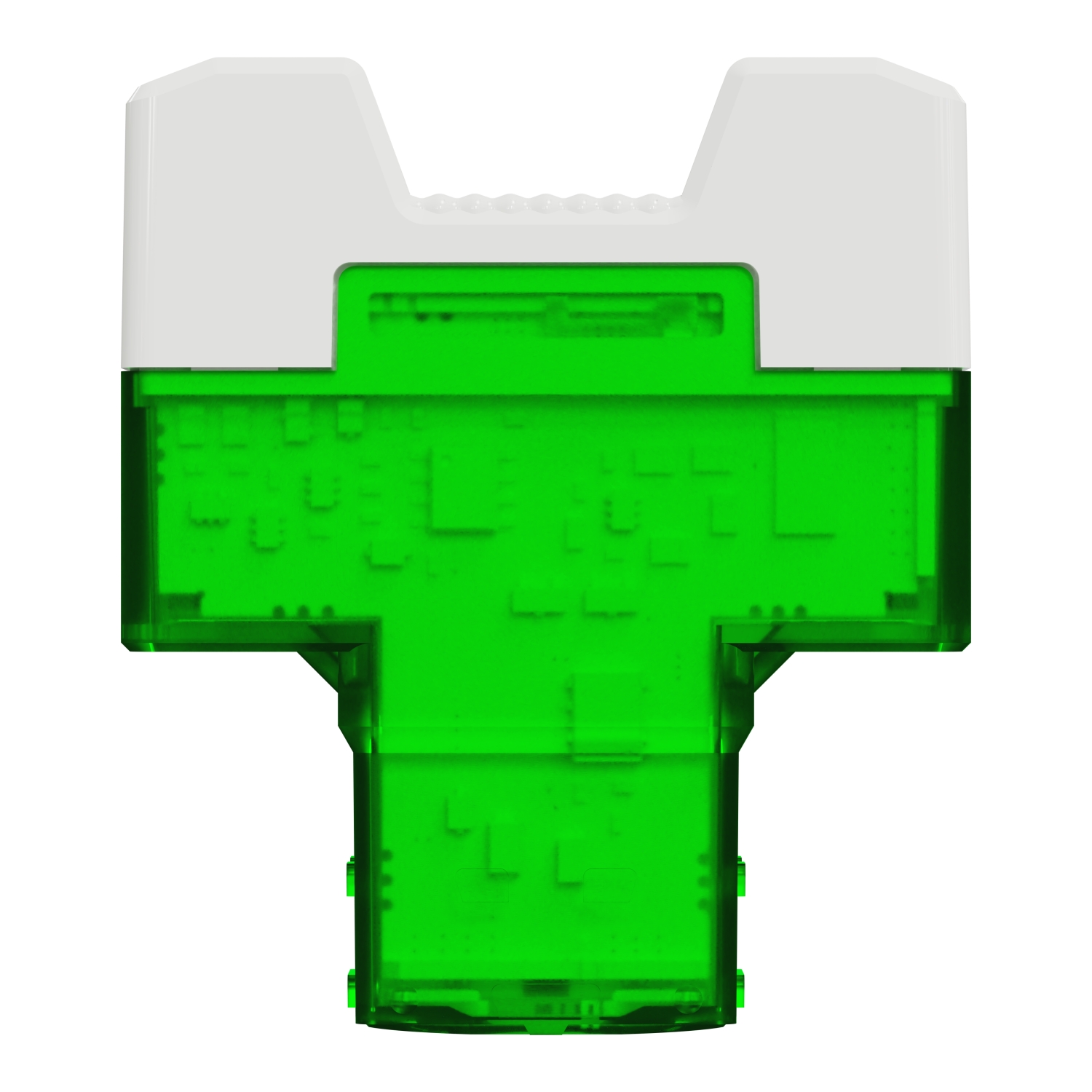

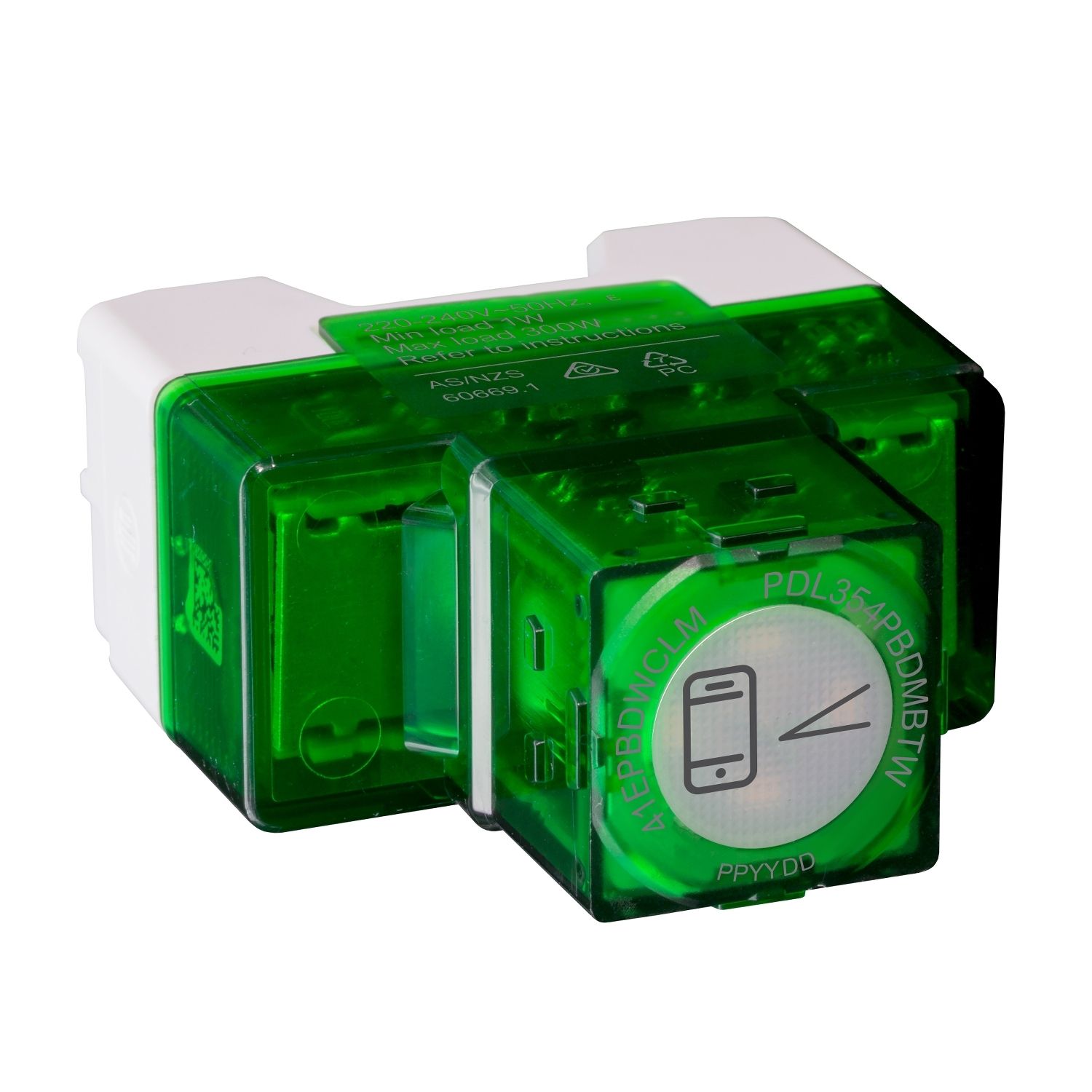

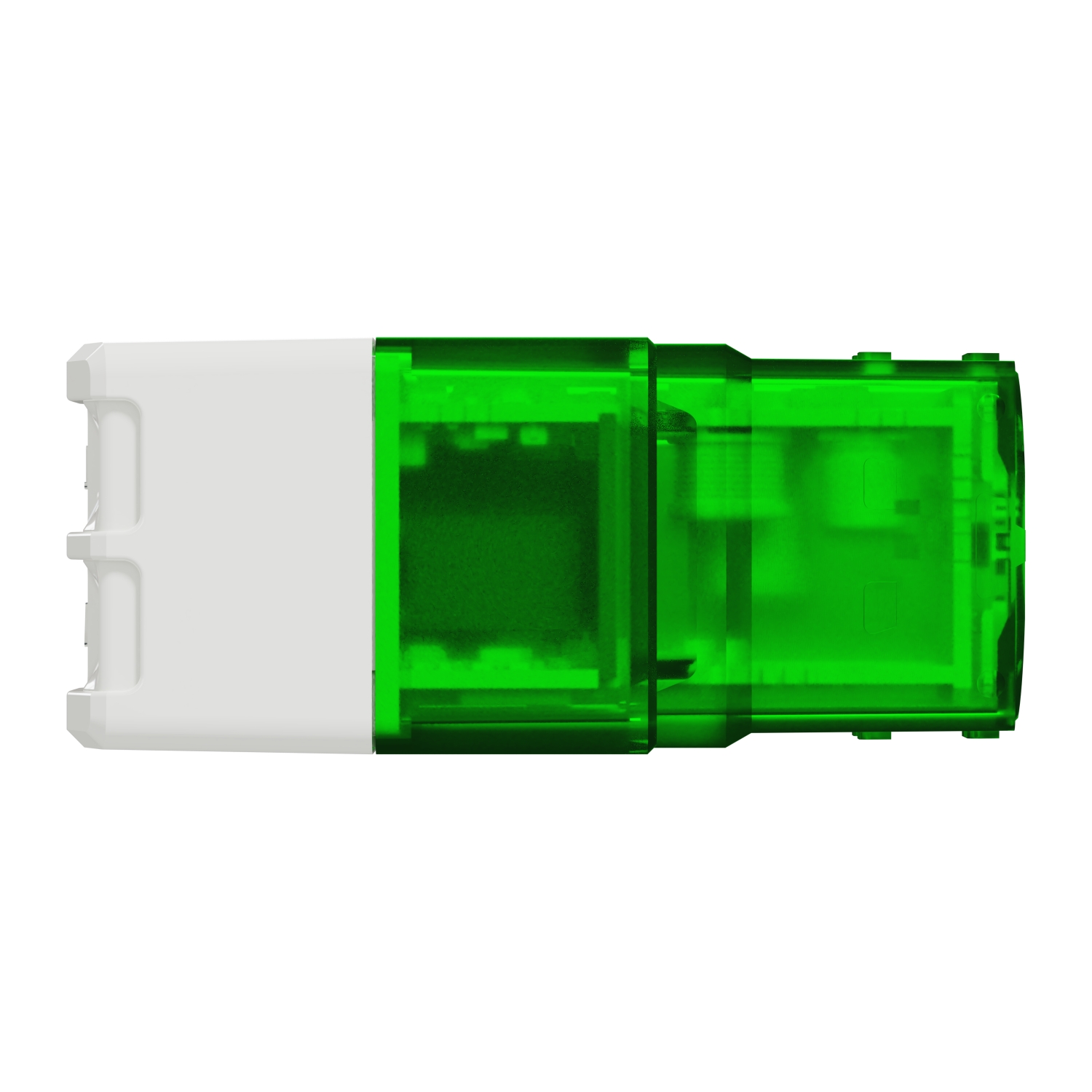

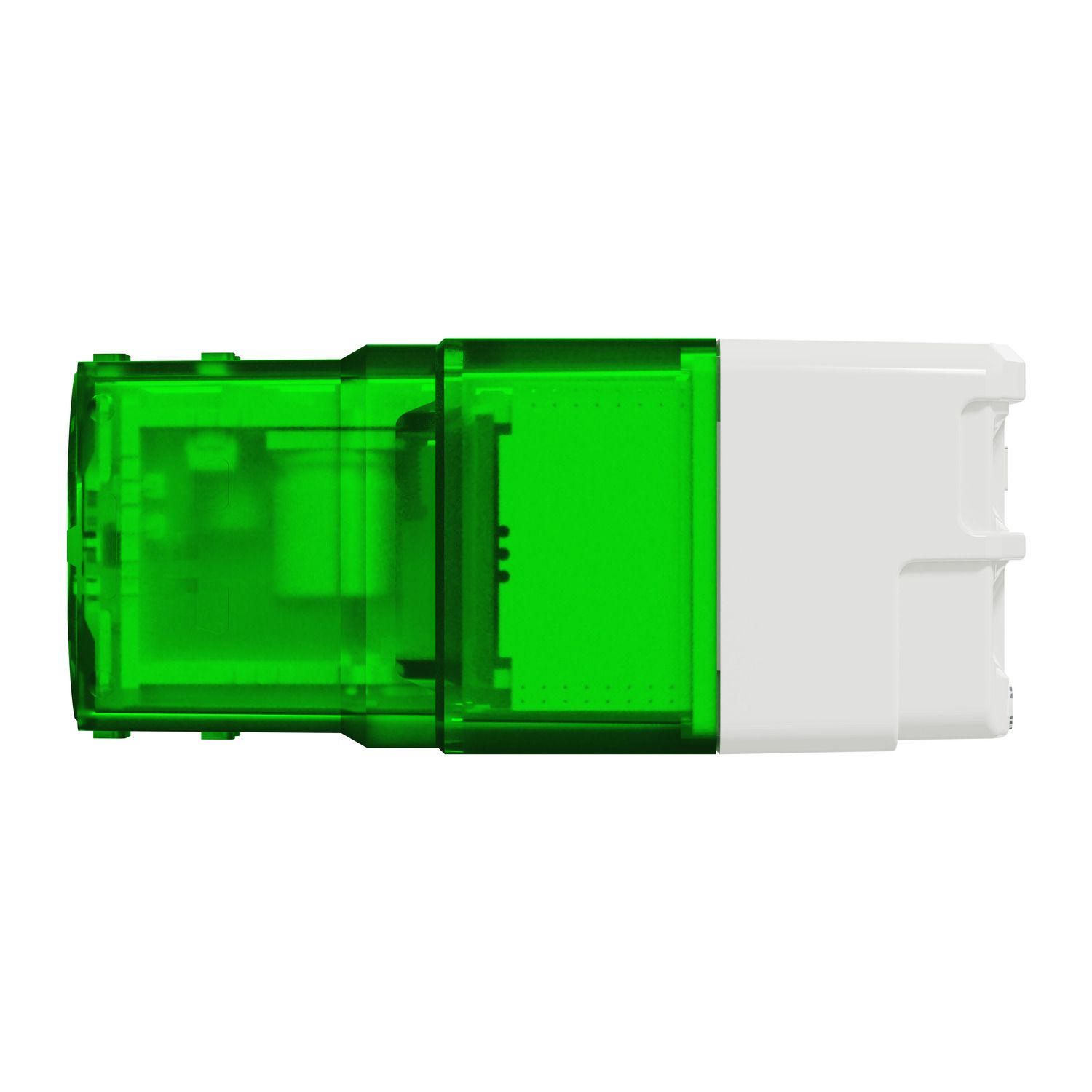

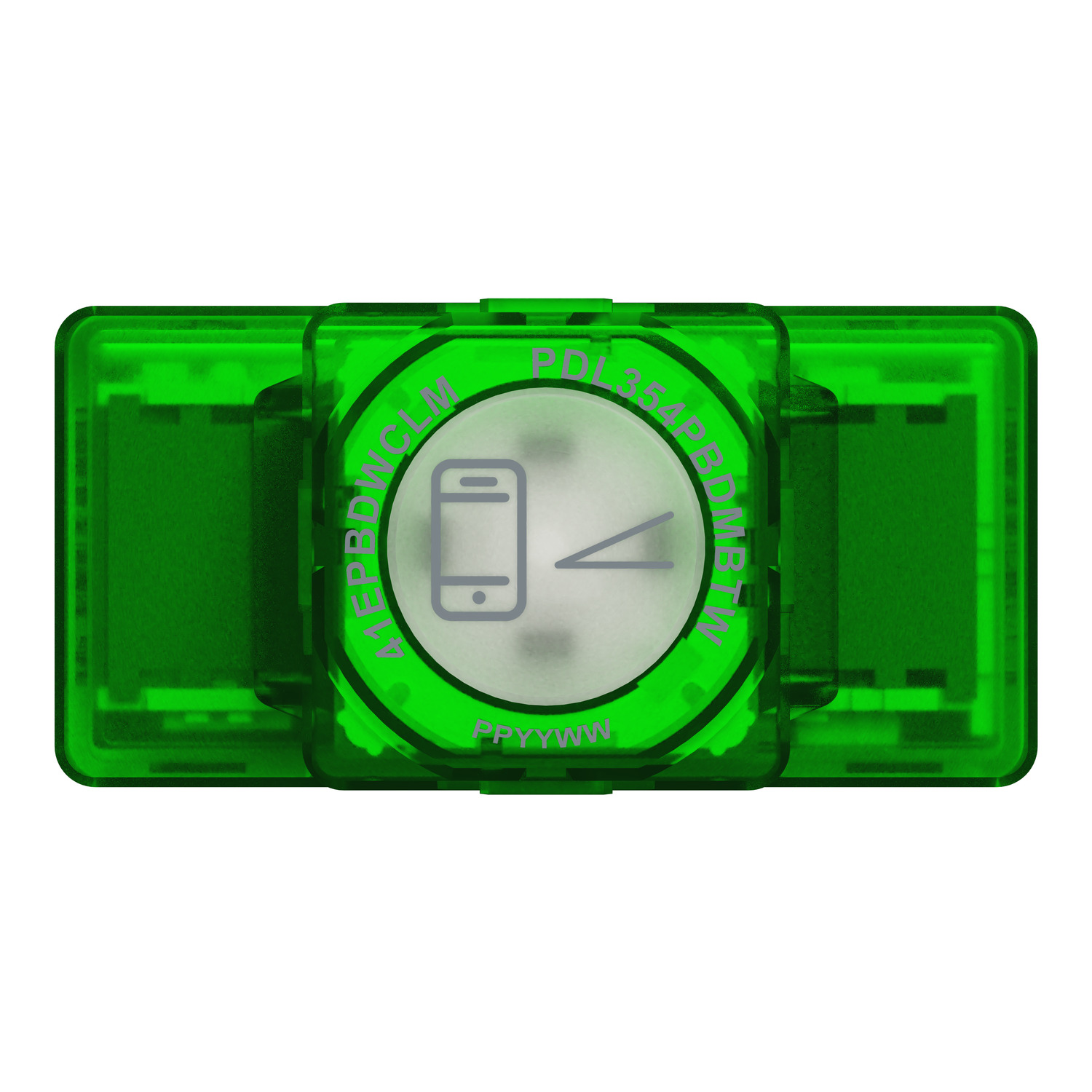

For smart device control and configuration with Bluetooth Low Energy technology, the Clipsal Iconic Push Button Wiser Smart Dimmer Module allows you to set timer and scheduling functions through the Clipsal Wiser App. The mech also allows multiway LED dimmer switch with ControlLink technology.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | Iconic |
| Product or component type | connected dimmer |
| Product brand | Clipsal |
| Complementary | |
| Technology type | Zigbee, bluetooth low energy default |
| Memory description | backup memory - program for indefinite period, backup memory - date and time for 6 h |
| Main colour tint | vivid white |
| Maximum number of connected devices | 2 (ControlLink module), 3 (dimmer) |
| Load type | LV halogen lamps: 0...300 W (electronic transformer), halogen lamp: 0...300 W at 240 V, incandescent lamp: 0...300 W at 240 V, compact fluorescent lamp: 0...300 W, dimmable LED: 0...150 W |
| Device application | light control |
| Depth | 56 mm |
| Software name | Wiser by SE App |
| Width | 48 mm |

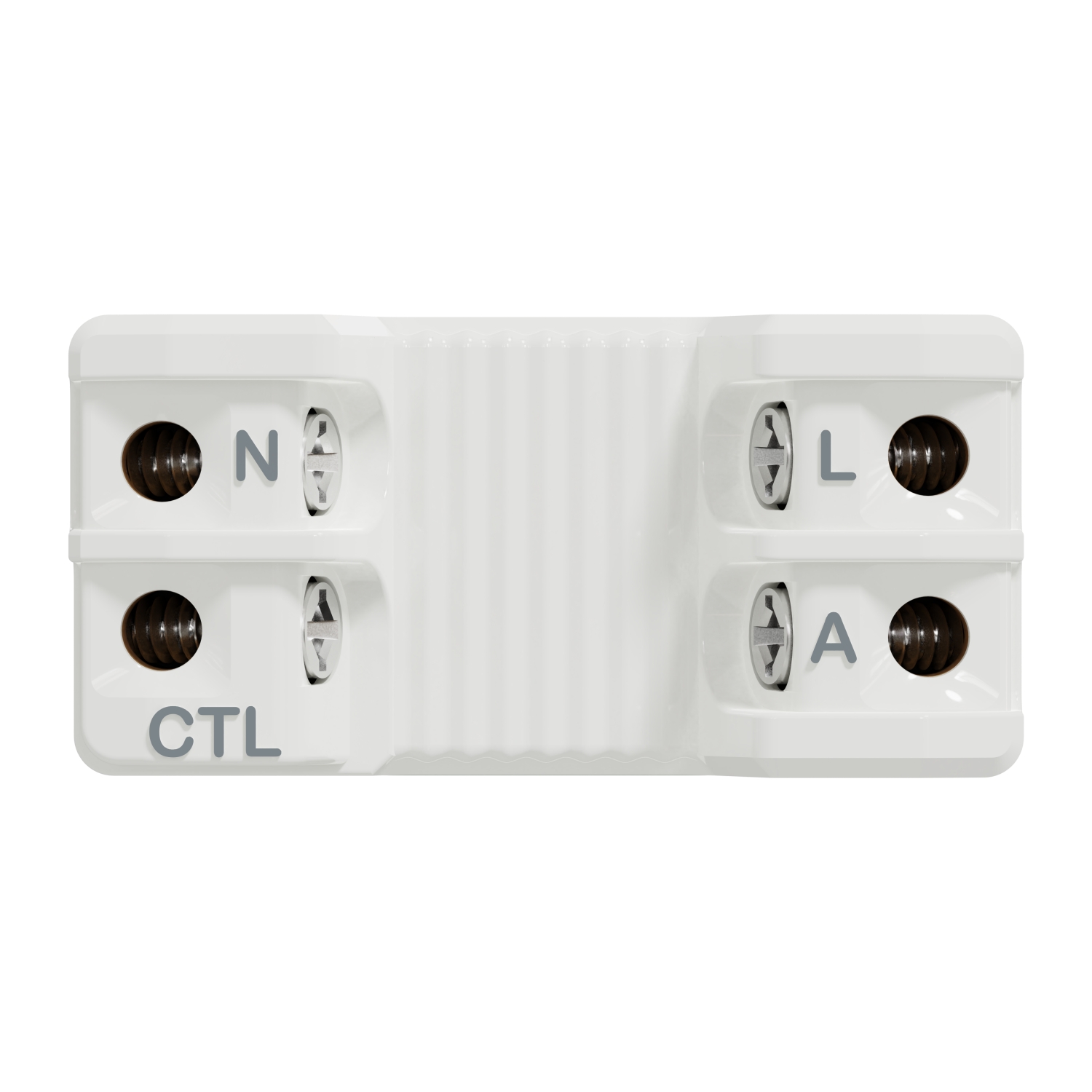

| Wiring configuration | 3-wire |
| Communication network type | wireless Zigbee (2.4-2.4 GHz), 2.5 mW at < 50 m |
| Concentrator compatibility | Wiser hub generation 1 |
| Protection type | overcurrent protection, short-circuit protection, overheating protection |
| Control type | multi-way control via ControlLink, by mobile application, push-button |
| Material | plastic |
| Number of ways | 5 ways |
| Device presentation | mechanism |
| Type of installation | indoor installation |
| Fixing center | 84 mm |
| Colour tint | vivid white (VW) |
| Dimmer type | universal |
| Local signalling | LED |
| Surface finish | glossy |
| Fixing mode | clip-in |
| Mounting support | grid |
| Device mounting | flush |
| Embedding depth | 53 mm |
| Height | 22 mm |
| [Ue] rated operational voltage | 220...240 V AC 50 Hz |
| Mobile App name | Wiser by SE |
| Cable length | 50 m for ControlLink module |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-90 % non-condensing |
| Standards | AS/NZS 4268 radio, AS/NZS 60669.2.1 EMC, AS/NZS 60669.2.1 safety |
