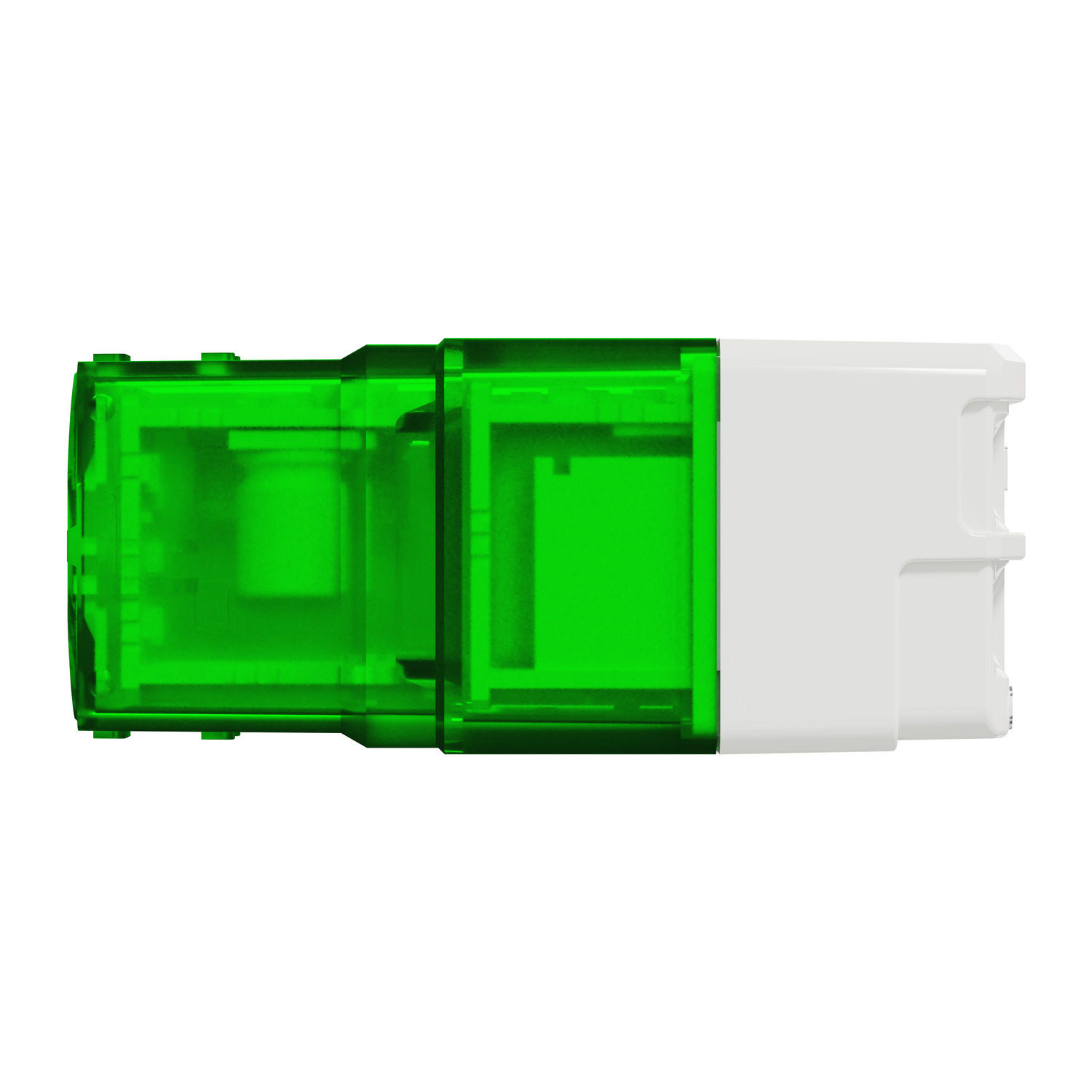

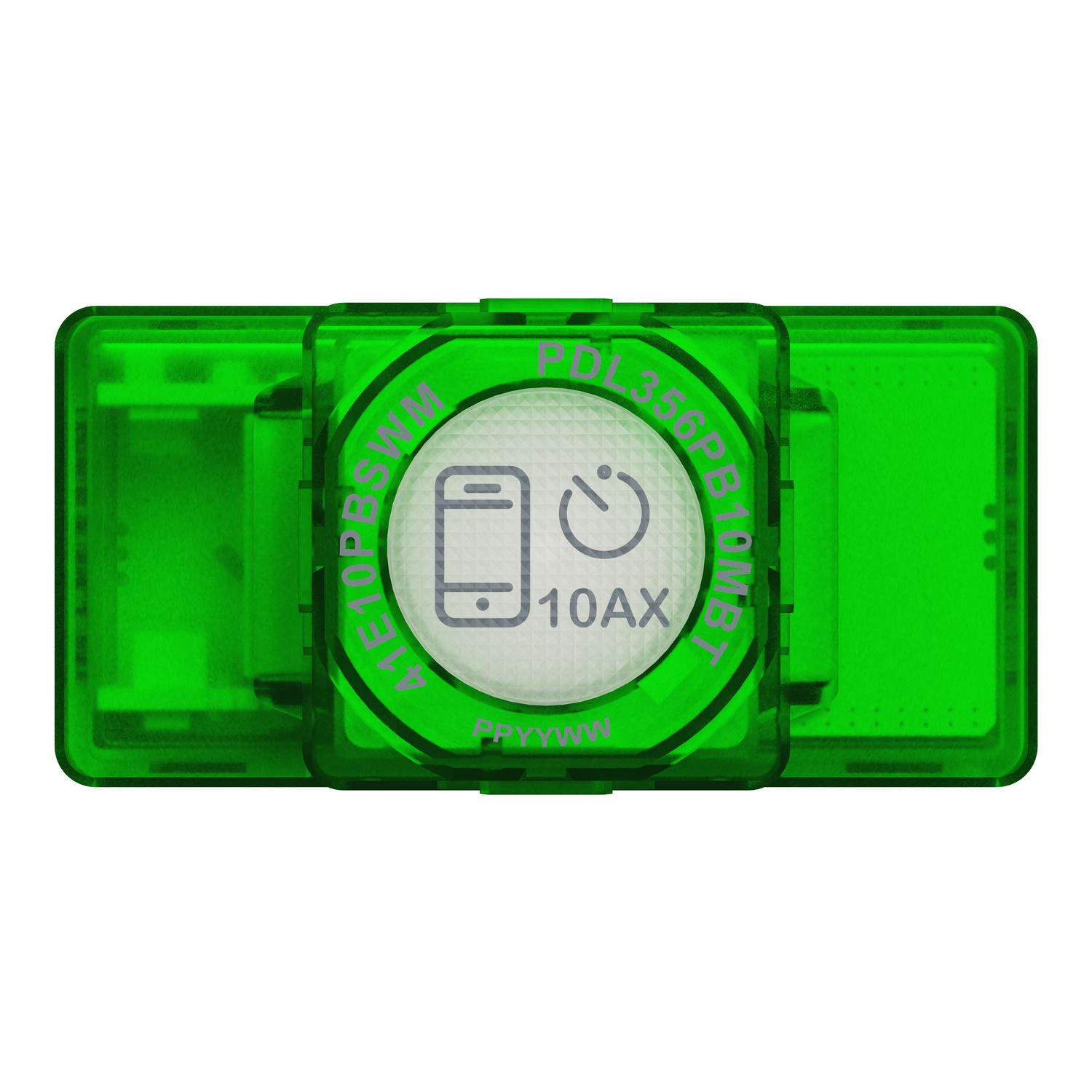

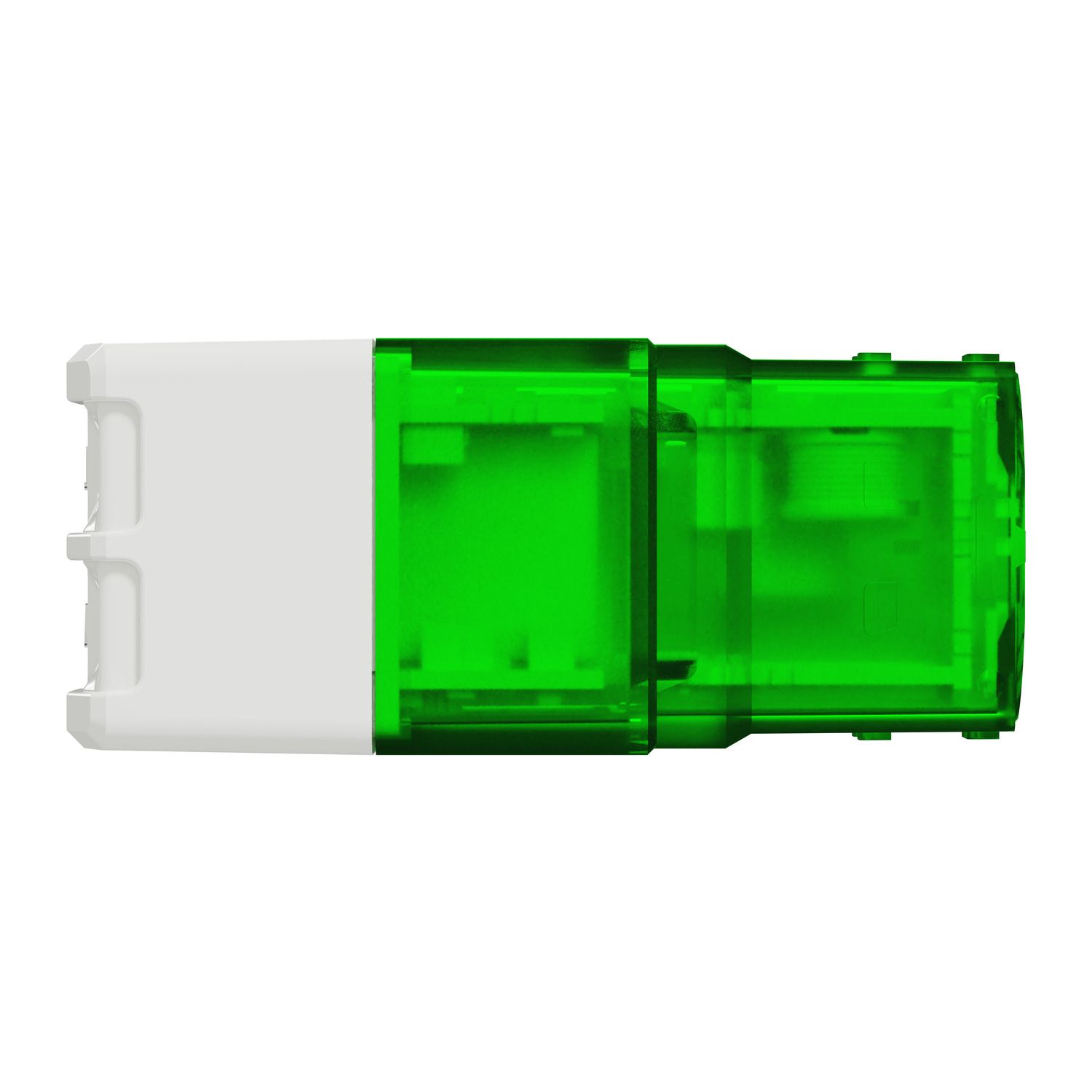

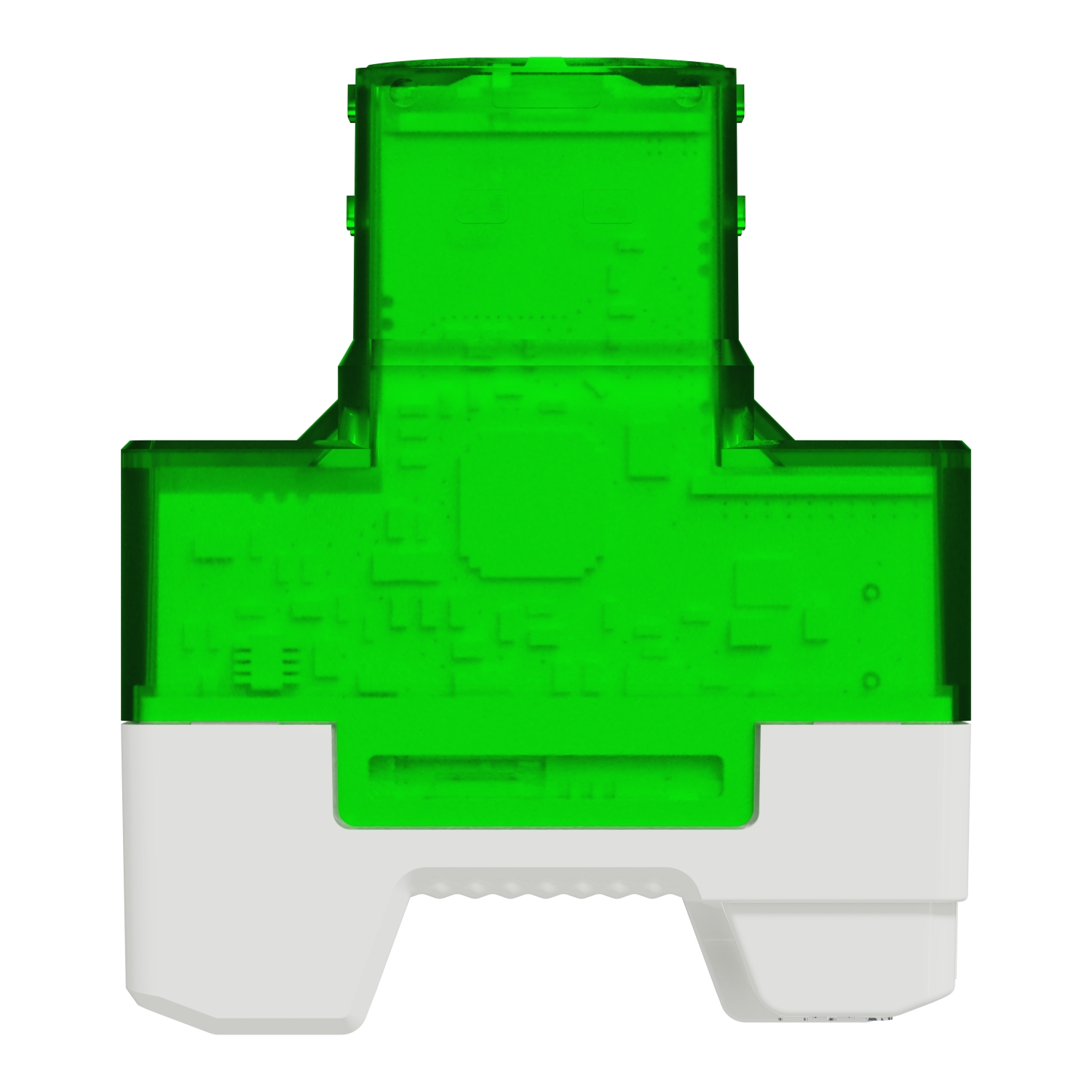

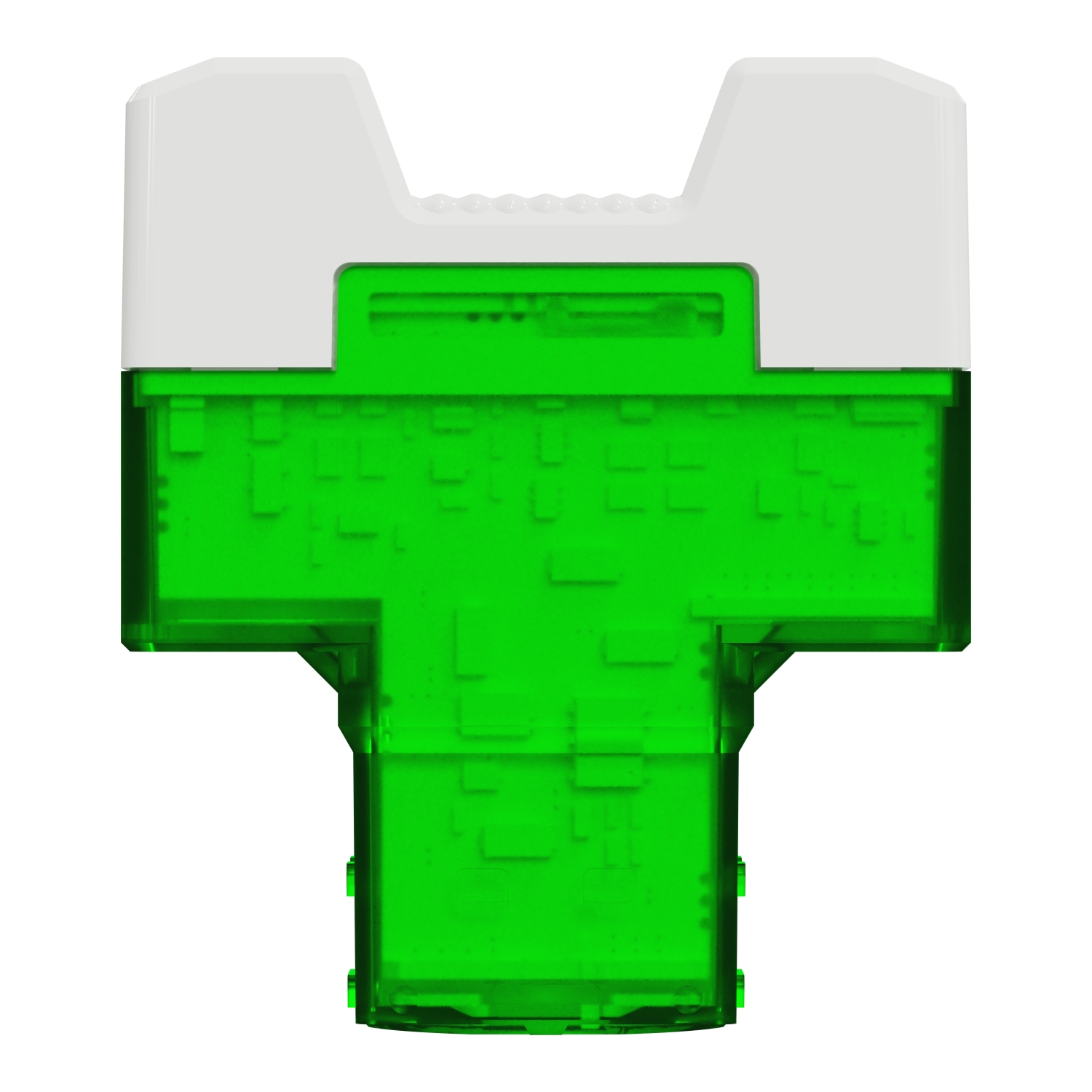

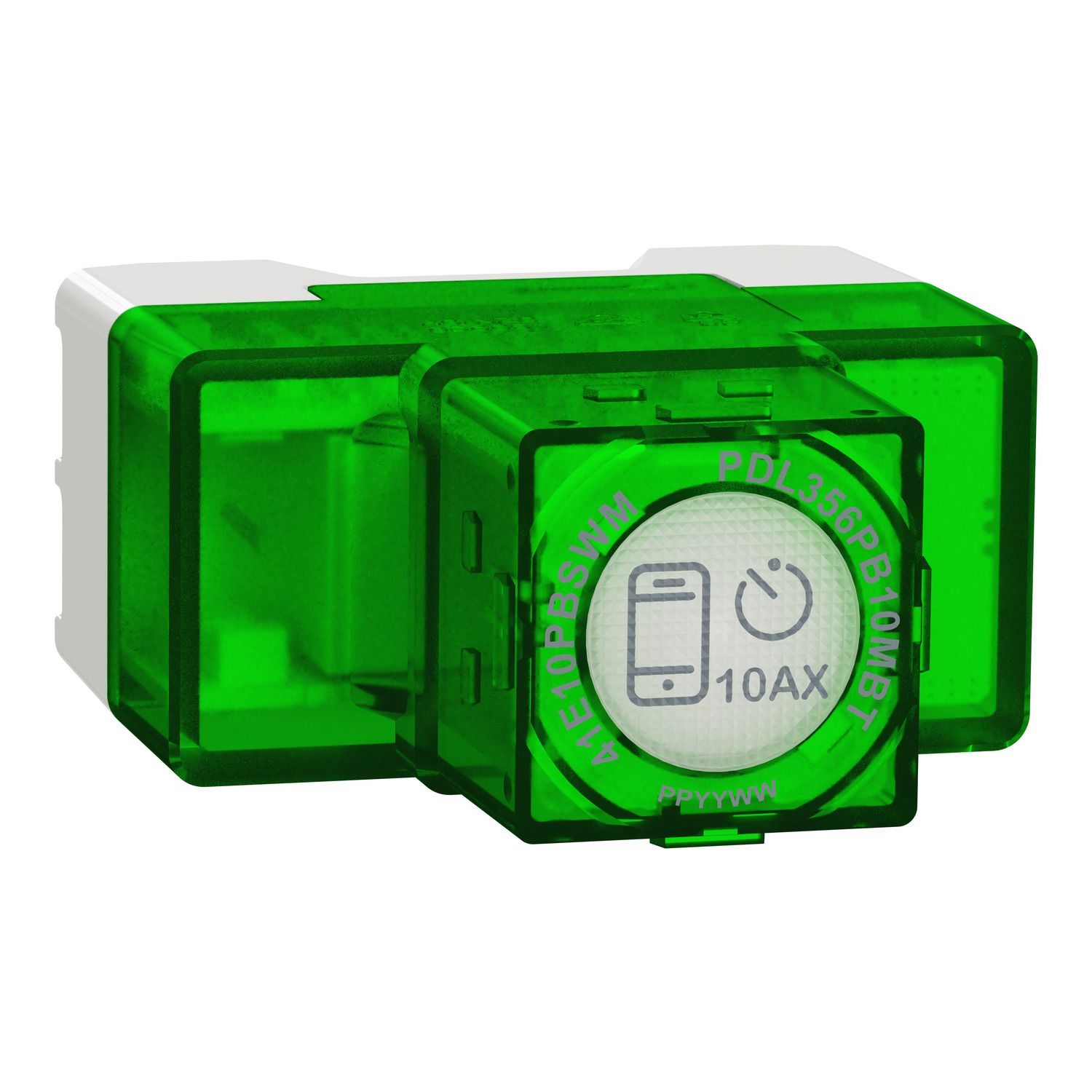

The Clipsal Iconic Push Button Wiser 10A ControlLink Smart Switch Module gives you additional control for your loads. Working with the Wiser app, the ControlLink Switch Mechanism gives you 24 hour timer and 24/7 scheduling functions. Use the wall switch, or your smart phone app.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Concentrator compatibility | Wiser hub generation 1 |
| Range | Iconic |
| Product or component type | connected switch |
| Product brand | Clipsal |
| Mobile App name | Wiser by SE |
| Complementary | |
| Technology type | Zigbee, bluetooth low energy default, electronic |
| Memory description | backup memory - program for indefinite period, backup memory - date and time for 6 h |
| Main colour tint | vivid white |
| Maximum number of connected devices | 2 (ControlLink module), 3 (switch) |
| Depth | 56 mm |
| Software name | Wiser App |
| Number of rocker | 1 |
| Width | 48 mm |

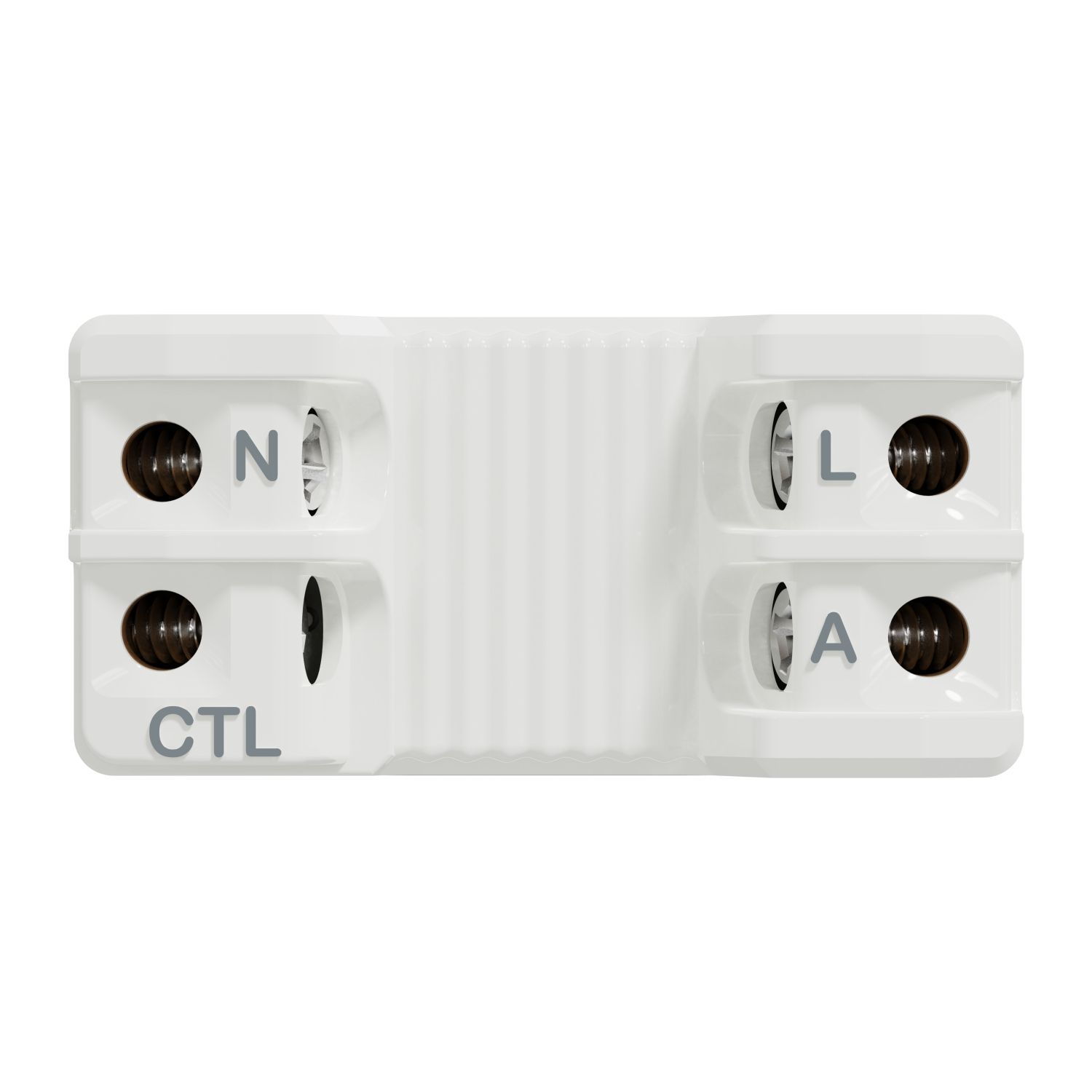

| Wiring configuration | 3-wire |
| Communication network type | wireless (2.4-2.4 GHz), 2.5 mW at < 50 m |
| Protection type | thermal protection, over temperature protection |
| Control type | multi-way control via ControlLink, by mobile application, push-button |
| Material | plastic |
| Device presentation | mechanism |
| Type of installation | indoor installation |
| Fixing center | 84 mm |
| Colour tint | vivid white (VW) |
| Local signalling | LED |
| Surface finish | glossy |
| Fixing mode | clip-in |
| Mounting support | grid |
| Device mounting | flush |
| Embedding depth | 53 mm |
| Actuator | push-button |
| Height | 22 mm |
| [Ue] rated operational voltage | 220...240 V AC 50 Hz |
| Load type | motor: 10 A, resistive: 15 A, inductive: 6 A (cos phi =0.6 ), linear fluorescent ballast: 10 A, medium voltage halogen lamp: 10 A, electronic transformer: 10 A, LED lighting driver (non-dimmable): 10 A, dimmable LED lighting driver: 10 A |
| Cable length | 50 m for ControlLink module |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-90 % non-condensing |
| Standards | AS/NZS 4268 radio, AS/NZS 60669.2.1 EMC, AS/NZS 60669.2.1 safety |
