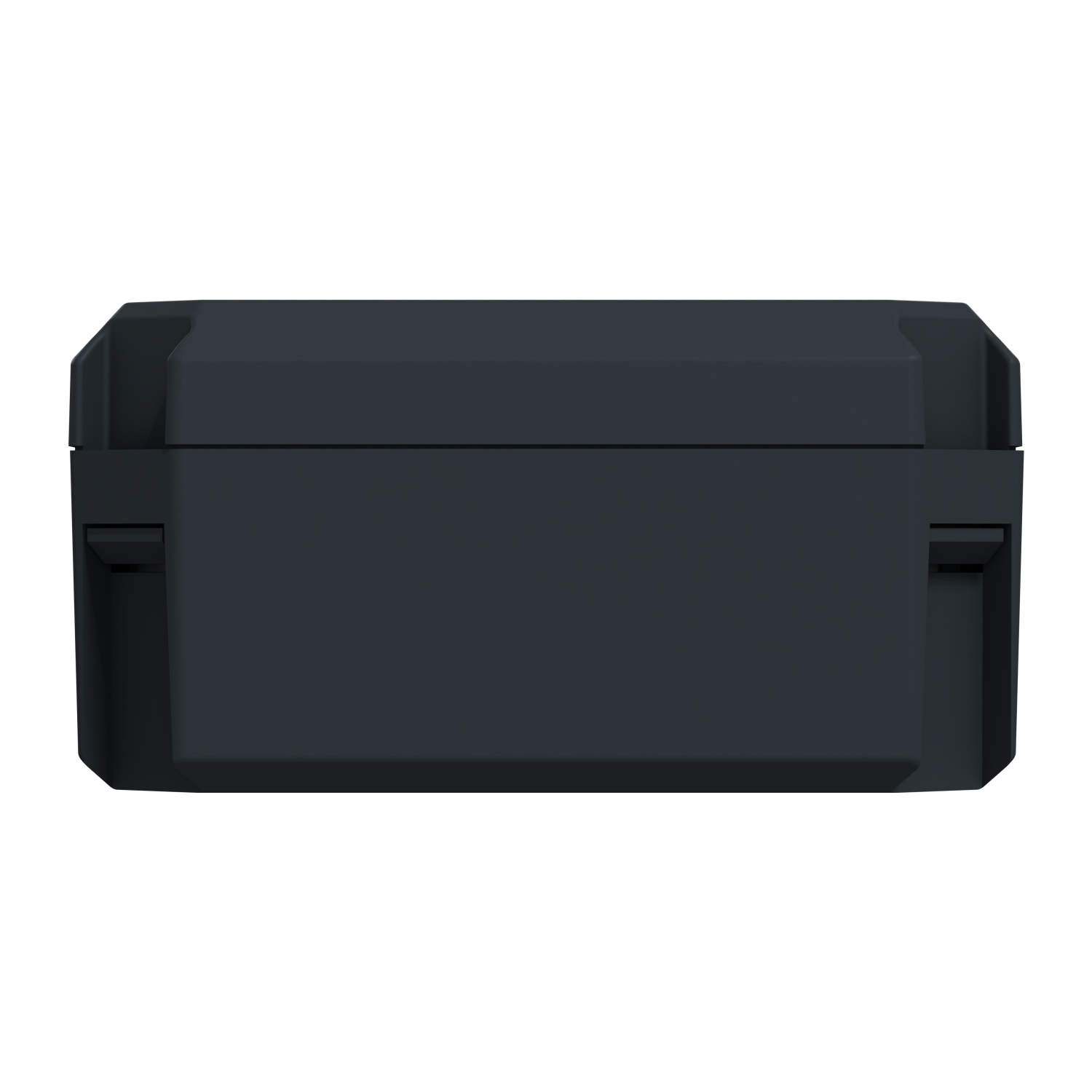

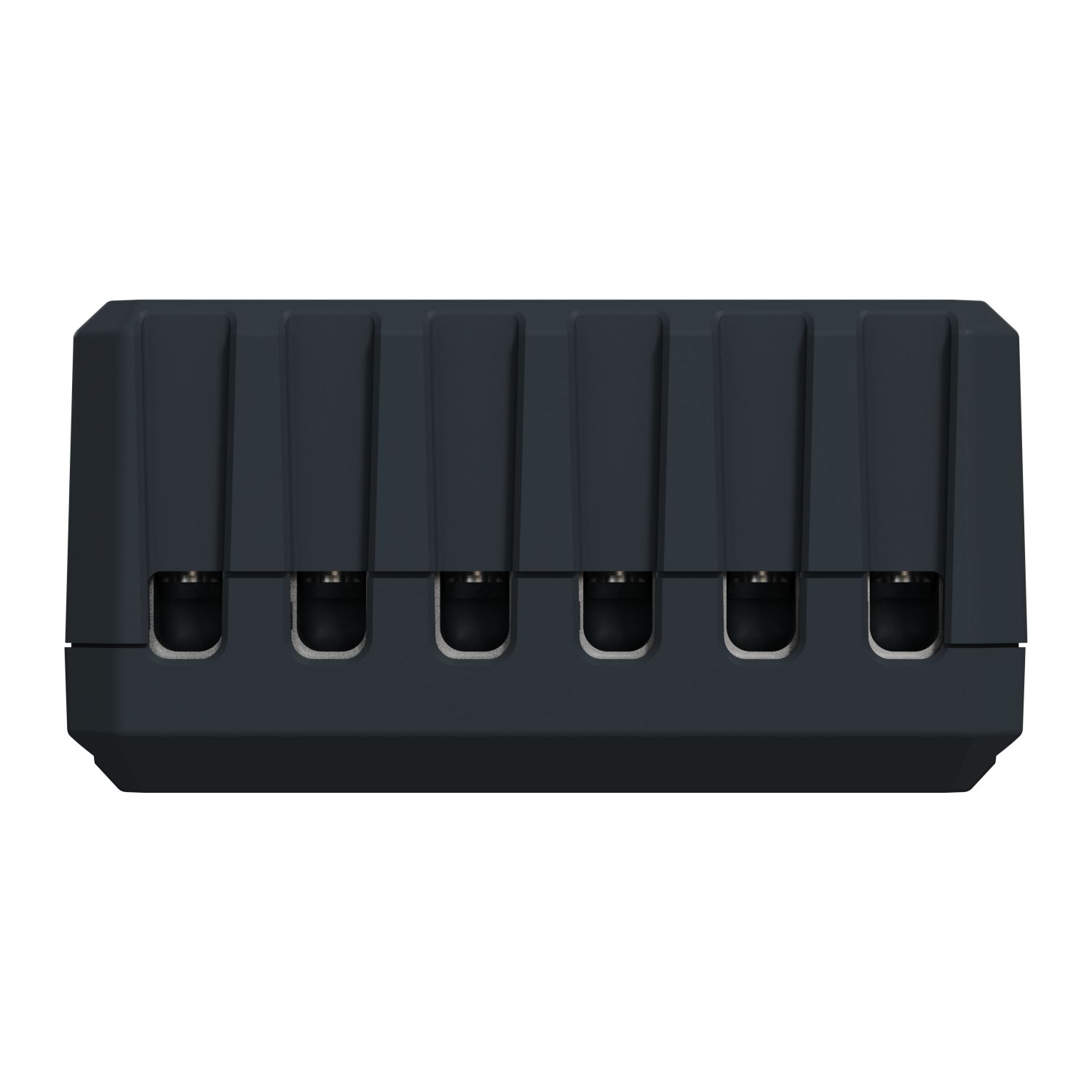

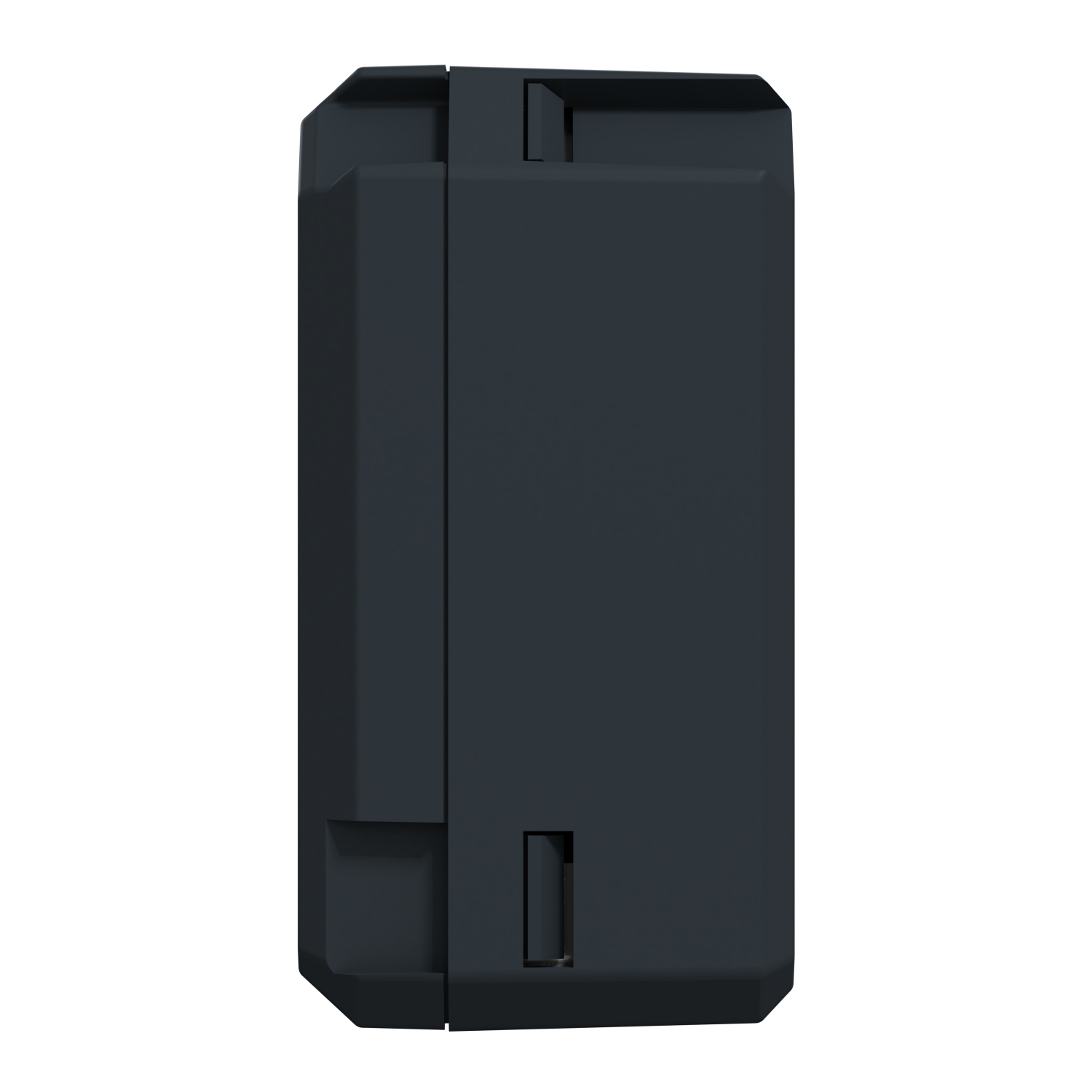

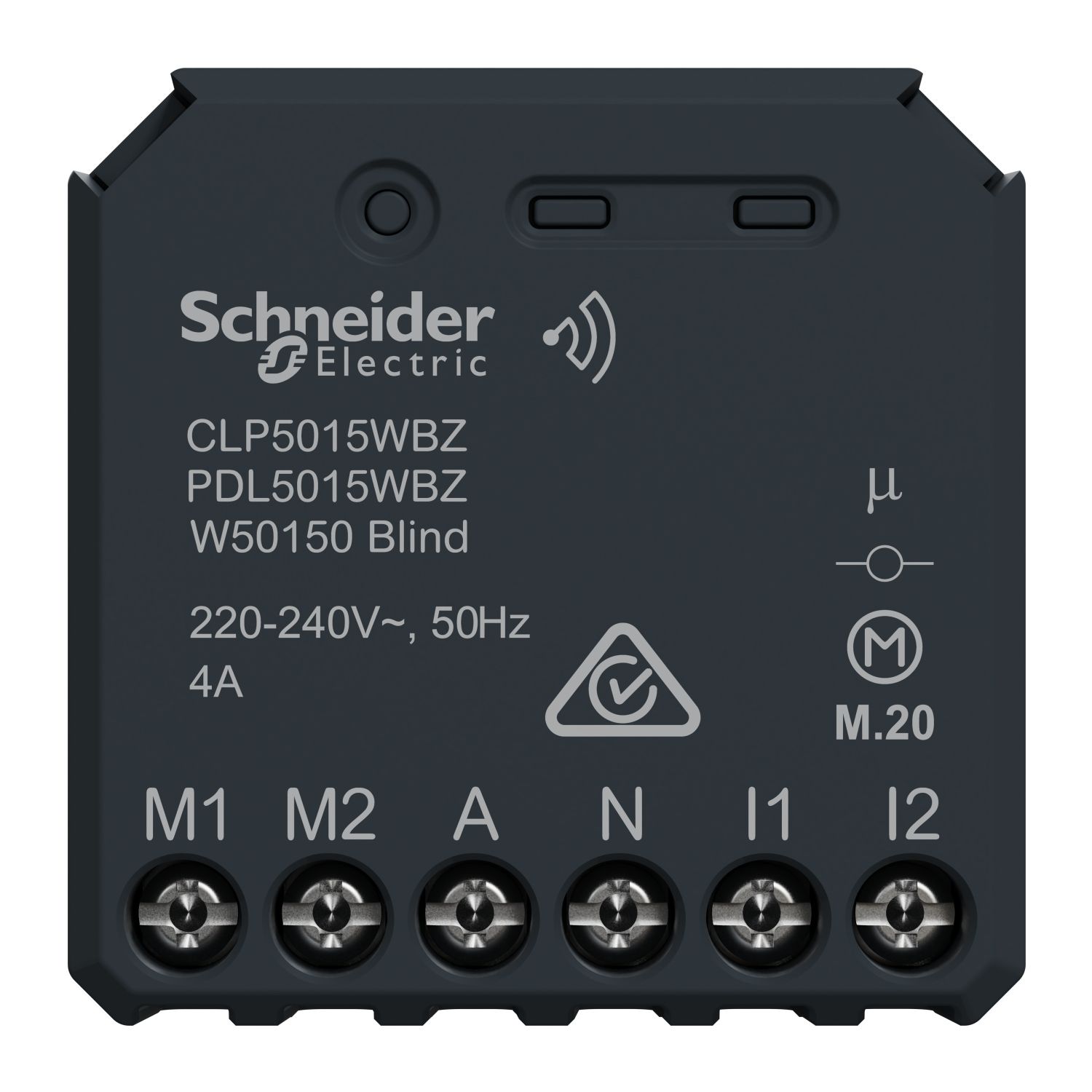

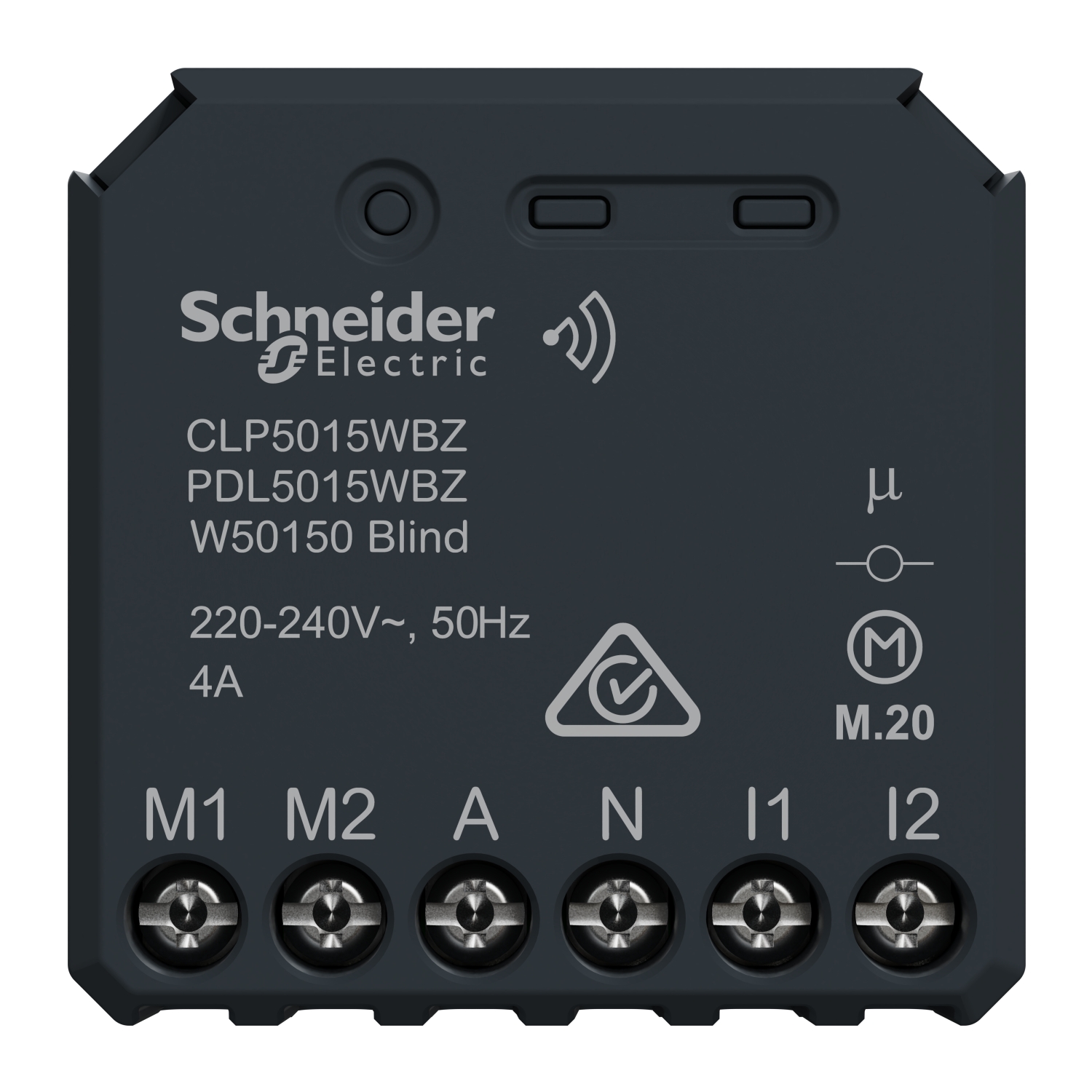

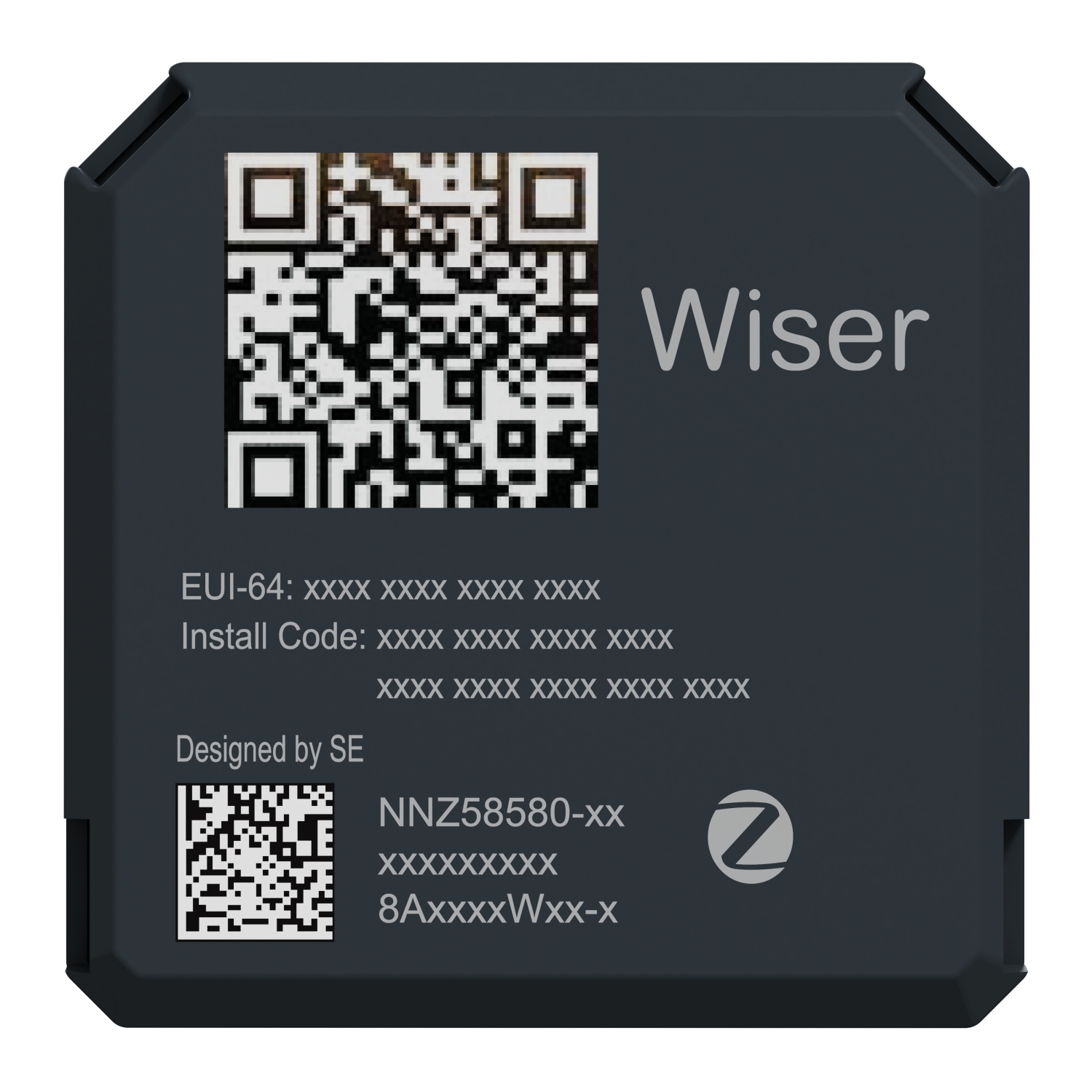

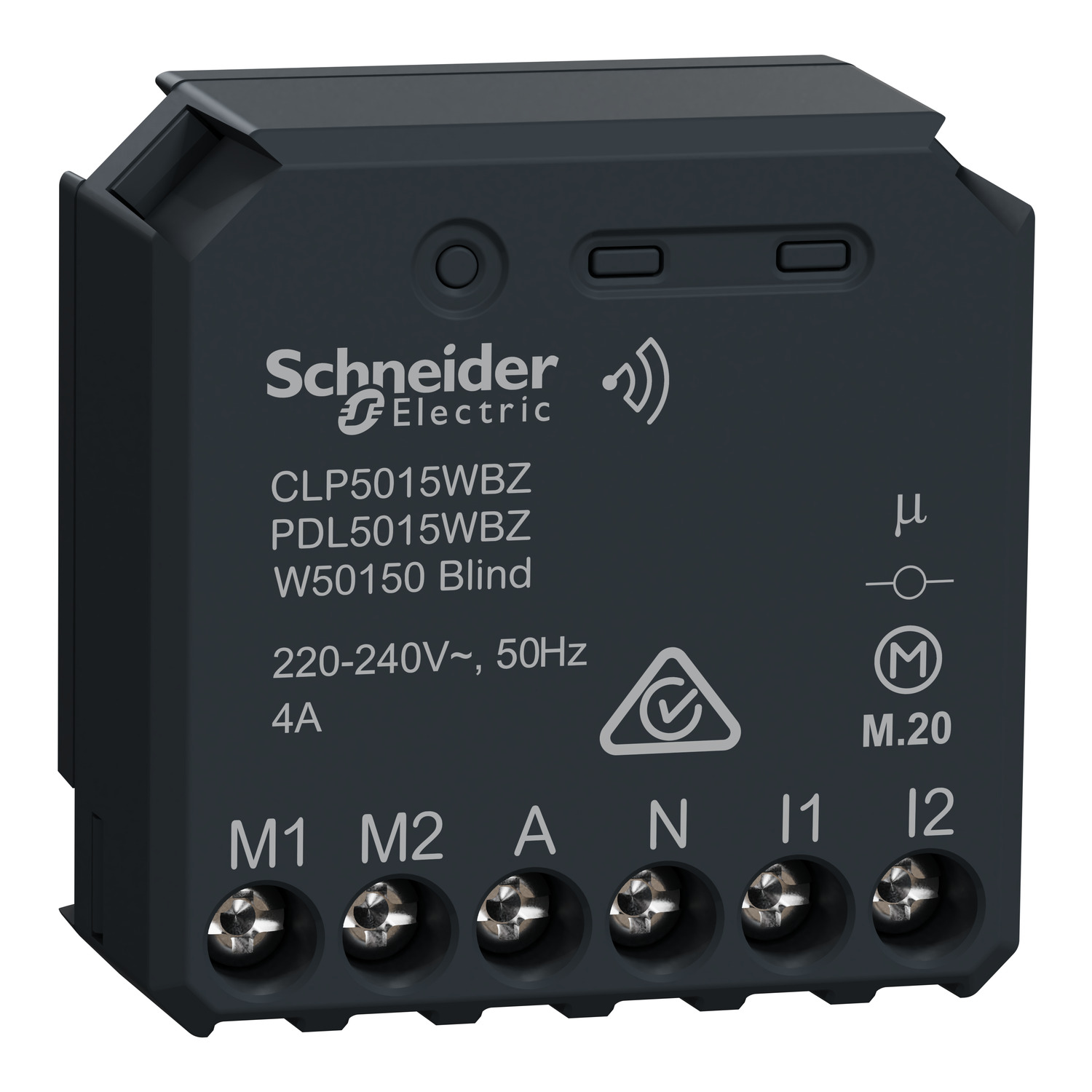

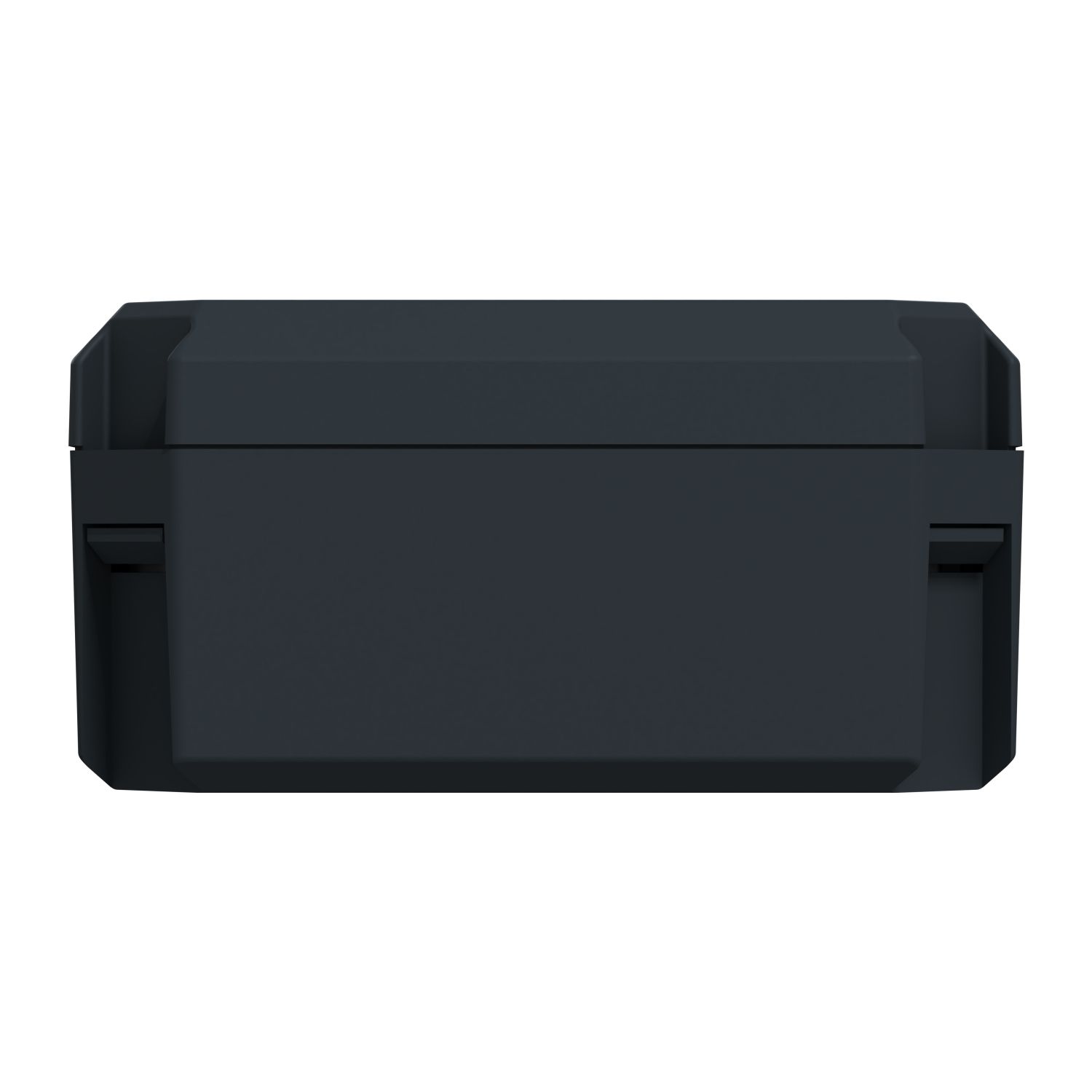

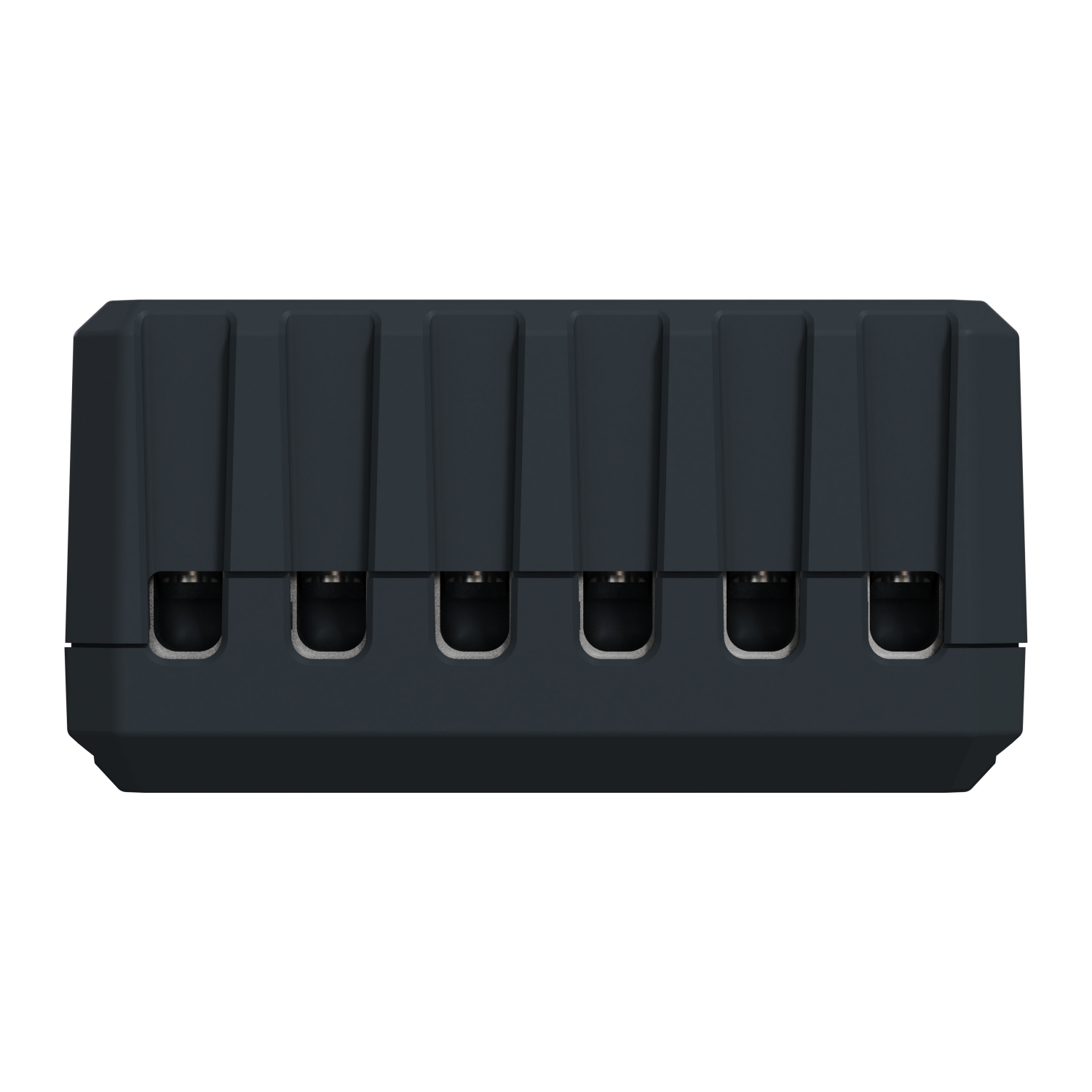

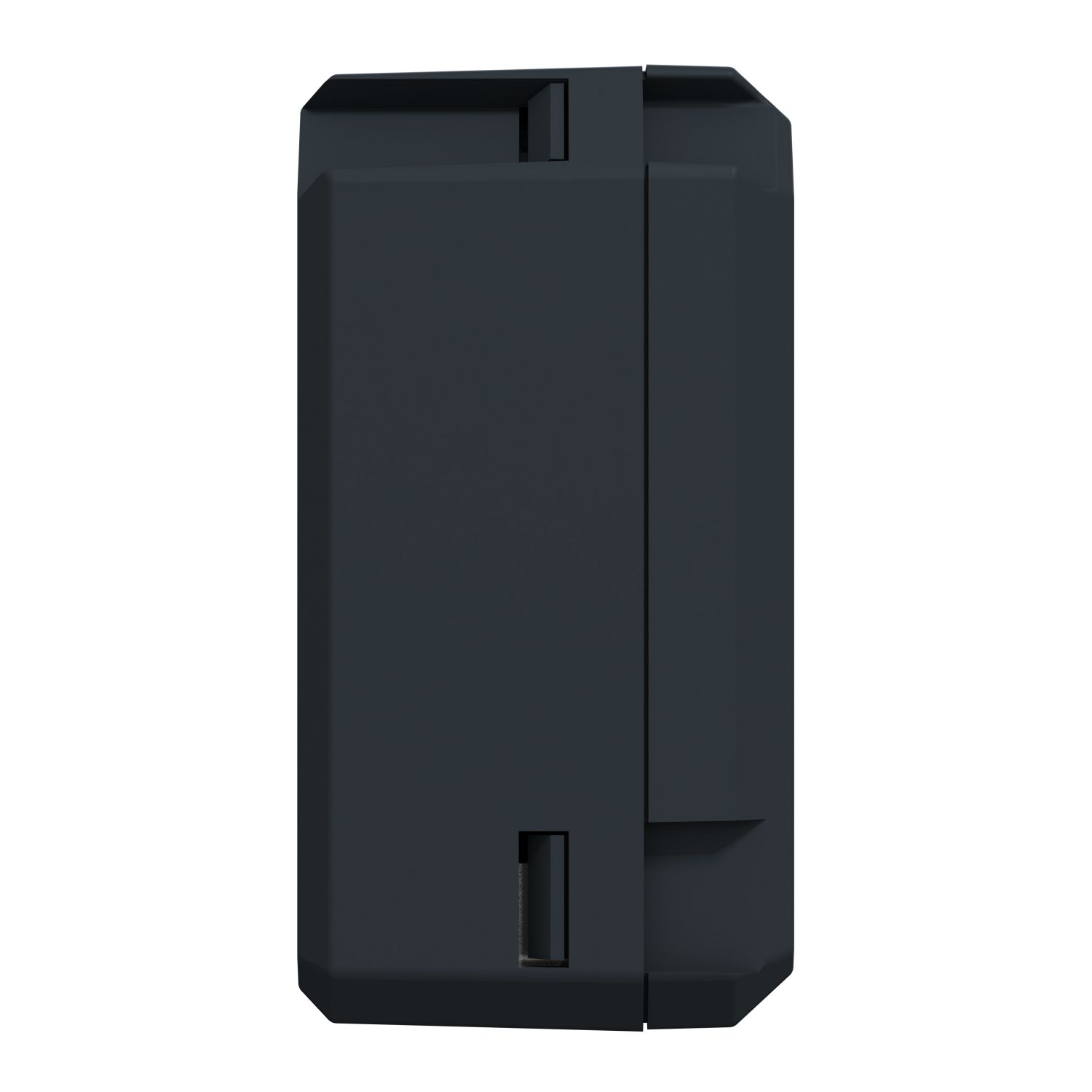

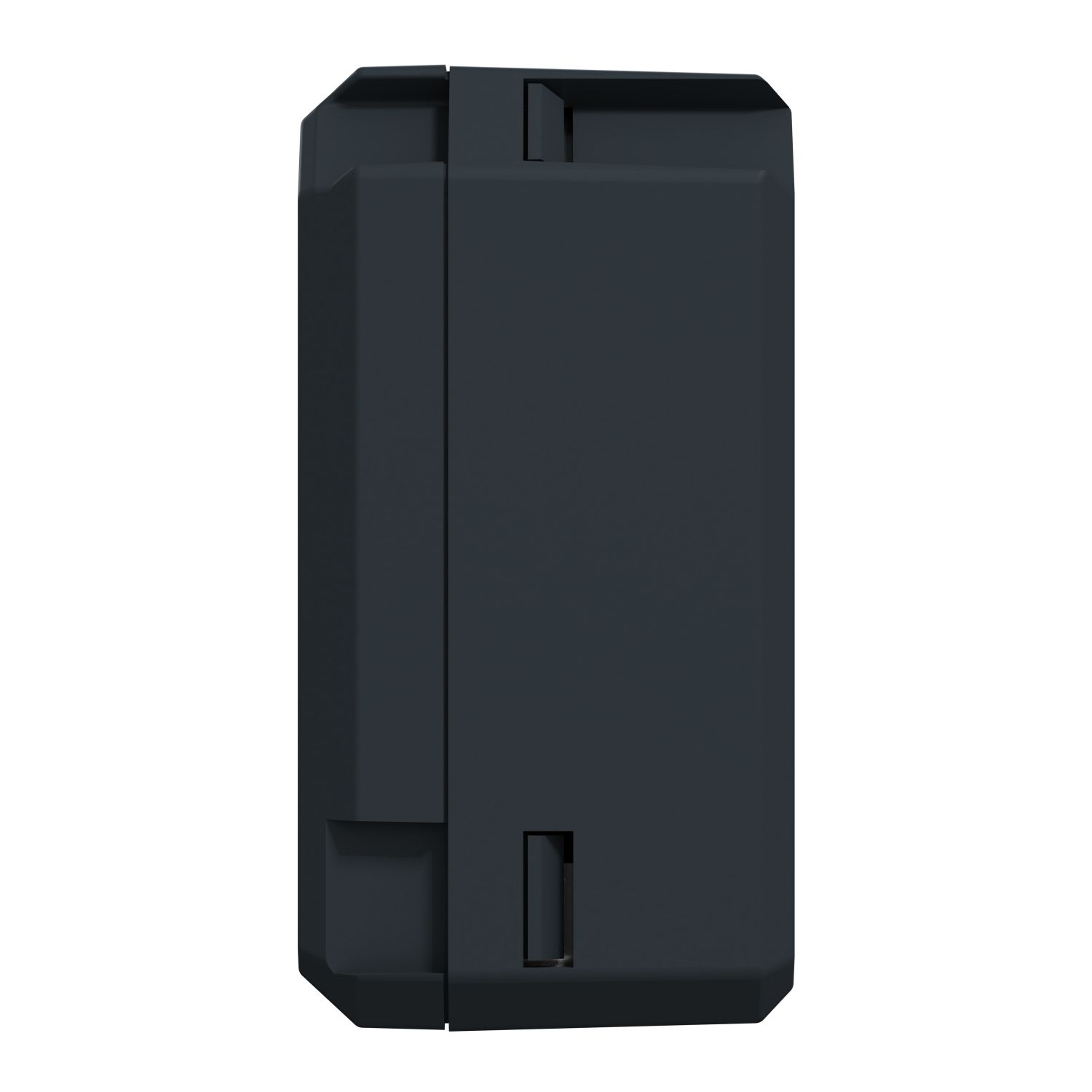

The Wiser Micro Module Smart Blind Controller provides smart control of 240V twin active blinds and shutter motors. It transforms a conventional double push-button switch into a connected device you can control from the switch or through the Wiser by SE app.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Concentrator compatibility | Wiser hub generation 1 |
| Range | Iconic |
| Product or component type | connected shutter control |
| Range compatibility | Impress Series 30 push-button, Saturn Series 4000 push-button, Pro Series push-button, Clipsal Iconic push-button |
| Product brand | Clipsal |
| Mobile App name | Wiser by SE |
| Complementary | |
| Main colour tint | grey |
| Load type | motor: 500 W at 230 V AC |
| Device application | blind actuator |
| Depth | 22 mm |
| Software name | Wiser by SE App |
| Cos phi | 0.6-1 |
| Width | 43 mm |
| Wiring configuration | 3 wires with neutral |
| Communication network type | wireless Zigbee (2.4-2.4 GHz), 10 mW at < 50 m |
| Control type | by mobile application, push-button |
| IP degree of protection | IP20 |
| Relative humidity | 5-90 % non-condensing |
| Tightening torque | 0.5 N.m |
| Technology type | electronic |
| System requirements | Wiser Home Touch Wiser Home control, Bluetooth 4.1 or higher Bluetooth, Apple iOS 10.3 or higher Wiser App, Android 5.1 or higher Wiser App |
| Device presentation | module |
| Connected auxiliaries | maximum 10 auxiliary push-buttons |
| Type of installation | indoor installation |
| Clamping connection capacity | 1 x 1.5...2 x 2.5 mm² for stranded cable(s), 1 x 1.5...2 x 2.5 mm² for solid cable(s) |
| Colour tint | grey |
| Protection type | circuit breaker 16 A |
| Switch additional information | mechanical and electrical interlock between up/down |
| Mounting support | wall, installation box |
| Rated current | 4 A |
| Embedding depth | 70 mm |
| Ambient air temperature for operation | 0-35 °C |
| Height | 43 mm |
| [Ue] rated operational voltage | 220...240 V AC 50 Hz |
| Connections - terminals | screw terminal |
| Standby consumption | max. 0.4 W |
| Cable length | NYM cable: 50 m |
| Product certifications | Zigbee 3.0 |
