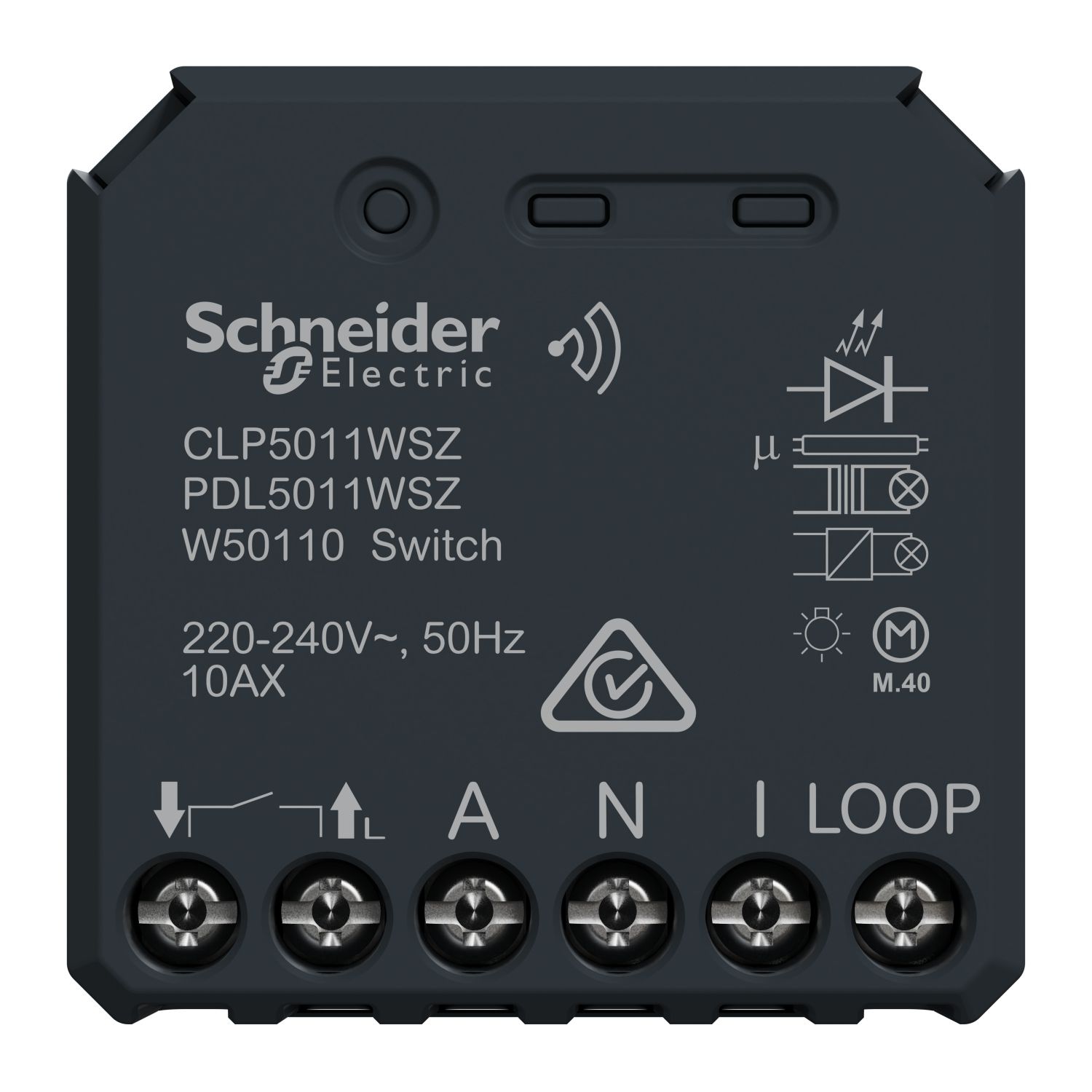

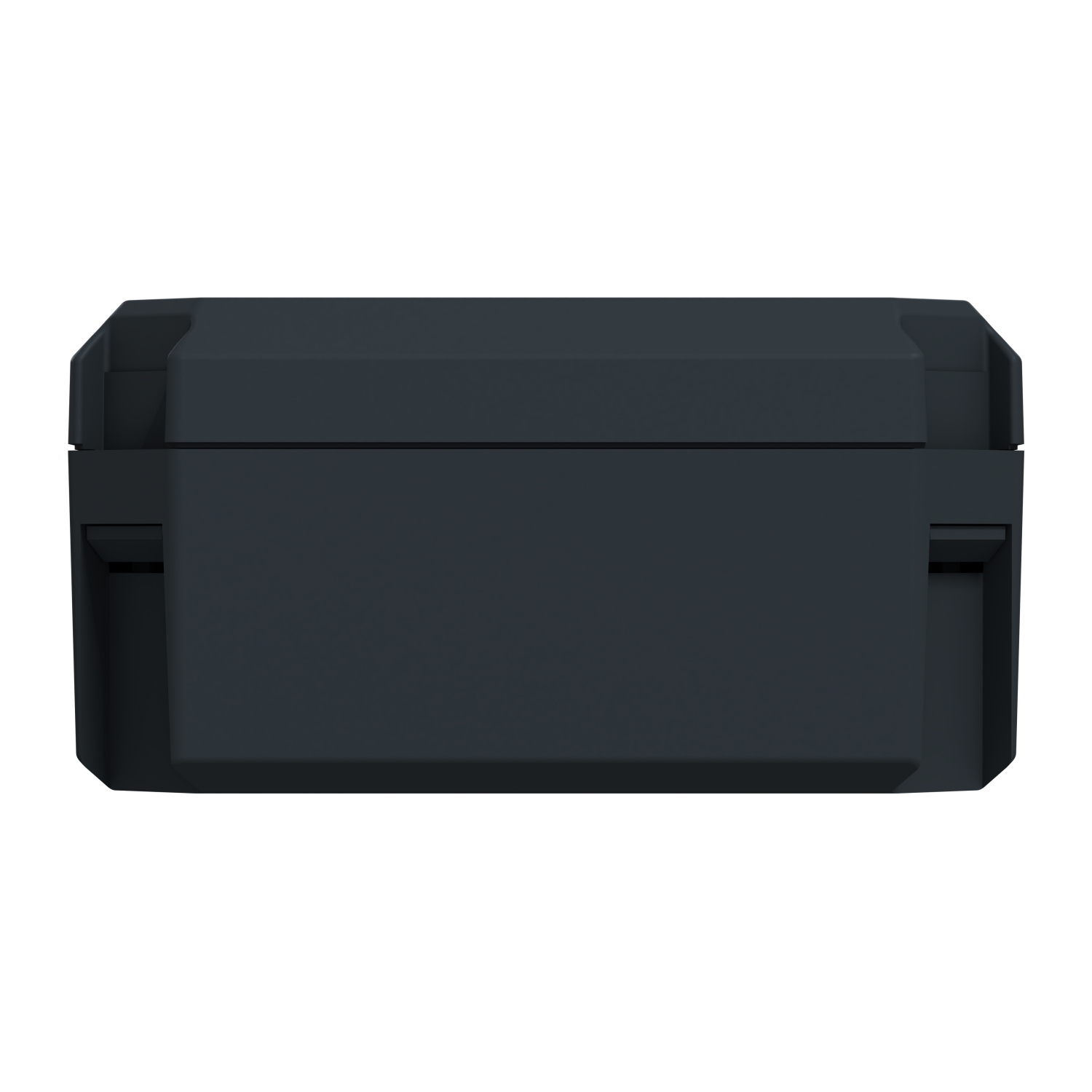

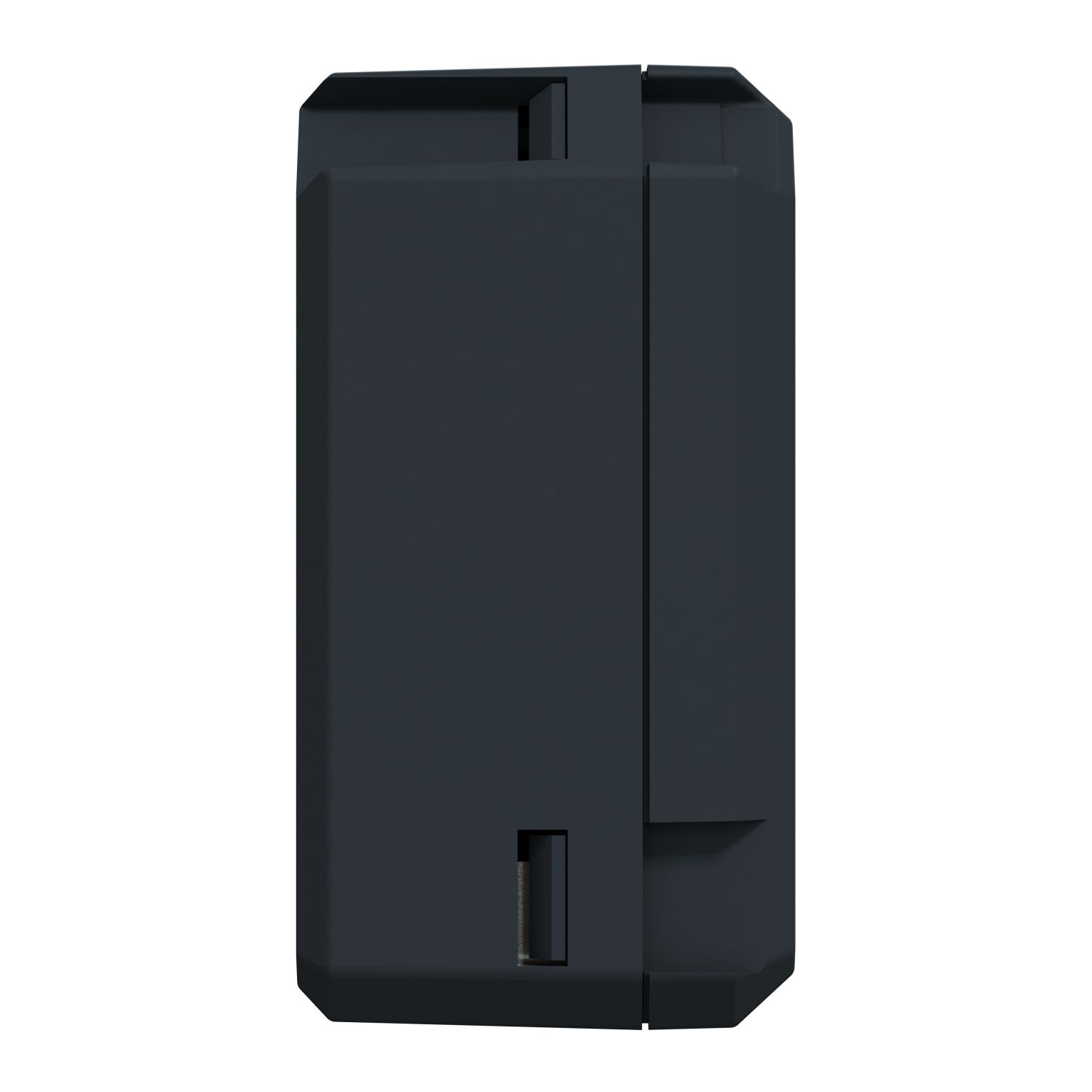

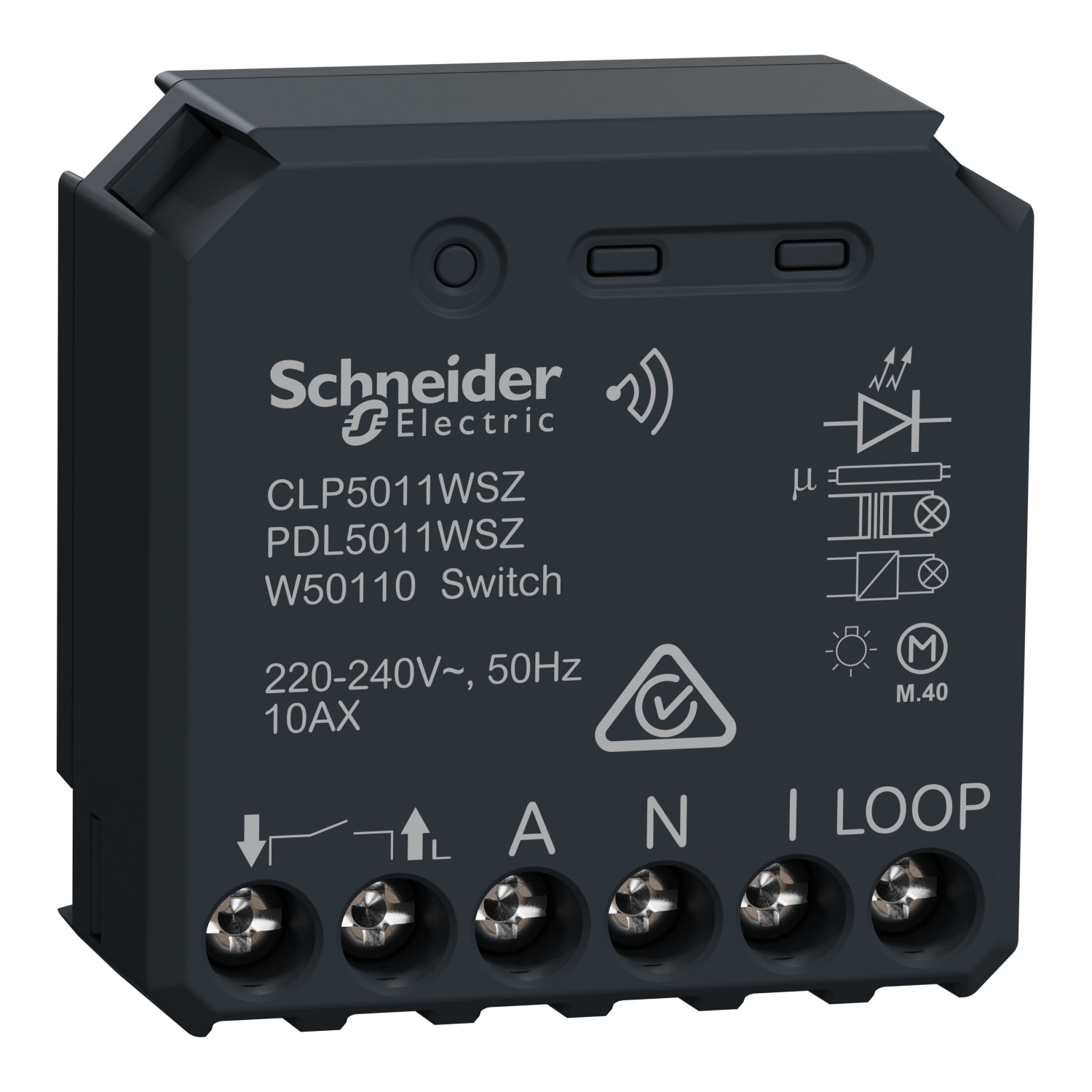

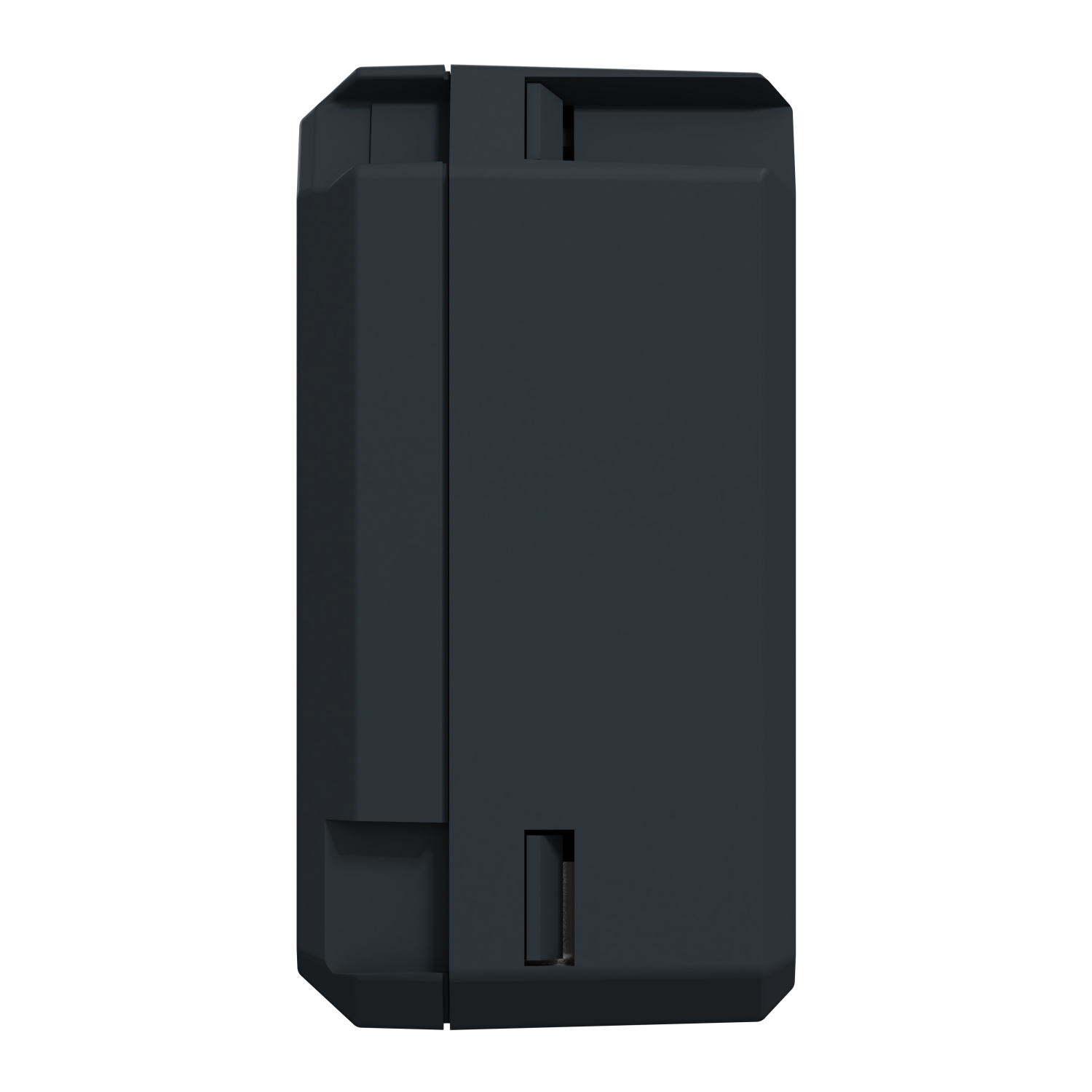

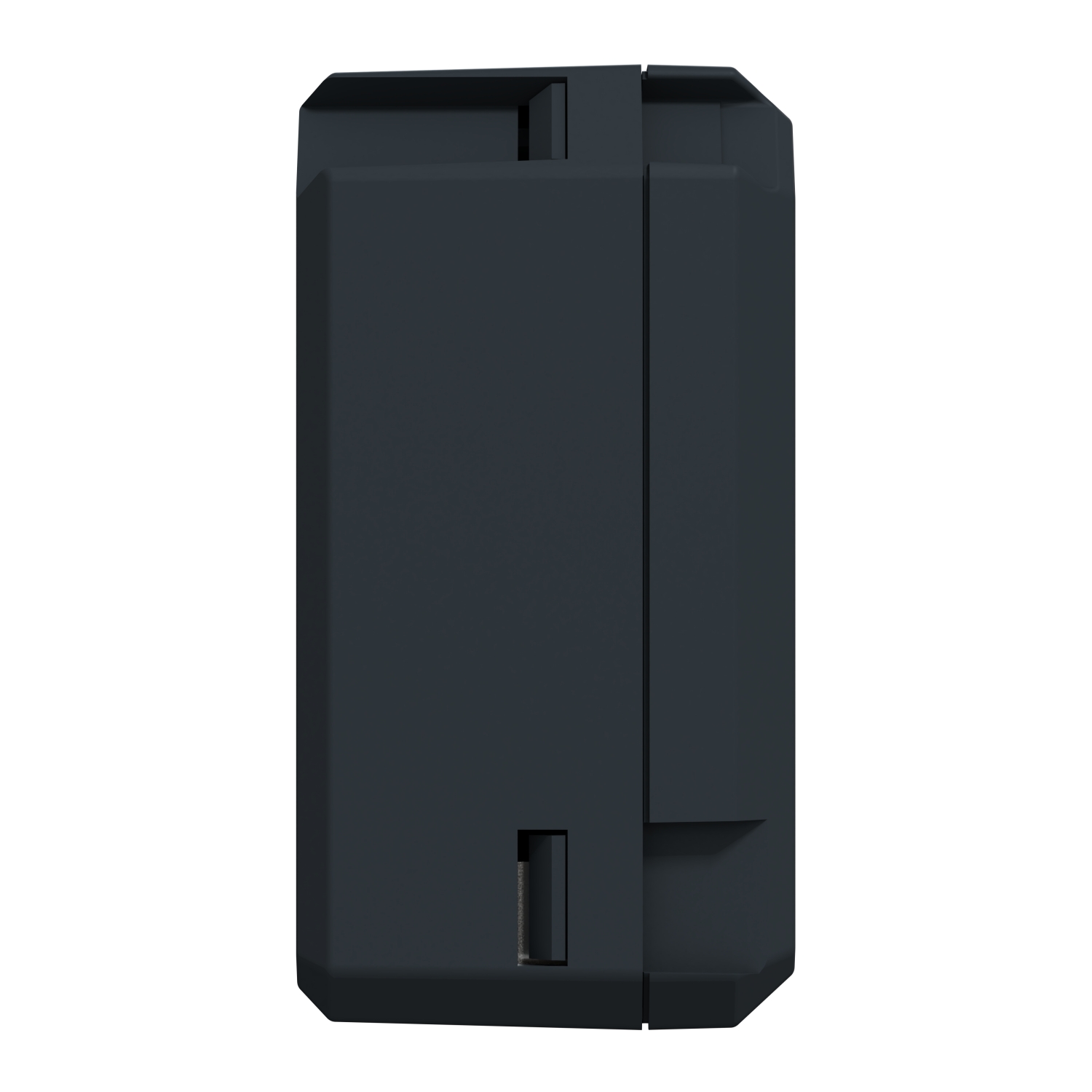

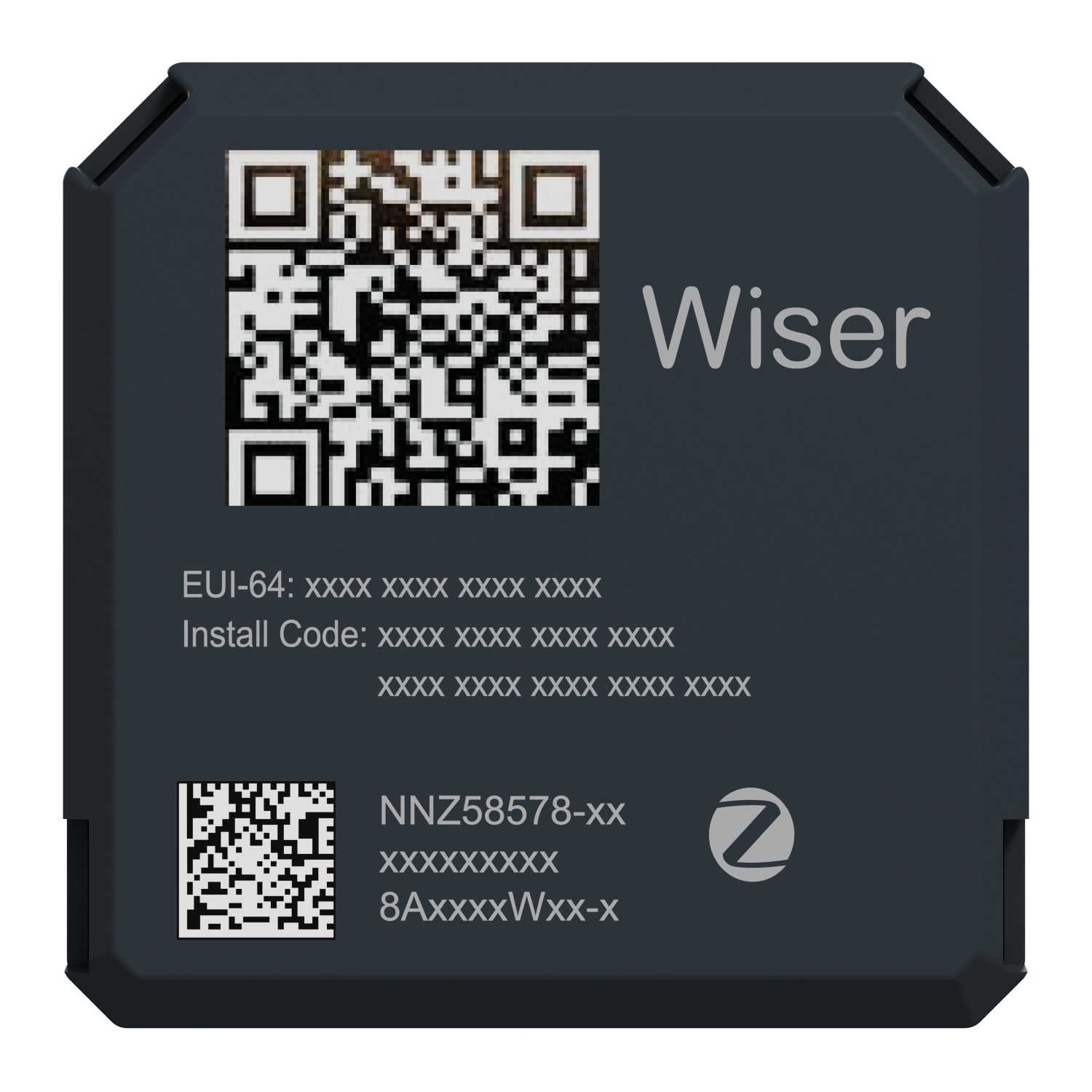

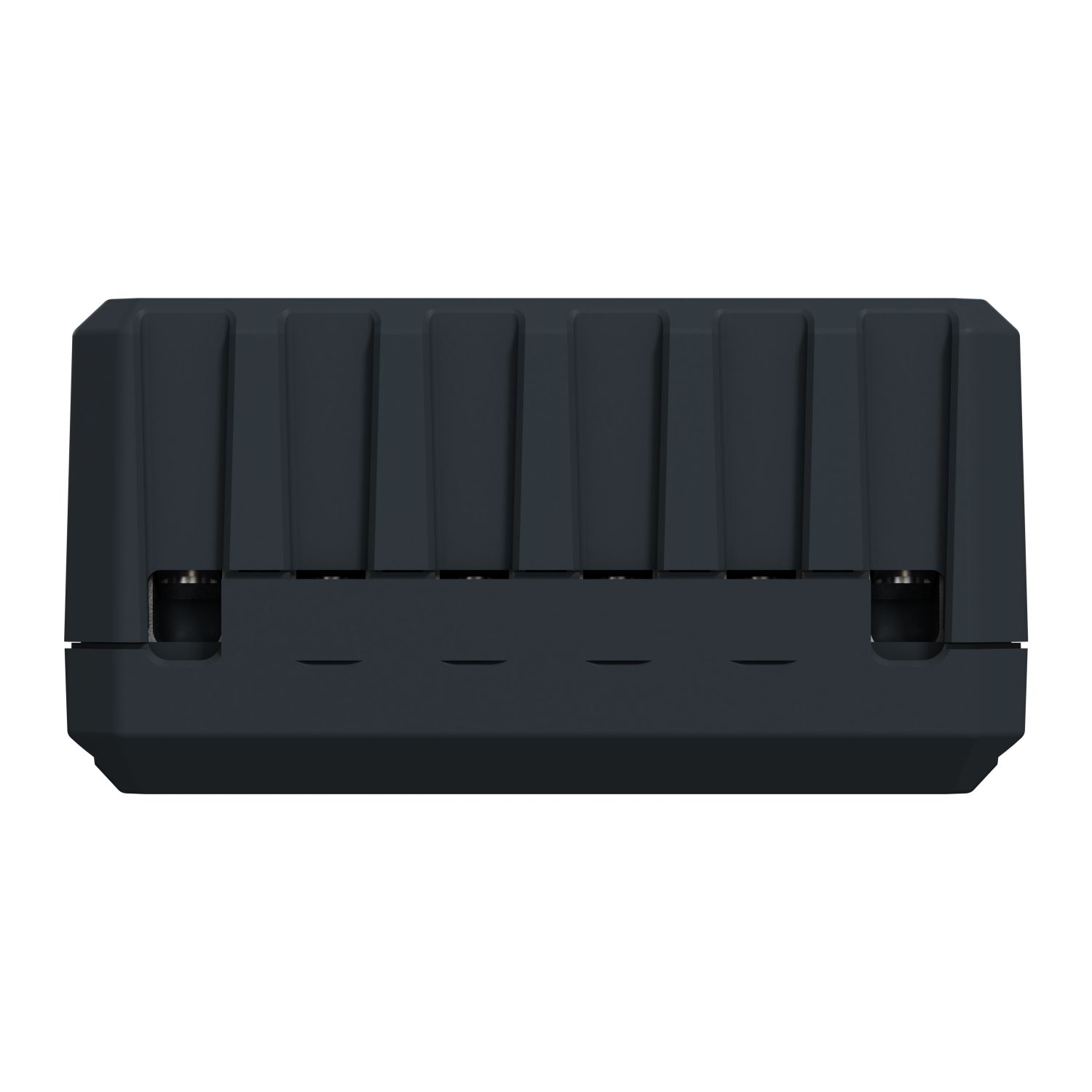

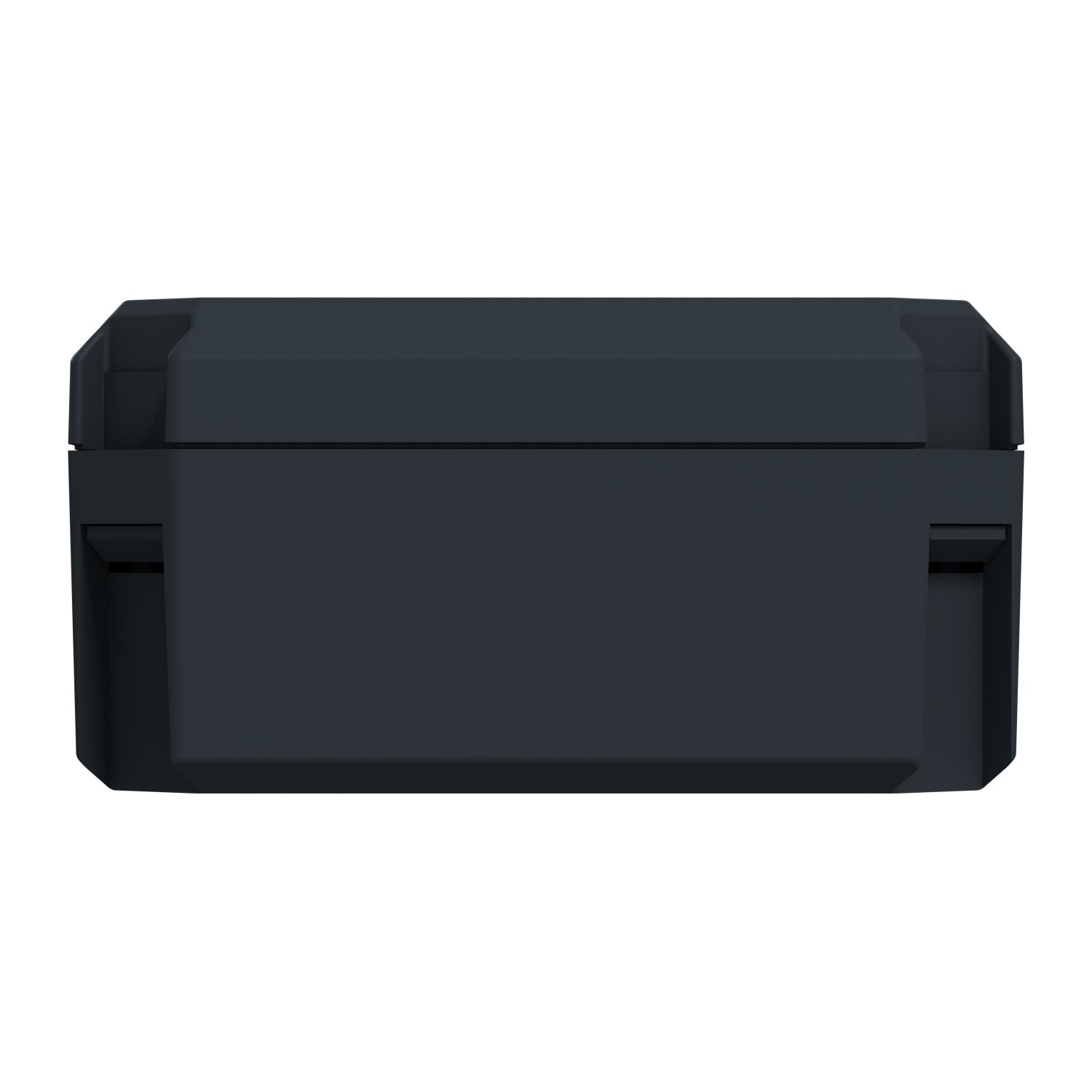

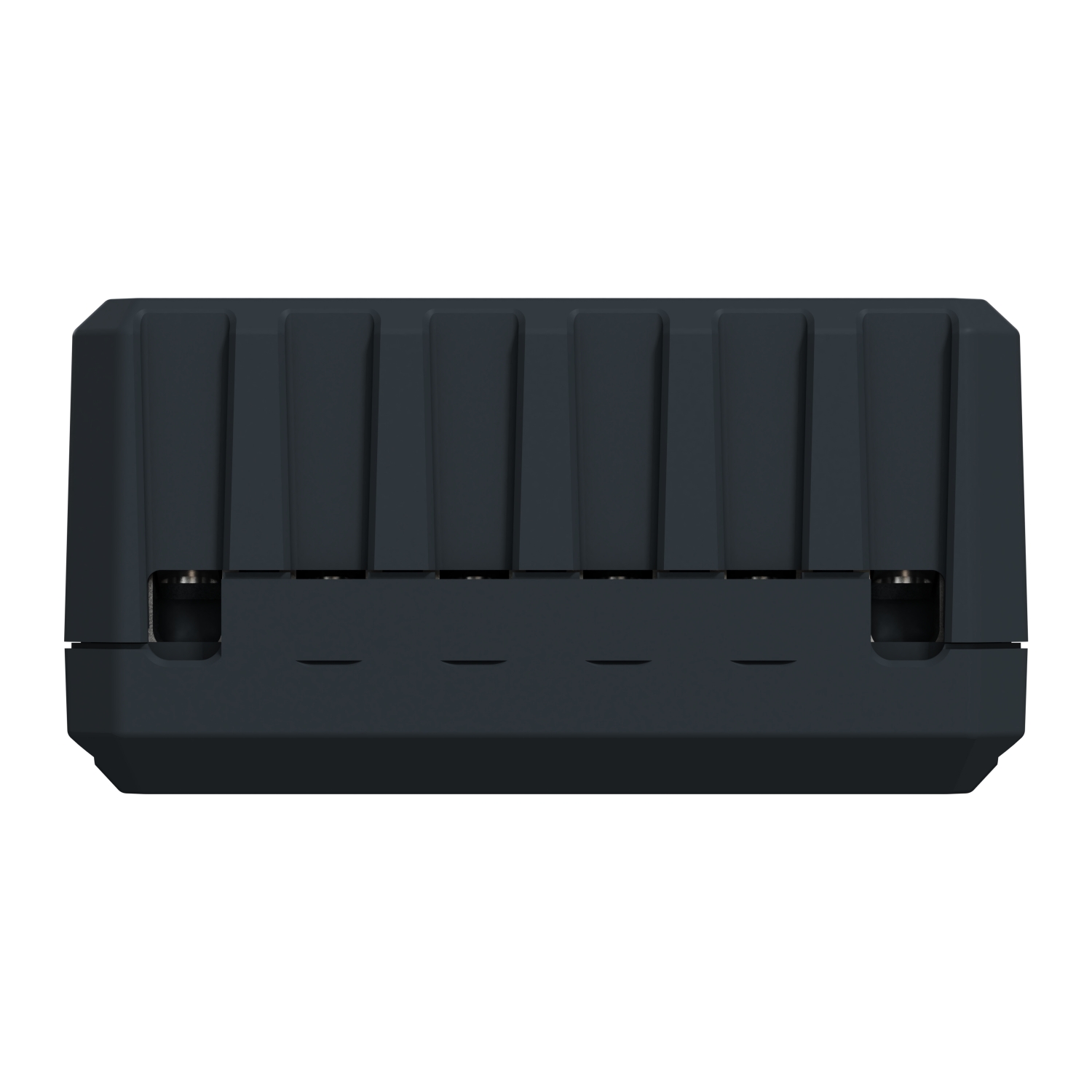

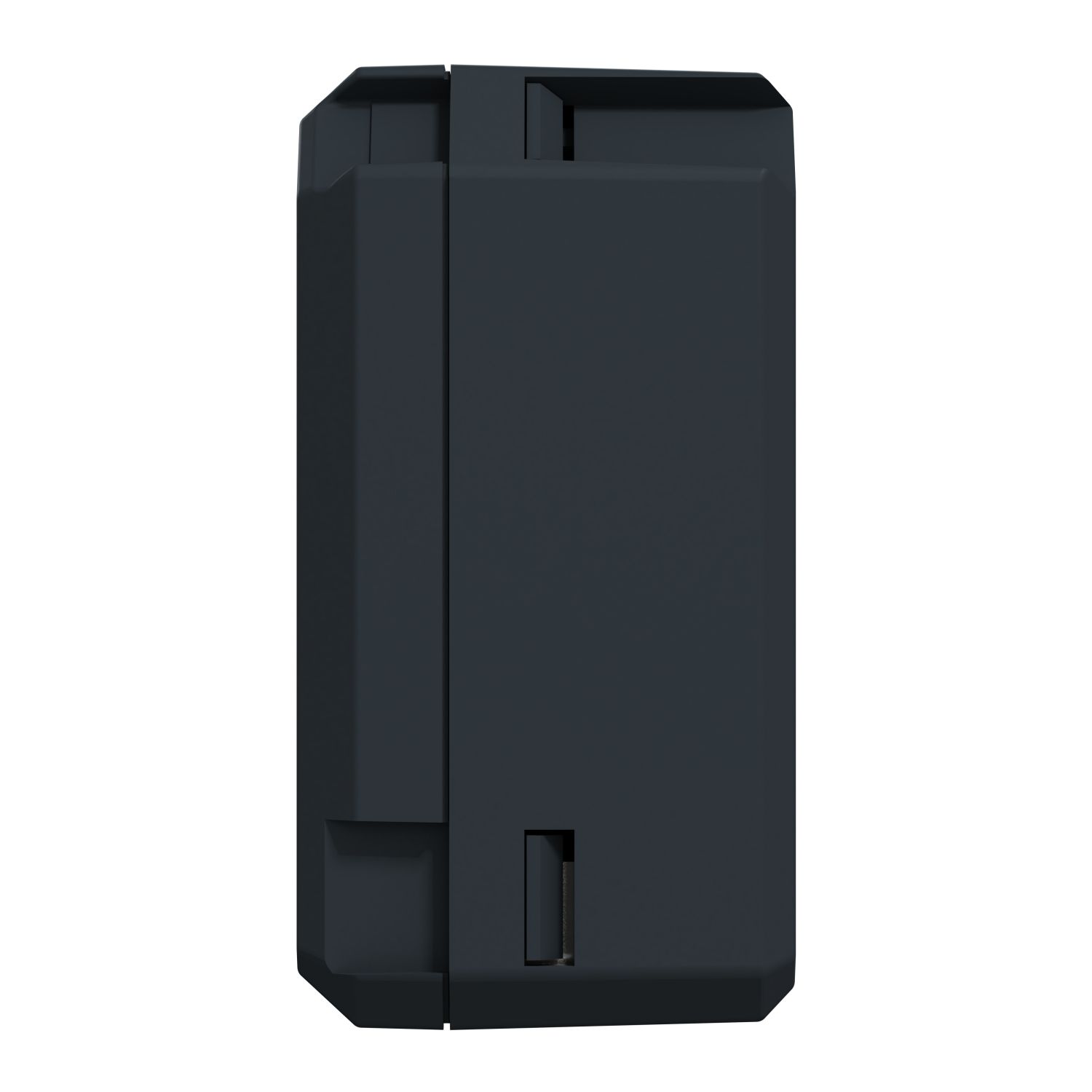

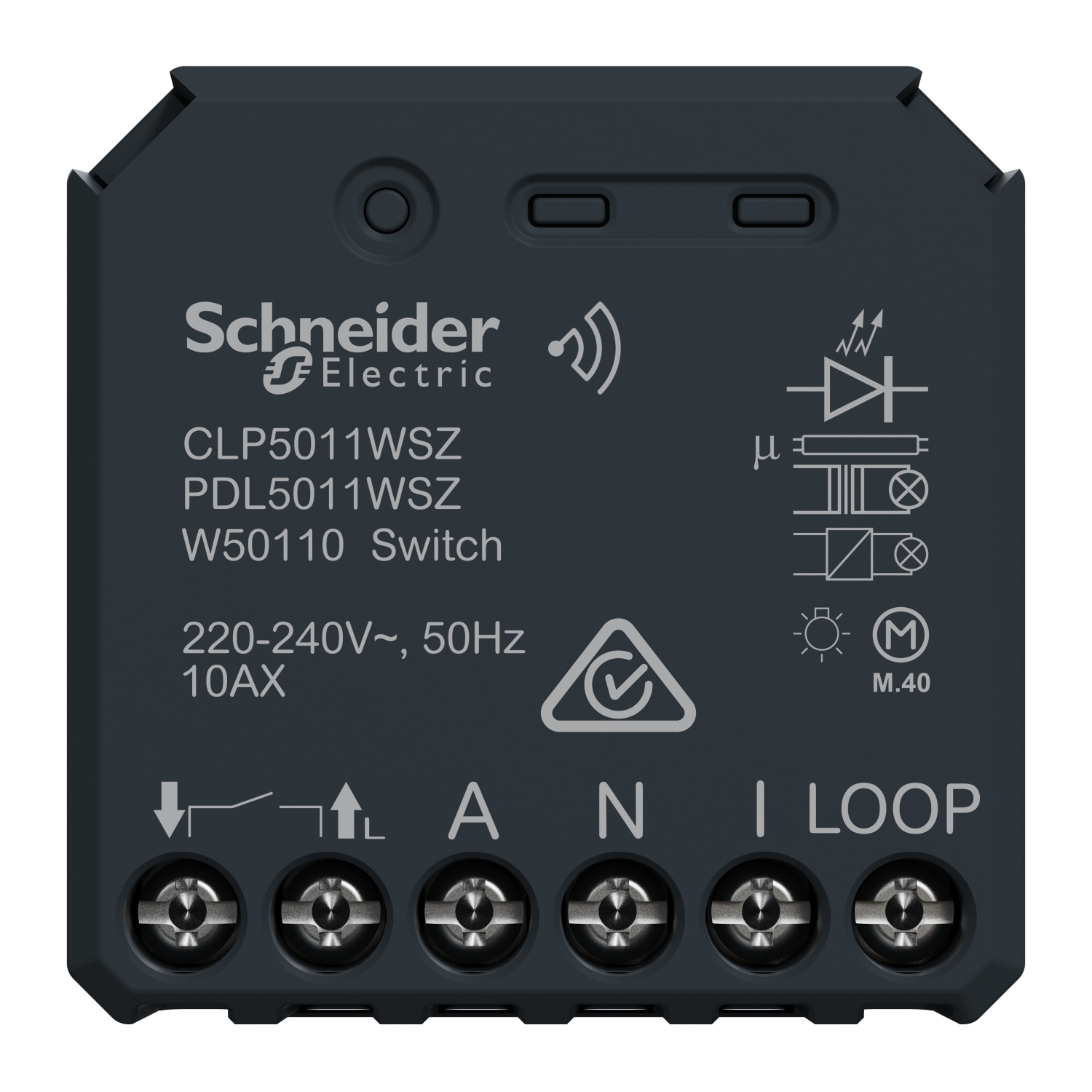

Micro Module Smart Switch, Clipsal Wiser, 10 AX, 240 V, Grey

Manufacturer: Clipsal

SKU: CLP5011WSZ

GTIN: 9311554812317

User guide

Environmental Disclosure

Instruction sheet

Old price: $155.98 inc GST

Price: $224.61 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

The Wiser Micro Module Smart Switch combines smart switch functionality with bell press push-button switches. It transforms a conventional push-button switch into a connected device you can control from the switch or through the Wiser by SE app or voice command. With voltage free relay contacts it is suitable for a wide range of applications.

Products specifications

Attribute name	Attribute value
Main
Concentrator compatibility	Wiser hub generation 1
Range	Iconic
Product or component type	connected switch
Product brand	Clipsal
Mobile App name	Wiser by SE
Complementary
Technology type	Zigbee, electronic
Main colour tint	grey
Software name	Wiser App
Wiring configuration	3-wire
Communication network type	wireless (2.4-2.4 GHz), 2.5 mW at < 50 m
Protection type	thermal protection, over temperature protection
Control type	by mobile application, push-button
Material	plastic
Device presentation	module
Type of installation	indoor installation
Colour tint	grey
Surface finish	matt
Mounting support	installation box, wall
[Ue] rated operational voltage	220...240 V AC 50 Hz
Load type	motor: 10 A, resistive: 15 A, inductive: 6 A (cos phi =0.6 ), linear fluorescent ballast: 10 A, medium voltage halogen lamp: 10 A, electronic transformer: 10 A, LED lighting driver (non-dimmable): 10 A, dimmable LED lighting driver: 10 A
Environment
Relative humidity	5-90 % non-condensing
Standards	AS/NZS 4268 radio, AS/NZS 60669.2.1 EMC, AS/NZS 60669.2.1 safety
