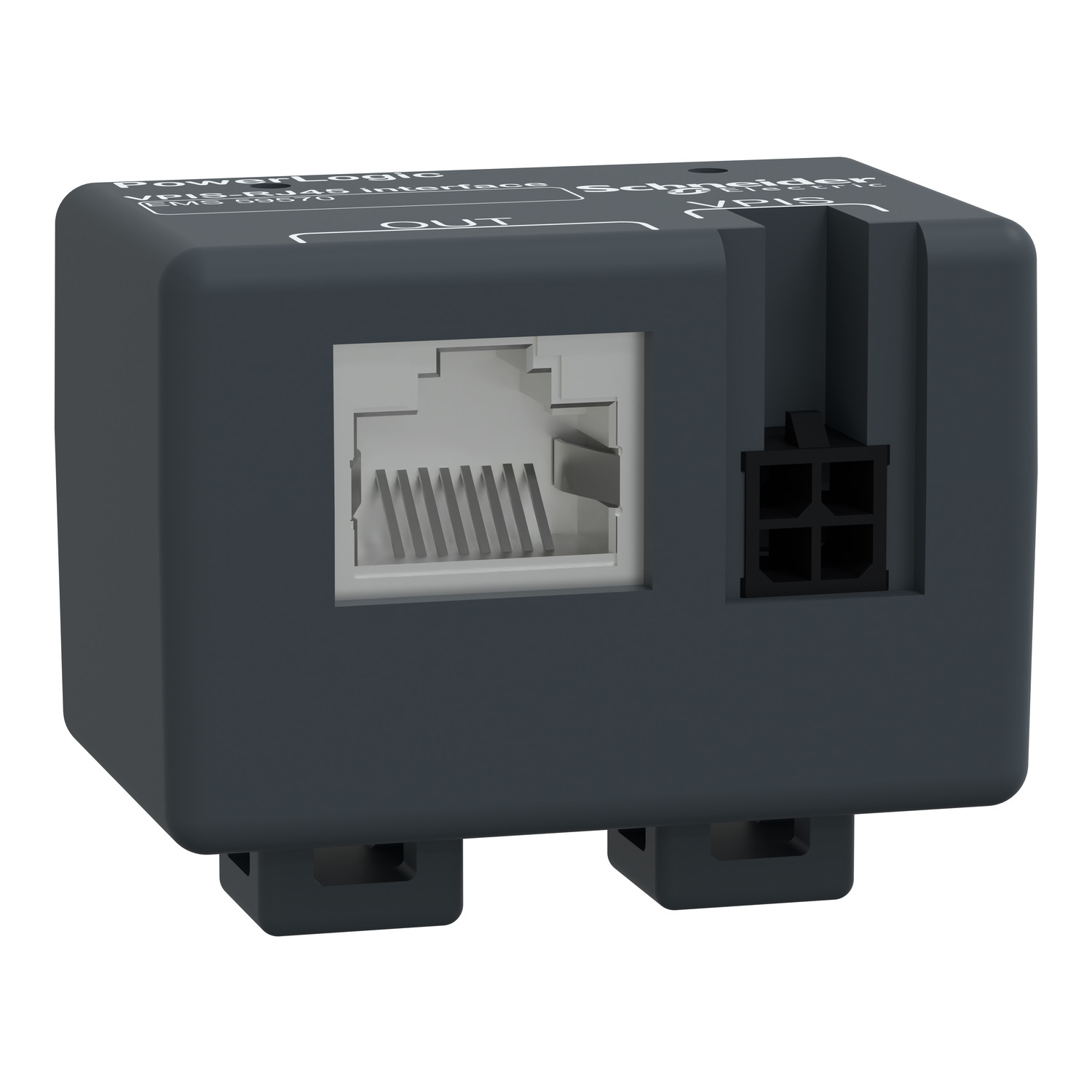

PowerLogic T300 VPIS VO V2 voltage adapter - RJ45 output for SC150

Manufacturer: Schneider Electric

SKU: EMS59570

GTIN: 3606480803512

Catalog

User guide

Instruction sheet

Old price: $220.00 inc GST

Price: $178.20 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This adaptor Easergy T300 is required for voltage sensor used with SC150 module. The Un rated voltage is 11 to 36 Kv. The input voltage Phase-to-phase 1VAC to 30VAC. It include micro-fit inputs, and RJ45 communication port for output. Complient to standards IEC 62271-206, CE certification. The operating and storage temperature is -40°C to + 85°C. Mechanical dimensions are 50 mm in height, 50 mm in width and 100 mm in length.

Products specifications

Attribute name	Attribute value
Main
Product or component type	voltage adaptor
Range of product	PowerLogic T300
Complementary
Rated voltage	11-36 kV
Input voltage	1...30 V AC (L-L)
Input voltage limits	< 30 V
Electrical connection	input: connector micro-fit, output: connector RJ45
Network frequency	50/60 Hz
Environment
Operating altitude	<= 2000 m
Width	50 mm
Fire resistance	850 °C conforming to IEC 60695-2-11
Operating position	horizontal, vertical
Relative humidity	95-95 % conforming to IEC 60068-2-30
Ambient air temperature for storage	-40-85 °C
IP degree of protection	IP30 conforming to IEC 60529
Net weight	0.038 kg
Length	100 mm
Environmental characteristic	salt mist: 200 h conforming to IEC 60068-2-11
Standards	IEC 62271-206
Height	50 mm
Ambient air temperature for operation	-40-85 °C
Fixing mode	by clamp (plastic)
IK degree of protection	IK07 conforming to IEC 62262
Product certifications	CE
