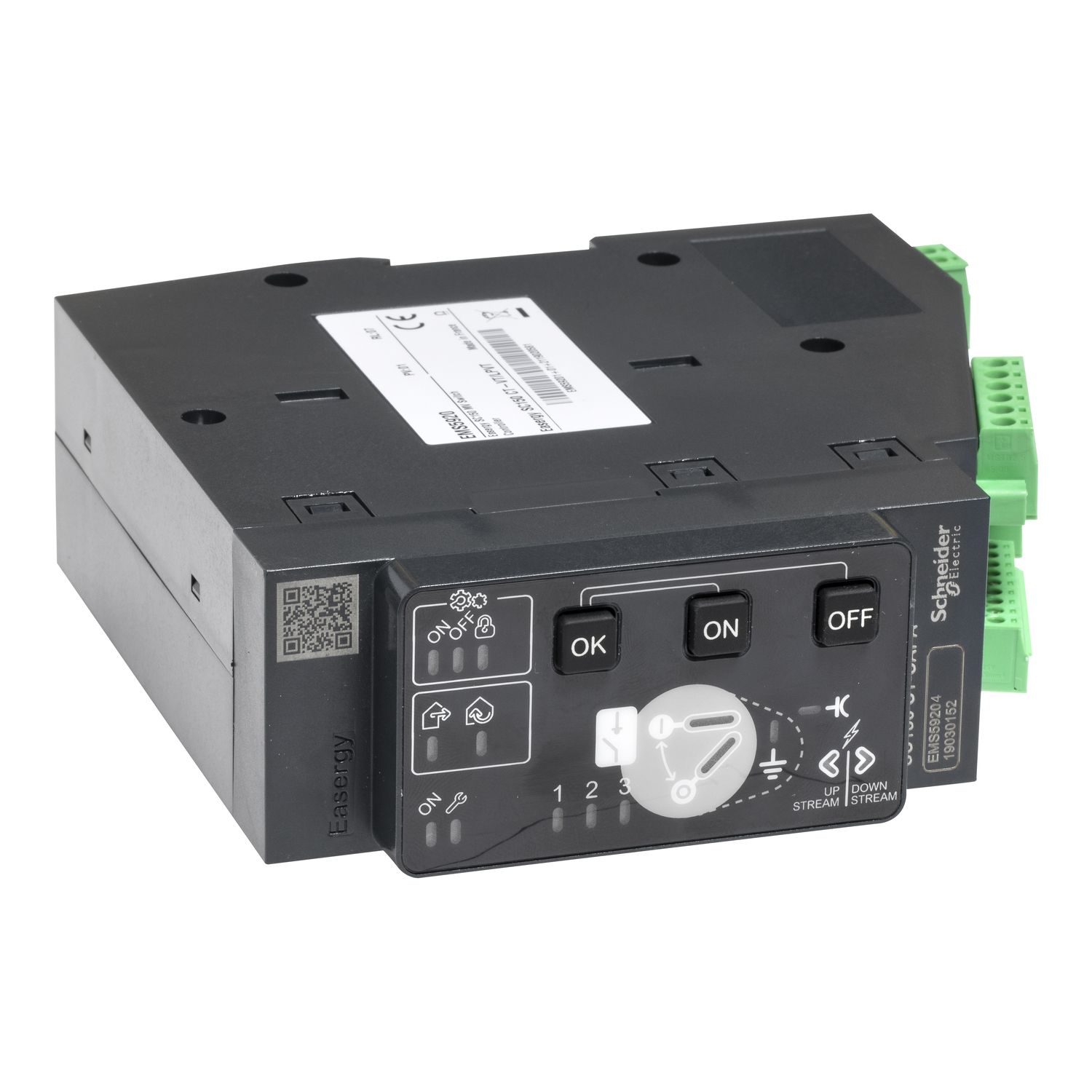

PowerLogic SC150H CT-LPVT/VT: Horizontal switch controller, 1/5A, LPVT/VT sensors

Manufacturer: Schneider Electric

SKU: EMS59203

GTIN: 3606489817114

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Old price: $2,805.00 inc GST

Price: $2,272.05 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

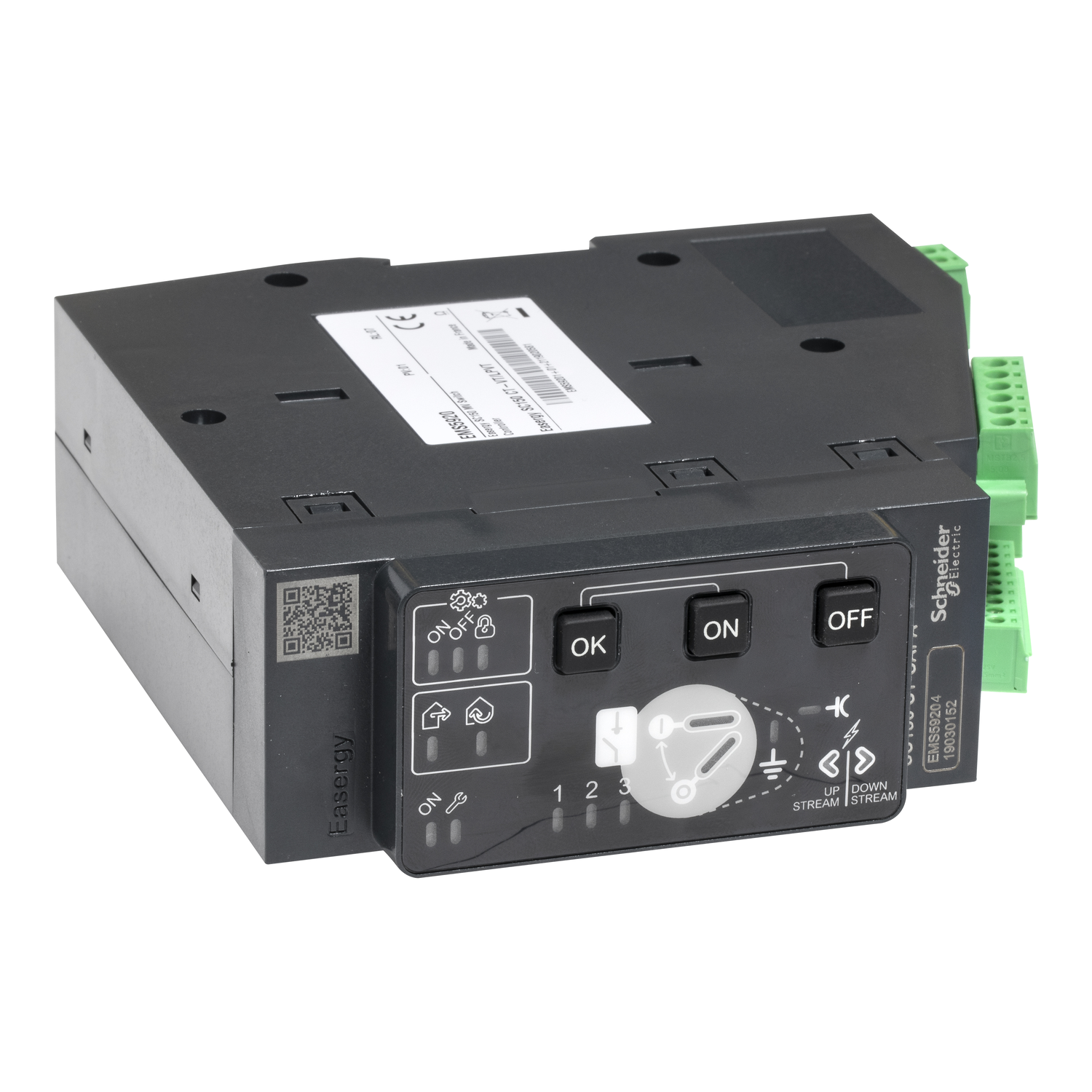

The PowerLogic SC150 module offers many high-performance features needed to measure and detect a fault current on the MV line. The switch controller are designed for clip in DIN rail. The measurement voltage range from 0…10 VAC LPVT and from 47…240 VAC VTs. It include 8 digitK23:S23al inputs, 2 digital relay switch, and 2 RJ45 communication port. The operating temperature is -40°C to + 70°C. The storage temperature is -40°C to + 85°C.

Products specifications

Attribute name	Attribute value
Main
Device short name	SC150
Range of product	PowerLogic T300
Complementary
Power quality analysis	voltage magnitude, harmonic distortion, voltage sag and swell detection, individual harmonics, voltage unbalance
Type of measurement	energy: class 1 conforming to IEC 61557-12, voltage: class 0.5, current: class 0.5, apparent energy, frequency, current, power factor, active and reactive energy, active and reactive power, voltage, apparent power
Synchronisation time between inputs	1 ms
Analogue input type	current 0.01...35 A (impedance 0.001 Ohm)4 x
Breaking capacity	2000 VA
Data recording	current value before fault, counter, sequence of event recording, event logs, demand values, min/max of instantaneous values, harmonics logs, sag and swell logs
Control type	illuminated push-button status:
Software function	reports and diagrams, Operating/Status report, event log, alarm, security/authority verification, assistance in commissioning and operating the installation
Power consumption in VA	2 VA
Communication port protocol	IEC 60870-5-104
[Us] rated supply voltage	12...48 V DC +/- 20 %
Number of inputs	8 digital conforming to IEC 61131-2 type 3
Maximum switching voltage	440 V AC
Measurement current	1-1 A, 5-5 A
Irms rated making capacity	15 A during 4 s
Product or component type	MV switch controller
Protection type	ANSI 37 : phase undercurrent , ANSI 59N : neutral voltage displacement , ANSI 59 : overvoltage , ANSI 27 : undervoltage , ANSI 47 : negative sequence overvoltage , ANSI 67N : directional earth fault , ANSI 67 : directional phase overcurrent , ANSI 50N/51N : earth fault , ANSI 50/51 : overcurrent
Output voltage	90...220 V AC motor: , 12...127 V DC motor:
Memory capacity	4 MB
Continuous output current	8 A
Number of outputs	2 digital (relay) switch:
Measurement voltage	: 47-240 V VTs AC at 50/60 Hz (single or three phases), : 0-10 V LPVT AC at 50/60 Hz (single or three phases)
Communication port support	ETHERNET 2 RJ45
Environment
Operating altitude	2000 m
Depth	140 mm
Width	45 mm
Mechanical robustness	shocks 10 gn 11 ms 3 pulses in operation conforming to IEC 60068-2-27, bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29, vibrations 10-2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6
Type of installation	indoor
IP degree of protection	IP4X front: conforming to IEC 60529, IP2X body: conforming to IEC 60529
Relative humidity	5-95 % conforming to IEC 60068-2-30
Ambient air temperature for storage	-40-85 °C
Net weight	0.515 kg
Electromagnetic compatibility	conducted and radiated emissions class A conforming to EN 55022, magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8, surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5, electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2, immunity to voltage dips criteria A conforming to IEC 61000-4-29, radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3, 100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12, conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16, conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6, electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4
Standards	IEC 61850, IEC 61000-4-30:class S, IEC 62586-1, IEC 61557-12, IEC 60255-27
Ambient air temperature for operation	-40-70 °C
Height	140 mm
IK degree of protection	IK07 conforming to IEC 62262
Product certifications	CE
