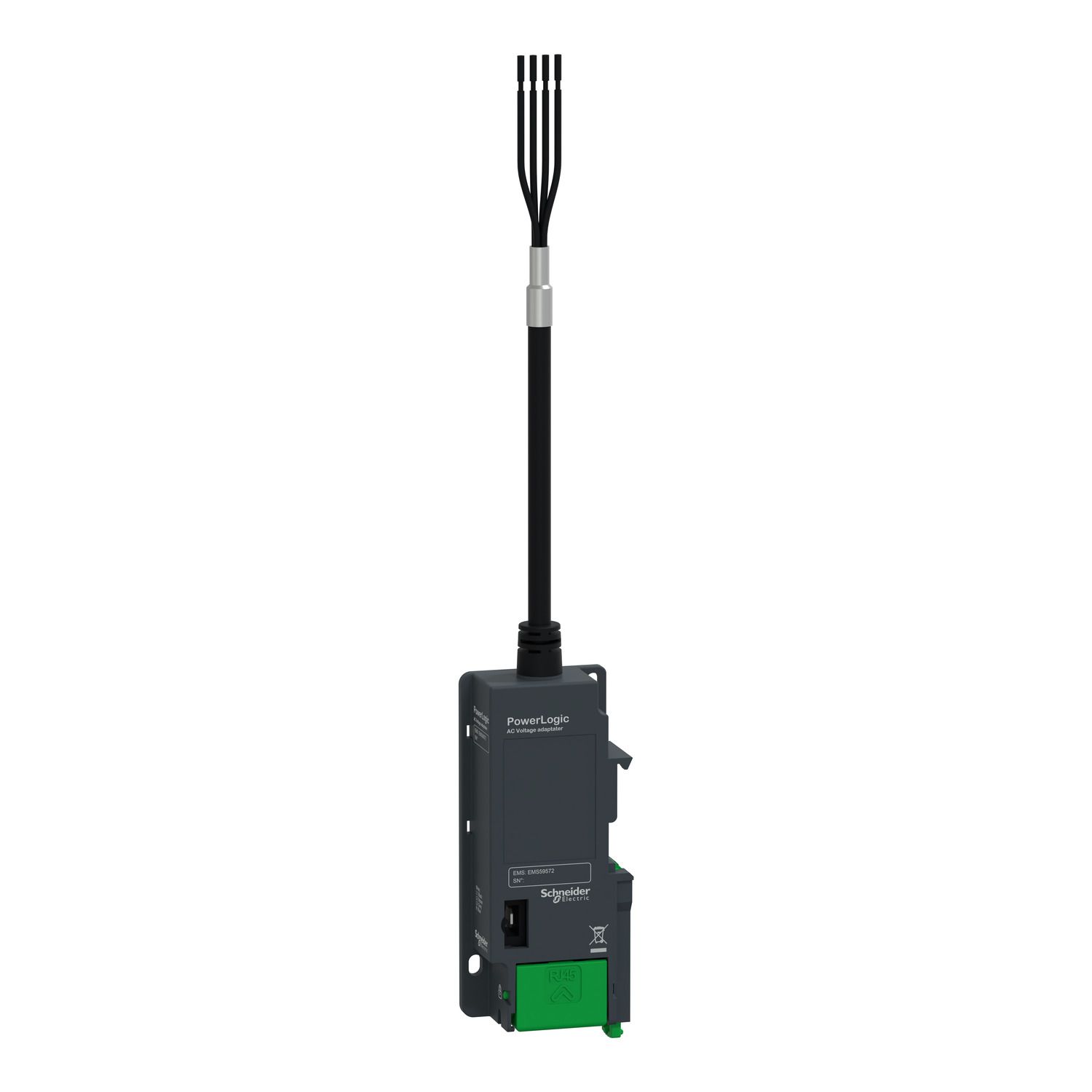

PowerLogic VTs voltage adapter, from 47 to 240 V, overvoltage cat II

Manufacturer: Schneider Electric

SKU: EMS59572

GTIN: 3606480803536

Catalog

User guide

Instruction sheet

Declaration of conformity

Old price: $550.00 inc GST

Price: $445.50 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This adaptor Easergy T300 is required for voltage sensor used with SC150 module. The Un rated voltage is 11 to 36 Kv. The input voltage Phase-to-phase 38VAC to 400VAC and 22 VAC to 240 VAC for Phase-to-neutral. It include 4 wires inputs, and RJ45 communication port for output. Complient to standards IEC 60044-2, CE certification. The operating and storage temperature is -40°C to + 85°C. Mechanical dimensions are 50 mm in height, 50 mm in width and 100 mm in length.

Products specifications

Attribute name	Attribute value
Main
Product or component type	voltage adaptor
Range of product	PowerLogic T300
Complementary
Rated voltage	11-36 kV
Input voltage	22...240 V AC (L-N), 38...400 V AC (L-L)
Overvoltage category	III
Input voltage limits	630 V (L-L)
Electrical connection	input: 4 wires 1-1 mm², output: connector RJ45
Network frequency	50/60 Hz
Environment
Operating altitude	<= 2000 m
Width	100 mm
Fire resistance	850 °C conforming to IEC 60695-2-11
Relative humidity	95-95 % conforming to IEC 60068-2-30
Ambient air temperature for storage	-40-85 °C
IP degree of protection	IP30 conforming to IEC 60529
Net weight	0.043 kg
Length	100 mm
Environmental characteristic	salt mist: 200 h conforming to IEC 60068-2-11
Mounting support	DIN rail
Standards	IEC 60044-2
Ambient air temperature for operation	-40-85 °C
Height	50 mm
IK degree of protection	IK07 conforming to IEC 62262
Product certifications	CE
