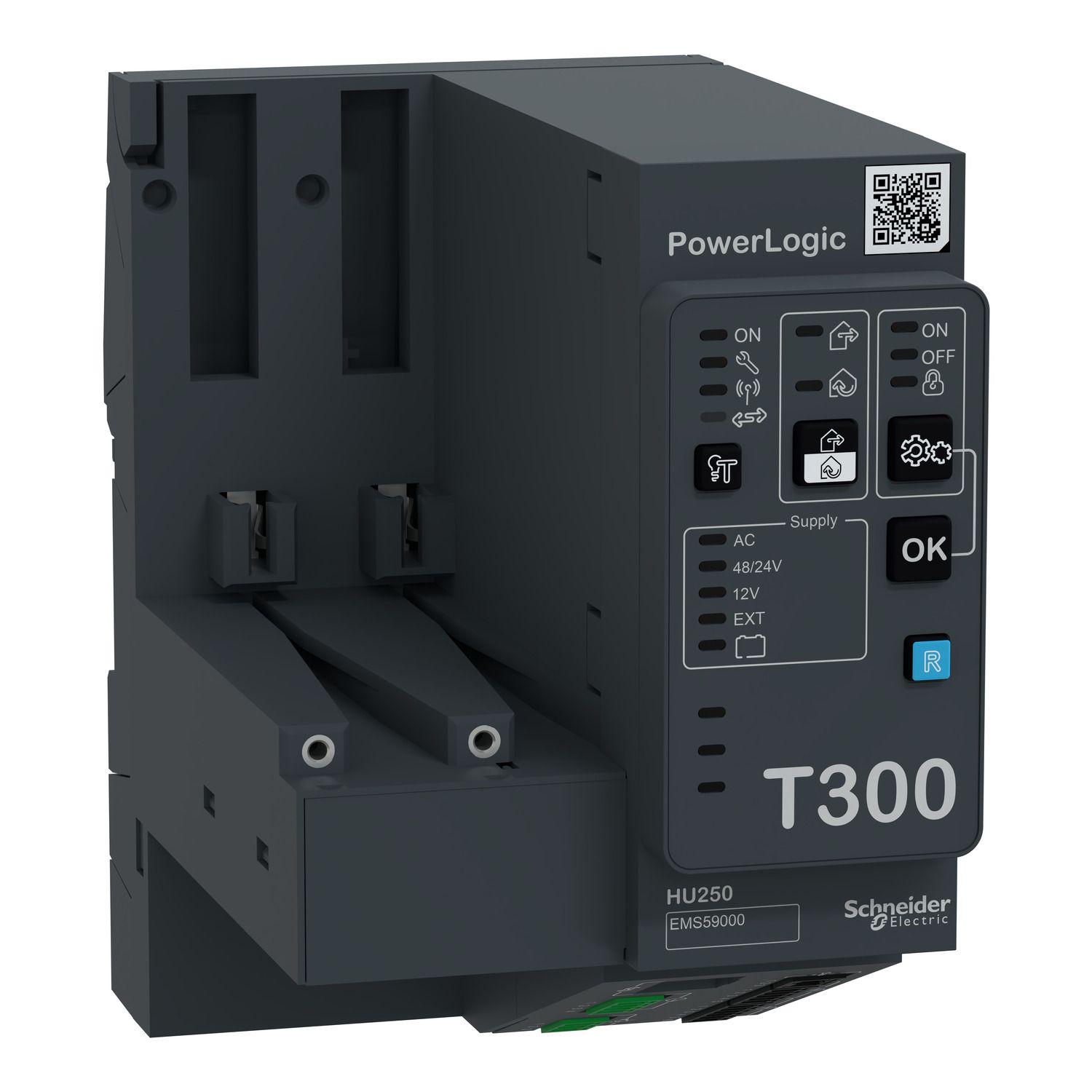

Head unit communication gateway with cyber security management. It include for communication port: 5 RJ45 for Ethernet, 1 RJ45 for modbus, 1 RJ45 for USB, 1 RJ45 for RS and RS232, and 1 SMA for 3G and 4G. The number of digital inputs is 6 for multi purpose and 2 for remote control. And number of digital outputs is 2 for multi purpose. This product can be clip in DIN rail. Supply voltage can range from 12 to 48 VDC. The degree of protection is IP2x for body and IP4x in the front. It complies with CE certificat. Mechanical dimensions are 140 mm in height, 90 mm in width and 140 mm in length.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | HU250 |
| Range | PowerLogic |
| Range of product | PowerLogic T300 |
| Product name | PowerLogic T300 |
| Complementary | |
| Synchronisation time between inputs | 1 ms |
| Communication service | web server remote WAN: , web server local Ethernet: , web server local WiFi: |
| Software function | reports and diagrams, security/authority verification, assistance in commissioning and operating the installation, Operating/Status report, alarm, event log |
| [Us] rated supply voltage | 12...48 V DC +/- 20 % |
| Memory capacity | 16 MB |
| Number of inputs | 2 analog measure temperature, 2 digital remote control, 6 digital multi-purpose conforming to IEC 61131-2 type 3 |
| Communication port protocol | IEC 60870-5-101 controlled station, IEC 60870-5-104 controlling/controlled station, IEC 61850-8-1 controlling/controlled station, Modbus serial and TCP client/server, DNP3 serial and TCP master station/outstation |
| Number of outputs | 2 digital (relay) multi-purpose: |
| Communication port support | 3G/4G 1 SMA, RS485/RS232 1 RJ45, RS232/485 Modbus/ASCII 1 RJ45, ETHERNET 4 RJ45 |
| Data recording | sequence of event recording, 500000 events, 1 ms time stamps, 4 data logs, event logs |
| Control type | illuminated push-button status: |
| Time synchronisation protocol | GPS, SNTP, NTP |
| Power consumption in VA | 3 VA |
| Product or component type | communication gateway |
| Programming language | SFC (sequential function chart), FBD (function block diagram), LD (ladder), IL (instruction list), ST (structured text), calculation formula |
| Environment | |
| Mechanical robustness | shocks 11 ms 3 pulses in operation conforming to IEC 60068-2-27, bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29, vibrations 10-2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6 |
| IP degree of protection | IP4X front: conforming to IEC 60529, IP2X body: conforming to IEC 60529 |
| Relative humidity | 5-95 % conforming to IEC 60068-2-30 |
| Ambient air temperature for storage | -40-85 °C |
| Fixing mode | clip-in (DIN rail) |
| Electromagnetic compatibility | conducted and radiated emissions class A conforming to EN 55022, magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8, surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5, electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2, immunity to voltage dips criteria A conforming to IEC 61000-4-29, radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3, 100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12, conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16, conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6, electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4 |
| User language | multi-language |
| Ambient air temperature for operation | -40-70 °C |
| Height | 140 mm |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Operating altitude | 2000 m |
| Depth | 140 mm |
| Width | 90 mm |
| Type of installation | outdoor in cabinet, indoor |
| Net weight | 0.55 kg |
| Standards | IEC 60255-27 |
| Product certifications | CE |
