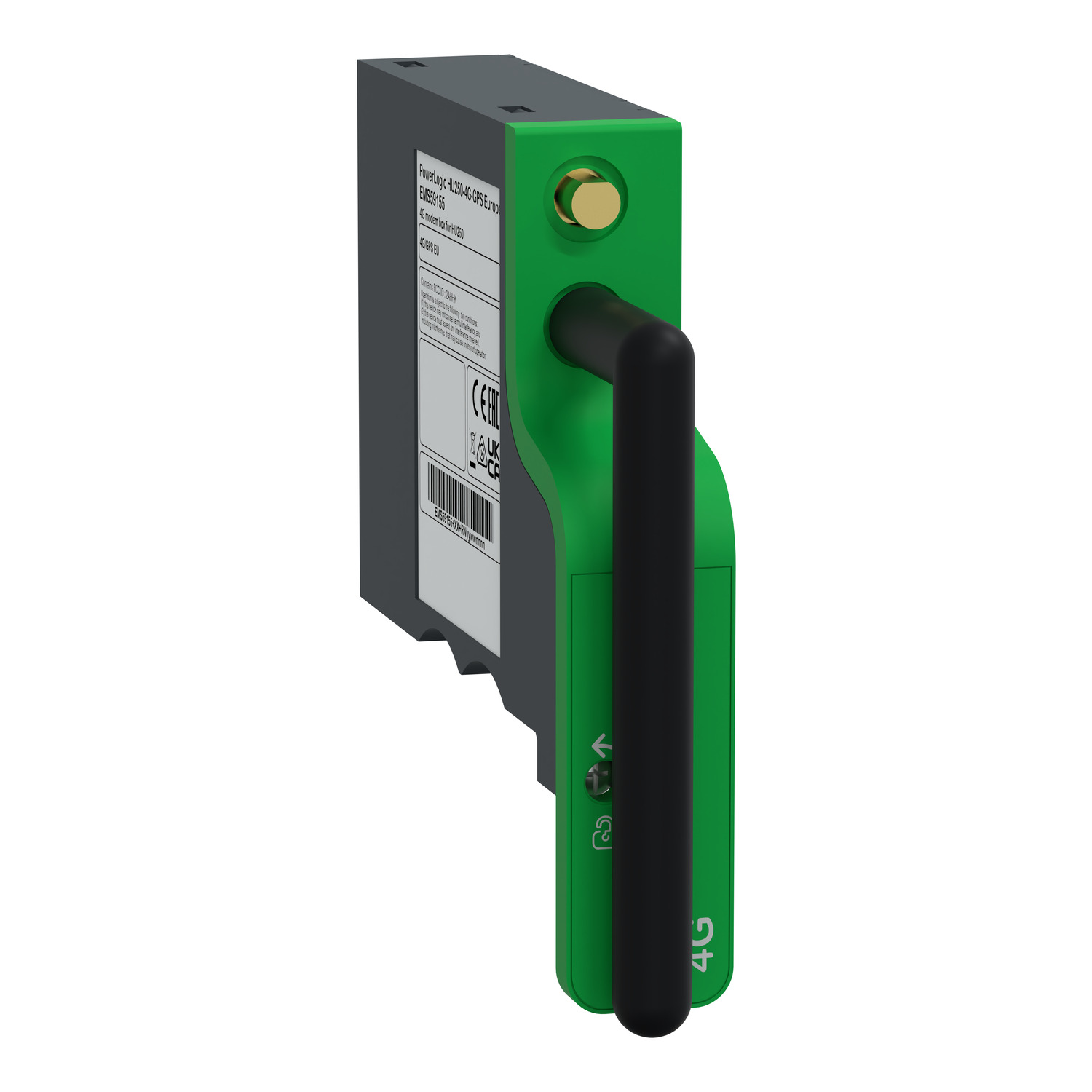

This standard modem box used for HU250 of the Easergy T300. The degree of protection is IK07. It complies with CE. The operating temperature is -40°C to + 85°C. The storage temperature is -40°C to + 85°C. Mechanical dimensions are 30 mm in height, 115 mm in width and 133 mm in depth.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | HU250-4G |
| Product or component type | modem communication interface |
| Range of product | PowerLogic T300 |
| Complementary | |
| Device application | GPS clock synchronisation |
| Type of modem | dual band: 900/1800 MHzGSM/GPRS/EDGE, tri FDD-band: 900/1800/2100 MHz (8, 3, 1) UMTS, penta FDD-band: 800/900/1800/2100/2600 MHz (20, 8, 3, 7, 1) LTE |
| Communication port protocol | TCP (Transmission Control Protocol), SSH, POP3, FTP, UDP (User Datagram Protocol), HTTP, SNMP, SMTP |
| Connector type | SMA |
| Communication service | data, SMS notifications |
| Environment | |
| Operating altitude | 2000 m |
| Depth | 133 mm |
| Width | 115 mm |
| Relative humidity | 95-95 % conforming to IEC 60068-2-30 |
| Ambient air temperature for storage | -40-85 °C |
| Fire resistance | 850 °C |
| Net weight | 0.105 kg |
| Ambient air temperature for operation | -40-85 °C |
| Height | 30 mm |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Product certifications | CE |
