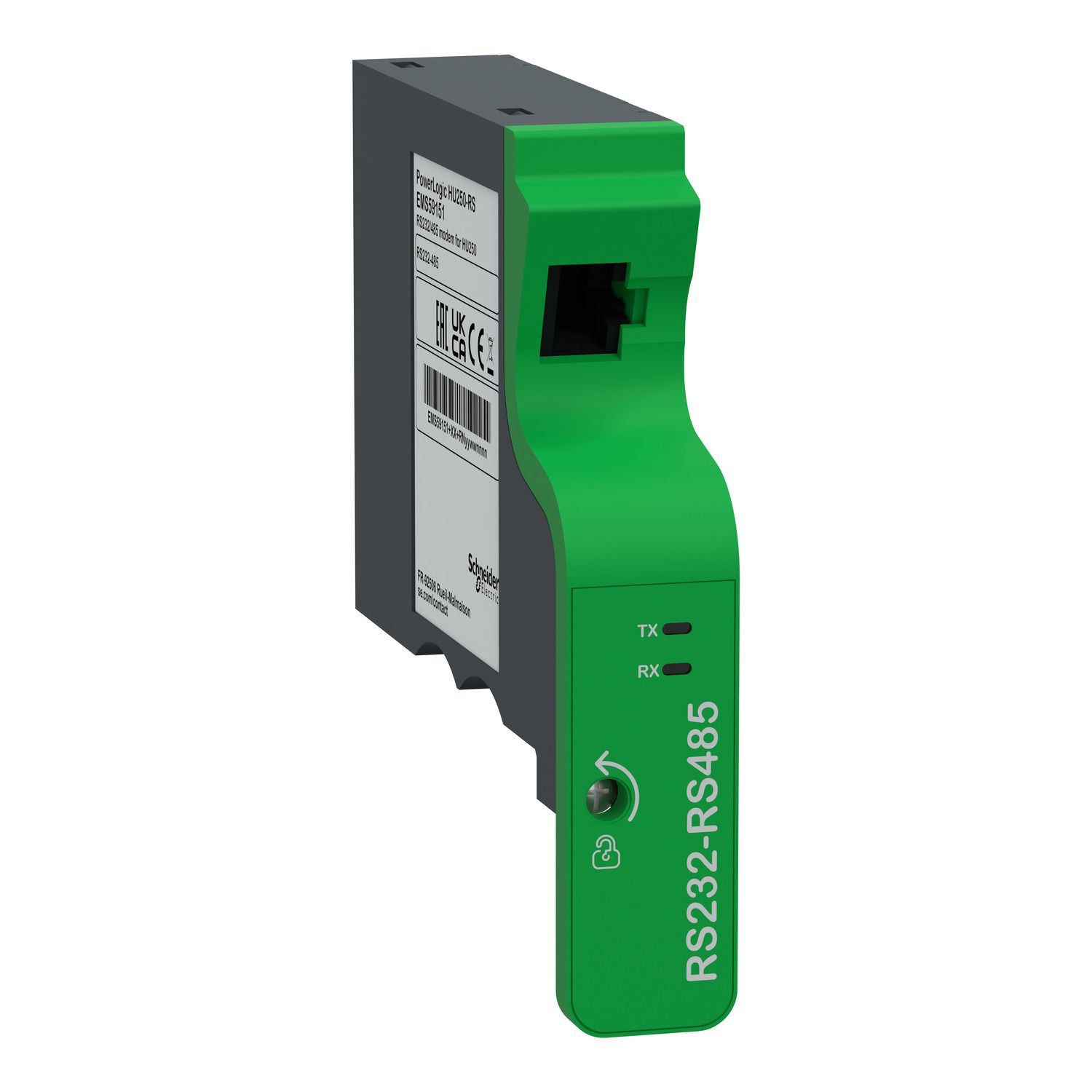

This communication modem box used for HU250 of the Easergy T300 The degree of protection is IK07. It complies with CE. The operating temperature is -40°C to + 85°C. The storage temperature is -40°C to + 85°C. Mechanical dimensions are 30 mm in height, 115 mm in width and 133 mm in depth.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | HU250-RS |
| Product or component type | modem communication interface |
| Range of product | PowerLogic T300 |
| Complementary | |
| Transmission rate | 38400 bit/s |
| Connector type | RJ45 |
| Communication port support | RS232, RS422, RS485 |
| Environment | |
| Operating altitude | 2000 m |
| Depth | 133 mm |
| Width | 115 mm |
| Relative humidity | 95-95 % conforming to IEC 60068-2-30 |
| Ambient air temperature for storage | -40-85 °C |
| Fire resistance | 850 °C |
| Net weight | 0.105 kg |
| Ambient air temperature for operation | -40-85 °C |
| Height | 30 mm |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Product certifications | CE |
Only registered users can write reviews
Related products

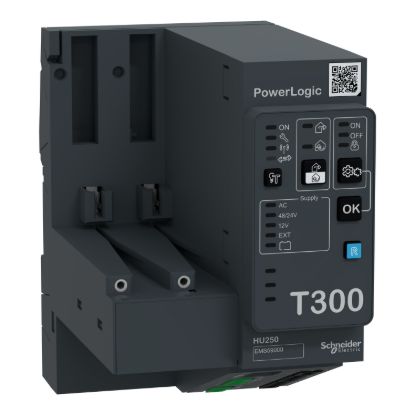

PowerLogic HU250: Head Unit communication gateway with cyber security management
