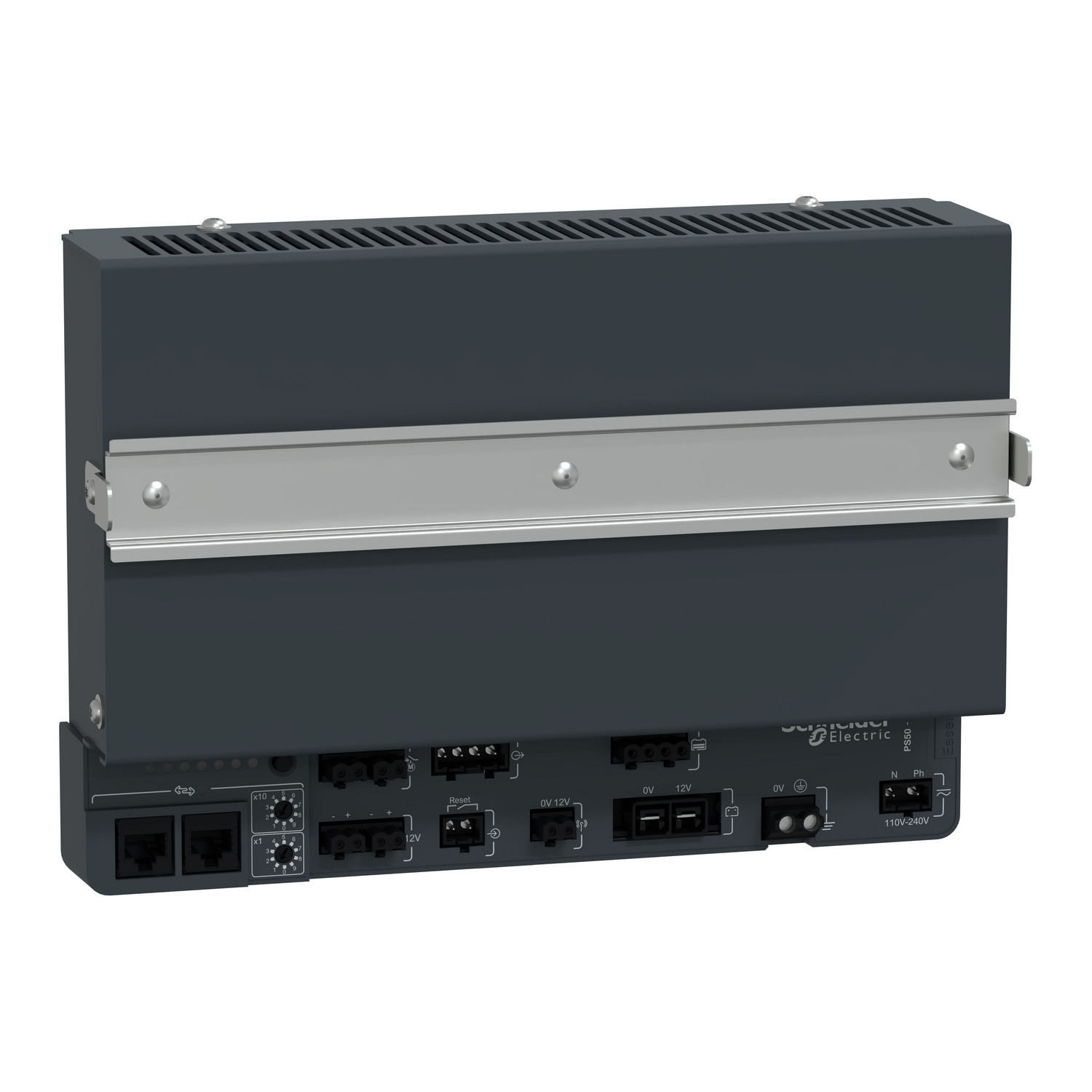

Easergy PS50-24V: Power supply and battery charger 12V and 24V outputs

Manufacturer: Schneider Electric

SKU: EMS58587

GTIN: 3606480802539

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $5,848.34 inc GST

Price: $4,737.16 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

The Easergy T300 backup power supplies are designed for long power supply interruption and to maintain control and monitoring of the entire MV substation during outages. Designed for 50Hz or 60Hz networks, supply voltage can range from 110 to 220VDAC or 90 to 264VAC. This product can be installed on DIN rail. The operating temperature is -40°C to + 70°C. The storage temperature is -40°C to + 70°C. This device has 1 digital relay output for battery fault signalling, and 1 digital relay output for main presence. Complient to standards IEC 60255-27, CE certification. Communication enabled with a RS485 serial port and the Modbus port protocol. Mechanical dimensions are 190 mm in height, 270 mm in width and 71 mm in depth.

Products specifications

Attribute name	Attribute value
Main
Device short name	PS50
Range of product	Easergy T300
Complementary

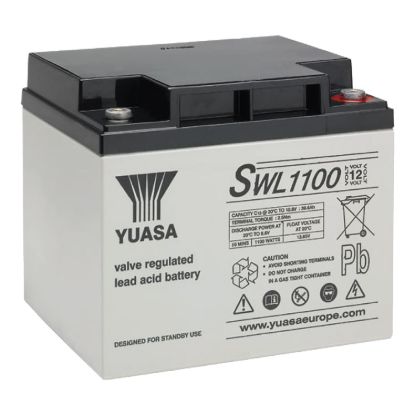

Product compatibility	BAT24AH, BAT38AH
Battery capacity	38 Ah at 12 V, lead-acid battery, 24 Ah at 12 V, lead-acid battery
Protection type	against short-circuits, integrated thermal protection
Surge withstand	20 kV during 1.2/50 µs
Input voltage limits	440 V AC/DC (L-N)
Communication port protocol	Modbus
[Us] rated supply voltage	110...240 V AC 50/60 Hz, 110...240 V DC
Rated short-duration power frequency withstand voltage	10 kV at 50 Hz during 1 min
Communication port support	RS485
Charging time	24 h
Autonomy	16 h
Product or component type	power supply
Number of outputs	1 digital (relay) main presence: , 1 digital (relay) battery fault (BAT):
Output voltage	24 V DC, 12 V DC
Environment
Operating altitude	2000 m
Depth	71 mm
Overvoltage category	IV
Width	270 mm
Operating position	vertical
Mechanical robustness	shocks 10 gn 11 ms 3 pulses in operation conforming to IEC 60068-2-27, bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29, vibrations 10-2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6
Relative humidity	5-95 % conforming to IEC 60068-2-30
Ambient air temperature for storage	-40-70 °C
IP degree of protection	IP20 conforming to IEC 60529
Net weight	2.75 kg
Electromagnetic compatibility	magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8, surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5, electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2, immunity to voltage dips criteria A conforming to IEC 61000-4-29, radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3, 100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12, conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16, conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6, conducted and radiated emissions class A conforming to EN 55022, electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4
Ambient air temperature for operation	-40-70 °C
Mounting support	DIN rail
Standards	IEC 60255-27
Height	190 mm
IK degree of protection	IK07 conforming to IEC 62262
Product certifications	CE
