This adaptor Easergy T300 is required for voltage sensor used with SC150 module. The Un rated voltage is 11 to 36 Kv. It include 3 RJ45 inputs, and RJ45 communication port for output. Complient to standards IEC 60044-7, CE certification. The operating and storage temperature is -40°C to + 85°C. Mechanical dimensions are 40 mm in height, 40 mm in width and 95 mm in length.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | hub connector |
| Range of product | PowerLogic T300 |
| Complementary | |
| Rated voltage | 11-36 kV |
| Input voltage | < 10 V |
| Input voltage limits | < 30 V |
| Electrical connection | input: 3 connector RJ45, output: connector RJ45 |
| Network frequency | 50/60 Hz |
| Environment | |
| Operating altitude | <= 2000 m |
| Width | 40 mm |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 95-95 % conforming to IEC 60068-2-30 |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP30 conforming to IEC 60529 |
| Net weight | 0.25 kg |
| Length | 95 mm |
| Environmental characteristic | salt mist: 200 h conforming to IEC 60068-2-11 |
| Mounting support | DIN rail |
| Standards | IEC 60044-7 |
| Ambient air temperature for operation | -40-85 °C |
| Height | 40 mm |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Product certifications | CE |
Only registered users can write reviews
Related products

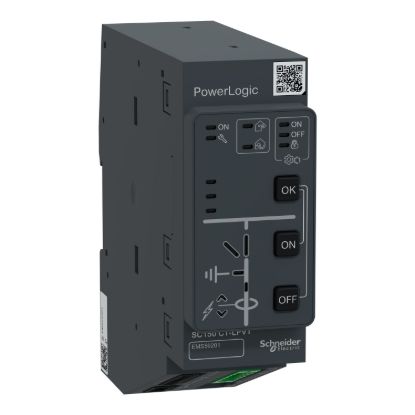

PowerLogic SC150 CT-LPVT/VT: Switch controller, 1/5 A, LPVT/VT sensors
