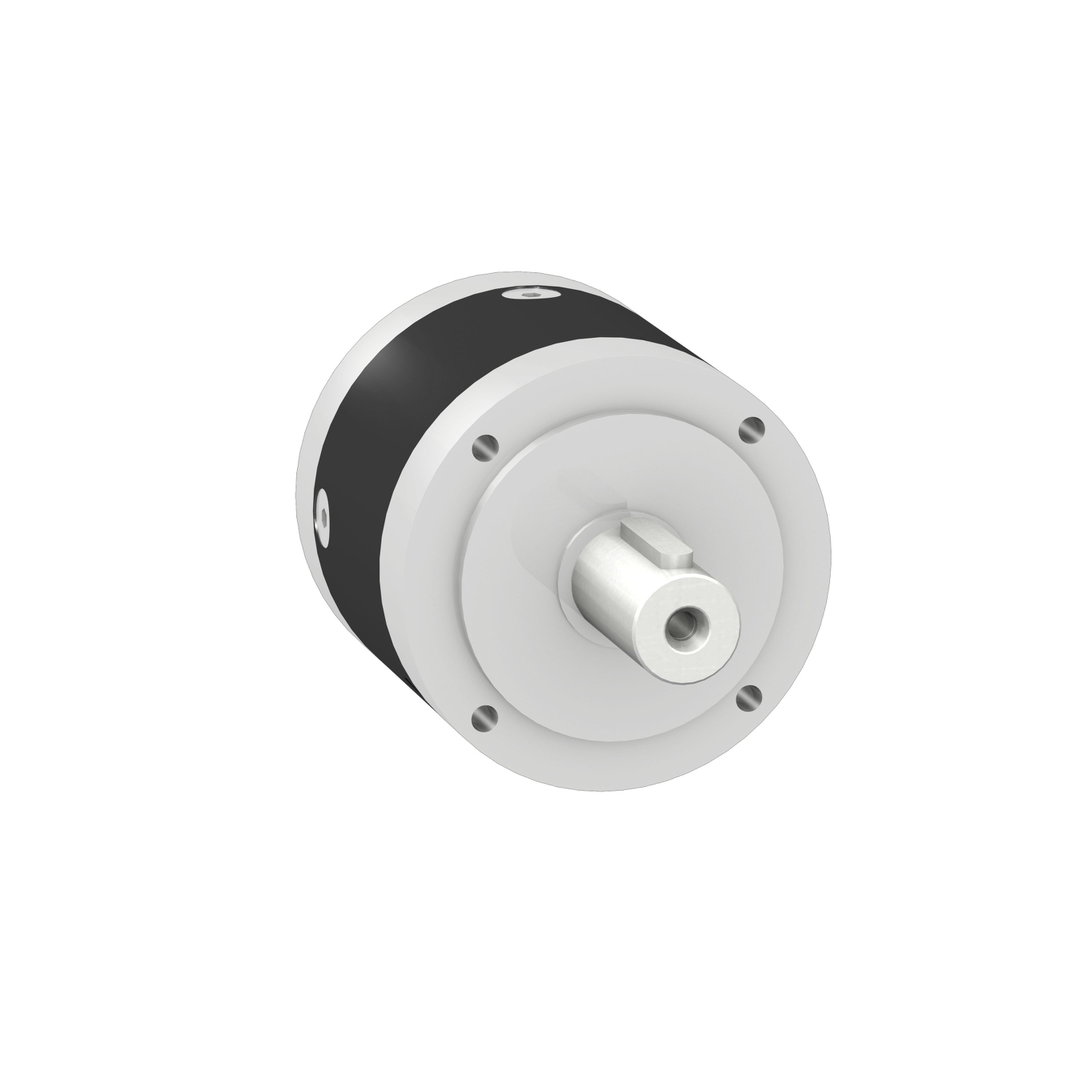

This product is part of the Lexium range, an offer of motion servo drives and servo motors. This planetary gearbox has straight teeth, lubricated for life. The gearbox external diameter is 60mm. It is a gearbox with a reduction ratio of 12/1, maximum axial force (Fa) of 450N at 100RPM and continuous output torque of 44N.m at 100RPM at 30°C. It offers service life of about 30000h at 100RPM at 30°C. It is an IP54 rated product. The enclosure is made of black anodized aluminium. It weighs 1.1kg. This product is compatible with servo motors and Lexium servo drives. It can be mounted in any position. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GBX |
| Range compatibility | Lexium SD3, Lexium 52, Lexium 28, Lexium 62 ILM, Lexium 32, Lexium 62, Lexium ILS, Lexium ILA, Lexium ILE |
| Gearbox external diameter | 60 mm |
| Gear box type | straight teeth |
| Product compatibility | ILM, MH3, SH3, BCH2 (60 mm, 2 motor stacks), BCH2 (60 mm, 1 motor stacks), ILS (57 mm, 3 motor stacks), ILS (57 mm, 2 motor stacks), ILS (57 mm, 1 motor stacks), ILA (57 mm, 2 motor stacks), ILA (57 mm, 1 motor stacks), ILE (66 mm, 2 motor stacks), ILE (66 mm, 1 motor stacks), BRS3, BSH (70 mm, 2 motor stacks), BSH (70 mm, 1 motor stacks), BSH (55 mm, 3 motor stacks), BSH (55 mm, 2 motor stacks), BSH (55 mm, 1 motor stacks), BMH (70 mm, 2 motor stacks), BMH (70 mm, 1 motor stacks) |
| Product or component type | planetary gearbox |
| Reduction ratio | 12:1 |
| Complementary | |
| Maximum axial force Fa | 450 N at 100 rpm, during 30000 hour at 30°C |
| Reduction ratio | 12 |
| Continuous output torque | 44 N.m at 100 rpm at 30 °C |
| Mounting position | any position |
| Housing material | black anodized aluminium |
| Additional information | lubricated for life |
| Compatibility code | GBX |
| Service life in hours | 30000 h at 100 rpm at 30 °C |
| Internal diameter | 14.0 mm |
| Maximum torsional backlash | 12 arc.min |
| Maximum output torque | 70 N.m at 100 rpm at 30 °C |
| Shaft material | C 45 |
| Net weight | 1.1 kg |
| Length | 67.5 mm |
| Shaft moment of inertia | 0.127 kg.cm² |
| Efficiency | 94 % |
| No load running torque | 0.05 N.m |
| Maximum radial force Fr | 340 N at 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C |
| Torsional rigidity | 2.5 N.m/arcmin |
| Housing colour | black |
| Environment | |
| IP degree of protection | shaft output: IP54 |
| Noise level | 58 dB at 1 m, no-load |
| Ambient air temperature for operation | -25-90 °C |
