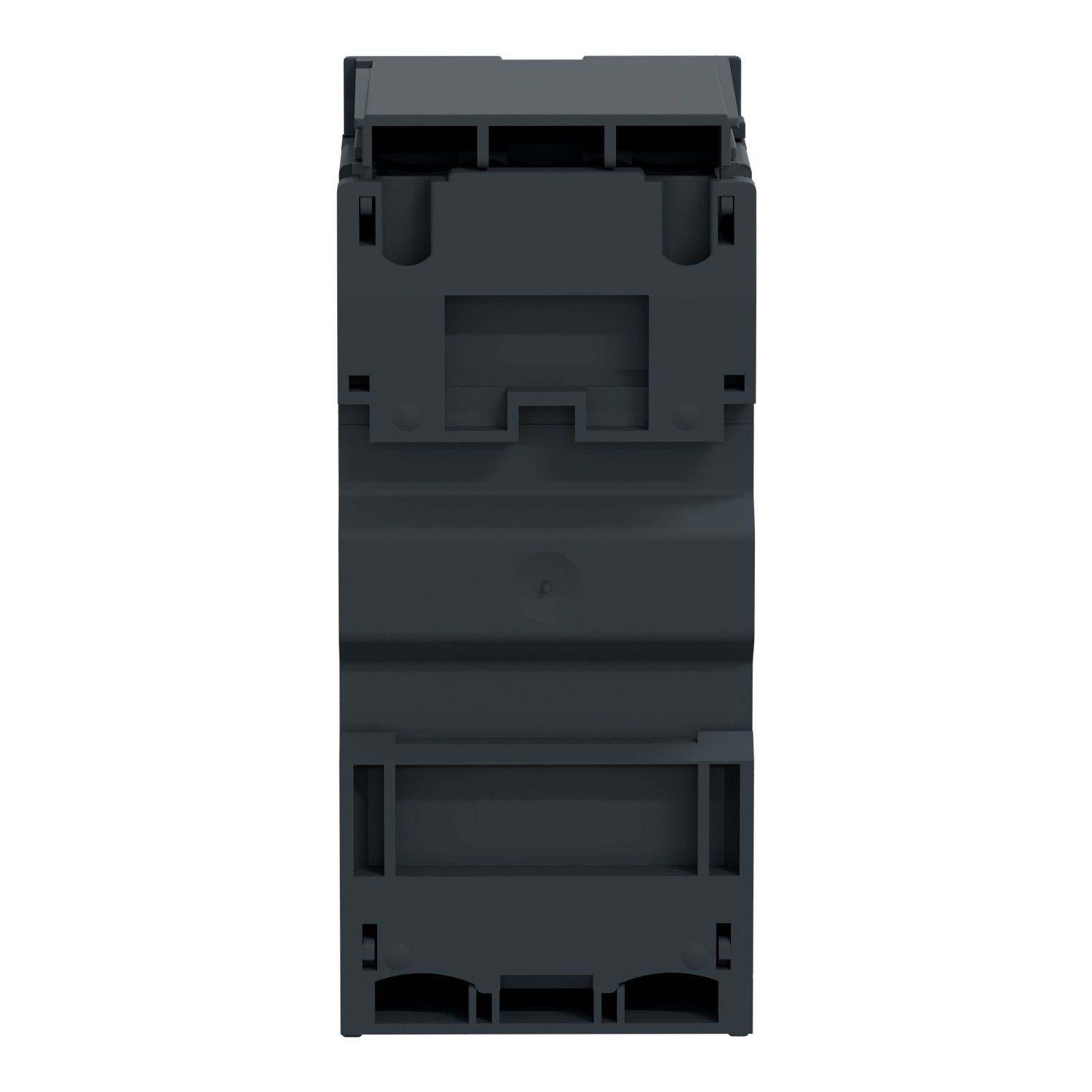

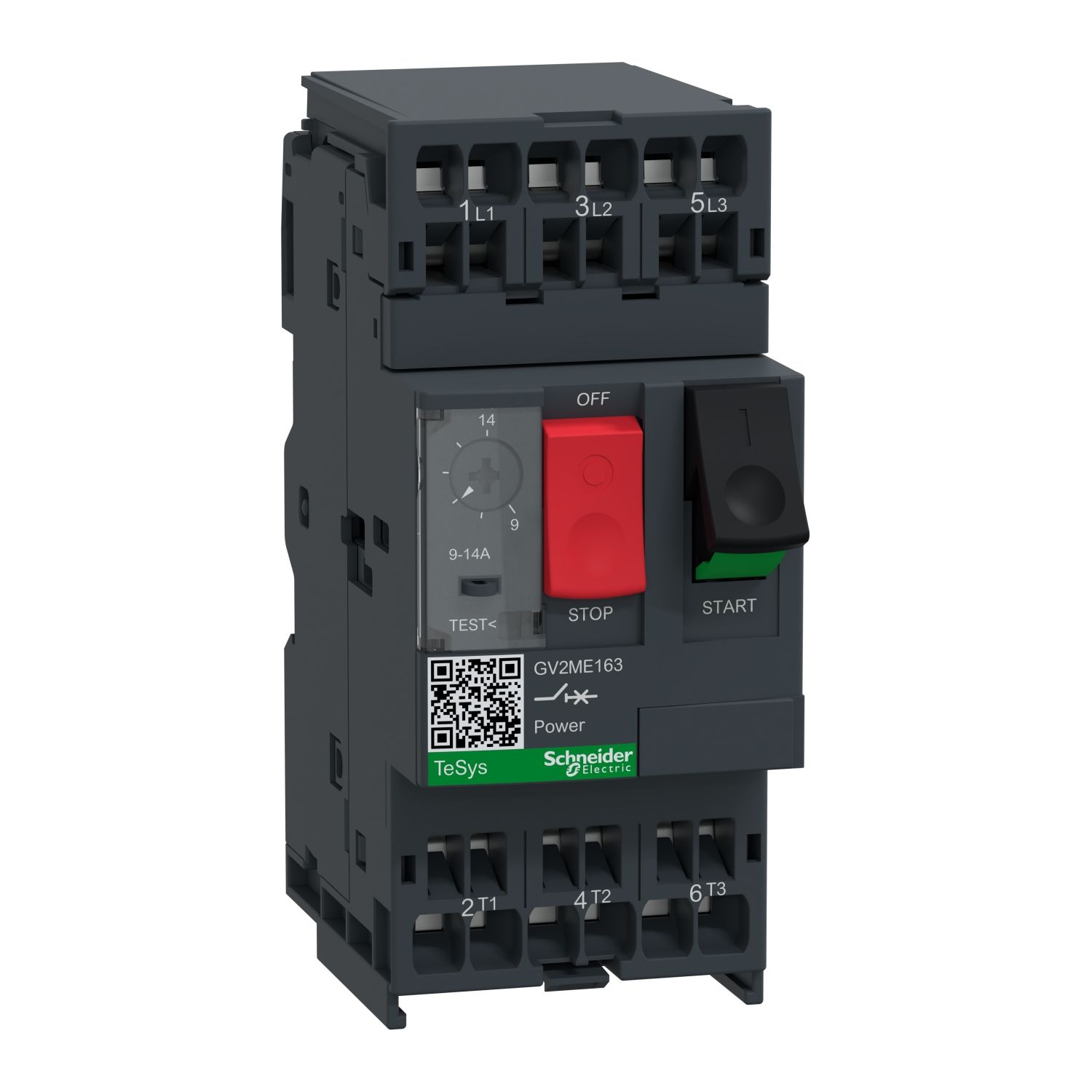

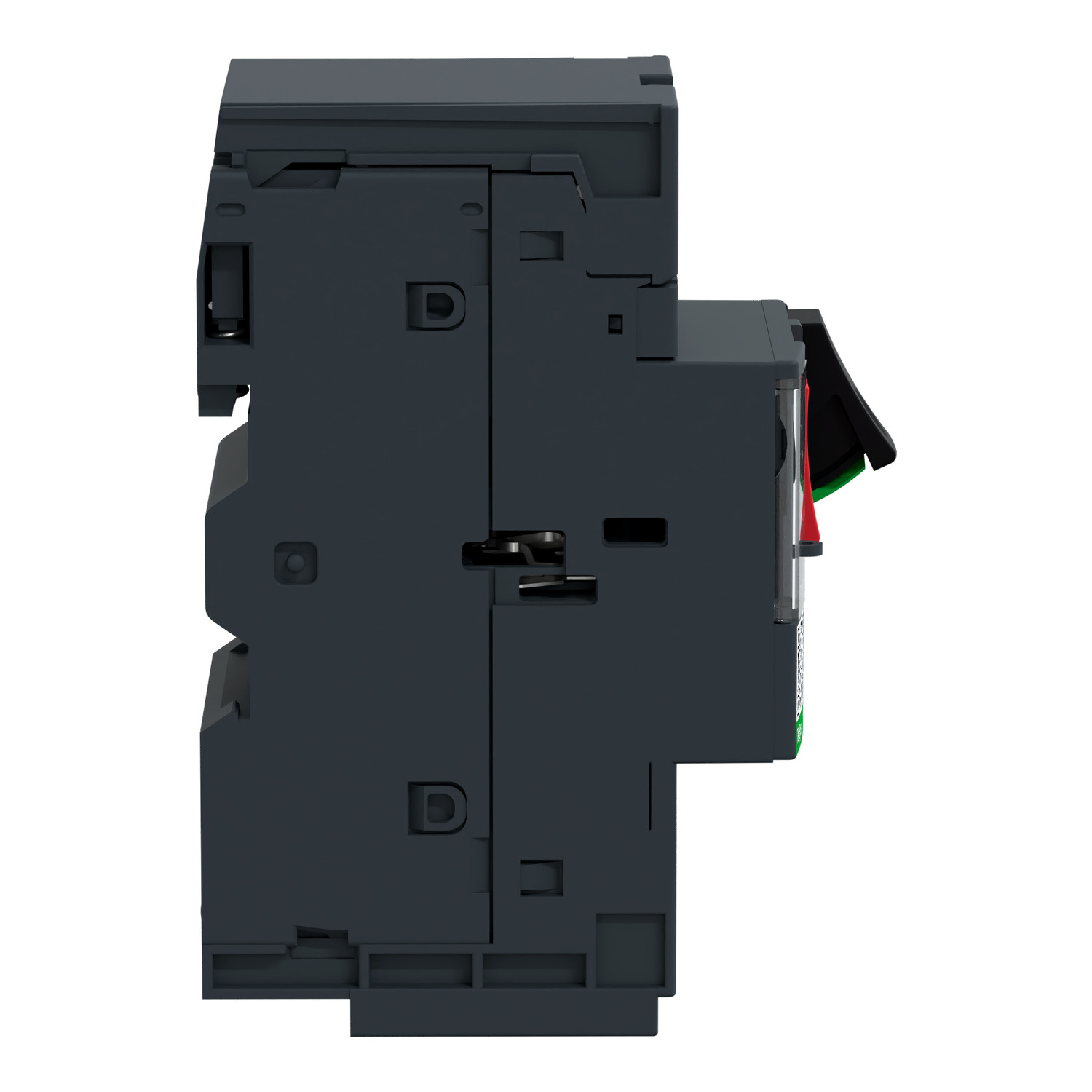

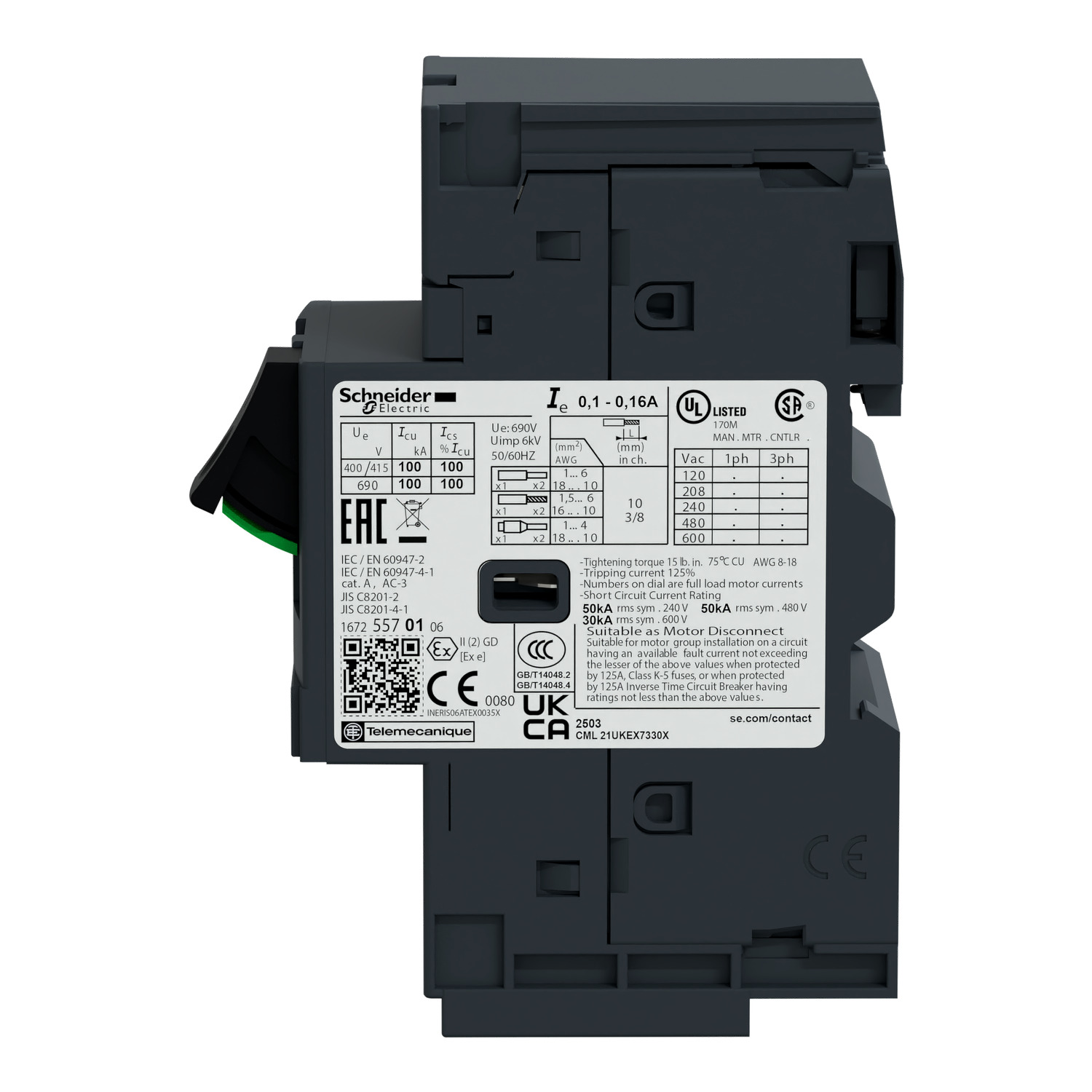

TeSys GV motor circuit breaker, 3 poles (3P), 14A/690V, for 3-phase motor applications 5.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 9-14A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | motor protection |
| Trip unit technology | thermal-magnetic |
| Device short name | GV2ME |
| Range | TeSys Deca |
| Range of product | TeSys GV2 |
| Product name | TeSys Deca, TeSys GV2 |
| Product or component type | motor circuit breaker |
| Complementary | |
| Compatibility code | GV2ME |
| Suitability for isolation | yes conforming to IEC 60947-1 § 7-1-6 |
| Electrical durability | 100000 cycles for AC-3e at 415 V In, 100000 cycles for AC-3 at 415 V In |
| Power dissipation per pole | 2.5 W |
| [Ics] rated service short-circuit breaking capacity | 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2, 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Height | 101 mm |
| Thermal protection adjustment range | 9-14 A conforming to IEC 60947-4-1 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Net weight | 0.28 kg |
| [Ith] conventional free air thermal current | 14 A conforming to IEC 60947-4-1 |
| Network type | AC |
| Rated duty | continuous conforming to IEC 60947-4-1 |
| Colour | dark grey |
| Mechanical durability | 100000 cycles |
| Breaking capacity | 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2, 6 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 8 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | push-button |
| Fixing mode | panel: screwed (with adaptor plate), 35 mm symmetrical DIN rail: clipped |
| Maximum operating rate | 25 cyc/h |
| Magnetic tripping current | 170-170 A |
| Phase failure sensitivity | yes conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Depth | 78.5 mm |
| Width | 45 mm |
| Poles description | 3P |
| Direct connector | without |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Utilisation category | AC-3e conforming to IEC 60947-4-1, AC-3 conforming to IEC 60947-4-1, category A conforming to IEC 60947-2 |
| Motor power kW | 7.5-7.5 kW at 500 V AC 50/60 Hz, 5.5-5.5 kW at 400/415 V AC 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [In] rated current | 14 A |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for storage | -40-80 °C |
| Climatic withstand | conforming to IACS E10 |
| Ambient air temperature for operation | -20-60 °C |
| Operating altitude | 2000 m |
| Product certifications | UKCA, DNV-GL, RINA, BV, LROS (Lloyds register of shipping), ATEX, EAC, CSA, UL, CCC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mechanical robustness | vibrations: 5 Gn, 5...150 Hz, shocks: 30 Gn for 11 ms |
| IK degree of protection | IK04 |
| Standards | EN/IEC 60947-4-1, EN/IEC 60947-2 |
