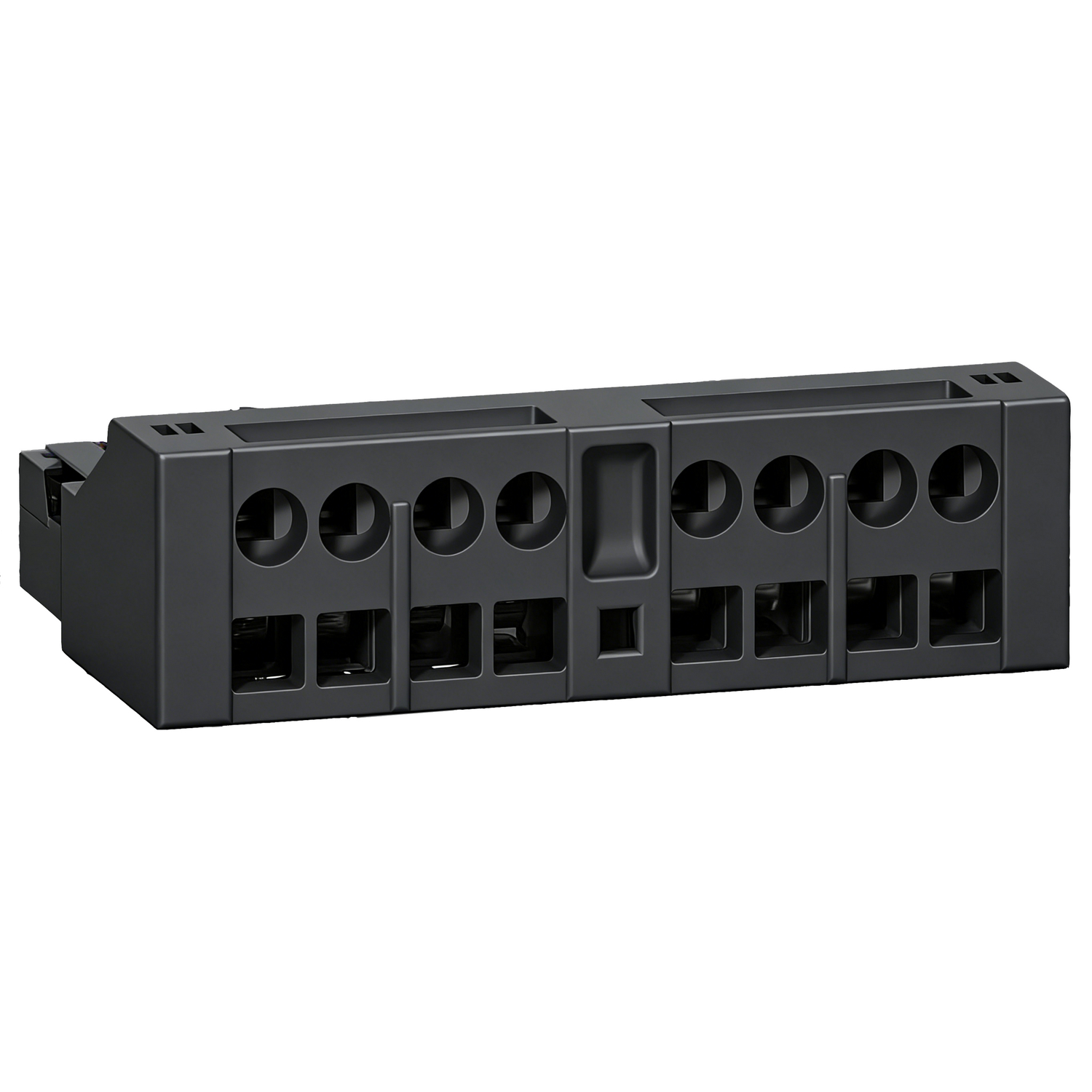

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 2NO instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by spring terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GVAE |
| Product compatibility | GV2ME, LS1D323, GV3L, GV2LE, GV3P, GV2RT, GV2P, GV2L |
| Quantity per set | set of 10 |
| Pole contact composition | 2 NO |
| Mounting location | front side |
| Range | TeSys Deca, TeSys |
| Product or component type | auxiliary contact block |
| Range of product | TeSys Deca, TeSys GV2, TeSys GV3 |
| Complementary | |
| Rated operational power in W | 9 W at 60 V DC-13 - electrical durability: 100000 cycles, 24 W at 24 V DC-13 - electrical durability: 100000 cycles, 15 W at 48 V DC-13 - electrical durability: 100000 cycles |
| Depth | 31.5 mm |
| Width | 44.5 mm |
| Colour | dark grey |
| Compatibility code | GVAE |
| Mechanical durability | 100000 cycles |
| Rated operational power in VA | 60 VA at 48-48 V AC-15 - electrical durability: 100000 cycles, 48 VA at 24-24 V AC-15 - electrical durability: 100000 cycles, 120 VA at 230-240 V AC-15 - electrical durability: 100000 cycles, 120 VA at 110-120 V AC-15 - electrical durability: 100000 cycles |
| Minimum switching voltage | 17 V |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1, 300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508 |
| Net weight | 0.05 kg |
| Protection type | GB2CB06 circuit breaker 10 A, gG fuse 10 A |
| [Ue] rated operational voltage | 24...60 V DC, 24...240 V AC |
| [Ith] conventional free air thermal current | 2.5 A |
| Height | 13 mm |
| Minimum switching current | 5 mA |
| Environment | |
| Environmental characteristic | normal environment |
| Product certifications | UKCA |
Only registered users can write reviews
Related products
Motor circuit breaker, TeSys Deca, 3P, 0.63 to 1A, thermal magnetic, spring terminals
GV2ME053
Motor circuit breaker, TeSys Deca, 3P, 0.63 to 1A, thermal magnetic, spring terminals
$259.05 inc GST
$102.82 inc GST

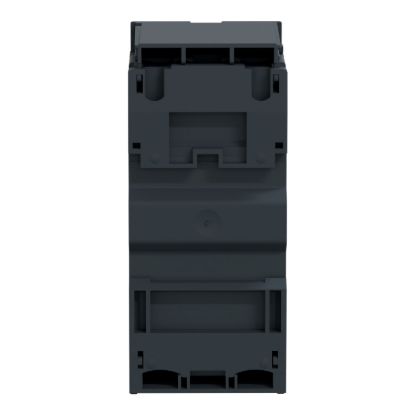

Motor circuit breaker, TeSys Deca, 3P, 1 to 1.6A, thermal magnetic, spring terminals
GV2ME063
Motor circuit breaker, TeSys Deca, 3P, 1 to 1.6A, thermal magnetic, spring terminals
$259.05 inc GST
$102.82 inc GST

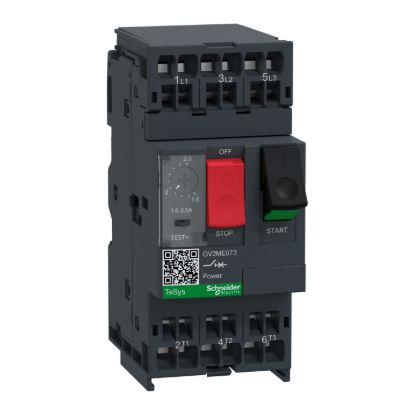

Motor circuit breaker, TeSys Deca, 3P, 1.6 to 2.5A, thermal magnetic, spring terminals
GV2ME073
Motor circuit breaker, TeSys Deca, 3P, 1.6 to 2.5A, thermal magnetic, spring terminals
$259.05 inc GST
$102.82 inc GST
Motor circuit breaker, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, spring terminals
GV2ME083
Motor circuit breaker, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, spring terminals
$259.05 inc GST
$102.82 inc GST
Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, spring terminals
GV2ME103
Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, spring terminals
$259.05 inc GST
$102.82 inc GST
Motor circuit breaker, TeSys Deca, 3P, 9 to 14A, thermal magnetic, spring terminals
GV2ME163
Motor circuit breaker, TeSys Deca, 3P, 9 to 14A, thermal magnetic, spring terminals
$312.40 inc GST
$123.99 inc GST
Motor circuit breaker,TeSys Deca frame 2,3P,0.25-0.4A,thermal magnetic,push button,spring terminals
GV2ME033
Motor circuit breaker,TeSys Deca frame 2,3P,0.25-0.4A,thermal magnetic,push button,spring terminals
$239.80 inc GST
$95.18 inc GST
Motor circuit breaker,TeSys Deca frame 2,3P,0.4-0.63A,thermal magnetic,push button,spring terminals
GV2ME043
Motor circuit breaker,TeSys Deca frame 2,3P,0.4-0.63A,thermal magnetic,push button,spring terminals
$239.80 inc GST
$95.18 inc GST
Motor circuit breaker,TeSys Deca frame 2,3P,13-18A,thermal magnetic,push button,spring terminals
GV2ME203
Motor circuit breaker,TeSys Deca frame 2,3P,13-18A,thermal magnetic,push button,spring terminals
$312.40 inc GST
$123.99 inc GST
Motor circuit breaker,TeSys Deca frame 2,3P,17-23A,thermal magnetic,push button,spring terminals
GV2ME213
Motor circuit breaker,TeSys Deca frame 2,3P,17-23A,thermal magnetic,push button,spring terminals
$350.90 inc GST
$139.27 inc GST

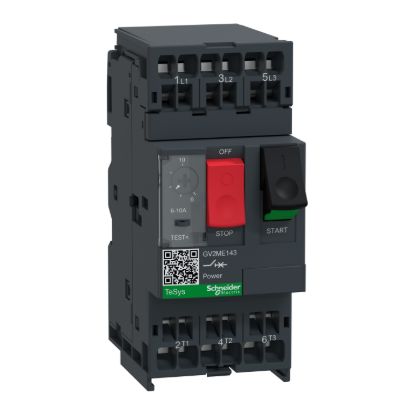

Motor circuit breaker,TeSys Deca frame 2,3P,6-10A,thermal magnetic,push button,spring terminals
